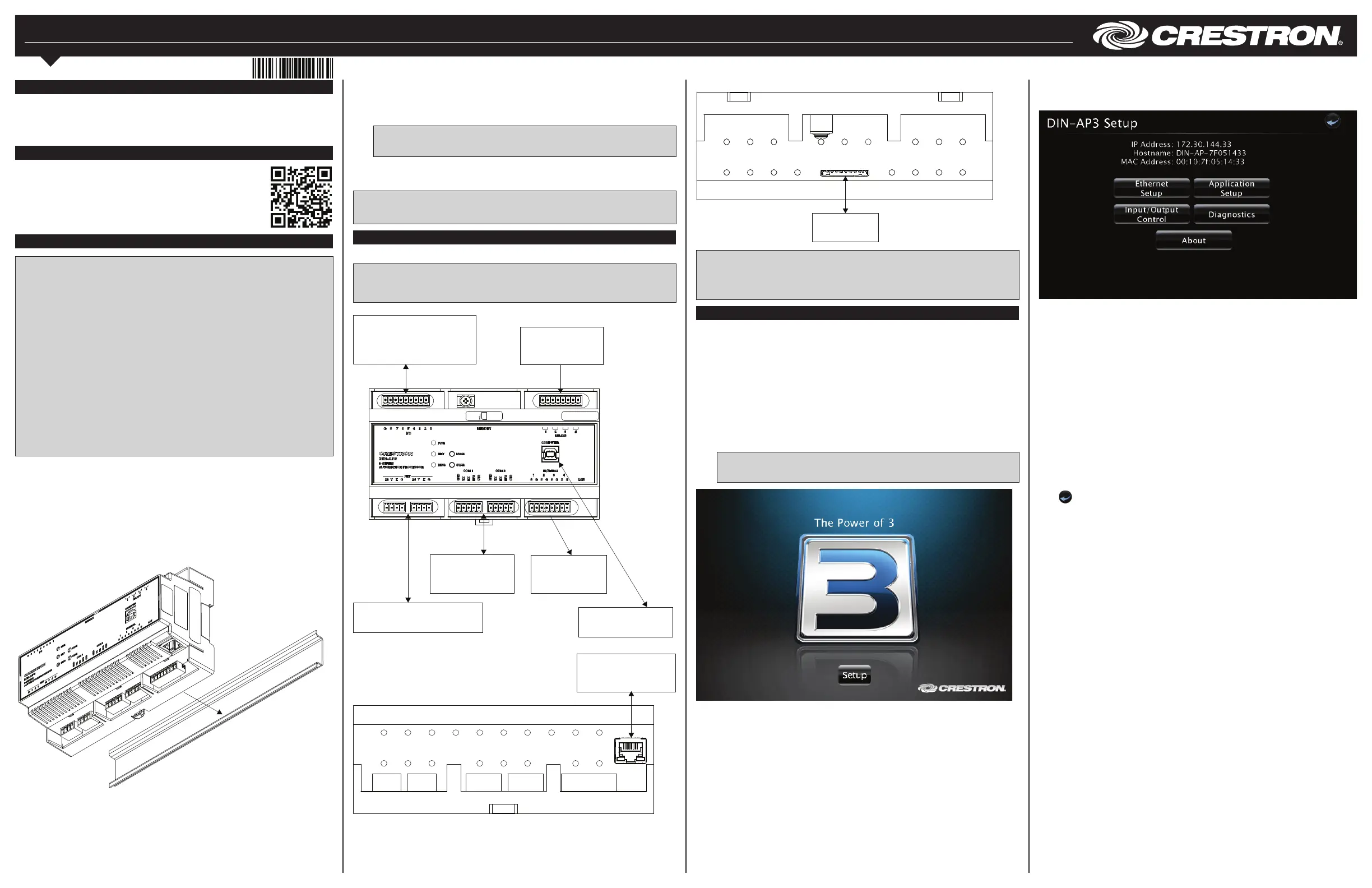

DIN-AP3

DIN Rail 3-Series® Automation Processor

Installation and Operations Guide

Hardware Hookup

Make the necessary connections, and apply power after all connections have been made.

NOTE: When making connections to the DIN-AP3, observe the following points:

• Use Crestron power supplies for Crestron equipment.

• The included cable cannot be extended.

Hardware Connections for the DIN-AP3 (Front View)

Description

The Crestron® DIN-AP3 is a 3-Series Control System® automation processor designed for

DIN rail mounting. Featuring the 3-Series control engine, the DIN-AP3 forms the core of

any modern networked home or commercial building, managing and integrating all the

disparate technologies throughout the facility.

Installation

CAUTION: The DIN-AP3 is for indoor use only. Mount in a well-ventilated area. The

ambient temperature must be 32ºF to 104ºF (0ºC to 40ºC). The relative humidity must be

10% to 90% (noncondensing).

CAUTION: To prevent overheating, do not operate this product in an area that exceeds

the environmental temperature range listed on the product web page. Consider using

forced air ventilation to reduce overheating. Also use consideration if installing in a

closed or multiunit rack assembly, since the operating ambient temperature of the

environment may be greater than the room ambient temperature. Contact with thermal

insulating materials should be avoided on all sides of the unit.

NOTES: Observe the following points:

• When installing the DIN-AP3 in an enclosure, group high-voltage devices separately

from low-voltage devices.

• Install and use the DIN-AP3 in accordance with appropriate electrical codes and

regulations.

• A licensed electrician must install the DIN-AP3.

NOTE: Before using the DIN-AP3, ensure the device is using the latest rmware. Check

for the latest rmware for the DIN-AP3 at www.crestron.com/rmware. Firmware is

loaded onto the device using Crestron Toolbox™ software.

Preparing and Connecting Wires

When making the connections, strip the ends of the wires approximately 7/16 in (11 mm).

Use care to avoid nicking the conductors. Tighten the connector to 5 in-lb

(0.5 to 0.6 N-m). The wire gauge should be 14 to 26 AWG.

Installing the DIN-AP3

The DIN-AP3 should be used in a well-ventilated area. The venting holes should not be

obstructed under any circumstances.

The DIN-AP3 is designed for installation on a DIN rail. Refer to the diagram when installing.

Installing the DIN-AP3

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)

for additional information and the latest rmware updates. Use a QR

reader application on your mobile device to scan the QR image.

I/O (G, 8—1):

To Controllable Devices

From Device Outputs (Contact

Closure or Relay Closure)

RELAY (1—4):

To Controllable

Devices

IR/SERIAL (1—4):

To IRP2 or Serial

Devices

COMPUTER:

To Computer Console

COM (1—2):

To RS-232/422/485

Devices

NET (24 Y Z G):

To Any Cresnet® Network Device

Hardware Connections for the DIN-AP3 (Bottom View)

LAN:

10Base-T/100Base-Tx

Ethernet to LAN

Hardware Connections for the DIN-AP3 (Top View)

Memory:

For SD Card

NOTE: Ensure the unit is properly grounded by connecting the chassis ground lug to an

earth ground (building steel).

NOTE: To prevent overheating, do not operate this product in an area that exceeds the

environmental temperature range stated earlier.

Install the DIN-AP3:

1. Use a at object (e.g., a at-head screwdriver) to pull the DIN rail release downward.

2. Place the top of the DIN-AP3’s rail mount over the top of the DIN rail.

3. Tilt the bottom of the DIN-AP3 toward the DIN rail until it snaps into place

NOTE: When mounting DIN rail products, it may be necessary to use a at-head

screwdriver to pull the DIN rail release tab while snapping the device onto the DIN

rail.

To remove the DIN-AP3 from the DIN rail, use a small, at object (e.g., a at-head

screwdriver) to pull the DIN rail release, and tilt the bottom of the DIN-AP3 away from the

DIN rail.

NOTE: Certain third-party DIN cabinets provide space for an informational label between

each DIN rail row. Crestron’s Engraver software (version 4.0 or later) can generate

appropriate labels for all Crestron DIN rail products.

Congure the Control System

The control system can be congured using Crestron Toolbox or the built-in, web-based

setup tool.

Crestron Toolbox

Use Crestron Toolbox to establish communication and congure the control system. For

details, refer to the Crestron Toolbox help le.

Web-Based Setup Tool

1. Use Crestron Toolbox to set the time zone. For details, refer to the Crestron Toolbox

help le.

2. Use the Internet Explorer® web browser to navigate to http://xxx.xx.xx.xxx/setup

where xxx.xx.xx.xxx is the IP address of the control system. The control system’s

welcome screen is displayed.

NOTE: The web-based setup tool is accessible only from Internet Explorer.

NOTE: If a security warning is displayed, click Install to continue.

3. Click Setup to display the DIN-AP3 setup menu. The DIN-AP3 setup menu displays

the IP address, hostname, and MAC address of the device. It also allows access to

various setup and programming screens.

4. From the DIN-AP3’s setup menu, click the following options to congure the control

system:

• Ethernet Setup congures the DIN-AP3’s Ethernet settings and displays DHCP,

hostname, IP address, subnet mask, default router, domain, and MAC address

settings. In the Ethernet setup menu, there are additional options:

• Click Advanced Settings to specify DNS servers, web server settings, and

SSL settings.

• Click MyCrestron Dynamic DNS to congure the myCrestron.com Dynamic

DNS service.

• Click Ethernet Diagnostics to test the Ethernet communications.

• Click Reboot to reboot the DIN-AP3.

• selects programs to be loaded on startup and controls which Application Setup

program(s) are running.

• congures the COM ports, operates the relays, and Input/Output Control

monitors the Versiports.

• displays information about the connected devices, hardware Diagnostics

conguration, and error logs.

• About displays rmware information.

Click to return to the previous screen.

As of the date of manufacture, the product has been tested and found to comply with specications

for CE marking.

This product is Listed to applicable UL

® Standards and requirements by Underwriters Laboratories

Inc.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

Crestron Electronics, Inc. Installation & Operations Guide - DOC. 7491C

15 Volvo Drive Rockleigh, NJ 07647 (2035917)

Tel: 888.CRESTRON 01.16

Fax: 201.767.7576 Specications subject to

www.crestron.com change without notice.

If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

Crestron software, including without limitation, product development software and product operating

system software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited

non-exclusive, non-transferable license pursuant to a separate end-user license agreement. The terms of

this end user license agreement can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specic patents that cover Crestron products are listed at patents.crestron.com.

Certain Crestron products contain open source software. For specic information, please visit

www.crestron.com/opensource.

Crestron, the Crestron logo, 3-Series, 3-Series Control System, Cresnet, and Crestron Toolbox are either

trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other

countries. UL and the UL logo are either trademarks or registered trademarks of Underwriters Laboratories,

Inc. in the United States and/or other countries. Internet Explorer is either a trademark or registered

trademark of Microsoft Corporation in the United States and/or other countries.

Troubleshooting

The following table provides corrective action for possible trouble situations. If further

assistance is required, please contact a Crestron customer service representative.

DIN-AP3 Troubleshooting

Other trademarks, registered trademarks, and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products. Crestron disclaims any

proprietary interest in the marks and names of others. Crestron is not responsible for errors in

typography or photography.

This document was written by the Technical Publications department at Crestron.

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

The device does not

function.

The device is not

communicating with the

network.

Use Crestron Toolbox to

poll the network. Verify

that the network is

connected to the device.

The device is not receiving

power from a Crestron

power supply.

Use the provided Crestron

power supply. Verify that

the connections are

correct and secure.

The device is not receiving

sufcient power.

Use the Cresnet® Power

Calculator to help

calculate how much

power is needed.

The MSG LED illuminates. There is a hardware or

software failure.

Verify that the hardware

conguration matches the

software conguration.

Use Crestron Toolbox to

display the error log.

The compilation errors

RLCMCVT166 and

RLCMCVT177 appear.

A poor analog versus

serial signal denition

exists in the SIMPL

Windows program.

Conrm that the signal

denition is properly

dened in the program.

The system locks up. There are various causes. Hold down the SW-R

button on the front panel

to bypass the program

and communicate directly

with the processor. Refer

to “Troubleshooting

Communications” in the

Crestron 3-Series Control

System Reference Guide

(Doc. 7150) at

www.crestron.com/

manuals for more details.

A Cresnet device does not

respond.

The device is not wired

correctly.

Verify that the Cresnet

wiring is correct and

secure.

An improper NET ID was

used.

Verify that the device ID

matches the NET ID in the

program.

There is a loss of

functionality due to

electrostatic discharge.

The device is improperly

grounded.

Check that all of the

ground connections have

been properly made.

The A/V system device

does not respond.

The IRP2 or SERIAL port

is not placed properly.

Verify the placement of

the IRP2 (hold phosphor

card under IRP2 while

pressing button), and

tighten serial cables.

The wrong IR/SERIAL port

was used.

Verify that the proper

IR/SERIAL port is dened.

The serial cable is not

wired correctly.

Verify that the serial cable

is wired correctly for

RS-232, -422, -485.

The device is not receiving

sufcient power.

Use the Cresnet Power

Calculator to help

calculate how much

power is needed.

Product specificaties

Merk:	Crestron
Categorie:	Niet gecategoriseerd
Model:	DIN-AP3
Gewicht:	277 g
Breedte:	160 mm
Diepte:	59 mm
Hoogte:	95 mm
Interne opslagcapaciteit:	4 GB
Aantal Ethernet LAN (RJ-45)-poorten:	1
Intern geheugen:	0.256 GB
RS-232 port:	2
Intern geheugentype:	DDR3 SDRAM
Opslagmedia-type:	Flash
Ethernet LAN, data-overdrachtsnelheden:	10, 100 Mbit/s
Bekabelingstechnologie:	10/100Base-T(X)
Ethernet interface type:	Fast Ethernet
Warmtedissipatie:	26 BTU/h
AC-ingangsspanning:	24 V
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	10 - 90 procent
