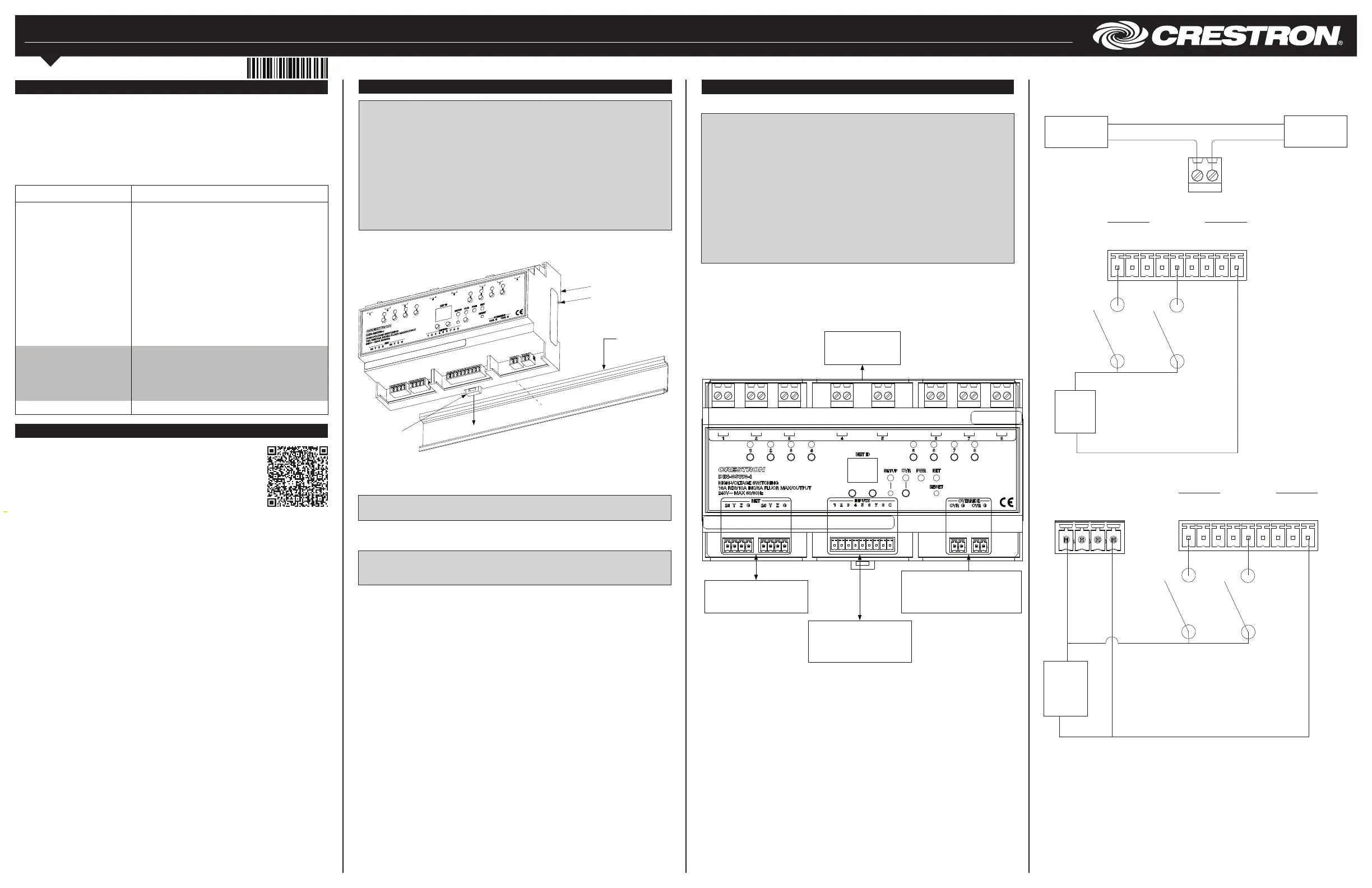

DIN-8SW8-I

DIN Rail High-Voltage Switch with Digital Inputs

Installation Guide

Hardware Hookup

Make the necessary connections. Apply power after all connections have been made.

WARNING: Prior to connecting the device, turn off the power at the circuit breaker.

Failure to do so may result in serious personal injury or damage to the device. Restore

the power after all connections have been made.

CAUTION: Connecting this device to the wrong type of load or short-circuiting the

load can cause severe product damage. Test each load to identify a short-circuit

condition prior to wiring the load to the module.

NOTE: Install in accordance with all local and national electric codes.

NOTE: High-voltage connections accept 12 AWG (2.5 mm

2) wire. Wire should be

stripped to 1/3 inch (8 mm). Tighten terminal blocks to 5 in-lbs (0.5 Nm).

NOTE: Use copper wire only. For high-voltage connections, use wire rated for at least

75ºC.

NOTE: Each switch leg of the DIN-8SW8-I may be fed from a separate circuit breaker.

When making Cresnet® (NET), INPUTS, and OVERRIDE connections, strip the ends of

the wires approximately 1/4 in (6 mm). Use care to avoid nicking the conductors. Twist

together the ends of the wires that share a connection. Apply solder only to the ends of

the twisted wires. Avoid tinning too far up the wires, or the end becomes brittle.

When making power connections to the DIN-8SW8-I, use a Crestron power supply.

Hardware Connections for the DIN-8SW8-I

Description

The Crestron® DIN-8SW8-I is an 8-channel lighting control module designed to support

switching of non-dimmable lighting and fans. In addition, the DIN-8SW8-I features eight

isolated digital inputs, allowing standard momentary switches to trigger events with or

without a control system. A single model supports both 120 and 220−240 volt

applications. Each channel handles incandescent loads up to 10 amps, uorescent loads

up to 5 amps, and also 1/2 HP motors. The DIN-8SW8-I may not be compatible with

some high inrush current loads.

DIN-8SW8-I Specications

Installation

WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker or

fuse and test that power is off before wiring!

CAUTION: This equipment is for indoor use only. Mount in a well-ventilated area. The

ambient temperature must be 32º to 104ºF (0º to 40ºC). The relative humidity must be

10% to 90% (non-condensing).

NOTES: Observe the following points:

• When installing in an enclosure, group high-voltage devices separately from

low-voltage devices.

• Install and use this product in accordance with appropriate electrical codes and

regulations.

• A licensed electrician must install this product.

The DIN-8SW8-I is designed for installation on a DIN rail. Refer to the following diagram

when installing.

Installing the DIN-8SW8-I

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)

for additional information and the latest rmware updates. Use a QR

reader application on your mobile device to scan the QR image. Install the DIN-8SW8-I.

1. Place the top of the DIN-8SW8-I’s rail mount over the top of the DIN rail.

2. Tilt the bottom of the DIN-8SW8-I toward the DIN rail until it snaps into place.

NOTE: It may be necessary to use a at-head screwdriver to pull the DIN rail release

tab while snapping the device onto the DIN rail.

To remove the DIN-8SW8-I from the DIN rail, use a small, at object (i.e., a at-head

screwdriver) to pull the DIN rail release, and tilt the bottom of the DIN-8SW8-I away from

the DIN rail.

NOTE: Certain third-party DIN cabinets provide space for an informational label

between each DIN rail row. Crestron’s Engraver software (version 4.0 or later) can

generate appropriate labels for all Crestron DIN rail products.

INPUTS:

Connections from

Switches and Other

Control Devices

OVERRIDE:

From Device Providing Override

Signal and to Other Devices

Receiving Override Signal

1 to 8:

Connections for

Controlled Devices

NET:

To Control System and

Other Cresnet Devices

With the circuit breaker turned off, connect the wires to the terminal blocks per the

markings provided on the DIN-8SW8-I.

Load Connection Example for the DIN-8SW8-I

120/240 Volts

From Breaker

120/240 Volts

Load

Neutral

Line

DIN-8SW8-I

DIN Rail

(Not Supplied)

DIN Rail

Release

Top

1 2 34 5 6 7 8 C

INPUTS

Momentary

Switches

12 to 24 V

Power

Supply

Y1 2 3 45 6 78 C

INPUTS

24 Z G

Momentary

Switches

24 V

Cresnet

Power

Supply

SPECIFICATION DETAILS

Load Ratings

Switch Channels 8

Maximum per Channel 10 amps incandescent, 5 amps uorescent,

0.5 HP @ 120 to 240 volts ac, 50/60 Hz;

5 amps @ 30 volts dc;

16 amps resistive

Module Total 80 amps incandescent, 40 amps uorescent @

120–240 volts ac, 50/60 Hz

Load Types Incandescent, Magnetic Low-Voltage, Electronic

Low-Voltage, Neon/Cold Cathode, Fluorescent,

Motors

NOTE: May not be compatible with some high

inrush current loads.

Environmental

Temperature 32° to 104°F (0° to 40°C)

Humidity 10% to 90% RH (noncondensing)

Heat Dissipation 18 Btu/h

Weight 14 oz (369 g)

Power Supply Connections (Using an Isolated Power Supply)

Power Supply Connections (Using Existing Cresnet Power)

Set the Net ID

The Net ID of the DIN-8SW8-I has been factory set to 89. The Net IDs of all devices in

the same system must be unique. The Net ID can be changed from the front panel of the

DIN-8SW8-I or from a personal computer via Crestron Toolbox™.

Set the Net ID using the front panel.

1. Press the button to enter Setup mode. The SETUP LED illuminates.SETUP

2. Press the left and right buttons under the NET ID display to change the Net ID.

NOTE: The DIN-8SW8-I will leave Setup mode after 10 seconds of inactivity and

revert to the previously set Net ID.

3. When the desired Net ID is displayed, press the button to exit the Setup SETUP

mode. The SETUP LED extinguishes.

NOTE: If an invalid Net ID is set (i.e., 00, 02, FF), “Er” will be displayed on the

NET ID display, and the DIN-8SW8-I will revert to the previously set Net ID.

A small Net ID label is provided on the DIN-8SW8-I to document the unit’s Net ID in the

case where power is not available. Apply a mark over the digits that correspond to the

assigned Net ID.

NET ID Label (“3C” Shown)

Operation

The DIN-8SW8-I can be controlled via its front panel as well as from a control system.

The following local controls are available.

Manual Load Control

The state of each output can be manually controlled from the front panel.

To toggle the output between off and on, tap the appropriate button (1 to 8). The

corresponding LED illuminates and the output state is shown on the NET ID display (“oF”

for off, “On” for on) for two seconds after the button is released.

NOTE: The control system program may change the settings if Override mode is not

enabled.

Establish Override Mode Levels

Override mode disables the control system program and sets all of the output states to

the stored override values. The state of each output can be saved as an override setting,

which can be automatically recalled when the Override mode is enabled.

NOTE: The control system program has a setting that can prevent locally saving the

override state. If this setting is enabled, the display shows “Er” during an attempt to

save override states. For more information, refer to the SIMPL Windows help le.

To save the load level as an override setting, set all of the loads to either on or off and

then press and hold the button for three seconds. The OVR LED blinks to indicate OVR

the new override setting has been stored.

Toggle Override Mode

To enable Override mode, press the button. The OVR LED ashes slowly. Override OVR

mode can also be toggled via a remote contact closure attached to the OVERRIDE port.

NOTE: If Override mode is enabled from an external device (i.e., a contact closure

connected to the OVERRIDE port), the OVR LED will ash quickly when the local OVR

button is pressed. Pressing the local button has no effect when Override mode is OVR

toggled via the remote connection.

To disable Override mode, press the button again. The OVR LED extinguishes and OVR

the outputs return to the states set by the control system program.

NOTE: If override states have not been stored, the factory default override state is all

loads on.

Reboot the DIN-8SW8-I

To reboot the DIN-8SW8-I, press the button. The outputs will be set to the states RESET

currently specied by the control system program. If the control system does not provide

any values, the outputs will be set to the previously set values.

Troubleshooting

The following table provides corrective action for possible trouble situations. If further

assistance is required, please contact a Crestron customer service representative.

DIN-8SW8-I Troubleshooting

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

The device does not

function.

The DIN-8SW8-I-I is not

receiving power.

Verify that the DIN-8SW8-I

is connected to a Crestron

power supply.

The device is not receiving

power from a Crestron

power source.

Use a Crestron power

source. Verify the power

connections.

The device is not receiving

sufcient power.

Use the Crestron Power

Calculator to calculate how

much power is needed for

the system.

An electrostatic discharge

occurred due to improper

grounding.

Check that all of the ground

connections have been

made properly.

The unit ignores

Cresnet commands.

The unit is in Override

mode.

Take the DIN-8SW8-I out of

Override mode by pressing

the button or releasing OVR

the override contact

closure.

As of the date of manufacture, the DIN-8SW8-I has been tested and found to comply with

specications for CE marking.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following

conditions:(1) This device may not cause harmful interference and (2) this device must accept any

interference received, including interference that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee

Crestron Electronics, Inc. Installation Guide - DOC. 6930B

15 Volvo Drive Rockleigh, NJ 07647 (2027169)

Tel: 888.CRESTRON 10.15

Fax: 201.767.7576 Specications subject to

www.crestron.com change without notice.

that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada (IC) Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

The product warranty can be found at www.crestron.com/warranty.

The specic patents that cover Crestron products are listed at patents.crestron.com.

Certain Crestron products contain open source software. For specic information, please visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Cresnet, and Crestron Toolbox are either trademarks or registered trademarks

of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, registered

trademarks, and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Product specificaties

Merk:	Crestron
Categorie:	Niet gecategoriseerd
Model:	DIN-8SW8-I
Breedte:	159 mm
Diepte:	60 mm
Hoogte:	94 mm
Stroom:	5 A
DC voltage input:	30 V
Relatieve luchtvochtigheid:	10 - 90 procent
Frequentiebereik:	50 - 60 Hz
Aantal kanalen:	8 kanalen
Bedrijfstemperatuur (T-T):	0 - 40 °C
Module type:	Digitaal
Signaal directie:	Invoer
Maximale ingangsspanning:	240 V
