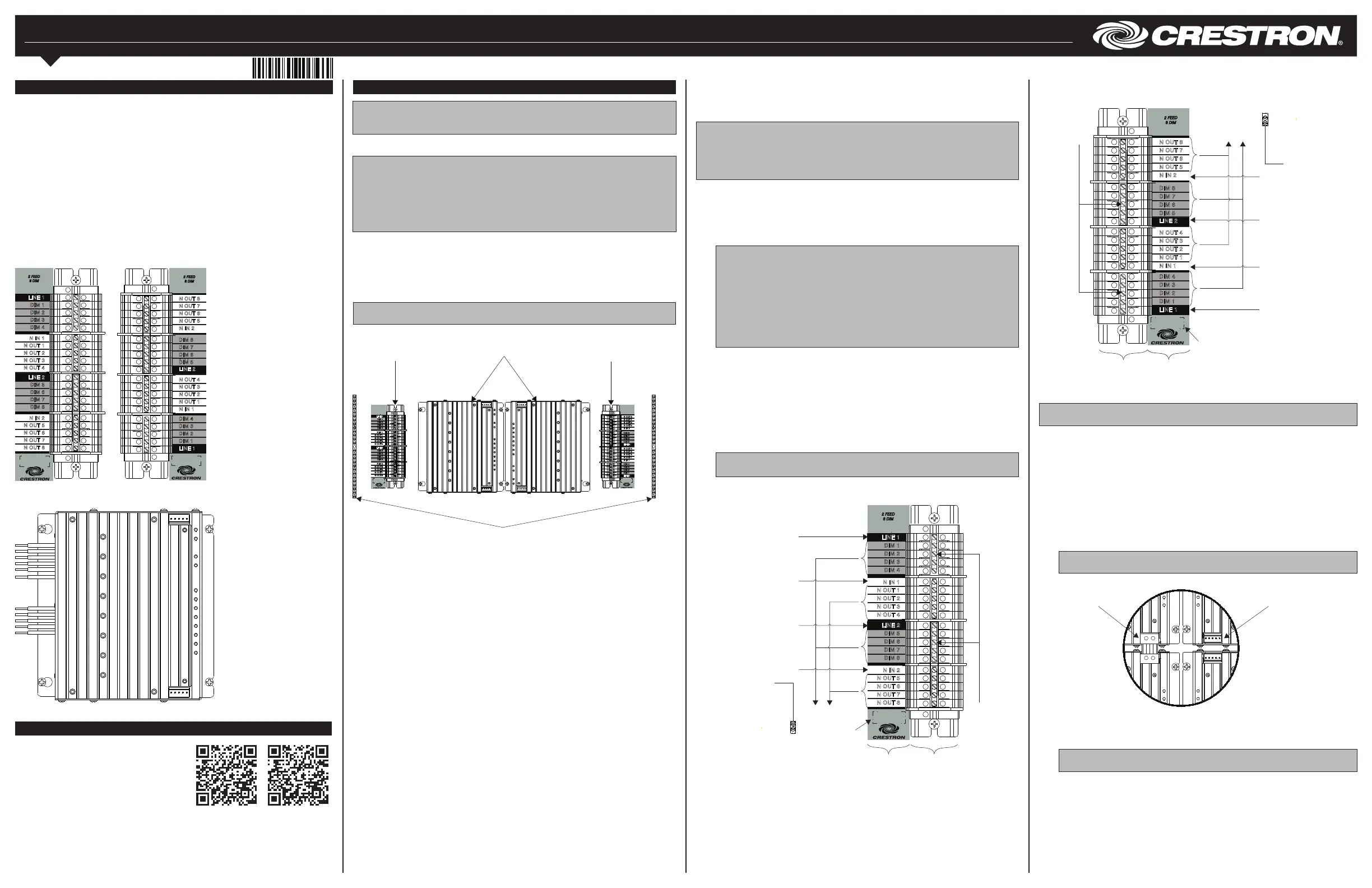

CLTI-2DIM8/CLXI-2DIM8

Terminal Block and Module

Installation Guide

Description

The Crestron® 2-feed, 8-dimmer terminal block (CLTI-2DIM8) and module (CLXI-2DIM8)

are a single entity and must be used together. They ship separately so that the terminal

block wiring can be accomplished before module installation. The terminal block is

designed to terminate the circuit feed (line and neutral) and distribute the controlled circuit

(load) to the fixtures. The module connects to the terminal block and performs dimming

control of eight incandescent, magnetic low voltage, neon/cold cathode, or dimmable 2-wire

fluorescent lighting loads.

The maximum load for the CLXI-2DIM8 is 10 A for any single circuit, or 13 A for each group

of four circuits, and 26 A maximum total per module. The CLXI-2DIM8 accepts two 16 A

feeds that must be the same phase or split phase. The unit requires 230 Vac 50 Hz,

1-phase input voltage.

An oversized heat sink dissipates heat efficiently. There are LEDs on the module to

indicate communication with a Cresnet

® network, input power to the module, and output

power to the load.

The CLTI-2DIM8 terminal and CLXI-2DIM8 module are shown in the following illustrations.

CLTI-2DIM8 Terminal Block with Left- and Right-Side CLXI-2DIM8 Wiring Labels

Ground Bus

CLTI-2DIM8 Terminal

Block

CLTI-2DIM8 Terminal

Block

CLXI-2DIM8 Module

CLXI-2DIM8

DIM 1

DIM 2

DIM 3

DIM 4

DIM 5

DIM 6

DIM 7

DIM 8

N I N 1

N OUT 1

N OUT 2

N OUT 3

N OUT 4

N I N 2

N OUT 5

N OUT 6

N OUT 7

N OUT 8

LINE 1

LINE 2

230VAC 50 Hz

SINGLE PHA SE

26A MAX/FEED

CLXI-2DIM8

DIM 8

DI 7

230VAC 50 Hz

SINGLE PHA SE

26A MAX/FEED

N OUT 8

N OUT 7

N OUT 6

N OUT 5

N I N 2

DIM 5

LINE 2

DIM 4

DIM 3

DIM 2

DIM 1

LINE 1

N OUT 4

N OUT 3

N OUT 2

N OUT 1

N I N 1

Installation

NOTE: Before using the CLXI-2DIM8, ensure the device is using the latest rmware.

Check for the latest rmware for the CLXI-2DIM8 at www.crestron.com/rmware.

Firmware is loaded onto the device using Crestron Toolbox™ software.

The terminal block and module must be mounted into a Crestron Automation Enclosure by

a licensed electrician and in accordance with all national and local codes.

CAUTION: This equipment is for indoor use only and needs to be air cooled. Mount it in

a well-ventilated area. The ambient temperature must be 0° to 40° C (32° to 104° F). The

relative humidity must be 0% to 90% (noncondensing).

NOTE: The two input lines must be the same phase or split phase.

NOTE: When connecting to an arc fault breaker, ensure that the load does not exceed

1,000 watts total.

Terminal blocks are installed along the left side of single-wide enclosures and along the

outside edges (left and right sides) of double-wide enclosures. Modules are installed along

the right side of single-wide enclosures and side-by-side in the center of double-wide

enclosures. When installing modules and terminal blocks in a double-wide enclosure, be

sure to invert the units on the right side so that they can be properly wired. Refer to the

illustrations that follow when considering the location of terminal blocks and modules within

an enclosure.

NOTE: Modules and terminal blocks must be installed into the lowest available spaces

and continue toward the top of the enclosure.

Terminal Block and Module Layout for a Double-Wide Enclosure

LINE 1:

Connection from a 16 A

Circuit Breaker

Bypass

Jumpers

Terminal

Block

Loads(s)

Right-Side

Wiring Label

LINE 2:

Connection from a 16 A

Circuit Breaker

Ground

Bus

Module

Location

Label

Neutral

Ground

CLXI-2DIM8

DIM 8

DIM 7

DIM 6

230VAC 50 Hz

SINGLE PHASE

26A MAX/FEED

N OUT 8

N OUT 7

N OUT 6

N OUT 5

N IN 2

DIM 5

LINE 2

DIM 4

DIM 3

DIM 2

DIM 1

LINE 1

N OUT 4

N OUT 3

N OUT 2

N OUT 1

N IN 1

Module Interconnect

Cable Attached

Connection Not

Made

LINE 1:

Connection from a 16 A

Circuit Breaker

Bypass

Jumpers

Terminal

Block

Loads(s)

Left-Side

Wiring Label

LINE 2:

Connection from a 16 A

Circuit Breaker

Ground

Bus

Module

Location

Label

Neutral

Ground

CLXI-2DIM8

DIM 1

DIM 2

DIM 3

DIM 4

DIM 5

DIM 6

DIM 7

DIM 8

N IN 1

N OUT 1

N OUT 2

N OUT 3

N OUT 4

N IN 2

N OUT 5

N OUT 6

N OUT 7

N OUT 8

LINE 1

LINE 2

230VAC 50 Hz

SINGLE PHASE

26A MAX/FEED

CLXI-2DIM8

DIM 1

DIM 2

DIM 3

DIM 4

DIM 5

DIM 6

DIM 7

DIM 8

N IN 1

N OUT 1

N OUT 2

N OUT 3

N OUT 4

N IN 2

N OUT 5

N OUT 6

N OUT 7

N OUT 8

LINE 1

LINE 2

230VAC 50 Hz

SINGLE PHASE

26A MAX/FEED

CLXI-2DIM8

DIM 8

DIM 7

DIM 6

230VAC 50 Hz

SINGLE PHASE

26A MAX/FEED

N OUT 8

N OUT 7

N OUT 6

N OUT 5

N IN 2

DIM 5

LINE 2

DIM 4

DIM 3

DIM 2

DIM 1

LINE 1

N OUT 4

N OUT 3

N OUT 2

N OUT 1

N IN 1

CLXI-2DIM8 Module (Connects to a CLTI-2DIM8)

Terminal Block Installation and Field Wiring

Apply the supplied adhesive label before installing the terminal block. The adhesive label

provides the labeling for each terminal in the terminal block and is designed to

accommodate installation into the left or right side of a cabinet.

NOTE: To install a CLTIBN Circuit Breaker Terminal Block, refer to the CLTIBN

Installation Guide (Doc. 6561) at www.crestron.com/manuals for details.

NOTE: Both left-side and right-side adhesive wiring labels are provided. The left-side

labels are used in both single- and double-wide enclosures. The right-side labels are used

only in double-wide enclosures.

1. Remove the backing from the left- or right-side adhesive wiring label.

2. Apply the adhesive label by aligning the holes in the label with the holes on the

Crestron Automation Enclosure where the terminal block is to be mounted. The wiring

label lies beneath the terminal block as shown in the following diagrams.

3. Use the two supplied 8B x 6 mm (1/4 in) length self-tapping Phillips pan head screws

to secure the terminal block to the Crestron Automation Enclosure.

CAUTION: Bypass jumpers are provided to test circuits and to protect the module

during installation. When properly secured by five screws, each of the two jumpers

on the brown and red sections of the terminal block shorts the line in to dim out so

that the circuit is energized. Do not remove any bypass jumpers until all feed and

load wiring has been completed, the circuit has been tested for electrical faults, and

the module has been installed. Refer to “Module Installation.”

Furthermore, the two jumpers on the blue sections of the terminal block tie the

neutral ins to the neutral outs. These jumpers should never be removed.

NOTE: Use copper conductors only—rated 75° C or greater.

4. Turn off the circuit breakers.

5. Connect the circuit feed (line and neutral) and controlled circuit (load) wires to the

terminal block per the markings provided on the wiring label (as shown in the following

diagrams). Terminal blocks accept one 2.5–6 mm

2 wire. Strip the wires to 12 mm

(1/2 in). Tighten terminal blocks to 1 Nm.

6. Terminate the ground wires at the grounding terminal blocks that are available in the

cabinet. Tighten the grounding terminal blocks to 4 Nm (2.5–6 mm

2), 4.5 Nm (10 mm2),

or 5.1 Nm (16–25 mm2).

7. Test each circuit for electrical faults by turning on each of the circuit breakers and

checking that the breakers do not trip and that power is delivered to the proper loads.

NOTE: If installing in a CAENIB, complete the installation with a CAENIB-BP Blank

Plate. Refer to the CAENIB (Doc. 6563) for details.

Wiring the Terminal Block to the Feed and Load(s)

(Single-Wide and Left-Side Double-Wide Enclosures)

Wiring the Terminal Block to the Feed and Load(s) (Right-Side Double-Wide Enclosures)

Module Installation

CAUTION: The module contains electrostatic sensitive devices (ESDs). The unit must

be handled from the metal chassis. Do not touch the PC board or components.

Install the modules after the terminal blocks are installed and the enclosure has been

completely wired.

1. Use the four supplied self-tapping Phillips pan head 8B x 6 mm (1/4 in) length

screws to secure the module to the enclosure.

2. As shown in the wiring diagrams on the next page, connect the wires from the

module to the terminal block. Each wire exits the module directly in line with, and is

the same color as, the terminal to which it should be connected. Wires are

prestripped to 13 mm (1/2 in). Tighten to 1 Nm.

3. If the module is being installed above another module within the enclosure, attach

the supplied module interconnect cable to the two modules. The illustration that

follows shows the area within a double-wide enclosure where the corners of four

modules meet.

NOTE: One wire on the module interconnect cable may be a different color from

the rest. The color has no bearing on its orientation during installation.

Use Module Interconnect Cable to Wire One Module to Another

4. Turn on the circuit breakers and verify that the green PWR LED on the module lights,

the breakers do not trip, and power is delivered to the loads.

5. Turn off the circuit breakers.

NOTE: Before the bypass jumpers are removed, the control system that provides

functionality to the system should be properly connected and programmed.

6. Remove the bypass jumpers on the brown and red sections of the terminal block.

The jumpers on the blue sections of the terminal block must remain installed. Refer

to the gures that follow for reference.

Additional Resources

Visit the product page on the Crestron website

(www.crestron.com) for additional information

and the latest rmware updates. Use a QR

reader application on your mobile device to scan

the QR image.

CLTI-2DIM8 CLXI-2DIM8

Brown from Breaker

Blue from Panel

Red to Loads

Blue to Loads

CLXI-2DIM8

DIM 1

DIM 2

DIM 3

DIM 4

DIM 5

DIM 6

DIM 7

DIM 8

N IN 1

N OUT 1

N OUT 2

N OUT 3

N OUT 4

N IN 2

N OUT 5

N OUT 6

N OUT 7

N OUT 8

LINE 1

LINE 2

230VAC 50 Hz

SINGLE PHA SE

26A MA X/FEED

Brown from Breaker

Blue from Panel

Red to Loads

Blue to Loads

CLXI-2DIM8

DIM 8

DIM 7

DIM 6

230VAC 50 H z

SINGLE PH ASE

26A MA X/FEED

N OUT 8

N OUT 7

N OUT 6

N OUT 5

N IN 2

DIM 5

LINE 2

DIM 4

DIM 3

DIM 2

DIM 1

LINE 1

N OUT 4

N OUT 3

N OUT 2

N OUT 1

N IN 1

Jumper Removed

Jumper Installed

Jumper Removed

Jumper Installed

CLXI-2DIM8

DIM 8

DIM 7

DIM 6

230VAC 50 H z

SINGLE PH ASE

26A MA X/FEED

N OUT 8

N OUT 7

N OUT 6

N OUT 5

N IN 2

DIM 5

LINE 2

DIM 4

DIM 3

DIM 2

DIM 1

LINE 1

N OUT 4

N OUT 3

N OUT 2

N OUT 1

N IN 1

Jumper Removed

Jumper Installed

Jumper Removed

Jumper Installed

CLXI-2DIM8

DIM 1

DIM 2

DIM 3

DIM 4

DIM 5

DIM 6

DIM 7

DIM 8

N IN 1

N OUT 1

N OUT 2

N OUT 3

N OUT 4

N IN 2

N OUT 5

N OUT 6

N OUT 7

N OUT 8

LINE 1

LINE 2

230VAC 50 Hz

SINGLE PHA SE

26A MA X/FEED

Test the Loads

If the control system program is not running yet, use Local mode to test that each load is

operating and connected to the proper output on the module.

1. Press the button momentarily (less than three seconds) to enter Local mode. SETUP

The SETUP LED and output LED 1 illuminate. Power is applied to the devices

connected to output 1.

2. Press the button again to turn off output 1 and turn on output 2. SETUP

3. Press the button again to test each of the remaining outputs. SETUP

4. After testing the last output, press the button again to turn on all outputs.SETUP

5. Press the button once more to turn off all outputs and LEDs and exit Local SETUP

mode.

Wiring the Terminal Block to the Module (Single-Wide and Left-Side Double-Wide Enclosures)

Remove the Line Jumpers after Testing (Left-Side Mounted CLTI-2DIM8 Shown)

Wiring the Terminal Block to the Module (Right-Side Double-Wide Enclosures)

Remove the Line Jumpers after Testing (Right-Side Mounted CLTI-2DIM8 Shown)

7. Turn on the circuit breakers.

NOTE: Power must be supplied to LINE 1 for the module to communicate with the

control system or for any of the circuits to operate.

8. If the program is not running yet, loads can be tested by using Local mode.

As of the date of manufacture, the device has been tested and found to comply with specications for

CE marking.

Crestron Electronics, Inc. Installation Guide - DOC. 6411B

15 Volvo Drive Rockleigh, NJ 07647 (2013809)

Tel: 888.CRESTRON 04.16

Fax: 201.767.7576 Specications subject to

www.crestron.com change without notice.

The product warranty can be found at www.crestron.com/warranty.

The specic patents that cover Crestron products are listed at patents.crestron.com.

Certain Crestron products contain open source software. For specic information, please visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Cresnet, and Crestron Toolbox are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Other

trademarks, registered trademarks, and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products. Crestron disclaims any proprietary

interest in the marks and names of others. Crestron is not responsible for errors in typography or

photography.

This document was written by the Technical Publications department at Crestron.

Product specificaties

Merk:	Crestron
Categorie:	Niet gecategoriseerd
Model:	CLXI-2DIM8
Breedte:	176 mm
Diepte:	87 mm
Hoogte:	193 mm
Soort:	Dimmer
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	10 - 90 procent
