CLX- - - - -DIN AP3 & CLX DIN AP3 HUB
Crestron Electronics, Inc. Installation Guide – BDOC. 7608
15 Volvo Drive Rockleigh, NJ 07647 (2038184)
Tel: 888.CRESTRON 01.14
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Introduction
The Crestron® - - -CLX DIN AP3 3 Series Control System
®
is designed for CAEN, CAEN CAENIB-MLO, and
A E utomation nclosures. There are two models. The
CLX- -DIN AP3 model includes a DIN- 3-AP3 Series
®
Automation Processor and - - DIN PWS30 277 Cresnet
®
Power Supply prewired and mounted on a
CAEN- UMP1X2 Universal Mounting Plate. Model
CLX- - - - DIN AP3 HUB includes the DIN HUB Cresnet
Distribution Hub as well.
Refer to the illustration on this page for an example of
mounting location and orientation within a single-wide
enclosure. The table beneath the illustration lists the
dimensions and weight.
The CLX- -DIN AP3 and CLX- - -DIN AP3 HUB install in
an identical manner. For simplicity within this guide, the
term “CLX- - DIN AP3” is used except where noted.
Installation
The CLX- - DIN AP3 must be mounted in accordance with
all national and local codes.
NOTE: Adhere to Class Class 2 wiring 1 and
requirements when considering the equipment attached to
the CLX-D - IN AP3 in an enclosure.
Use the four screws (8B x 1/4”, supplied) to attach the
CLX- - -DIN AP3 to a CAEN, CAEN MLO, or CAENIB
A E - -utomation nclosure. Mount the CLX DIN AP3 as
shown in the illustration on this page. The flanges of the
plates should not overlap other plates or lighting modules
that are mounted in the enclosure.
Once the CLX- -DIN AP3 is mounted to the automation
enclosure, two cables (supplied) must be connected as
shown in the illustration on this page. The 6 in (153 mm)
cable (4519362 the ) connects CAEN-BLOCK Cresnet
port 457to t -he DIN AP3 Cresnet port. The 18 in ( mm)
flat cable (4519661) connects the CAEN-BLOCK to the
CLX module connector.
For wiring of the CLX- - -DIN AP3, refer to the DIN AP3
Installation and Operations Guide (Doc. 7491) and
DIN-HUB Installation and Operations Guide (Doc. 6671)
at www.crestron.com/manuals.

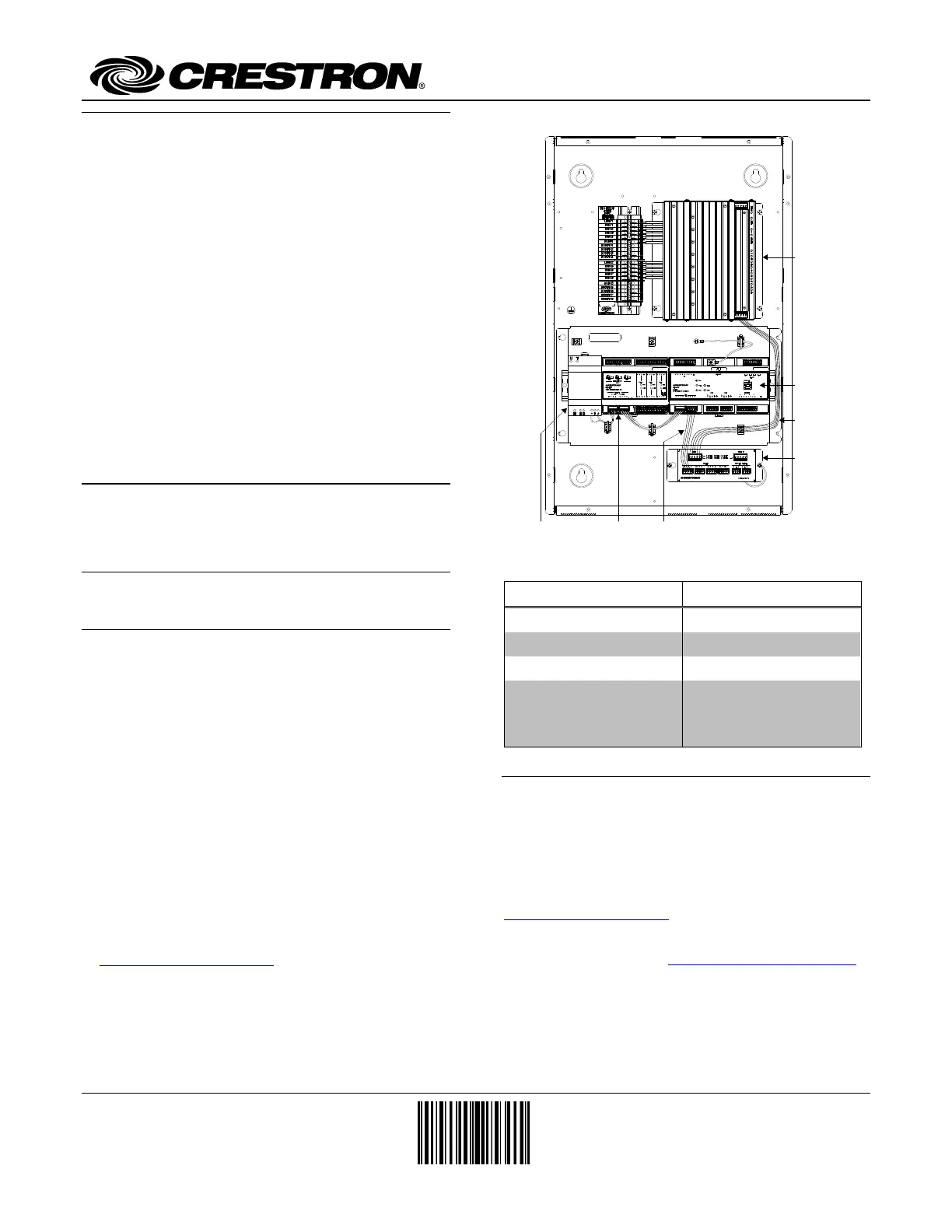

Example of Location and OrCLX- -AP3- DIN HUB ientation
CLX- -AP3 DIN Specifications
SPECIFICATION
DETAILS
Height 7 3/8 8 in (18 mm)
Width 14 in (356 mm)
Depth 77 3 in ( mm)
Weight
- - CLX DIN AP3
- - - CLX DIN AP3 HUB
2.3 lb (1.1 kg)
2.7 lb (1.3 kg)
Further Inquiries
T o locate specific information or resolve questions after
reviewing this guide, contact Crestron's True Blue
Support at 1-888-CRESTRON [1- - -888 273 7876] or, for
assistance within a particular geographic region, refer to
the listing of Crestron worldwide offices at
www.crestron.com/offices.
To post a question about Crestron products, log onto
Crestron’s Online Help at www.crestron.com/onlinehelp.
First-time users must establish a user account to fully
benefit from all available features.
CLX Module
DIN-AP3
CAEN-BLOCK
DIN-HUB 6 in (153 mm)
Cable (4519362)
18 in (457 mm)
Flat Cable
(4519661)
DIN-PWS30-277
DIN Rail 3-Series Mounting Plates Crestron C - - - - -LX DIN AP3 & CLX DIN AP3 HUB
2 •
•
•
•• -DIN Rail 3 Series Mounting Plates: CLX- - DIN AP3 Installation Guide – B DOC. 7608
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange, or service without prior authorization from
Crestron. To obtain warranty service for Crestron products, contact an authorized Crestron dealer.
Only authorized Crestron dealers may contact the factory and request an RMA (Return Merchandise
Authorization) number. Enclose a note specifying the nature of the problem, name and phone number
of contact person, RMA number, and return address.
2. Products may be returned for credit, exchange, or service with a Crestron Return Merchandise
Authorization (RMA) number. Authorized returns must be shipped freight prepaid to Crestron,
6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the
outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to
refusal. Crestron reserves the right in its sole and absolute discretion to charge a 15% restocking fee
plus shipping costs on any products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by Crestron, shipping by
standard ground carrier. In the event repairs are found to be n warranty, return freight costs shall be on-
paid by the purchaser.
Crestron Limited Warranty
Crestron Electronics, Inc. warrants its products to be free from manufacturing defects in materials and
workmanship under normal use for a period of three (3) years from the date of purchase from Crestron, with the
following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power
supplies are covered for a period of one (1) year; touch screen display and overlay components are covered for
90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from Crestron or an authorized Crestron dealer.
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.
Crestron shall not be liable to honor the terms of this warranty if the product has been used in any application
other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification,
or improper installation procedures. Furthermore, this warranty does not cover any product that has had the
serial number altered, defaced, or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall Crestron be
liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising
from the sale or use of this equipment. Crestron is not liable for any claim made by a third party or made by the
purchaser for a third party.
Crestron shall, at its option, repair or replace any product found defective, without charge for parts or labor.
Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired
portion of the warranty.
Except as expressly set forth in this warranty, Crestron makes no other warranties, expressed or implied, nor
authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness
for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this
limited warranty. This warranty statement supersedes all previous warranties.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, Control System3-Series, Series3- , and Cresnet are trademarks or registered trademarks of Crestron Electronics,
Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to
refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and
names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2014 Crestron Electronics, Inc.
