Multi Language Quick Guide

Oce UPS

ZEUS 05E

English

Conceptronic UPS

1. Package contents

The following items are present in the package of the Conceptronic UPS:

•UPS

•Multi language quick installation guide

2. Specications

Capacity : 650VA 360W

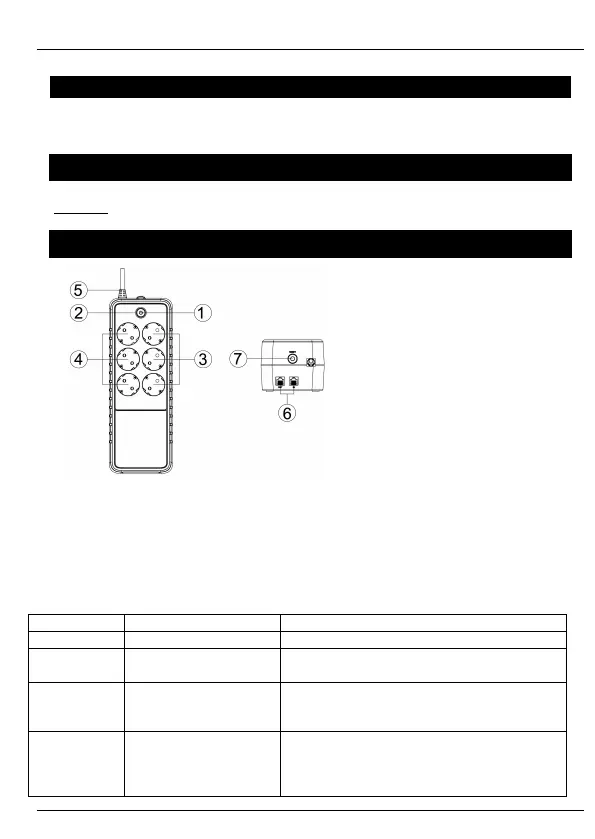

3 Product overview.

1. Power On/O Switch

2. LED Indicators

3. Battery Backup & Surge

Protected Outlets

Provide battery backup and surge

protection. They ensure power is

provided to connected equipment

over a period of time during a

power failure.

4. Surge Protected Outlets

Provide surge protection for

bypass output.

5. Input power cord

6 Modem/LAN Internet Protection (RJ45&RJ11).

Communication protection ports will protect any standard modem, fax, telephone line,

or network cable .

7. Input Circuit Breaker

The Circuit Breaker provides optimal overload protection.

Denitions for illuminated led indicators

LED

Alarm

Condition

Off

o

Flash

Beep 1 time In every

30 ecs

Utility Failure - The UPS is providing

battery power to outlets.

Flash

Beep 1 time In every

2 ecs

Utility Failure - The UPS is providing

battery power. The rapid beeps indicate

the battery will run out of power shortly.

On/Flash

Beep 1 time In every

0.5 s ec

Overload - Occurs when connected

equipment exceeds the rating of the unit.

Turn the UPS o and unplug at least one

piece of equipment from the UPS.

English

4 Installation & usage.

How to determine the power requirements of your equipment

1. Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and

peripheral equipment does not exceed rated capacity.

2. Ensure that the equipment plugged into the battery power-supplied/surge outlets

does not exceed the UPS unit's rated capacity. If the rated unit capacities are

exceeded, an overload condition may occur and cause the UPS unit to shut down or

the circuit breaker to trip.

Hardware installation guide

1. Your new UPS may be used immediately upon receipt. However, recharging the

battery for at least 8 hours is recommended to ensure that the battery's maximum

charge capacity is achieved. Charge loss may occur during shipping and storage. To

recharge the battery, simply leave the unit plugged into an AC outlet. The unit will

charge in both the on and o position.

2. With the UPS unit o and unplugged, connect the computer, monitor, and any

externally powered data storage device (Zip drive, Jazz drive, Tape drive), etc. into the

battery power supplied outlets. DO NOT plug a laser printer, copier, space heater,

vacuum, paper shredder or other large electrical device into the battery power supplied

outlets. The power demands of these devices will overload and possibly damage the

unit.

3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the

wall branch outlet is protected by a fuse or circuit breaker and does not service

equipment with large electrical demands (e.g. air conditioner, refrigerator, copier, etc.

Avoid using extension cords.

4. Press the power switch to turn the unit on. The power on indicator light will illuminate

and the unit will "beep".

5. If an overload is detected, an audible alarm will sound and the unit will emit one long

beep. To correct this, turn the UPS o and unplug at least one piece of equipment from

the battery power supplied outlets. Wait 10 seconds. Make sure the circuit breaker /

fuse is normal and then turns the UPS on.

6. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into

an AC outlet, the battery will automatically recharge.

7. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all

times.

Product specificaties

Merk:	Conceptronic
Categorie:	Niet gecategoriseerd
Model:	ZEUS05E
Kleur van het product:	Zwart
Gewicht:	2760 g
Breedte:	110 mm
Diepte:	309 mm
Hoogte:	84 mm
Gewicht verpakking:	3200 g
Breedte verpakking:	138 mm
Diepte verpakking:	182 mm
Hoogte verpakking:	351 mm
LED-indicatoren:	Ja
Vormfactor:	Compact
Aantal Ethernet LAN (RJ-45)-poorten:	2
Geluidsalarm(en):	Ja
Uitgangsvermogen:	360 W
Frequentie:	- Hz
Snelle installatiehandleiding:	Ja
Auto-herstart:	Ja
(Buitenste) hoofdverpakking hoogte:	368 mm
(Buitenste) hoofdverpakking breedte:	299 mm
(Buitenste) hoofdverpakking brutogewicht:	12630 g
(Buitenste) hoofdverpakking lengte:	391 mm
Hoeveelheid per (buitenste) hoofdverpakking:	4 stuk(s)
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	10 - 90 procent
Code geharmoniseerd systeem (HS):	85078000
Aantal AC uitgangen:	6 AC-uitgang(en)
Stopcontacttypes:	Type F
Output power capacity:	0.65 kVA
Ingang operation voltage (min):	220 V
Ingang operation voltage (max):	240 V
Uitgang operation voltage (min):	220 V
Uitgang operation voltage (max):	240 V
UPS-topologie:	Stand-by (Offline)
Hoorbare alarmstanden:	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Oplaadduur batterij:	8 uur
