C S V-1 5 8 0 Q U I C K I N S TA L L AT I O N G U I D E

CSV-1580 QIG Juny-2021

Thank you for purchasing our CSV-1580 Product. After unpacking the product, please make sure you have all the items provided

and checked for any damages. In case of any missing/damaged parts please inform your supplier immediately.

You should have:

• CSV-1580 Thunderbolt™ 4 Portable 5-in-1 Hub with Smart Power

• Power Adapter output 20V/5A

• CAC-1571, USB4™ Type-C Gen3x2 Bi-Directional Cable 40Gbps 8K60Hz 100W PowerDelivery M/M 0.8m / 2.62ft

• QIG, Quick Installation Guide

Please update: your drivers to support these resolutions/refresh rates.

Please make sure: The USB Type-C or Thunderbolt™ 4 Cable is capable of handling 40 Gbps to support 8K30Hz or 4K120Hz

(in case you will not be using the included CAC-1571 cable).

The maximum cable length allowed(according to the respective speciﬁcations) here is for:

• Thunderbolt™ 4 max. 2m / 6.56 ft

and

• USB4™ max. 0.8m / 2.62ft

Thunderbolt™ 4 portable 5-in-1 hub with Smart Power

Disclaimer:

While we endeavor to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Therefore Club 3D does not accept any rights claimed on the content of this document.

Please refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.

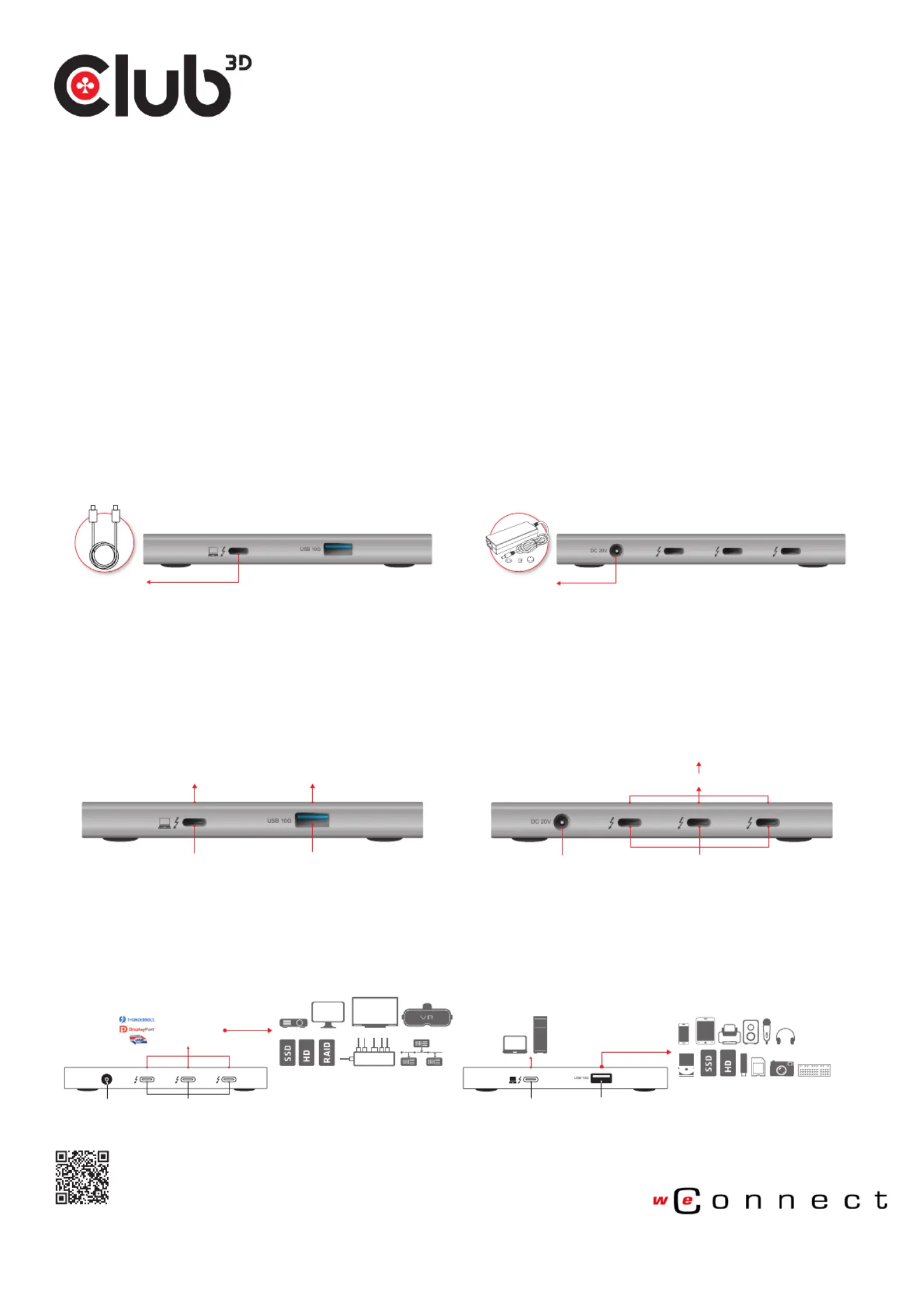

1. Use the CAC-1571 USB4™ Type-C Cable to connect the CSV-1580 to your

host device (Windows10™ or above version supported Thunderbolt™ 4 host /

MacOS™11 or above version supported Thunderbolt™ 3 host)

2. Use the Power Adapter to connect the CSV-1580 to a wall socket.

3. Connect your devices to the CSV-1580 with cables that support the Device speciﬁcation to get the most out of the connection / data / video / power.

(Some devices may need a driver / ﬁrmware update to get the highest/best performance)
