I N S T A L L A T I O N I N S T R U C T I O N S

Large Flat Panel Dual Arm Wall Mount

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

PNR Series

PNR Series Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief®, ClickConnect™ and Centris Select™ are registered

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all mounting systems

are properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached can support five times the combined weight of all

equipment. Reinforce the structure as required before

installing the mounting system. The wall to which the mount

is being attached may have a maximum drywall thickness of

5/8” (1.6cm).

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached to this mount does not exceed

200 lbs (90.7 kg).

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The PNR Series mounts has been designed

to be mounted onto a 2" x 4" (51mm x 102 mm) 16" on center,

wood stud wall.

NOTE: The PNR Series includes:

• Accessory Model PNR2000 (to be used with UL Listed

Chief accessory PSBU interface bracket--not

included).

• Model PNRU which includes the UL Listed Chief

accessory PSBU interface bracket.

--SAVE THESE INSTRUCTIONS--

Installation Instructions PNR Series

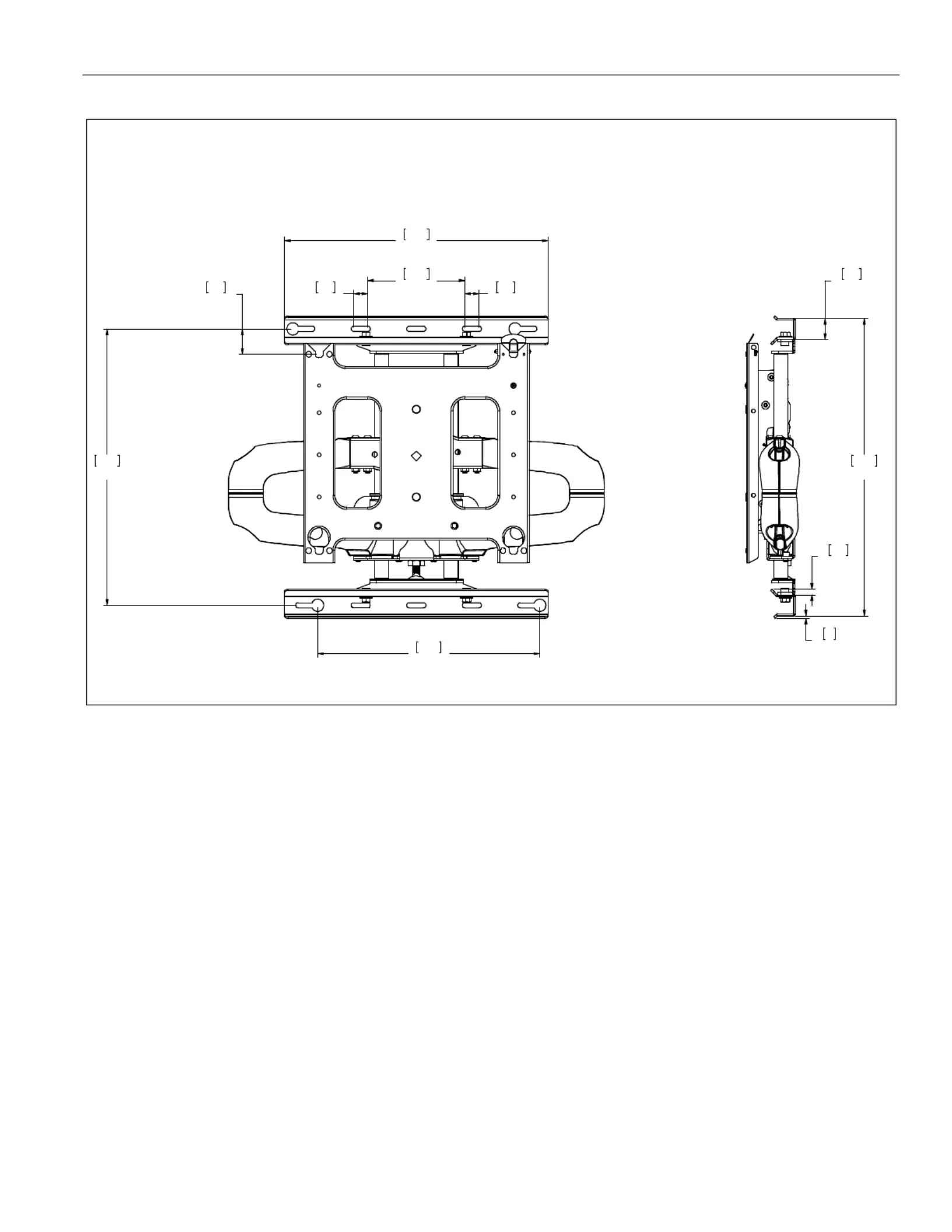

DIMENSIONS

Mount ing Pattern

1.001.00

2546

19.69

500

16.00

406

7.00

178

1.81

19.00

483

538

21.19

.18

1.50

.40

NOTE:

PSBU INTERFACE BRACKET

NOT SHOWN. THE PSBU INTERFACE

BRACKET WILL ADD 1” IN DEPTH

AND MAY AFFECT THE LOCATION

OF THE DISPLAY ON THE MOUNT.

DIMENSIONS: [MILLIMETERS]

INCHES

Product specificaties

Merk:	Chief
Categorie:	Wandsteun
Model:	PNRUB
Kleur van het product:	Zwart
Gewicht:	30000 g
Breedte:	600 mm
Diepte:	84 mm
Hoogte:	538 mm
Gewicht verpakking:	29940 g
Materiaal behuizing:	Staal
In hoogte verstelbaar:	Ja
Montage gereedschap:	Ja
Montagewijze:	Muur
Maximale gewichtscapaciteit:	90.7 kg
Certificering:	UL
Paneelmontage-interface:	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,700 x 400,800 x 400 mm
Draaihoek:	90 °
Montage interface compatibiliteit (min):	200 x 200 mm
Montage interface compatibiliteit (max):	800 x 400 mm
Aantal displays ondersteund:	1
Verbeterd kabelbeheer:	Ja
Bereik kantelhoek:	-17 - 5 °
Maximale schermgrootte:	85 "
Code geharmoniseerd systeem (HS):	85299097
Minimale schermgrootte:	42 "
Afstand tot de muur (min):	82 mm
Afstand tot de muur (max.):	635 mm
Diepte (max):	635 mm
Hoogte verstelbaarheidsbereik:	0 - 25 mm
Verstelbare diepte:	Ja
