I N S T A L L A T I O N I N S T R U C T I O N S

Display Carts

PFC Series

PFC Series Installation Instructions

DISCLAIMER

Legrand and subsidiaries

| AV and its affiliated corporations

(collectively “Legrand | AV”), intend to make this manual

accurate and complete. However, Legrand | AV makes no claim

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand | AV

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand | AV

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

Chief® is a registered trademark of Legrand AV Inc.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all mounting systems

are properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached can support five times the combined weight of all

equipment. Reinforce the structure as required before

installing the mounting system.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all accessories and components attached to the cart does not

exceed 200 lbs (90.7 kg). Use with heavier televisions may

result in instability causing tip over resulting in death or

serious injury!

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this mounting system outdoors.

WARNING: RISK OF INJURY TO PERSONS! Do not place

video equipment such as televisions or computer monitors on

cart legs.

WARNING: RISK OF SERIOUS INJURY OR DEATH!

Placing a remote control or toy on the cart may encourage a

child to climb onto the cart causing the cart to tip over onto

the child. DO NOT place remote controls or toys on the cart!

WARNING: RISK OF SERIOUS INJURY OR DEATH!

Relocating audio and/or video equipment to the cart may

result in the cart collapsing or overturning onto a child. DO

NOT relocate audio and/or video equipment to the cart!

NOTE: The PFC Series carts have no user serviceable parts.

--SAVE THESE INSTRUCTIONS--

PFC Series Installation Instructions

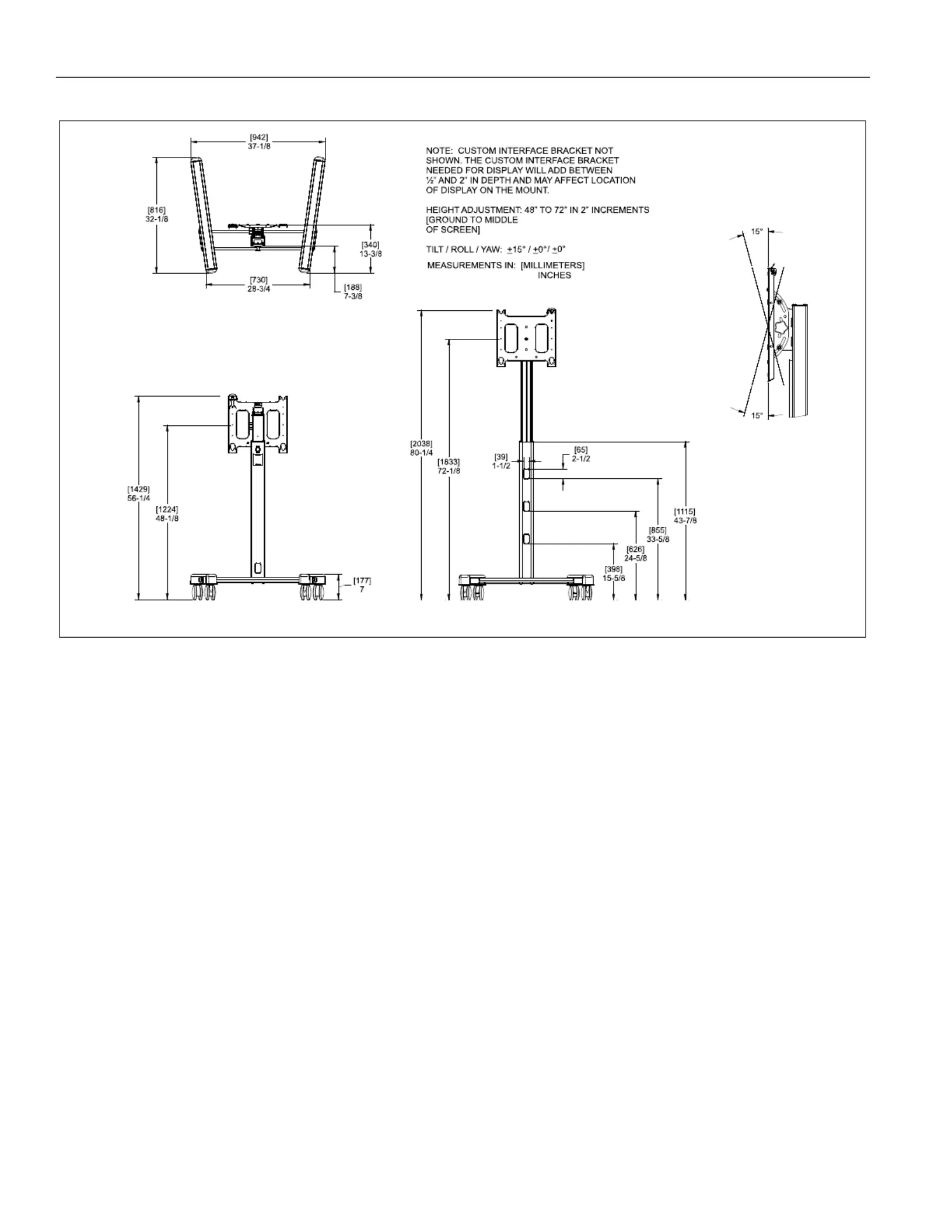

DIMENSIONS

DIMENSIONS: [MILLIMETERS]

INCHES

Product specificaties

Merk:	Chief
Categorie:	Wandsteun
Model:	PFCUB
Kleur van het product:	Zwart
Gewicht:	30910 g
Breedte:	943 mm
Diepte:	816 mm
Hoogte:	2073 mm
Gewicht verpakking:	30910 g
In hoogte verstelbaar:	Ja
Montagewijze:	Vloer
Geschikt voor schermmaten:	42 - 71 "
Maximale gewichtscapaciteit:	90.7 kg
VESA-montage:	Ja
Paneelmontage-interface:	300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,600 x 400,800 x 400,800 x 500 mm
Montage interface compatibiliteit (min):	200 x 200 mm
Montage interface compatibiliteit (max):	800 x 500 mm
Bereik kantelhoek:	15 - -15 °
Maximale schermgrootte:	82 "
Code geharmoniseerd systeem (HS):	94031098
Minimale schermgrootte:	42 "
Geschikt voor computerscherm:	Nee
Afstand tot de muur (min):	1223 mm
Afstand tot de muur (max.):	1833 mm
