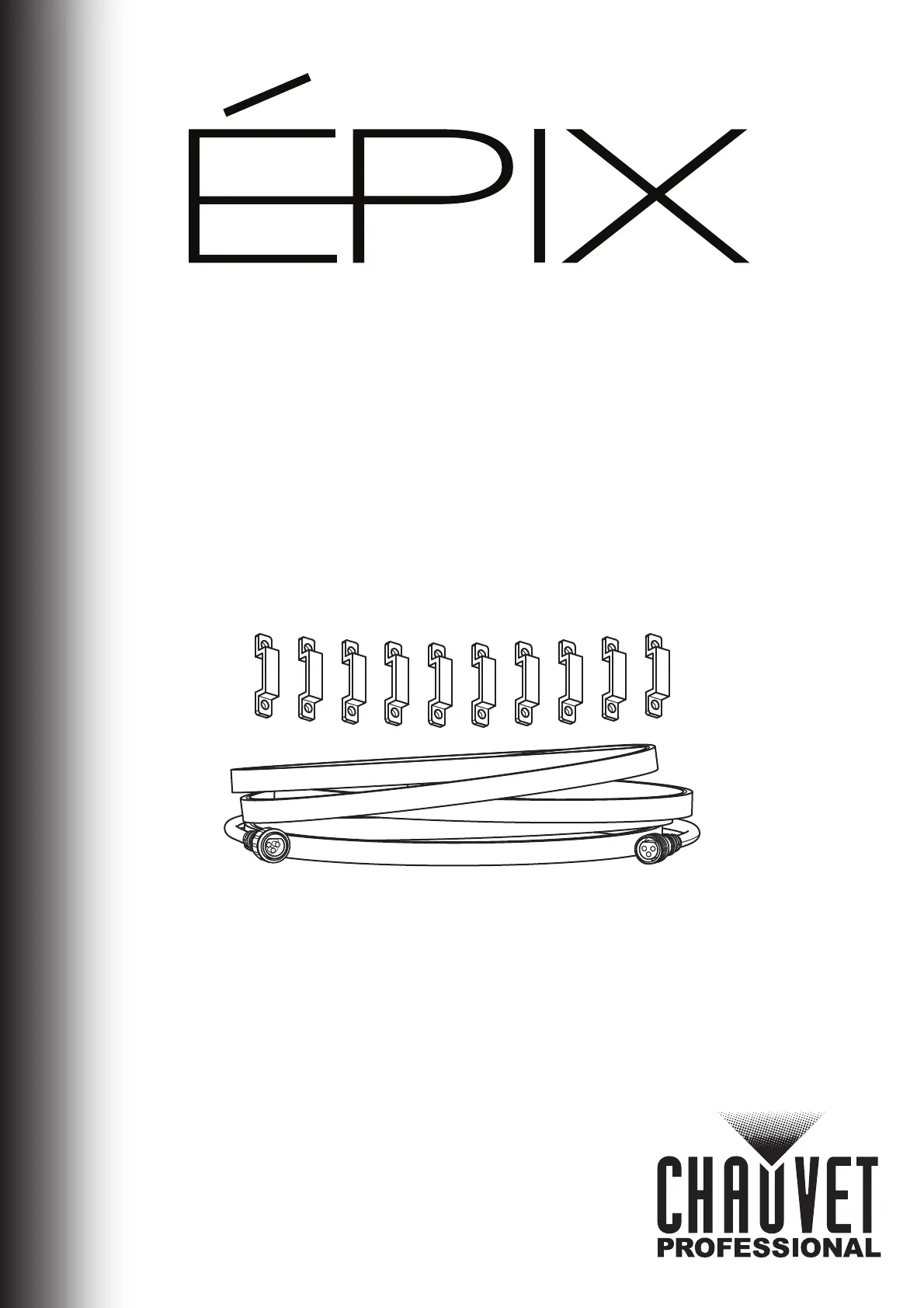

FLEX 2

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

QUICK REFERENCE GUIDE

ÉPIX Flex 20 QRG Rev. 5

About This Guide

The ÉPIX Flex 20 Quick Reference Guide (QRG) has basic product information such as mounting and technical

specifications. Download the User Manual for the ÉPIX Flex Drive from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and

Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the

period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This

warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this

warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows

the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This

warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to

country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,

Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the

product from power via breaker or by unplugging it.

• DO NOT look at the light source when the product is on.

• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid

ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow

product to fully acclimate to the surrounding environment before connecting it to power.

• CAUTION: This product’s housing may be hot when lights are operating.

• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.

• USE a safety cable when mounting this product overhead.

• DO NOT submerge this product (IP67). Temporary outdoor operation is fine.

• DO NOT operate this product if the housing, ports, or cables appear damaged.

• DO NOT connect this product to a dimmer or rheostat.

• ONLY connect this product to an ÉPIX Flex Drive, an ÉPIX Flex Boost, or another ÉPIX Flex 20.

• In the event of a serious operating problem, stop using immediately.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

• The minimum ambient temperature is -4 °F (-20 °C). Do not operate the product at lower temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request

support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

Overview

Power

This product is powered by an ÉPIX Flex Drive. Refer to the ÉPIX Flex Drive User Manual for detailed instructions on how

to connect this product to power.

• ÉPIX Flex 20

• Installation Kit with 10 Bracket Sets

• Termination Kit with End Cap and Silicone Glue

• End Plug

• Quick Reference Guide

Data/

Power In Data/

Power Out

End Plug

Seals last linked product

to maintain IP67 rating

ÉPIX Flex 20 QRG Rev. 5

QUICK REFERENCE GUIDE

Mounting

Before mounting this product, read the Safety Notes. Use 1 of the included brackets every 1.6 ft (0.5 m).

Mounting Diagram

Cutting to Length

Each ÉPIX Flex 20 can be cut to length to accommodate custom installations. Any ÉPIX Flex 20 that is cut to length must

be used as the last product linked to an output port of the ÉPIX Flex Drive.

Termination Kit

After cutting an ÉPIX Flex 20 to length, seal the included end cap to the exposed end of the product with the included

silicone glue:

Handling Warnings

• Never twist the ÉPIX Flex 20.

• Never coil the ÉPIX Flex 20 sideways. If necessary, it is recommended to store the product on a reel or drum.

• Always retain the ÉPIX Flex 20 on the included spool when it is not installed. The ÉPIX Flex 20 should never

be folded, placed un-spooled in a box or any other carrying case or stored in any manner other than around

the included spool.

• DISCONNECT the product from power before cutting to length.

• DO NOT cut across electrical components.

• Any ÉPIX Flex 20 that is cut to length must be used as the last product linked to an output port of

the ÉPIX Flex Drive.

1. Disconnect the product from power.

2. Apply the silicone glue to the exposed end of the product.

3. Insert the exposed end of the product into the end cap.

4. Wipe away any excess glue.

5. Allow to dry before reconnecting to power.

The end cap must be sealed completely to maintain the IP67 rating of the product.

Bracket

Insert Screws Here

ÉPIX Flex 20

DO NOT Cut Here

Cut

Here
