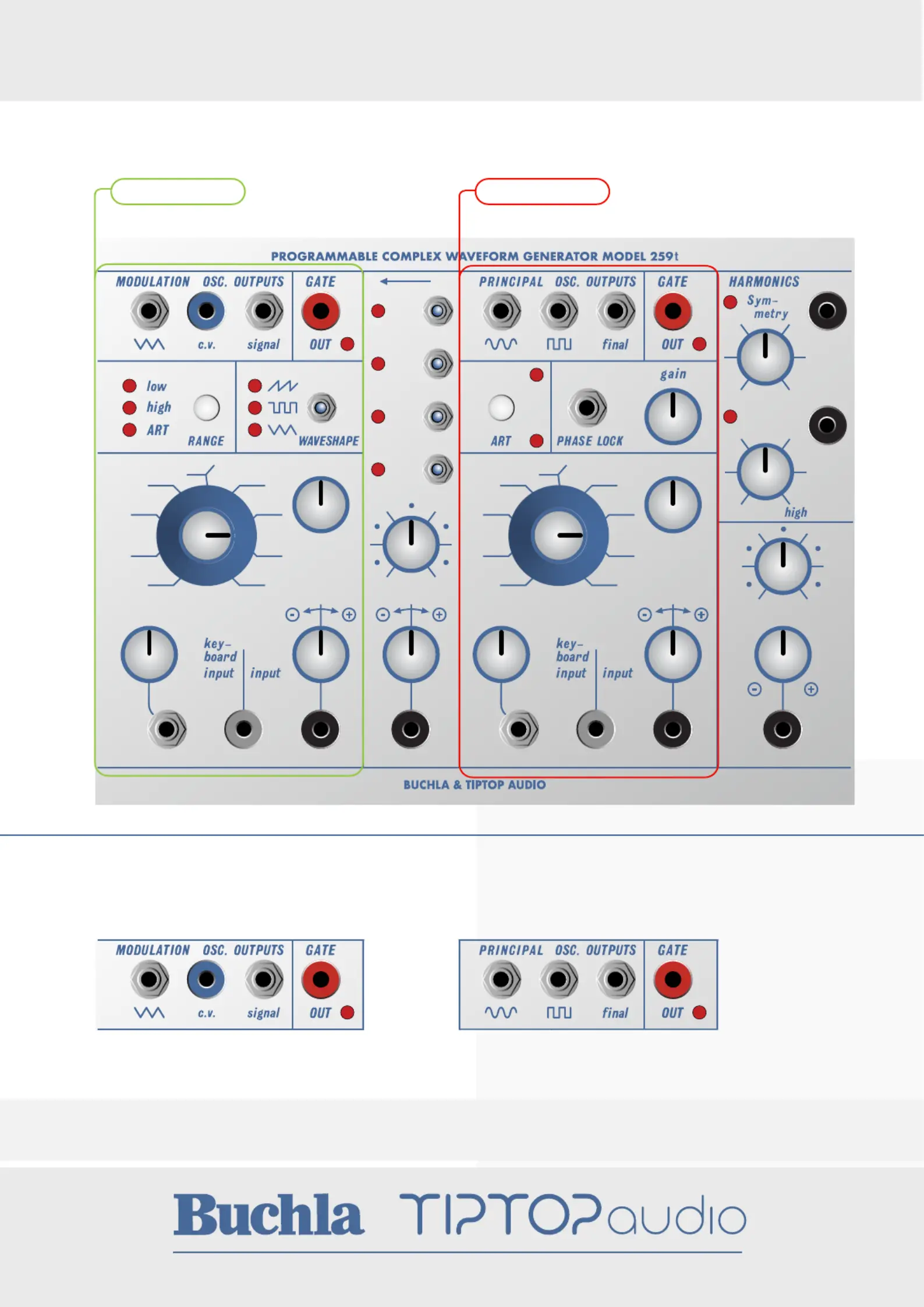

PROGRAMMABLE COMPLEX WAVEFORM GENERATOR MODEL 259T
Eurorack 200 series
Specifications: Size: 34 HP - Depth: 25 mm
Power: +12V 260mA/ -12V 105mA
Oscillators
There are two oscillators: and , both oscillators can be manually tuned via or .Modulation Principal CV Autotuned via ART
MODULATION PRINCIPAL
Each oscillator has multiple outputs.
input
1V/OCT
PROGRAMMABLE COMPLEX WAVEFORM GENERATOR MODEL 259T
Eurorack 200 series
The Modulation Oscillator has a fixed Triangle waveform
and a toggle selectable Signal output which can be a
Triangle, Square or Sawtooth waveshape.
It can be switched from (Low-Frequency Oscillator) LFO
mode to a audio-rate oscillator. Additionally, it can be high
configured to receive incoming or signals. A 1V/OCT ART
CV output Modulation oscillatoris also available for the .
The Principal Oscillator three audio outputs has : a fixed
Sine wave, a fixed and a which Square wave Final output
provides infinite via the Timbre and complex waveforms
Harmonics sections.
The Principal Oscillator runs at but its audio rate
frequency range can be driven higher or lower with CV.
It can also be switched from to 1V/OCT ART.
27.5
5.2
55
.5
110
1
220
2
440 4880
8
1760
16
3520
32
7040
64
FREQUENCY (Hz)
c.v.
in
f.m.
in
ART
27.5
A1
55
A2
110
A3
220
A4
440 A 5 880
A6
1760
A7
3520
A8
7040
A9
PITCH (Hz)
c.v.
in
f.m.
in
ART

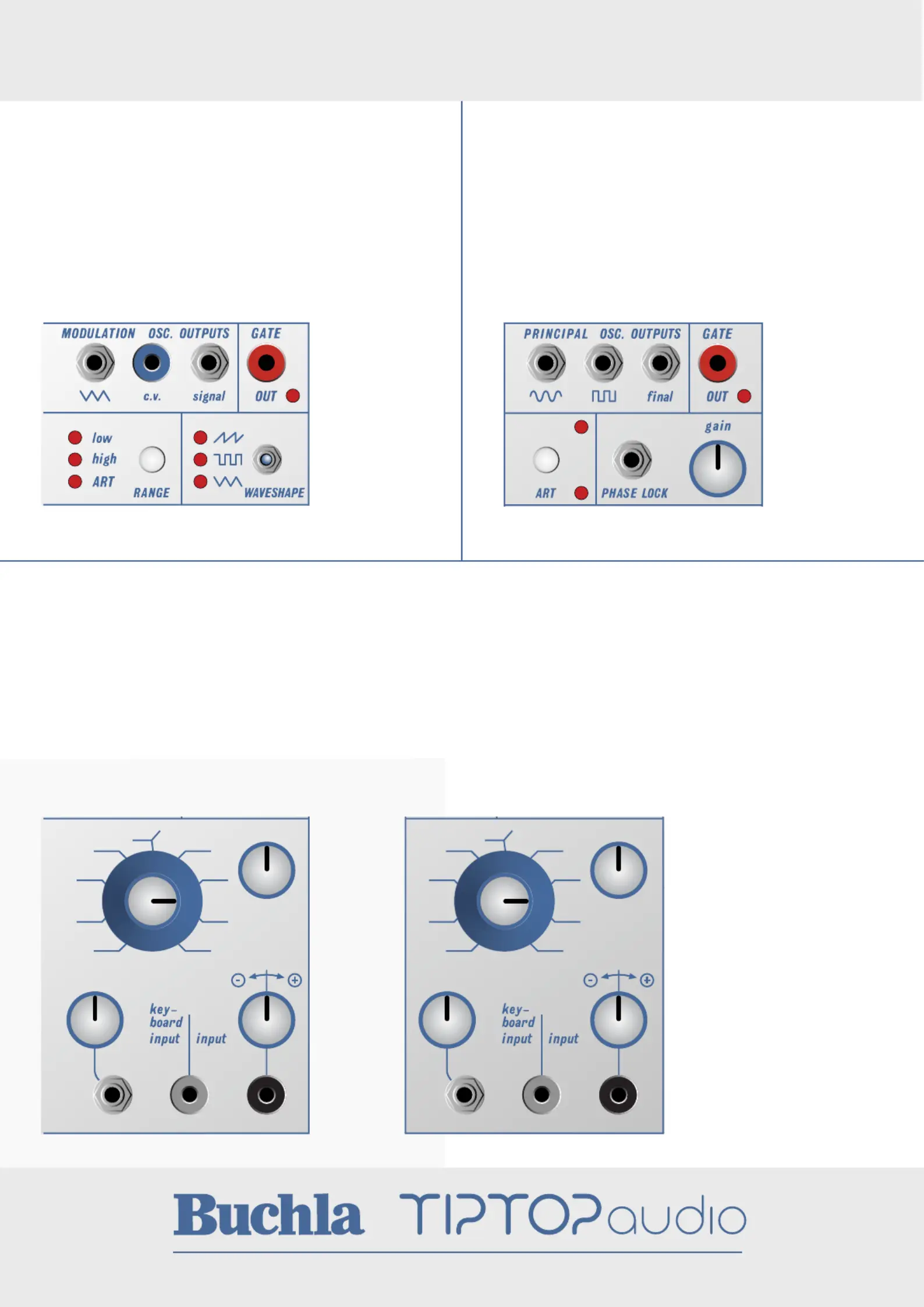

Both oscillators have a large with a range of about 27.5hz which is the lowest A0 pitch on a piano up Frequency control knob
approximately 8 octaves to about 7040hz or A8 and octave above the highest A on a piano. The frequency figures surrounding
the Frequency knob are approximate, not precise. As mentioned before their frequency ranges can be driven higher or lower
with CV.
There is also a which covers a range of about an interval of a fifth. fine tune knob
Both oscillators have . The one with an attenuverter can add or invert the incoming CV. The one marked two CV inputs
Keyboard or ART can toggle to Keyboard mode which use 1V/OCT, or to ART.
Both oscillators can receive and the amount of FM will be determined with the attenuator. Audio FM
Order
e oven dd
lo w
TIMBRE
c.v.
in
In Timbre/Harmonics section there are in that section and the knobs allow us to cross fade between their 3 wave shapers
outputs and the VCO sine wave.
The wave shapers are:
Wave Folder
Sawtooth
M shape (can be consider as square)
The Order knobs wave folder and / sawtooth and M shape.cross fade between It is the final cross fade before the output.
When the the output is the wave folder and in that case the Timbre knob is the folding control andOrder is fully CCW
Symmetry adds DC to the audio entering the folder thus altering its folding further to be asymmetric.
When Order is fully CW, timbre cross fade between the VCO sine wave and another cross fader of the sawtooth/M shape that
is controlled by the knob. Symmetry
Yes there are tons of cross fades on this module and they are in series.
Since Order and Symmetry don’t have attenuators on their CV input this is good opportunity to use a 257t to process CV
before going to these inputs for more subtle control.
From the original manual:
“These three waveshape controls have a tremendous eect on the Final output signal and should be experimented with to
discover the wide range of timbres this oscillator can produce before any signal processing.”
PROGRAMMABLE COMPLEX WAVEFORM GENERATOR MODEL 259T
Eurorack 200 series
