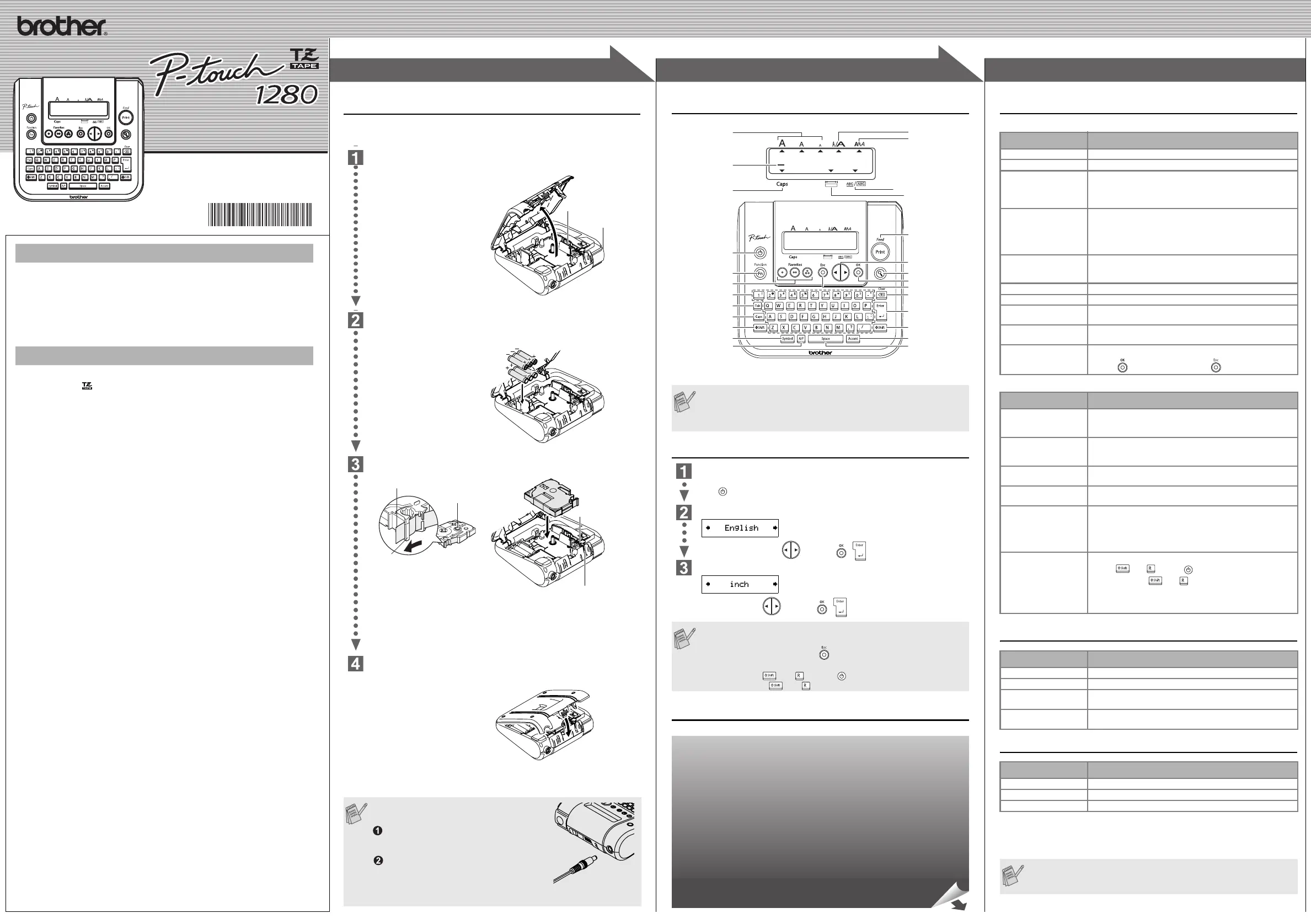

USER'S GUIDE

Printed in China

LN7629001A

www.brother.com

With your PT-1280, you can create labels for any application. Select from the

many frames, character sizes and styles to design beautiful custom labels. In

addition, the variety of tape cartridges available allows you to print labels with

different widths and exciting colours.

Read this manual carefully before starting and keep the manual in a handy

place for future reference.

• Use only Brother TZ tapes with this machine. Do not use tapes that do

not have the mark.

• Do not clean the machine with alcohol or other organic solvents. Only use

a soft, dry cloth.

• Do not touch the print head mechanism. Use a soft wipe (e.g. a cotton

swab) when cleaning the print head.

• To avoid injuries, do not touch the cutter's edge.

• To prevent damage or breakage of the glass, do not press hard on the LCD

display.

• Do not put any foreign objects into or heavy objects on the machine.

• Do not leave any rubber or vinyl on the machine for an extended period of

time, otherwise the machine may be stained.

• Do not get the machine wet, such as by touching with wet hands or spilling

beverages on to the machine.

• Do not expose the machine to extremely high temperatures or high

humidity. Never leave it on the dashboard, in the back of your car, near

heaters or other hot appliances. Keep it out of both direct sunlight and rain.

• Avoid using the machine in extremely dusty places.

• Do not pull on the tape being fed from the P-touch, otherwise the tape

cassette may be damaged.

• Do not attempt to cut the tape while printing or feeding since this will

damage the tape.

• Do not try to print labels using an empty tape cassette set in the P-touch.

Doing so will damage the print head.

• Remove the batteries and disconnect the AC adaptor if you do not intend

to use the machine for an extended period of time. (Note: When power is

disconnected for more than three minutes, all text shown in the display and

any text files stored in the memory will be lost. Language and unit settings

will also be cleared.)

• Do not use old and new batteries together or mix alkaline batteries with

other type batteries, or set the positive and negative end in the wrong

position. Otherwise, the batteries may leak or be damaged.

• Use only the suggested AC adaptor for this machine to prevent any

damage or failure.

INTRODUCTION

GENERAL PRECAUTIONS

Power Supply & Tape Cassettes

Make sure that the power is turned off when replacing batteries or tape cassette.

Open the back cover by pressing in the rough area at the top end of the

machine.

If a tape cassette is already

installed, remove it by pulling it

straight up. Also, if batteries are

already installed, remove them.

Insert six new AAA-size alkaline batteries (LR03), making sure that their

poles point in the correct directions. Always replace all six batteries at the

same time using brand new ones.

Insert a tape cassette, making sure that it snaps into place.

• Make sure that the end of the tape feeds under the tape guides.

• If the ink ribbon is loose, use your finger to wind the toothed wheel in the

direction of the arrow on the cassette.

• Use only Brother TZ tapes with this machine.

Securely close the back cover, making sure that it snaps into place.

After you have installed the tape,

feed the tape (see Feeding)

once and then push in the tape

cutter lever to cut the tape.

When using optional AC adaptor (model

AD-5000)

Insert the plug on the adaptor cord into

the adaptor jack on the top end of the

machine.

Insert the plug into the nearest standard

electrical outlet.

For memory back up, we recommend using

AAA-size alkaline batteries (LR03) together

when using the AC adaptor.

Print head

Tape cutter lever

End of tape

Tape guide

Cutter's edge

Tape exit slot

Toothed Wheel

Keyboard & LCD

Initial Setting

Start your machine

Supply power by using six AAA batteries or the optional AC adaptor, and then

press .

Set the language (English/Spanish/French/Portuguese)

Choose a language with and press / .

Set the unit (inch/mm)

Choose a unit with and press / .

Creating Labels

• The LCD shows one row of 15 characters; however, the text that

you enter can be up to 80 characters in length.

• Use Cursor key while holding down Shift key to go to beginning/

end of the text.

• The machine automatically turns off if no key is pressed within 5

minutes.

• To cancel operations, press .

• To initialize the settings, turn off the machine and then while

holding down and , press to turn the machine back on.

Finally, release and .

Size

Cursor

Caps

Power key

Function key

Favourite keys

Character key

Tab key

Caps key

Shift key

Symbol key

Auto Format key

Width

Style

Underline/Frame

Label Length

Print key

Cursor key

Preview key

OK key

ESC key

Backspace key

Enter key

Shift key

Accent key

Space key

See the reverse side for steps of creating labels.

Troubleshooting

Error message

What to do when...

Specifications

Accessories (Supplies may differ by distribution.)

If the cutter blade becomes blunt after repetitive use and the tape cannot be

cut cleanly, replace with new cutter unit (stock no. TC-5) by obtaining from an

authorised brother reseller.

Message Cause/Remedy

Battery Weak! The batteries are weak.

Check Battery! The installed batteries are about to run out.

Invalid! • There is no text above the cursor when you set Number-

ing.

• Invalid character is selected for Numbering.

• Invalid number is selected for Tab Length or Label Length.

No Text! • You tried to print a text file when there is no data stored in

the memory.

• The Print key is pressed when no text is entered.

• You tried to set Copies, Numbering or Mirror when no text

is entered.

Line Limit! • You tried to enter a 3rd line by pressing Enter key.

• You tried to print a 2 line text when 3.5 mm or 6 mm tape is

installed.

No Cassette! You tried to print a label when there is no cassette installed.

Cutter Error! Tape cutter lever is used in the middle of printing process.

Full! The maximum number of characters (80 characters) have

already been entered.

Text Too Long! The text length exceeds the selected label length or the

selected Auto Format setting length.

No Frame OK? Printing on 3.5 mm tape with invalid Frame setting ON.

(Select to print with no Frame, to cancel.)

Problem Solution

The display stays blank

after you have turned on

the machine.

• Check that the batteries are correctly inserted.

• If the batteries are weak, replace them.

• Check that the suggested adaptor is correctly connected.

The machine does not

print, or the printed

characters are blurred.

• Check that the tape cassette has been inserted correctly.

• If the tape cassette is empty, replace it.

The printed characters

are not formed properly.

• The batteries may be weak. Replace them.

The memory has

cleared on its own.

• The batteries may be weak. Replace them.

A blank horizontal line

appears through the

printed label.

• There may be some dust on the print head. Remove the

tape cassette and use a dry cotton swab to gently wipe the

print head with an up-and-down motion.

• The print head can be cleaned more easily if the optional

print head cleaning cassette (TZ-CL3) is used.

The machine has

"locked up" (i.e., nothing

happens when a key is

pressed, even though

the machine is on).

• Turn off the machine, and then while holding

down and , press to turn the machine back on.

Finally, release and .

• Note: The text and formats in the display and all text files

stored in the memory are erased. Also, the language and

unit settings will be cleared.

Item Specification

Dimensions 160 mm (W) × 151 mm (D) × 60 mm (H)

Weight 470 g (without batteries and tape cassette)

Power supply Six AAA-size alkaline batteries (LR03 : not included) or

optional AC adaptor (model AD-5000)

Tape cassette Brother TZ tape (width) :

3.5 mm, 6 mm, 9 mm, 12 mm

Accessories Stock No.

Tape Cassettes See the attached TZ Tape Catalogue.

AC adaptor model AD-5000

Cutter Unit TC-5 (replacement)

Be sure to use scissors to cut the fabric tapes. The built-in cutter can-

not completely cut the fabric tapes.

PREPARATION OPERATION REFERENCE

[GETTING STARTED]

Switching Upper Case/Lower Case

Making Two Line Text

Move the cursor to where the second line starts and press .

Use either 9 mm or 12 mm wide tape for two line text.

Entering Symbols

• To go to the next group, press .

• To cancel operations, press .

Entering Accented Characters

> > />/

• To cancel operations, press .

• The order of accented characters differ by the selected LCD language.

To Clear

By pressing the Backspace Key, the letters will be deleted one by one.

All text and settings will be cleared.

Group

Symbols

Group

Symbols

1 7

2 8

3 9

4 10

5 11

Accented Characters Accented Characters

A a

C c

D d

E e

G g

I i

K k

L l

N n

O o

R r

S s

T t

U u

Y y

Z z

Upper case ( ON) Lower case ( OFF)

Display Label image

[CREATING LABELS]

MAKING TEXT DESIGNING LABELS PRINTING LABELS COMPLETED LABELS

USEFUL FUNCTIONS

Setting [Size]

> >[ ]Size [Large]

Automatically adjusts the text size according to the tape width.

Setting [Width]

> >[ ]Width [ ]×2

Setting [Style] (Vertical)

> >[ ]Style [ ]Vertical

Setting [Underline/Frame]

> >[ ]Underline/Frame [ ]Underline

Frames can not be printed on 3.5 mm tape.

Setting [Tab]

You can make aligned texts by setting tabs.

Example: To set a tab between "ABC" and "D"

The cursor should be positioned where you set a tab.

> > [ ]Tab

• You can also set a tab by using the Tab Key on the keyboard.

Setting [Tab Length]

(

Auto / 0

- 100 mm)

> >[ ]Tab Length

• You can also select the length by entering the length with Num keys.

• To return to [Auto], press .

Setting [Label Length]

(Auto /

- 300 mm)

> >[ ]Label Length

• You can also select the length by entering the length with Num keys.

• To return to [Auto], press .

Setting [Auto Format]

You can choose label length from six formats to create labels for various ap-

plications.

> >[ ]Auto Format [VHS Spine]

Text Preview

You can preview the text before printing.

• The LCD shows the whole text and the label length (inch/mm), then returns to the

original text.

• Only the text can be previewed, not the font, style, size, underline/frame or any

additional features.

Feeding (Tape Feed)

Printing

• To cut off the label, push in the tape cutter lever on the upper-right corner of the

machine.

• To prevent damage to the tape, do not try to cut while the message "Print" or "Feed"

is displayed.

• Be sure to use scissors to cut the fabric tapes. The built-in cutter cannot completely

cut the fabric tapes.

Setting [Margin] (Tape Margin)

> >[Margin] [Full]

[Full]/[Half]/[Narrow] is for leaving equal margins on both sides of the text.

NOTE: Cut along the printed dots (:) with scissors so the text is centered in the label.

[Chain Print] is for printing more than 1 copy of a label with minimum margin

<e.g. 1>. You can also create a label containing texts in various styles; print

a text in one style, and before feeding, enter the second text in another style

<e.g. 2>.

FEED THE TAPE BEFORE USING THE CUTTER (see Feeding/Printing).

Otherwise A PART OF THE TEXT MAY BE CUT OFF. Do not try to pull the

tape since this may damage the tape cassette.

Using [Print Option]

[Copies]

You can print up to 9 copies of each label.

> > >[ ]Print Option [ ]Copies

You can also select the number of copies by entering with Num keys.

[Numbering]

You can print many copies of the same text while increasing a selected

number by 1 after each label is printed.

Example: To print copies of a label containing a serial number (0123, 0124 and 0125)

> > [ ]Print Option >

[ ]Numbering >

Select the highest number you wish to be printed when setting the number.

[Mirror]

[

Print Option

]

[

Mirror

]

[Mirror Print?]

Use clear tape in [Mirror], so the labels can be read correctly from the oppo-

site side when attached on glass, windows or other transparent surfaces.

Peel the printed label from backing and apply the label.

Memory (Favourite keys)

You can save and print your favourite label in seconds at the touch of a button.

There are three Favourite Keys ( ~ ) to store your three favourite labels.

To Save:

> >

To Print:

To Open:

> >

When the saved text contains more than 8 characters, use to scroll

through the text.

Function Shortcuts

In addition to the basic steps to search for a function, PT-1280 provides you

with function shortcuts so you can easily jump to a frequently used function

just by pressing and the shortcut key shown in the table below. To con-

firm, press .

[Large] [Medium] [Small]

[Normal] [× ×2] [ 1/2]

[Normal] [Bold] [Outline]

[Shadow] [Italic] [Italic Bold]

[Italic Outl](Italic Outline)

[Italic Shadow] [Vertical]

[Off] [Underline] [Round] [Candy]

[Callout] [Banner] [Wooden]

Application Length LengthApplication

VHS Spine 140 mm CD Case Spine 113 mm

MiniDV Spine 42 mm File Tab 82 mm

Audio Tape 89 mm Divider Tab 42 mm

( + )

Display Label image

ABC D

Tab

( + )

25mm

12mm 12mm 4mm4mm

25mm

ABC ABC: ABC:

Full Half Narrow

ABC ABC ABC ABC

ABC

DEF

<e.g. 1> <e.g. 2>

(feed & cut) (feed & cut)

Chain Print

( + )

Key Function Key Function

[Size] [Tab Length]

[Width] [Label Length]

[Style] [Auto Format]

[Underline/Frame] [Margin]

[Tab] [Print Option]

( + )

Product specificaties

Merk:	Brother
Categorie:	Printer
Model:	P-touch PT-1280SN

Heb je hulp nodig?

Als je hulp nodig hebt met Brother P-touch PT-1280SN stel dan hieronder een vraag en andere gebruikers zullen je antwoorden

Uw naam*

Jouw email*

Schrijf hier uw vraag

Handleiding Printer Brother

Brother HL-B2100D Handleiding

2 December 2024

Brother MFC-7880DN Handleiding

2 December 2024

Brother HL-1222WE Handleiding

2 December 2024

Brother MFC-L2712DW Handleiding

2 December 2024

Brother DCP-T425W Handleiding

2 December 2024

Brother PocketJet PJ-823 Handleiding

2 December 2024

Brother RuggedJet RJ-2055WB Handleiding

2 December 2024

Brother MFC-J4535DW Handleiding

2 December 2024

Brother P-Touch PT-PR10BT Handleiding

2 December 2024

Brother MFC-580 Handleiding

2 December 2024

Handleiding Printer

Nieuwste handleidingen voor Printer

Canon imageRUNNER 2200i Handleiding

23 December 2024

Pantum BM4200DN Handleiding

20 December 2024

Pantum BM4200ADN Handleiding

20 December 2024

Pantum BM4200AD Handleiding

20 December 2024

Pantum BP4200DW Handleiding

20 December 2024

Pantum BP4200DN Handleiding

20 December 2024

Epson EcoTank L8180 Handleiding

14 December 2024

AVM Ovation CS 6.3 Handleiding

9 December 2024

AVM Inspiration AS 2.3 Handleiding

9 December 2024

HP Deskjet Ink Advantage 2520hc Handleiding

6 December 2024
