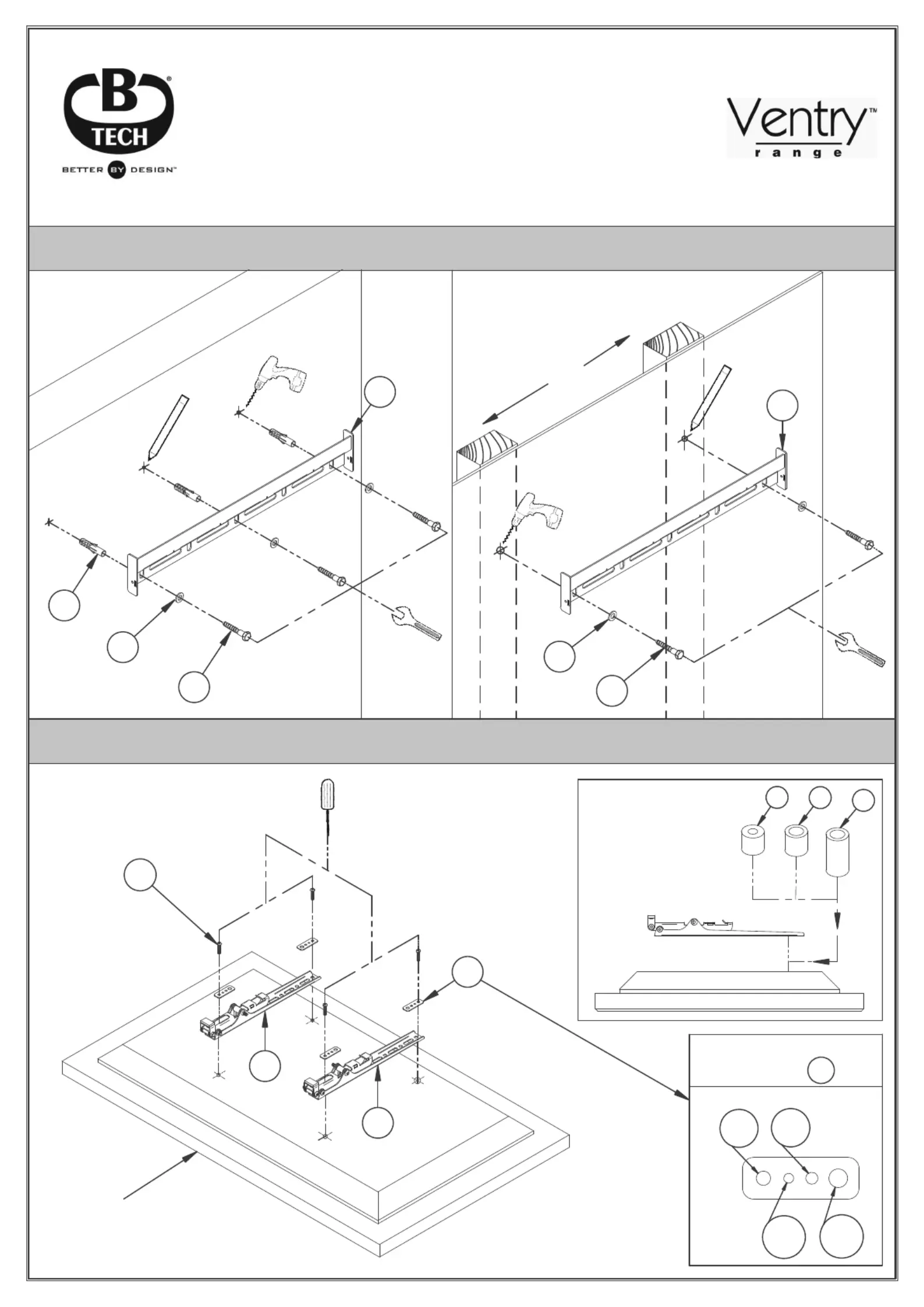

1. Attach wall plate to either a concrete or stud wall.
2. Attach interface arms to flat screen.
M
2
3
J K L
MULTIWASHER
PART M
1
A1
A2
i. Concrete wall ii. Stud wall
1
A1
A2
16"
MAX
A3
A/B
C/D
E/F
BOTTOM
TOP
G/H/I
FLAT
SCREEN
A-I
3. Adjust and lock tilt.
5. Tilt adjustment.
7. Insert locking bar.
6. Lateral adjustment.
ADJUST
TILT
47
MAXIMUM
TILT
15°
4. Hook mount onto wall plate.
FLAT
SCREEN
+ 15°
FLAT
SCREEN
To adjust tilt,
repeat steps
3 & 4.
Optional
Secure with padlock (not supplied)
HOLE FOR
PADLOCK
WALL FLAT
SCREEN
1
3
2
7
3
4
2
BOTTOM
TOP
73
FLAT SCREEN
6
5
LATERAL
ADJUSTMENT
Product specificaties
Merk: | B-tech |
Categorie: | Flat panel steun |
Model: | BTV511 |
Kleur van het product: | Zwart |
Breedte: | 491 mm |
Hoogte: | 455 mm |
Montagewijze: | Muur |
Maximale gewichtscapaciteit: | 50 kg |
Montage interface compatibiliteit (min): | - mm |
Montage interface compatibiliteit (max): | 425 x 400 mm |
Aantal displays ondersteund: | 1 |
(Buitenste) hoofdverpakking brutogewicht: | 15630 g |
Hoeveelheid per (buitenste) hoofdverpakking: | 6 stuk(s) |
Bereik kantelhoek: | 0 - 15 ° |
Maximale schermgrootte: | 55 " |
Code geharmoniseerd systeem (HS): | 83024200 |
(Buitenste) hoofdverpakking inhoud: | 0.037 cm³ |
Geschikt voor computerscherm: | Ja |
Afstand tot de muur (min): | 44 mm |
Afstand tot de muur (max.): | 153 mm |
Diepte (max): | 46 mm |
