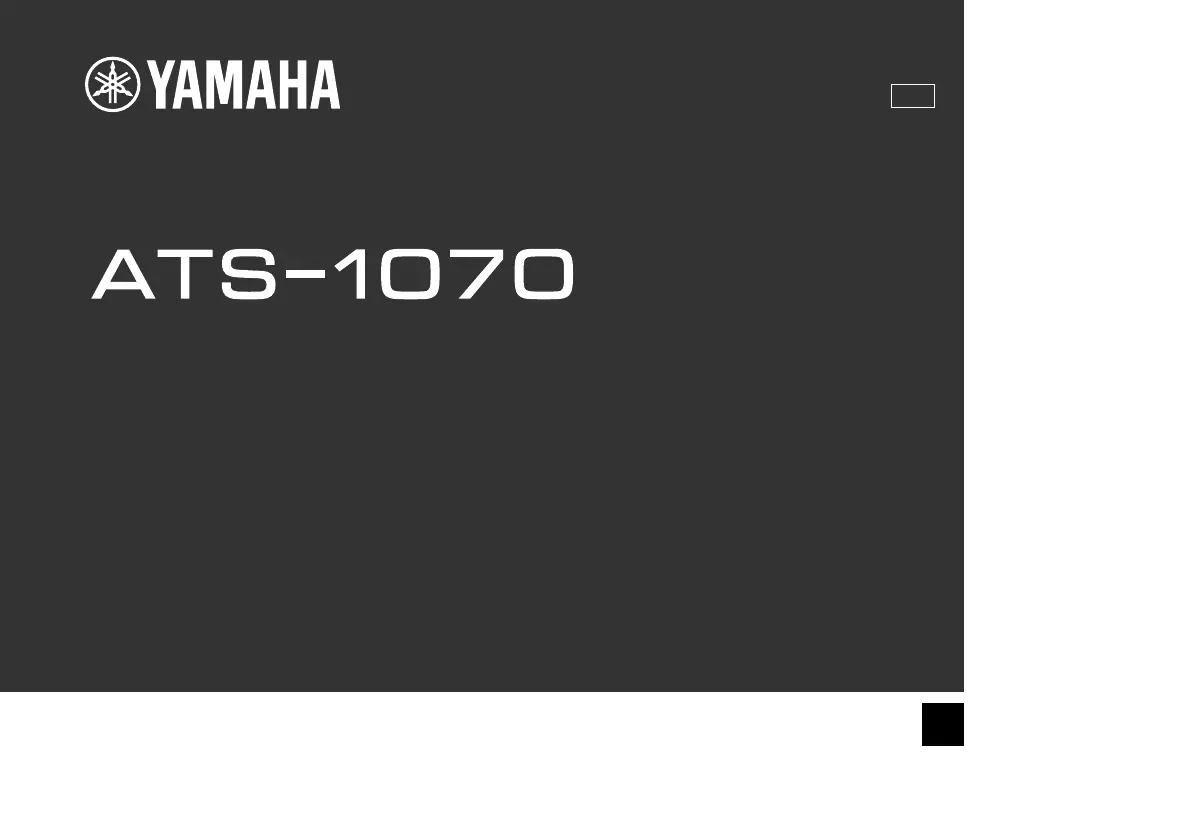

Front Surround System

Owner’s Manual

English

Français

Español

XXX

2En

The above warning is located on the bottom of the unit.

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol within

an equilateral triangle is intended to alert the user

to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be

of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

product.

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or

the third prong are provided for your safety. If the provided plug does not fit

into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury

from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

(UL60065_03)

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

CAU TI ON

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

En 3

* This applies only to products distributed by YAMAHA CORPORATION OF

AMERICA.

FCC/IC NOTICE (U.S.A. and Canada)

• This equipment compiles with FCC/IC radiation exposure limits set forth for an

uncontrolled environment and meets the FCC radio frequency (RF) Exposure

Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This

equipment has very low levels of RF energy that it deemed to comply without

maximum permissive exposure evaluation (MPE). But it is desirable that it should

be installed and operated with at least 20 cm and more between the radiator and

person’s body.

• This device complies with Part 15 of FCC Rules and Industry Canada license-

exempt RSS standard(s). Operation is subject to the following two conditions: (1)

this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of this

device.

• This transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter.

* This applies only to products distributed by YAMAHA CORPORATION OF

AMERICA.

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this

manual, meets FCC requirements. Modifications not expressly approved by

Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT:

When connecting this product to accessories and/or another product use only high

quality shielded cables. Cable/s supplied with this product MUST be used. Follow

all installation instructions. Failure to follow instructions could void your FCC

authorization to use this product in the USA.

3. NOTE:

This product has been tested and found to comply with the requirements listed in

FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these

requirements provides a reasonable level of assurance that your use of this

product in a residential environment will not result in harmful interference with

other electronic devices. This equipment generates/uses radio frequencies and, if

not installed and used according to the instructions found in the users manual,

may cause interference harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee that interference will not

occur in all installations. If this product is found to be the source of interference,

which can be determined by turning the unit “OFF” and “ON”, please try to

eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or

install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the

antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact

the local retailer authorized to distribute this type of product. If you can not locate

the appropriate retailer, please contact Yamaha Corporation of America,

Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha

Corporation of America or its subsidiaries.

This product contains a battery that contains perchlorate material.

Perchlorate Material—special handling may apply,

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

The model number, serial number, power requirements, etc., may be found on or

near the name plate, which is at the bottom of the unit. You should note this serial

number in the space provided below and retain this manual as a permanent record

of your purchase to aid identification in the event of theft.

Model No.

Serial No.

(Perchlorate/Ser.No)

CAN ICES-3 (B)/NMB-3(B) (can-b-02)

Product specificaties

Merk:	Yamaha
Categorie:	Soundbar
Model:	ATS-1070
Kleur van het product:	Zwart
Breedte:	889 mm
Diepte:	130 mm
Hoogte:	54 mm
Bluetooth:	Ja
Bluetooth-versie:	4.1+EDR
USB-poort:	Ja
Connectiviteitstechnologie:	Draadloos
Aantal USB 2.0-poorten:	1
Aantal HDMI-poorten:	2
Gemiddeld vermogen:	120 W
Stroomverbruik (in standby):	0.8 W
Aantal luidsprekers:	6
HDCP:	Ja
Ingebouwde audio decoders:	DTS Digital Surround, Dolby Digital, Dolby Pro Logic II
Audio Return Channel (ARC):	Ja
Game modus:	Ja
Gemiddeld vermogen subwoofer:	60 W
Audio-uitgangskanalen:	- kanalen
Equalizer modus:	Game, Movie, Music, Sport, TV
Ophangsysteem voor aan de muur:	Ja
HDMI in:	1
HDCP versie:	2.2
Soundbar speaker RMS vermogen:	60 W
Meegeleverde subwoofer:	Ja
Digitale audio optische in:	1
Soundbar gewicht:	3401 g
Aantal HDMI-uitgangen:	1
Wooferdiameter (subwoofer):	3 "
Diameter woofer:	2.1 "
Aantal woofer drivers:	2
Diameter hogetonenluidspreker:	1 "
Subwoofer locatie:	Ingebouwd
Stroomverbruik (typisch):	27 W
Virtuele surround:	Ja
Bluetooth-codec:	SBC, AAC
Analoge audio-ingangen:	1
