Pagina 1/2

TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections to the unit.

Assistance in troubleshooting is available from the factory. When calling, you

should have a VOM and a lineman's test set available and be calling from the job

site. Call (540) 563- -2000 and ask for Technical Support, or call (540) 767 1555 for

Valcom 24-hour Faxback System or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating

your company name, address, phone number, contact person, and the nature of the

problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under

conditions of normal use and service for a period of one year from the date of shipment. The

obligation under this warranty shall be limited to the replacement, repair or refund of any such

defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim,

2. the defect is not the result of damage, misuse, or negligence after the original

shipment,

3. the product has not been altered in any way or repaired by others and that

factory sealed units are unopened (A service charge plus parts and labor will

be applied to units defaced or physically damaged),

4. freight charges for the return of products to Valcom are prepaid,

5. all units 'out of warranty' are subject to a service charge. The service charge will

cover minor repairs (Major repairs will be subject to additional charges for parts

and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in

no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages,

loss of time or other losses incurred by the buyer in connection with the purchase,

operation, or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is

received in damaged condition, the carrier should be notified immediately. Claims for such

damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters: In Canada:

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019-5056 Brampton, Ontario L7A1A5

Phone: (540) 563-2000 Phone: (905) 456-1072

FAX: (540) 362-9800 FAX: (905) 456-2269

INSTALLATION INSTRUCTIONS FOR

AMPLIFIED PENDANT SPEAKERS

MODEL NO. V-1015B

Issue 1 947021

VALCOM ONE -WAY AMPLIFIED PENDANT SPEAKERS

Valcom Pendant Speaker, V- - -1015B (five watt), is self amplified and provides voice

paging as well as background music. This speaker has an externally accessible

volume control that can be adjusted by a screwdriver through the hole in the grille.

It is weather-resistant and available in white, black, gray and custom colors.

Model V- -1015B W White

Model V- -1015B BK Black

Model V- -1015B GY Gray

DIMENSIONS/WEIGHT

• 5.80” Dia. x 8.80”H (14.73cm Dia. x 22.35cm H)

• 3.2 lbs. (1.45kg)

The V-1015B requires -24VDC, 300mA (6 Power Units).

Note: To expand a 25/70/100 Volt system, add a

V-1095 in line before connecting this speaker or

damage to both the amplifier and speaker may

occur.

INSTALLATION

The V-1015B Pendant Speaker is designed to be

suspended from a ceiling using the enclosed chain. The

chain is not attached to the ring at the top of the speaker

to prevent damage to the speaker's finish during shipping.

To install the chain, open the link on the end of the chain

and loop the link through the ring located on the top of the

speaker and close the link. Make sure the chain is securely

fastened to the ceiling.

NOTE: An additional 6 feet length of chain is available.

Order Part Number V- -1093 BK.

The area covered by a pendant speaker is determined by

the suspended height of the speaker.

Suspended Height 8 10 12 16 20

Spacing 16 20 25 30 35

Approximate Coverage 250 350 500 800 1000

CONNECTIONS

Note: The cable is for electrical connections only. Under no circumstances

should the speaker be suspended from this cable.

Tip/A

Ring/B

-24VDC

GND

One-Way

Amplified

Speaker

Page

Out

Valcom Page

Adapter

Valcom -24VDC

Power Supply

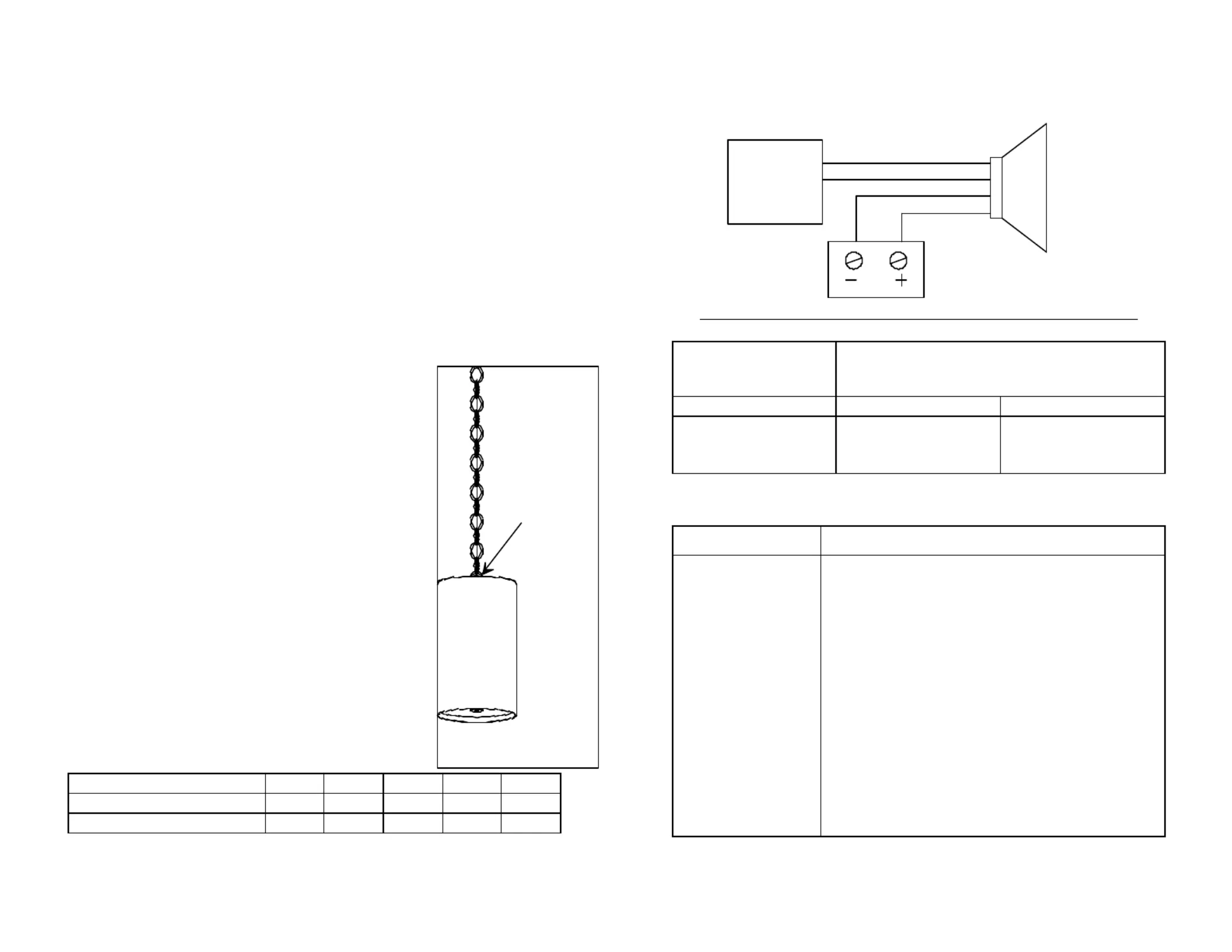

FIGURE 2

Recommended Quantity of Speakers per Specific Power Run

Speakers per

Power Run Wire Run Length (Feet)

V-1015B 24 AWG 22 AWG

2 250 400

1 500 800

0 1000 1600

TROUBLESHOOTING CHART

SYMPTOMS ACTIONS

No audio from speaker 1. Verify volume control is turned up (clockwise).

2. Using a lineman's test set, check for proper audio

level on Tip and Ring leads and if necessary at the

source.

Low volume from

speaker

1. Verify volume control is turned up.

2. Check voltage at the speaker when in use, (-18 to

-24VDC required).

3. Using a lineman's test set, check for proper audio

level on Tip and Ring leads. It is possible that some

low level audio will be heard with only one side of

Tip and Ring connected.

Loud squeal

(feedback)

1. Decrease volume of speaker (counterclockwise).

2. Increase the distance between telephone and speaker.

3. Install confidencer on the telephone in severe

problem areas.

Attach chain here.

FIGURE 1

Product specificaties

Merk:	Valcom
Categorie:	Speaker
Model:	Pendant Speaker V-1015B
Kleur van het product:	Wit
Gewicht:	1440 g
Breedte:	5.8 "
Diepte:	147.32 mm
Hoogte:	8.8 "
Materiaal behuizing:	Aluminium
LED-indicatoren:	Nee
Bluetooth:	Nee
Aan/uitschakelaar:	Nee
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Nee
Type stroombron:	DC
Gemiddeld vermogen:	5 W
DC voltage input:	24 V
Volumeregeling:	Draaiknop
Plug and play:	Ja
Equalizer-instellingen:	Nee
Aanbevolen gebruik:	Universeel
Impedantie:	8 Ohm
Backlight:	Nee
Audio-uitgangskanalen:	1.0 kanalen
Speaker plaatsing:	Plafond-montage
Aantal drivers:	1
Woofer:	Nee
Diameter driver subwoofer (imperiaal):	5 "
Diameter driver:	127 mm
Frequentiebereik:	70 - 16000 Hz
Gevoeligheid:	-10 dB
Op afstand bedienbaar:	Nee
Aansluiting(en):	2
USB:	Nee
Luidspreker soort:	1-weg
Afmetingen (B x D x H):	223.52 x 147.32 x 147.32 mm
Speaker omsluiting:	Gesloten
Versterker:	Ingebouwd
Tweeter:	Nee
Diepte (imperiaal):	5.8 "
Wifi:	Nee
Bedrijfstemperatuur (T-T):	-20 - 55 °C
Relatieve vochtigheid in bedrijf (V-V):	0 - 95 procent
Speaker positie:	Satelliet
