Pagina 1/4

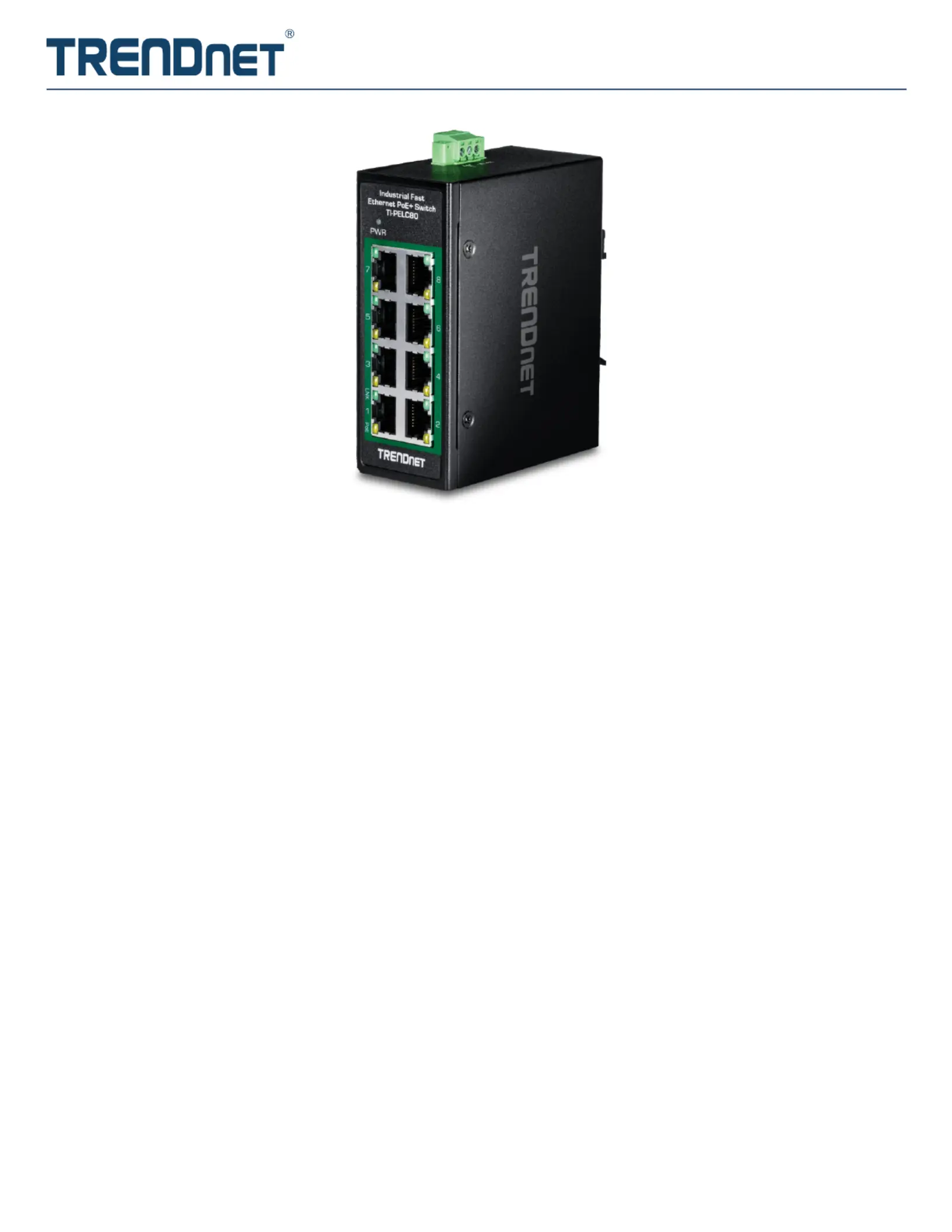

8-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch
TI-PELC80 (v1.xR)
8 x 10/100Mbps PoE+ ports
200W PoE+ power budget
Hardened IP30 rated metal mini switch
Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
1.6Gbps switching capacity
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately (model: TI-S24052, TI-S24048)
NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch, model TI-PELC80, is a reliable and rugged networking
solution designed for use in both extreme and demanding environments. This Industrial Fast Ethernet DIN-Rail Mini Switch features
a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high
and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features eight
Fast Ethernet PoE+ ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation
areas.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet PoE+
Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need
one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches,
easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems,
IPTV decoders, access controls, and more.
TI-PELC80
Fast Ethernet PoE+ Ports
Up to 200Mbps full-duplex per port and
total switching capacity of 1.6Gbps
with total power budget of 200W.
Industrial Hardened Design
Equipped with a rugged IP30 rated
housing, designed to withstand a high
degree of vibration and shock, and
operate within an extreme
temperature range of -40° – 75° C (-
40° – 167° F).
Mini Design
With a compact metal housing design,
this mini network switch is well-suited
for installations into most environments.
NETWORKING SOLUTION
TI-PELC80
FEATURES
Fast Ethernet Ports
Up to 200Mbps full-duplex per
port and total switching capacity of
1.6Gbps
PoE+ Power Budget
Supplies up to 30W of PoE/PoE+
power per PoE+ port with a
power budget of 200W

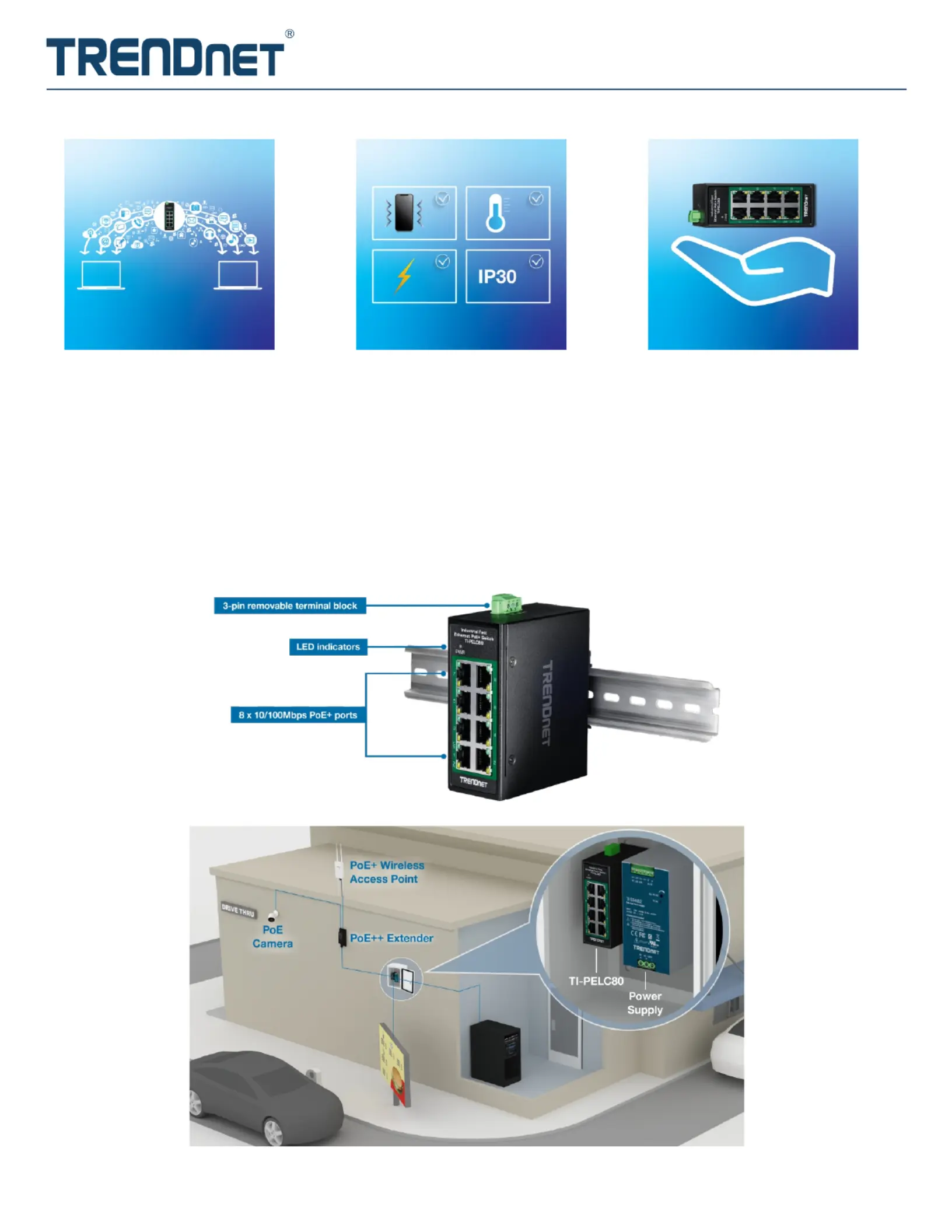

DIN-Rail / Wall Mounts
IP30 rated metal enclosure on the
industrial switch, with included DIN-
Rail mount and wall mount
hardware
Mini Housing Design
Compact and sturdy metal housing
Operating Temperature Range
An operating temperature range of
-40° – 75° C (-40° – 167° F) allows
for the installation of the industrial
switch in environments with
extreme hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-31), and
vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS
certifications (IEC 61000-4-2)
ESD:
Contact: 6kV | Air: 8kV, (IEC
61000-4-4) EFT: Power: 2kV |
Signal: 2kV, (61000-4-5) Surge:
Power: 2kV | Signal: 2kV
TI-PELC80
Grounding Point
The industrial switch features a
grounding point for protection
against external electrical
surges


Product specificaties

Merk: Trendnet
Categorie: Niet gecategoriseerd
Model: TI-PELC80
