MA10402 - AIR QUALITY MONITOR

Instructions manual

FEATURES:

 Quartz clock

 12/24h time display

 Indoor and outdoor temperature display in °C/°F

 Indoor humidity display in %RH

 Air quality sensor for monitoring of indoor air quality

 Display of CO2 equivalent values and quality indicator

 Air quality alarm per LED

 Low battery indicator

SETTING UP:

 Open the battery cover at the back of the transmitter and open

the battery cover at the back of the air quality monitor.

 Checking the correct polarization (+/- markings), insert 2 x A, AA

LR03, 1.5V batteries into the battery compartment of the

outdoor transmitter insert 2 x C, LR14, 1.5V batteries into and

the battery compartment of the air quality monitor eplace the . R

covers.

 When the batteries are inserted, all the segments of the LCD

will light up briey The monitor will receive data signal from the .

outdoor transmitter in a few seconds.

 Hold the SET button for 3 seconds to manually enter a time .

(See ettings “Manual S ”.)

Notes :

 T equivalent COhe 2 in ppm will only be displayed after 30

minutes.

 The air quality sensor will take up to 5 days after inserting

battery to condition itself for the room it is placed. If the unit is

placed into another room, there might be a reconditioning time

of several days as well.

 Insert the holder to the bottom of the outdoor transmitter for

table standing or insert it to the back of the transmitter for wall

mounting purpose.

 Set the air quality monitor in a dry and shaded interior and

away from sources of interference, such as televisions or metal

plates. The transmitter should be mounted protected from rain

and direct sunlight.

REPLACING THE BATTERY IN THE AIR QUALITY MONITOR

The outdoor transmitter uses 2 x A, LR03, 1.5V batteries. AA

The air quality monitor uses 2 C LR14, 1.5V batteries x , .

To replace the batteries, please follow the steps below:

 Remove the cover at the back of the air quality monitor or the

outdoor transmitter Remove the old batteries and wait 2 .

minutes before the next step.

 Insert batteries observing the correct polarity (see marking).

 Replace compartment cover.

BATTERY CHANGE:

It is recommended to replace the batte regularly to ensure optimum ry

accuracy of the unit.

Add device to MOBILE-ALERTS system

(MOBILE ALERTS gateway needed, sold separately)

Open the app, dashboard is displayed. Tap "Add new sensor" and

scan the QR code on the back of the MA10402. Then set a name for

the sensor. To set a name, select the transmitter and then tap on the

left area of the pencil icon in the upper right.

Read measurements

Now you can read the measurements on your mobile phone.

BUTTON FUNCTIONS:

The Air Quality Monitor has easy- -use buttons (at his back) : 4 to

SET button:

 Press and hold to enter the manual setting modes:12/24 hour

time display, manual time setting, ºC / ºF temperature display,

 Exit the manual setting mode

+ button:

 Press to change values of all manual settings by 1 unit.

 Press and hold to speed up manual setting.

ALERT button:

 Press to set the air quality alert to ON / OFF

MIN / MAX button:

 Press to view MIN and MAX temperature and humidity values

 Press and hold to reset recorded MIN and MAX values

LCD SCREEN

MANUAL SETTINGS:

The following manual settings can be in the setting mode: done

 12/24 hour time setting

 Time setting

 ºC / ºF temperature display setting

Press and hold the SET button for about 3 second to enter the setting

mode:

12/24 HOUR TIME DISPLAY SETTING

 (default 24hr) “12hr” or “24hr” flashes in the LCD.

 Press the button +to select the “12hr” or “24hr” display mode.

 Press the button to conrm continue to the SET and manual

time setting.

MANUAL TIME SETTING

To set the clock:

 The hour digits start ashing in the time display section.

 Press the tton to adjust the hours and then press the +bu SET

button to go to the minute setting.

 The minute will be ashing. Press the button to set the +

minutes.

 Press the button to conrm continue to theSET and °C/°F

temperature setting.

°C/°F TEMPERATURE UNIT SETTING

The default temperature reading is set to °C (degree Celsius). To

select °F (degree Fahrenheit):

 button to toggle between The “°C” will be flashing, use the +

“°C” and “°F”.

 Press the button to conrm . SET and exit the manual settings

MIN/MAX values for temperature and humidity

Press the button for displaying of max./min. of temperature MIN/MAX

and humidity. Press and hold the button to reset recorded MIN/MAX

MIN and MAX values.

AIR QUALITY ALERT SETTING

Press the button activate the air quality alert. The air ALERT OFF to

quality alert OFF icon indicates that the alert is set o. No air quality

OFF icon indicates that the alert is activated.

Note:

The LED Alert blinks, if the air quality alert is activated and the

Equivalent CO2 ppm is higher than 1500ppm:

AIR QUALITY INDICATOR

The air quality indicator is located on the bottom of the LCD. It

changes from according to the equivalent CO“Green” to “Gray”by 2

ppm value .

* The air quality value shown, after sensor conditioning, may dier

- 250 ppm.+/

Note:

A 9-level bar graph is reenused to indicate “G ” to “Gray” air quality

level in the surrounding environment:

Levels

Equivalent CO

2 p pm

Green (Level 1)

450 ppm– 600

Level 2

650 ppm– 800

Level 3

850 ppm– 1000

Level 4

1050 ppm– 1200

Level 5

1250 ppm– 1500

Level 6

1550 ppm– 1800

Level 7

1850 ppm– 2100

Level 8

2150 ppm– 2400

Gray (Level 9)

≥ 2450 ppm

Troubleshooting

When no sensor readings are displayed in the app, check if the green

LED on the gateway is permanently lit. If not, please check if:

 The gateway is properly connected to the power plug, the

router and is turned on.

 Restart the station by removing the batteries for a minute and

reinserting, to restart the device.

 Your phone is connected to the internet.

 The signal is weakened by thick walls and ceilings. Put the

device in operation near the gateway and then locate a suitable

location.

More information and detailed instructions can be found in the app at

“Info” or at www.mobile-alerts.eu

Summary of the Declaration of Conformity: We hereby declare that

this device does comply with the requirements of RED Directive

2014/53/EU.

The declaration of Conformity can be found at: www.mobile-

alerts.eu/technoline/doc

SPECIFICATIONS:

Recommended temperature range: +5ºC to +40ºC / +41ºF to 104 ºF

Temperature measuring range:

Indoor - 5ºC to +59.5ºC with 0.5ºC resolution / : 9.

14.0ºF to +139.5ºF with 0.5ºF resolution

(OFL displayed if outside this range. In degree F

display, OFL will displayed when over 99.9ºF)

Outdoor: - 39.9ºC to +59.9ºC with 0.1ºC resolution /

-39.8ºF to +139.8ºF with 0.2ºF resolution

(OFL displayed if outside this range. In degree F

display, OFL will displayed when over 99.9ºF)

Relative humidity measuring range:

Indoor: 20% to 95% with 1% resolution - -(display “ “ if

temperature is OFL, except when the temperature is

100ºF to 139.8ºF; display “19%” if < 20% and “96%”

if > 95%)

Equivalent CO2 ppm measuring range:

450ppm to 3950ppm with 50ppm resolution (display OFL > 3950ppm)

Measuring intervals:

Indoor temperature checking interval: every 16 seconds

Indoor humidity checking interval: every 16 seconds

Air quality level checking interval: every 3 minutes

Transmission:

Transmission range: 100m / 330 feet

Transmission frequency: 868 MHz

Maximum transmission power MA10402 3.8 dBm :

Maximum transmission power TX47- 2 dBm IT: 5.

MA10402 dimensions (L x W x H): 142,5 x 117,1 x 41,6 mm

MA10402 power consumption: 2 x C Baby LR14, 1.5V

TX47-IT dimensions (L x W x H): 32 x 87 x 17 mm

TX47- power consumption: IT 2 x LR03 Micro , 1.5V AAA

Trouble shooting

Keep in mind that the outdoor transmitter only has the optimal

transmission range in open area with no obstructions. Each

obstruction between the transmitter and the station (roof, walls, oors,

ceilings, thick trees, etc.) will eectively cut the transmission range in

half.

Liability disclaimer

 The electrical and electronic wastes contain hazardous

substances. Disposal of electronic waste in wild country and/or

in unauthorized grounds strongly damages the environment.

 Please contact your local or/and regional authorities to retrieve

the addresses of legal dumping grounds with selective

collection.

 All electronic instruments must from now on be recycled. User

shall take an active part in the reuse, recycling and recovery of

the electrical and electronic waste.

 The unrestricted disposal of electronic waste may do harm on

public health and the quality of environment.

 Reading of the User manual is highly recommended for the “ ”

benet of the user. This product must however not be thrown in

general rubbish collection points.

 The manufacturer and supplier cannot accept any responsibility

for any incorrect readings and any consequences that occur

should an inaccurate reading take place.

 This product is designed for use in the home only as indication

of the measured data.

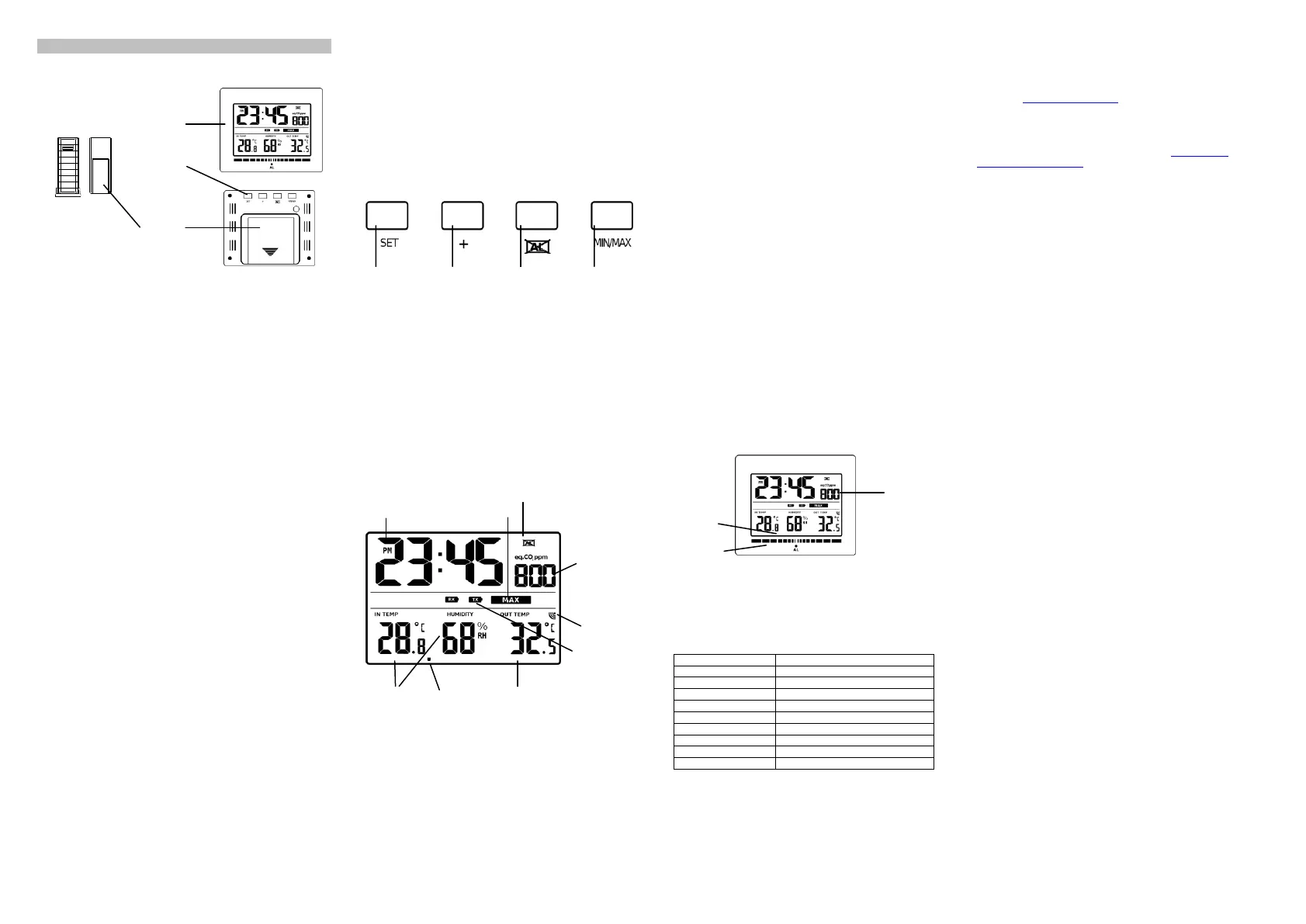

Function

buttons

LCD display

Battery

compartment

SET button

MIN / MAX

button

+ button

ALERT OFF

button

Air quality alert

O icon

Low battery

icon (TX for

outdoor

sensor RX for –

air quality

monitor)

Equivalent CO2

in ppm / seconds

display

Air quality

indicator

Bar graph

Equivalent CO2

ppm (parts per

million) value*

Air quality

indicator

Time

Outdoor

temperature in

ºC/ºF

Reception

icon

Indoor

temperature

& humidity

MIN / MAX icons

 This product is not to be used for medical purposes or for

public information.

 The specications of this product may change without prior

notice.

 This product is not a toy. Keep out of the reach of children.

 No part of this manual may be reproduced without written

authorization of the manufacturer.

Precautions

 This main unit is intended to be used only indoors.

 Do not subject the unit to excessive force or shock.

 Do not expose the unit to extreme temperatures, direct sunlight,

dust or humidity.

 Do not immerse in water.

 Avoid contact with any corrosive materials.

 Do not dispose this unit in a re as it may explode.

 Do not open the inner back case or tamper with any

components of this unit.

Batteries safety warnings

 Use only alkaline batteries, not rechargeable batteries.

 Install batteries correctly by matching the polarities (+/- ).

 Always replace a complete set of batteries.

 Never mix used and new batteries.

 Remove exhausted batteries immediately.

 Remove batteries when not in use.

 Do not recharge and do not dispose of batteries in re as the

batteries may explode.

 Ensure batteries are stored away from metal objects as contact

may cause a short circuit.

 Avoid exposing batteries to extreme temperature or humidity or

direct sunlight.

 Keep all batteries out of reach from children. They are a

choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste

because they could cause damages of health and

environment. You can return used batteries free of

charge to your dealer and collection points. As end-

user you are committed by law to bring back needed

batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices

separated from the General household waste when it

reaches the end of its useful life. Take your unit to

your local waste collection point or recycling centre.

This applies to all countries of the European Union,

and to other European countries with a separate

waste collection system.

Product specificaties

Merk:	Techno Line
Categorie:	Weerstation
Model:	MA10402

Heb je hulp nodig?

Als je hulp nodig hebt met Techno Line MA10402 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden

Uw naam*

Jouw email*

Schrijf hier uw vraag

Handleiding Weerstation Techno Line

Techno Line WS 6449 Handleiding

3 December 2024

Techno Line WS 9612 Handleiding

3 December 2024

Techno Line WS 6442 Handleiding

3 December 2024

Techno Line WS 9273 Handleiding

3 December 2024

Techno Line WS 6445 Handleiding

3 December 2024

Techno Line WS 9132 Handleiding

3 December 2024

Techno Line WS 9140-IT Handleiding

3 December 2024

Techno Line WS 9050 Handleiding

3 December 2024

Techno Line WS 6440 Handleiding

3 December 2024

Techno Line WS9129 Handleiding

18 November 2024

Handleiding Weerstation

Nieuwste handleidingen voor Weerstation

Steinberg SBS-RS-40 Handleiding

15 December 2024

Steinberg SBS-WS-600 Handleiding

15 December 2024

Oregon Scientific Alizé BAR268HGA Handleiding

14 December 2024

TFA Life 35.1153.02 Handleiding

14 December 2024

TFA Connect 35.1143.01 Handleiding

14 December 2024

TFA 35.1133.01 Handleiding

14 December 2024

TFA 35.1089 Handleiding

14 December 2024

TFA 35.1078.10 Handleiding

14 December 2024

TFA Weather Boy 35.1159.02 Handleiding

14 December 2024

TFA 30.3034.01 Handleiding

14 December 2024
