INSTALLATION MANUAL

SB-WM-F-L-BL / SB-WM-T-L-BL

Weatherproof Universal Fixed and Tilt Mounts

For Large Displays

pg.2

Installation Manual

WARNINGS:

• Installation by a qualied professional is highly recommended for this product.

• Do not begin installation until you have thoroughly read and understand these instructions.

• This mount ts displays up to VESA 700mm x 500mm and supports a maximum load of 165 lbs (75 kg).

• Ensure the mounting wall will safely support four times the combined weight of the mount and display panel.

• The manufacturer does not accept responsibility for incorrect installation.

SPECIFICATIONS: TOOLS REQUIRED:

• Power Drill

• 5/16” and 1/4” Drill Bit

• Phillips Head Screw Driver

• Level

BOX CONTENTS:

• Wall Plate (1)

• Arm left (1)

• Arm right (1)

• Maximum Load: 165 lbs. (75 kg)

• Forward Tilt Range: - 8° /+ 13°

• Horizontal Tilt Range: 5° +

•Weather Resistant Coating

• Stainless Steel Mounting Hardware • Socket Wrench

with 1/2” Socket head

CAUTION:

This wall mount is intended for use only with the maximum weight of 165 lbs (75kg).

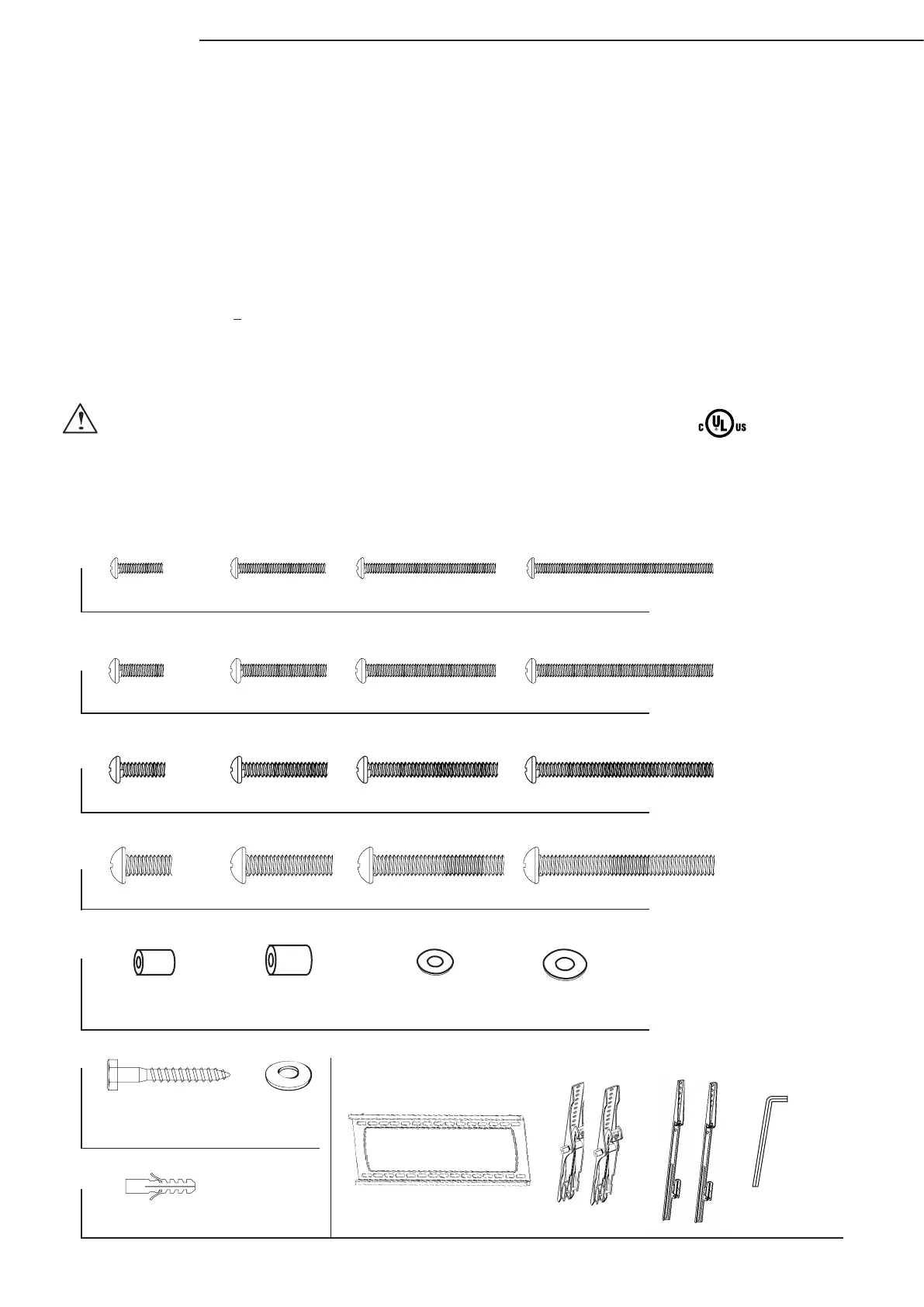

HARDWARE KIT

Bag 2

PACKAGE CONTENTS: Arms

(With Tilt)

Wall Plate

Arms

(With Fixed)

Bag 3

Bag 1

Bag 4

Bag 5

Bag 6

Bag 7

(W) Concrete Anchor (x6)

(U) M8x63

Lag Bolt (x6)

(V) Lag Bolt

Washer (x6)

(S) M5 Washer (x16) (T) M8 Washer (x8)

(A) M4x10 Bolt (x4) (B) M4x20 Bolt (x4) (C) M4x30 Bolt (x4) (D) M4x40 Bolt (x4)

(E) M5x10 Bolt (x4) (G) M5x30 Bolt (x4) (H) M5x40 Bolt (x4)(F) M5x20 Bolt (x4)

(I) M6x10 Bolt (x4) (J) M6x20 Bolt (x4) (K) M6x30 Bolt (x4) (L) M6x40 Bolt (x4)

(M) M8x10 Bolt (x4) (N) M8x20 Bolt (x4) (O) M8x30 Bolt (x4) (P) M8x40 Bolt (x4)

(Q) M4/M5

Nylon Spacer (x8)

(R) M6/M8

Nylon Spacer (x8)

Allen

Key (x1)

Installation Manual

pg.3

INSTALLATION:

Step 1: Mount the Wall Bracket Assembly

For Mounting on a Stud Wall

a. Pre-drill holes into two wood studs using a 1/4” drill bit.

Be sure to drill into the center of the studs at least

2-1/2” deep. The use of a stud nder is highly

recommended.

b. Insert four Lag Bolts (U) into holes through the Wall

Plate and tighten down. (Figure 1)

WARNING: Tighten bolts so that wall plate is rmly

attached, but do not overtighten. Overtightening

can damage the bolts, greatly reducing their

holding strength.

For Mounting on a Concrete Wall

a. Pre-drill holes into concrete using 5/16” drill bits to a

depth of 2 1/2”. Insert concrete wall anchors (W)

and tap in with hammer, if necessary (Figures 2 & 3).

WARNING: When installing wall arm assembly on

cinder block, verify rst that you have a minimum

of 1-3/8” of concrete thickness to be used for the

concrete anchors. Do not drill into mortar joints! Be

sure to mount in a solid part of the block, generally

1”minimum from the side of the block. Cinder block

must meet ASTM C-90 specications. It is suggested that

a standard electric drill on slow setting is used to drill the

hole instead of a hammer drill to avoid breaking out the

back of the hole when entering a void or cavity.

Concrete must be 2000 psi density minimum.

Lighter density concrete may not hold concrete

anchor.

Make sure that the supporting surface will safely

support the combined load of the equipment and

all attached hardware and components.

b. Insert four Lag Bolts (U) into the wall anchors (W)

through the Wall Plate. Tighten all bolts.

WARNING: Tighten bolts so that wall plate is rmly

attached, but do not overtighten. Overtightening

can damage the bolts, greatly reducing their

holding strength.

Step 2: Mount Arms to TV

a. Determine the diameter of the screw (parts A through

P) your TV requires by carefully trying to hand-thread

one into the threaded insert on the rear of the TV. If

there is any resistance, stop immediately.

b. Thread the screw through the washer (Q or R), arm,

spacer (S or T), and into the TV.

Note: Spacers are commonly needed on TVs with

curved backs or recessed screw inserts.

c. Ensure the arms are installed at side to TV

and are square to each other after all screws have

been installed (Figure 4).

Correct

concreteconcrete

plaster/

drywall

plaster/

drywall

Incorrect

Cutaway View

Figure 2

Drill holes and

insert anchors.

Place wall arm

assembly plate

over anchor and

secure with

lag bolt.

Tighten all

lag bolts.

Wall Arm

Concrete

Wall

Lag Bolt

Figure 3

TIP: To assist in

installation, the

wall bracket features

a screw slot for

temporary hanging

of the bracket.

Figure 1

Figure 4

Bolts

Center of Studs
