Pagina 1/24

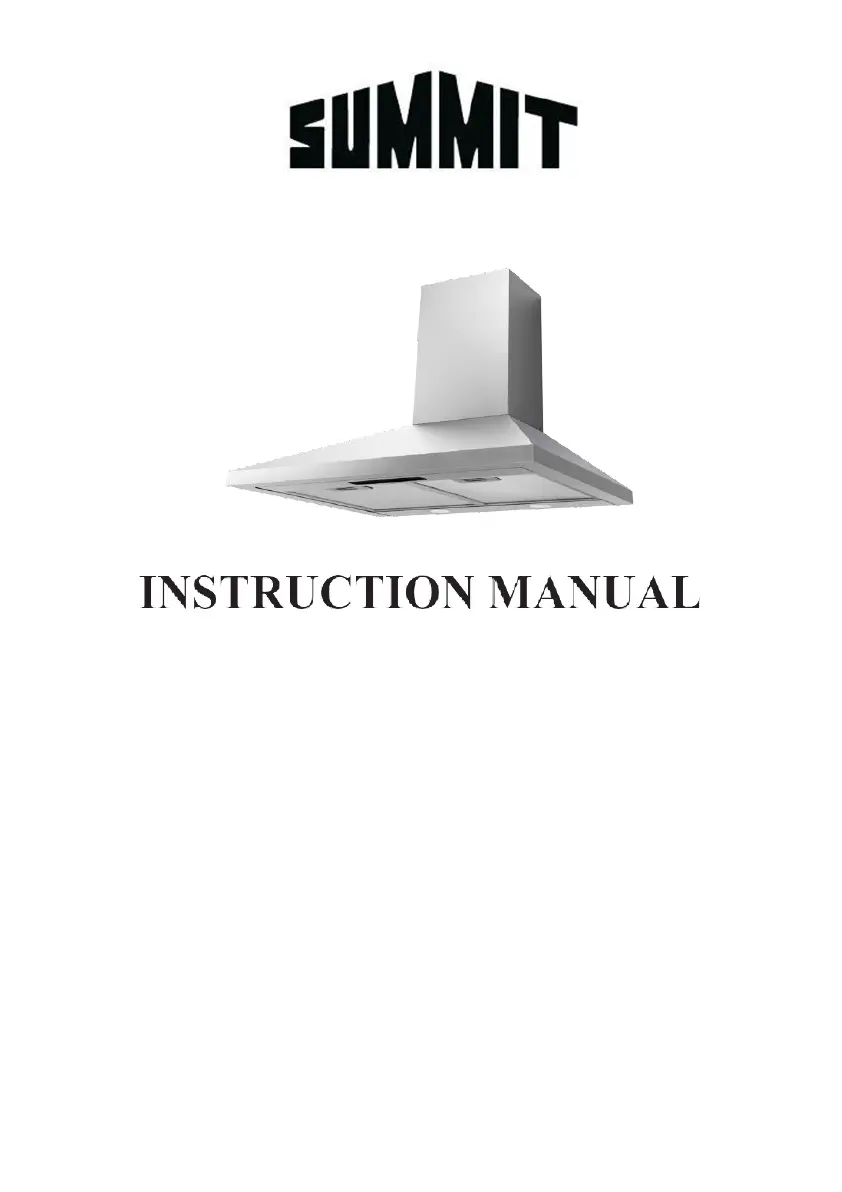

RANGE HOODS
Models
SEH1524SSADA
SEH1530SSADA
SEH1536SSADA
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com
Read and save these instructions
TABLE OF CONTENTS
Safety Warnings .................................................................................................
2-
4
Location Parts of .................................................................................................. 5
Technical Specifications. ......................................................................................6
Dimensional Diagram ............................................................................................7
Installation ......................................................................................................... 8-
12
Positioning the Range Hood ...................................................................... 8
Preparing the Site ................................................................................... 8-9
Installing the Range Hood on the Wall. .................................................. 9-11
Remote Switch Instructions.................................................................................... 12
Using your range hood ........................................................................................ 13
Push-Button Controls
Efficient Ventilation
Cleaning and
Maintenance.
............................................................................. 14-
15
Carbon Filter Replacement ...................................................................... 14
Replacement of Lighting Components ......................................................15
Moving the Hood. 15......................................................................................
Troubleshooting 16...................................................................................................
Troubleshooting Guide
Service and Spare Parts
Exploded View ..................................................................................................... 17
Parts List ...............................................................................................................20
Wiring Diagram .................................................................................................... 22
Limited Warranty ................................................................................................. 23
Read and save these instructions
2
SAFETY WARNINGS
READ AND SAVE THESE INSTRUCTIONS
a. This product is designed for domestic use.
b. Electric input for the device must be 110-120V, 60Hz.
c. A grounded cable is installed in your device. It must be connected a grounded electrical to
socket.
d. All electrical installations must be done by a qualified electrician. Installations done by
unqualified people may result poor performance, failure the device, accidents.in of and
e. Do not the power cord become pinched let or squeezed during installation. Keep the cord
away from cooking surfaces; otherwise, the cord could melt and cause a fire.
f. Do not connect the power cord before installation is complete.
g. the lights If in your device have been on for a time, long do not touch them, they are hot
enough to burn your hands.
h. Kitchen hoods are designed for cooking in domestic residences. There is a risk of failure
if they are used for other purposes, and this will void the warranty.
i. Comply with local codes and regulations related discharging air. (This warning does not to
apply to hoods without a stack).
j. cook flammable foods Do not below the hood.
k. Start the hood after placing pots or pans on your cooking surface. Otherwise, high
temperatures may result in the deformation of parts of the hood.
l. leave Do not hot oil on the cooking surface. Pots that contain hot oil can ignite, causing
fires.
m. When frying foods, mindful be of curtains. They may catch fire.
n. Change the filters regularly. Oily residues could become fire risks.
o. When replacing filters, always use the same type filter the original. Substitutes may of as
be unsuitable.
p. Do not use the device without a filter. Do not remove filters while the device is in use.
q. there ignition sparking, cut off the electric power If is or to the device. (Turn off the switch.)
r. the device If is not cleaned regularly, built- grime up and dirt could cause a fire.
s. When you make the stack installation for your hood, use 5.9" (150mm) diameter pipes.
The stack installation must be as short and with as few bends as possible.
t. Keep the packing materials away from children, as these materials could dangerous be
to them.
u. Ensure that children do not play with the device. Do not let little children use the device.
v. the electrical cable If is defective, must changed it be by the manufacturer or a qualified
service technician.
w. there If is a fire, cut off the power to the hood and cooking devices and cover the flame.
Do not use water to extinguish the fire.
x. operate any fan with a damaged cord plug. Discard fan return Do not or or it to
an authorized service facility for examination and/or repair.
y. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
