Full-HD Digital Signage
Player
Quick Installation Guide
Introduction
The CE-DS0011-S1/CE-DS0111-S1 is a Full-HD Digital Signage Player
featuring industrial grade mechanical design and versatile open-standard
SMIL programmability
Features and Benefits
Full-HD 1080p video decoding of MPEG, H.264, and VC-1 media
formats
4GB on-board flash local storage with CF card slot
Integrated audio and video output via HDMI
IEEE 802.3 Ethernet 10/100 Base-T with auto-MDIX
Supports full POPAI Screen Media Formats Standards Profiles S1 to S12,
and E1 to E9
Supports HTML5 technologies including CSS and JavaScript
SmartWidgets: clock, calendar, news, weather, RSS, Twitter, web content
Compliant with Wireless 802.11 b/g/n standards (
CE-DS0111-S1 Only)
Package Contents
Full-HD Digital Signage Player
Power Adapter
Ethernet Cable
Standard 3.5mm to RCA AV cable
Quick installation guide
Software CD
Wi-Fi Antenna (CE-DS0111-S1 Only)
04-0762B
2
Layout

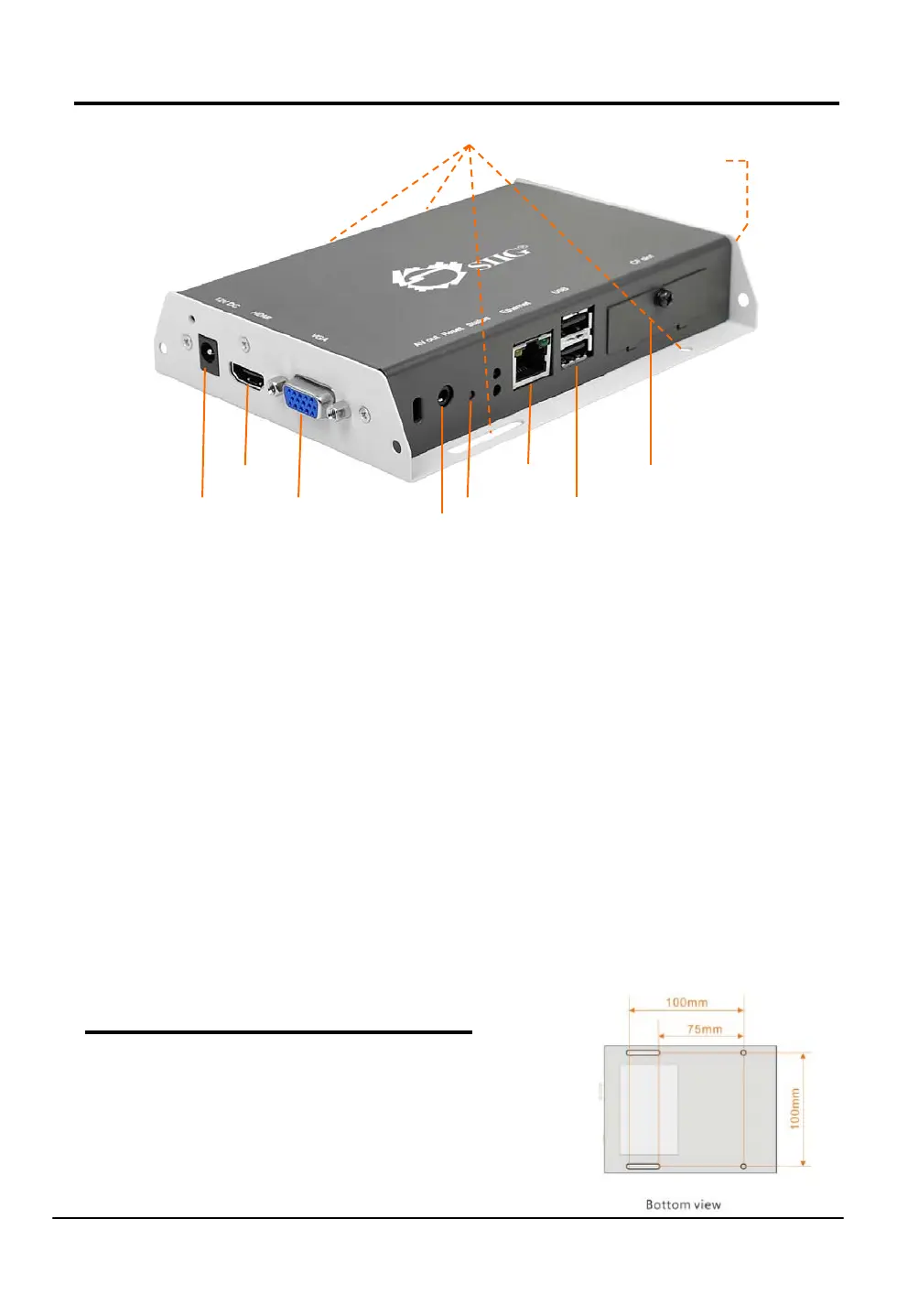

Figure1:FullHDDigitalSignagePlayerlayout
Physical features (left to right in above illustration)
12V DC in: For power adapter
HDMI: Connector for digital video and audio combined outputs, or
digital video via option DVI adapter
VGA: For analog video output
AV out: 3.5mm composite AV output
Reset: S/W button to perform factory reset
Ethernet: For network content update
USB: USB content update and configuration
CF card slot cover: Integrated CF card removing tool
Mounting and Installation
The player can be attached to mounting posts
on the back of screens or inside cabinetry
with the built in VESA MIS-D100
(100mmx100mm) compatible mounting
flange
CF card slot
(
covered
)
USB x 2
Ethernet
A
V out
Reset
12V DC In
HDMI
V
GA
V
ESA mount
(
MIS-D-100
)
Wi-Fi antenna
3
For CE-DS0111-S1 only
Connect the Wireless antenna as shown.
Screw antenna clockwise onto the post.
Configuring
1. Connect a video cable (either VGA or HDMI) to your monitor.
- When using the VGA connection, your monitor should support
XGA (1024x768) resolution or greater. For audio output, you will
also need to connect a stereo RCA cable from the Full-HD Digital
Signage player to your monitor.
- When using HDMI connection, audio and video are sent over a
single HDMI cable.
2. Plug the power adapter into the Full-HD Digital Signage Player then
plug the power adapter into a reliable power source. Shortly afterwards,
the following progress bar will be displayed on your monitor:
~90 seconds
3. Player boot process takes approximately 90 seconds to complete. The
player will indicate that it is ready for content sync via the USB port or,
if content has been loaded, begin playback immediately.
4. Plug in a USB keyboard to the unit’s USB port the player will enter the
graphical menu system in approximate 30 sec.
5. Navigate the menus using your keyboard arrows keys, space bar, enter
key, and numeral keys on your USB keyboard. Use the keyboard
arrow keys to highlight menu items, press the space bar to move the
star (cursor), and then press enter to confirm(<OK>) or reject(<Cancel>)
any changes.


Product specificaties

Merk: SIIG
Categorie: Mediaspeler
Model: CE-DS0111-S1
Ingebouwd display: Nee
Gewicht: 345 g
Breedte: 155 mm
Diepte: 114 mm
Hoogte: 28 mm
Gebruikershandleiding: Ja
LED-indicatoren: Ja
Wi-Fi-standaarden: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ondersteund audioformaat: MP3
Ondersteunde videoformaten: H.264, MPEG1, MPEG2, MPEG4, VC-1
Ethernet LAN: Ja
Frequentieband: 2.4 GHz
Meegeleverde kabels: AV, LAN (RJ-45)
Geïntegreerde geheugenkaartlezer: Ja
Compatibele geheugenkaarten: CF
Inclusief AC-adapter: Ja
Aantal USB 2.0-poorten: 2
VGA (D-Sub)poort(en): 1
Aantal HDMI-poorten: 1
Aantal Ethernet LAN (RJ-45)-poorten: 1
Certificering: FCC, CE, RoHS
Volledige HD: Ja
Aansluiting voor netstroomadapter: Ja
Maximale videoresolutie: 1920 x 1080 Pixels
HD type: Full HD
Ondersteund beeldformaat: JPG, PNG
Opslagmedia-type: Niet beschikbaar
HDMI versie: 1.3a
Duurzaamheidscertificaten: RoHS
Ethernet LAN, data-overdrachtsnelheden: 10, 100 Mbit/s
Soort antenne: Extern
Totale opslagcapaciteit: - GB
Audio-uitgangskanalen: - kanalen
Composiet video-uitgang: 1
Sample rate: 320 kHz
Ondersteunde frequentiebanden: Niet ondersteund
Ingebouwde opslagmedia: Nee
Wifi: Ja
Stroomverbruik (typisch): 9 W
Aantal producten inbegrepen: 1 stuk(s)
