SEADA SW4008 Handleiding

SEADA Processor SW4008

Lees hieronder de 📖 handleiding in het Nederlandse voor SEADA SW4008 (31 pagina's) in de categorie Processor. Deze handleiding was nuttig voor 42 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld

Download PDF

Pagina 1/31

- -010 SD MA

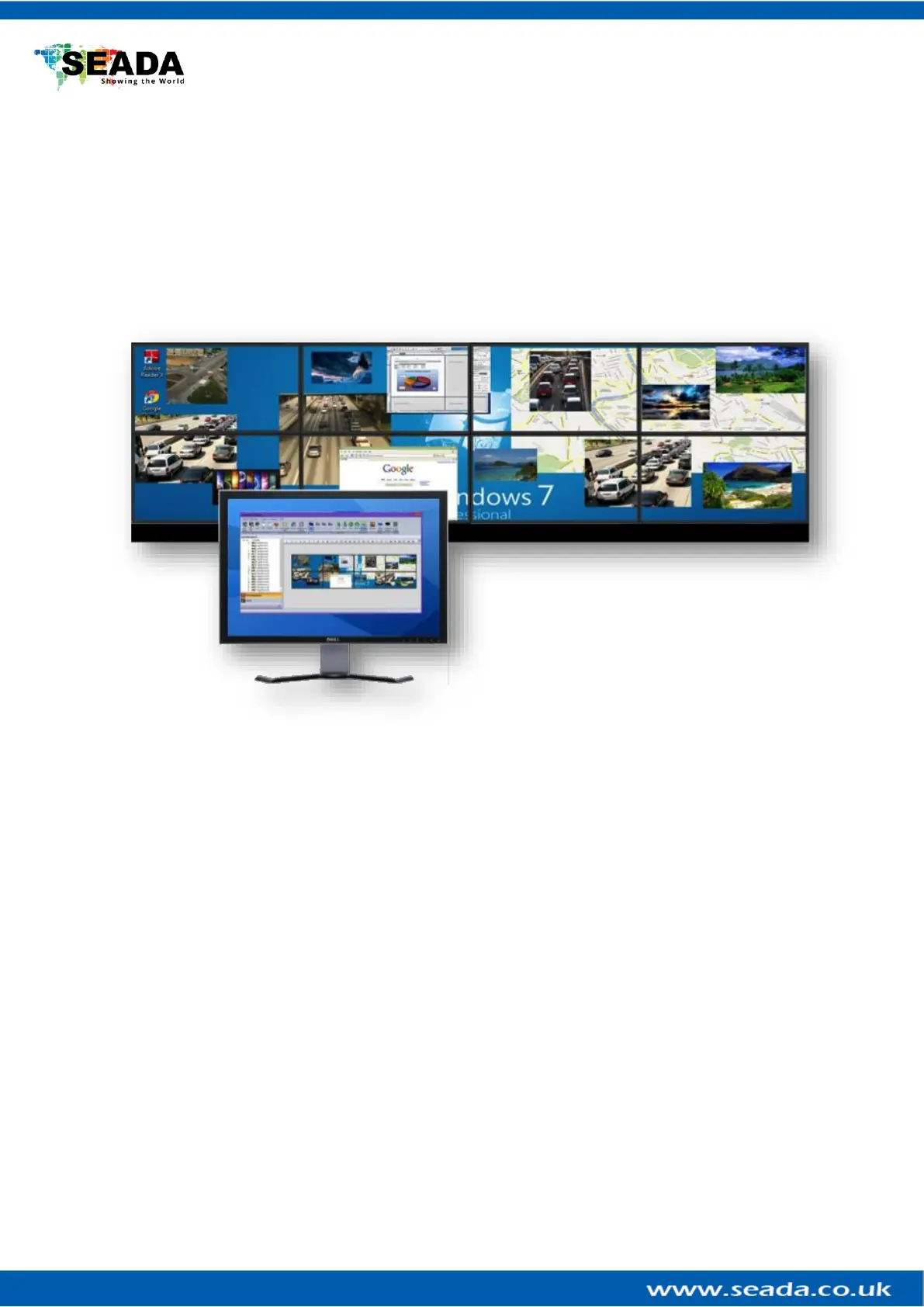

Solar Wall Management Soware User Manual

(SW-Control)

Document No. - - SD MA 010

Document Version: 04

Note:

Before starng to use this manual, it is recommended to follow the instrucons in ‘SolarWall

Controller Quick Start Guide’ to ensure the SW-Control soware has been properly installed

and the controller has been congured and connected to the control PC.

- -010 SD MA

Contents

0. Overview

1. Toolbar

1.1. Soware Operaon

1.1.1. Connect

1.1.2. Disconnect

1.1.3. Communicaon seng

1.1.4. Conguraon

1.1.5. Quit

1.2. Basic Operaon

1.2.1. Seng

1.2.2. Mul Screen Wall Operaon

1.2.3. Layout File Backup

1.2.4. Preview

1.2.5. Screen Control

1.3. Tools

1.3.1. Management

1.3.2. Layout File Backup

1.3.3. Language

1.3.4. Version

2. Applicaon Toolbar

2.1. Signal Management

2.1.1. Open a window

2.1.2. Cropping

2.1.3. On Screen Display (OSD)

2.1.4. Change the display name of input source

2.1.5. Change EDID on video capture cards

2.2. Layout

2.2.1. Open a layout

2.2.2. Save a layout

2.2.3. Modify a layout

2.2.4. Delete a layout

2.3. Camera List

2.3.1. Set up the IP input signals

2.3.2. Set up the IP Decoder Cards

3. Video Wall Display Area

3.1. Resize a window

3.2. Restore a window

3.3. Move a window

3.4. Full Screen

3.5. Pre-set layout shortcut bar

4. Preview Toolbar

4.1. Set up Preview

4.1.1. Set up the connecon of preview card

4.1.2. Preview window funcon

4.2. Change the Preview seng

- -010 SD MA

0. overview

SW-Control is a program that is used to control the SolarWall 2000 & 4000 video wall controllers. It

provides a GUI in ribbon style for the users and enable users to interacvely move, resize, posion

and crop any input capture windows. The whole GUI consists of four main parts:

1. Toolb ar

2. Applicaon Toolbar

3. Video Wall Display Area

4. Preview Toolbar

SW-Control enables users to create and save video wall layouts and load them whenever needed.

Moreover, it also allows users to create layout looping schedule to automacally switch between a

dierent layouts.

 Friendly user interface

 RS232 and Telnet

 Mul language support (English, Korean, Russian, Simplied Chinese, tradional Chinese)

 Create, copy, save and delete layouts

 Import or export layouts

 Short cuts for each layo ut

 Looping ability between layouts

 Text overlay on any input source

 Posion, re-size and crop input windows

 Input signal preview

 Support Windows2000/XP/Vista/7/8.

 User authority management

 Drag and drop easy operaon

 Mul video walls control (up to 4 video wall controlling simultaneously)

Product specificaties

Merk:	SEADA
Categorie:	Processor
Model:	SW4008
Kleur van het product:	Zwart
Breedte:	482 mm
Diepte:	380 mm
Hoogte:	175 mm
Ethernet LAN:	Ja
Ondersteunde video-modi:	720p, 1080p, 2160p
HDCP:	Ja
Ingangsspanning:	110 - 240 V
Ethernet LAN, data-overdrachtsnelheden:	10,100,1000 Mbit/s
Temperatuur bij opslag:	10 - 60 °C
Frequentie:	50/60 Hz
Luchtvochtigheid bij opslag:	10 - 90 procent
Rackcapaciteit:	4U
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	10 - 90 procent
RS-232/422-connector:	Ja
