Assembly Instructions for TVS
Thank you for choosing the TVS. If you do not understand these directions, or have any doubts about the safety of the installation,
please contact Sanus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our
customer service representatives can quickly assist you with installation questions and missing or damaged parts. Replacement parts
for products purchased through authorized dealers will be shipped directly to you. Never use defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specied by Sanus Systems. Sanus Systems
can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. Please call Sanus Systems
before returning products to the point of purchase.
Parts and Hardware: *Some parts not shown at same scale
(1) Shelf - a* (2) Plastic Legs - b*
(2) Bolts - e (3) Hook and Loop Tape Pads - f
(2) Plastic Safety Pegs - d
(2) Adjustable Foot - c
Caution:
•Not suitable for use with all TVs.
•For use only on TVs with a perfectly at and level top
and this shelf must be level after installation.
•Not suitable for use with at panel or rear projection
TVs.
•Do not use at a height more than 48" above oor.
•Shelf foot angle not to exceed 45 degrees.
•Total weight on shelf not to exceed 15 lbs.
•Depth of items placed on this shelf not to exceed 15" and
under no circumstance should any item overhang the back of
the shelf.
Sanus Systems 2221 Hwy 36 West Saint Paul MN 55113 6.27.05
800.359.5520 www.sanus.com
Sanus Systems 2221 Hwy 36 West Saint Paul MN 55113 6.27.05
800.359.5520 www.sanus.com

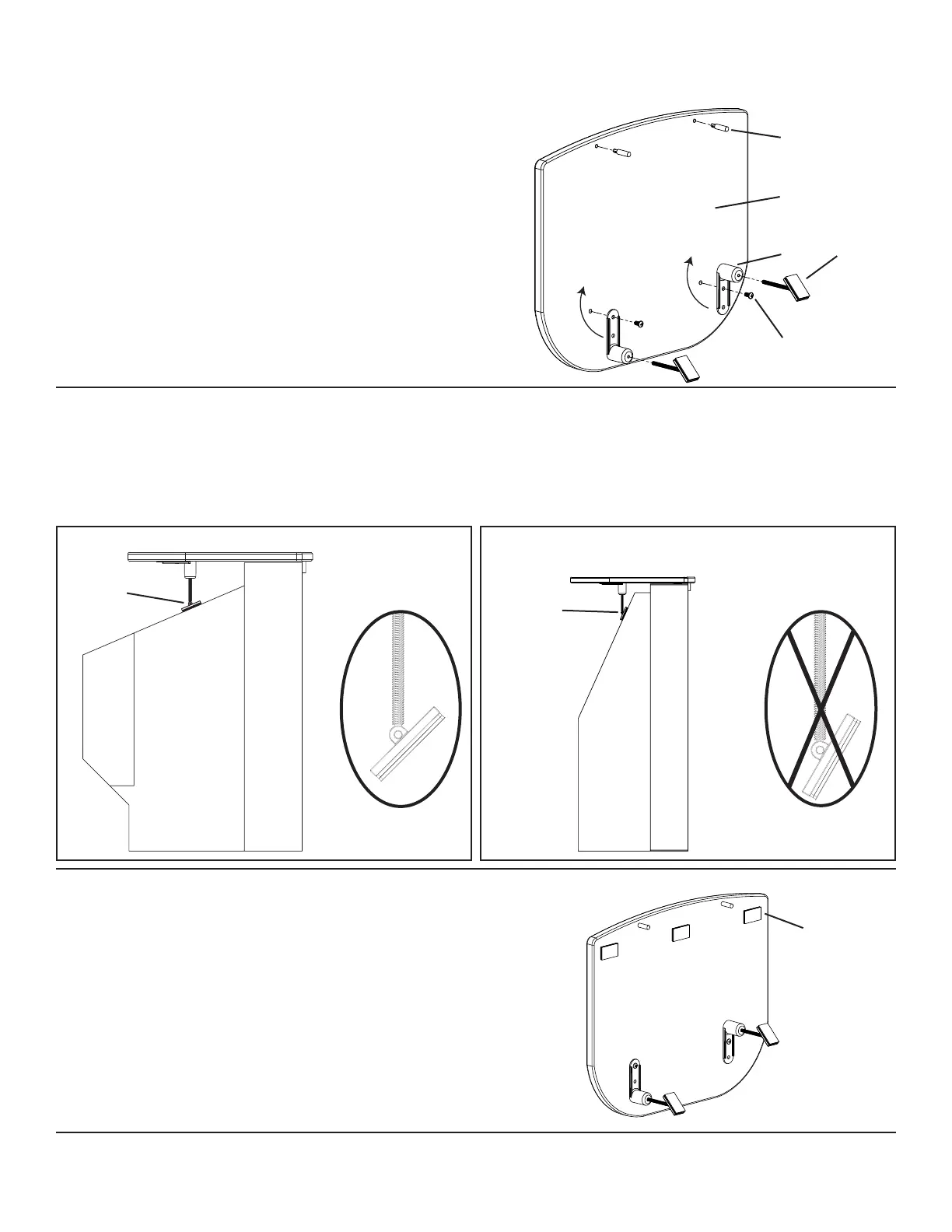

Diagram 1
d
a
b c
e
Step 2: Position the Shelf on the TV
Set the unit on top of your television as seem in the Correct Installation Diagram. Adjust the position of the Plastic Legs (b) and the
height of the Adjustable Feet (c) so that they provide stable and level support for the rear of the Shelf (a). Tighten the Bolts (e) on the
Plastic Legs to lock them in place. Note the appropriate angles for the Adjustable Feet in the diagrams below. The recommended
angle of the Foot is 45 degrees or less!
Correct Installation Incorrect Installation
correct Maximum Incorrect
foot angle Foot Angle of 45o Foot Angleincorrect
foot angle
Diagram 3
hook and
loop tape
Step 3: Add Hook and Loop Tape to Shelf
Notice where the front of the Shelf (a) makes contact with your televi-
sion. Apply the three self adhesive Hook an Loop Tape Pads (f) to the
Shelf as seen in Diagram 3.
Place the Shelf assembly back on the television to ensure a stable and
level t. Remove the paper back from the 5 pieces of self adhesive
Hook and Loop Tape and place the shelf down onto the correct spot on
the television. This completes the assembly process.
Step 1: Add Plastic Legs, Adjustable Feet and Plastic Safety Pegs to
Shelf
First, Thread an Adjustable Foot (c) into each Plastic Leg (b) as seen in
Diagram 1.
Next, Notice that the Plastic Legs have two bolt holes in them to allow
compatibility with a wide variety of televisions. Choose the appropriate
bolt hole for your television and attach both Plastic Legs to the bottom of
the Shelf (a) with the supplied Bolts (e). The Plastic Legs can be rotated
360 degrees around the bolt that attaches them to the Shelf. See Diagram
1 for assistance. Do not tighten the Bolts at this time.
Next, insert the Plastic Safety Pegs (d) into the Top Shelf. The Plastic
Safety pegs project down over the front of the television and are de-
signed to prevent the Shelf from being pushed off the back of the televi-
sion. Proceed to gently tap them into the holes on the bottom front edge
of the Shelf with a hammer. See Diagram 1 for assistance.
