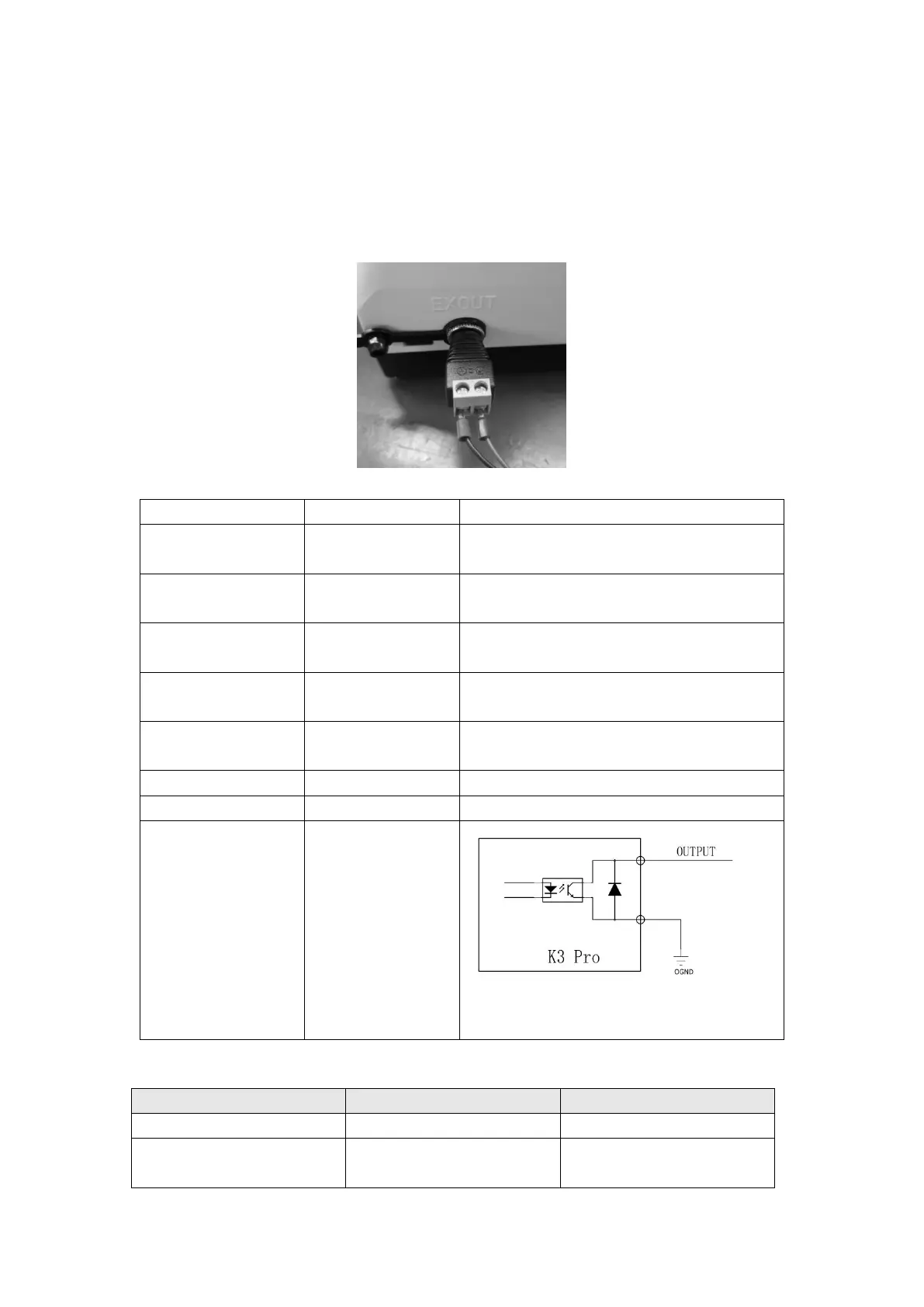

K3 PRO External Output Signal User Guide
1. Overview
K3 Pro reserves a signal output port on the device. Use the DC plug and connect the circuit. It can
implement application functions including but not limited to automatic access control and flow
statistics.
2. Technical Data
Item
Symbol
Nominal Value
Maximum collector
voltage
VCEO
<35V
Maximum reverse
voltage
VECO
<0.2V
Maximum output sink
current
Ic
<15mA
Maximum leakage
current in off state
ICEO
<100nA @VCE=20V
Collector saturation
voltage
VCE(sat)
<0.2V @Ic=1mA
Isolation voltage
VISO
5000Vrms@AC,1min
Isolation resistance
RIO
5x1010@VIO = 500Vdc
Equivalent output
circuit
OC output, can only output high
resistance and low frequency
3. Description of output signal
Signal type
Normal temperature
Abnormal temperature
S1
output signal cutoff
output signal on
S2
100μs Output signal on
about 100μs
500μs Output signal on
about 500μs
4. Examples of wiring diagrams for these mode
K3 Pro provides S1 and S2 signal output modes. This section introduces common wiring examples
in S1 and S2 mode. This article does not make any guarantees for the circuit, only for design
reference. Users need to modify according to their actual use.
4.1 S1 mode, output signal connected to MCU
Output signal forward Output signal reverse
4.2 S1 mode, output port connected to load
Abnormal temperature ON Normal temperature ON
Note: Due to the limited output current, users need to design the drive circuit according to the
load power requirements. When inductive/capacitive loads are connected, the influence of
inductive/capacitive loads on the circuit should be considered.
4.3 S2 mode, output port connected to MCU
Positive pulse direction Negative pulse direction
