1
PLMR7 W BT
OWNER’S MANUAL
Mobile Audio System
ï‚Ÿ PLL Synthesizer Stereo Radio
ï‚Ÿ Automatic Memory Storing
ï‚Ÿ USB Interface
ï‚Ÿ SD Interface
ï‚Ÿ 3.5mm Input Jack
ï‚Ÿ Bluetooth Function
www.pyleaudio.com
2
CONTENTS
Installation ........................................... 3
Take out screw before installation ......... 3
DIN Front-Mount ................................. 3
Installing the unit ............................... 3
Removing the unit ............................. 4
Wiring Connection .............................. 5
Operation ............................................. 6
Location of keys .................................... 6
Switching the unit on/off ........................ 7
Sound adjustment ................................. 7
Display time .......................................... 7
Liquid crystal display ............................. 7
Auxiliary input 7.......................................
Reset function ....................................... 7
Radio operation 7 ....................................
Switching to radio mode .................... 7
Selecting the frequency band ............ 7
Selecting station ................................ 8
Storing& Program scanning ............... 8
Reset stations selecting .................... 8
Station storing 8 ...................................
USB play operation ............................... 8
Selecting tracks in single step ........... 8
Pausing ............................................. 8
Selecting songs by SCH button ......... 9
SD operation ......................................... 9
BT operation ......................................... 9
Remote control ...................................10
Specification .......................................11
Trouble shooting ................................. 12
3

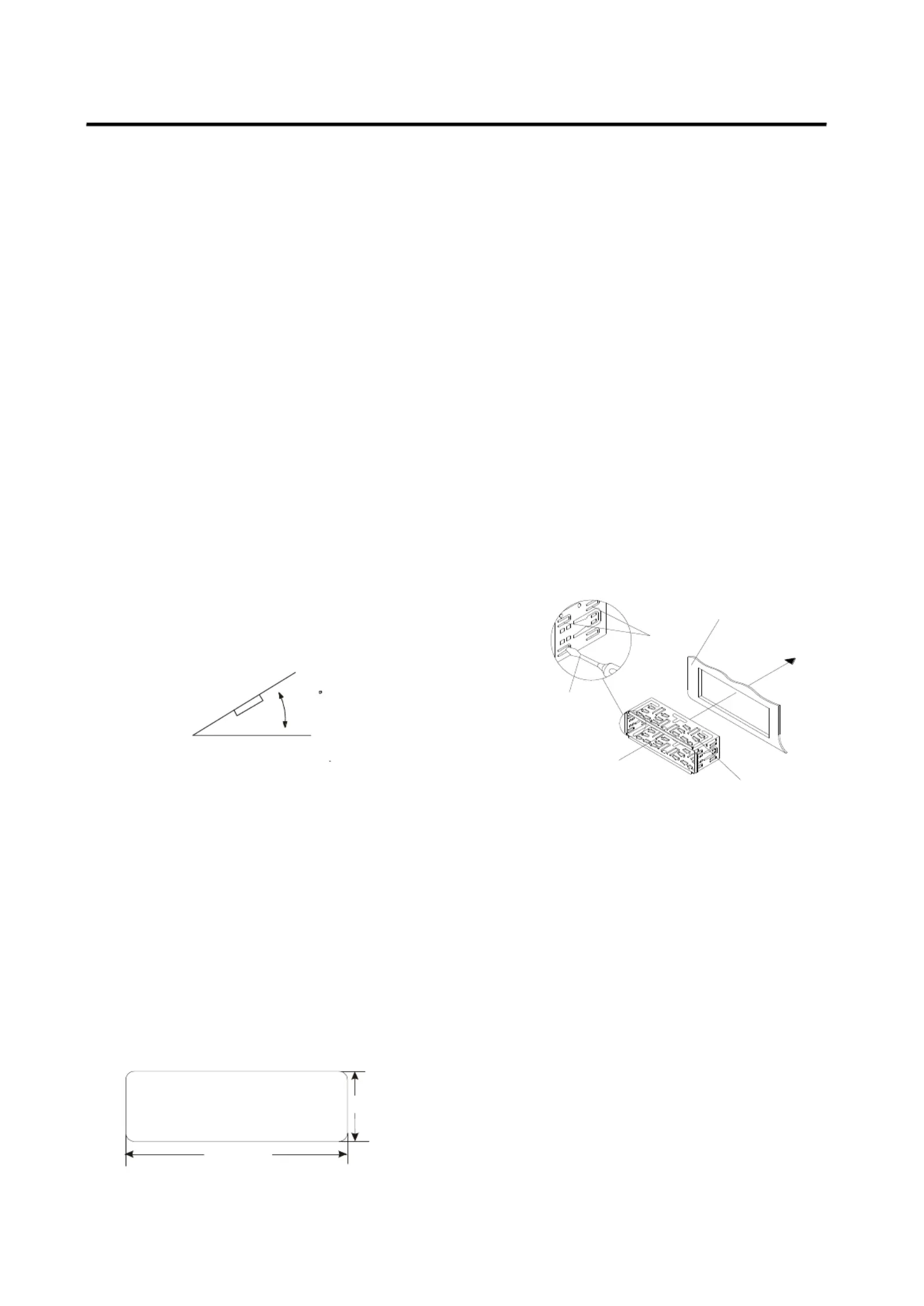

INSTALLATION
Notes:
ï‚Ÿ Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
ï‚Ÿ Before finally installing the unit, connect
the wiring temporarily and make sure it
is all connected properly and the unit
and the system work properly.
ï‚Ÿ Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
ï‚Ÿ Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
ï‚Ÿ Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is a sudden stop.
 If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
ï‚Ÿ
ï‚Ÿ Avoid installing the unit where it would
be subject to high temperature, such as
from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT-MOUNT
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Mount the sleeve by inserting the sleeve
into the opening of the dashboard and
bend open the tabs located around the
sleeve with a screwdriver. Not all tabs
will be able to make contact, so
examine which ones will be most
effective. Bending open the appropriate
tabs behind the dashboard to secure
the sleeve in place.
Tabs
Screwdriver
Sleeve
Dashboard
4. Reconnect the wire harness and the
antenna and be careful not to pinch any
wires or cables.
5. Slide the unit into the sleeve until it
locks into place.
6. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring.
Removing the unit
1. Make sure the ignition is turned off, then
disconnect the cable from the vehicle
battery’s negative (-) terminal.
2. Remove the metal strap attached the
back of the unit (if attached).
53mm
182mm
