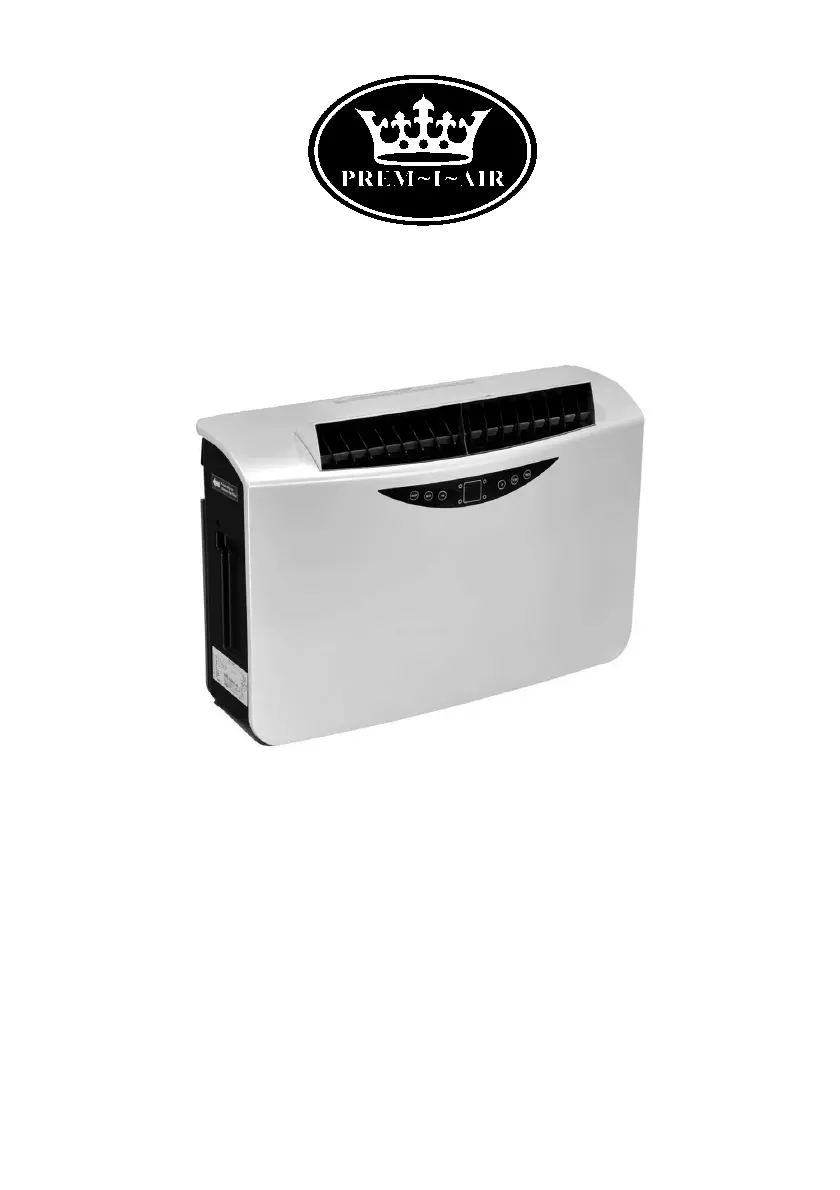

Pagina 1/15
EH0533
Indoor Climate Control
2.8 kW of cooling, 2.9 kW of heating
Air Conditioning
Efficient heating (air-source heat-pump)
Cooling
Remote control
Suitable for low-wall installation
No external unit required
3 Fan speeds
Page 1
IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the user of
the product for future reference.
BEFORE USE
Inspect the product including its cable and plug for any signs of
damage. If the product is damaged, DO NOT use it, and contact
your supplier immediately.
Check that the following items are included:
Wall mounted kit:
W1. Wall bracket (1 off)
W2. Pipe flange (2 off)
W3. Air intake pipe (diameter 120 mm) (1 off)
W4. External grille (Pre-installed) (2 off)
W5. Hot air discharge pipe (diameter130 mm) (1 off)
W6. Template for wall drilling (1 off)
W7. Condensate hose extension (1 off)
W8. Screw kit: 4×10 mm self-tap screw (4 off)
5×40 mm self-tap screw (8 off)
5×40 mm wall plug (8 off)
W9. Rubber grille ring (2 off)
W10. Nylon cord
Page 2
INSTALLATION
Parts description:
1. Air Outlet 2. LED Display
3. Remote control storage 4. Control Panel
5. Handles 6. Dust Filter
7. Hanging holes 8. Connector for optional
wired remote control
9. Air Exhaust 10. Air inlet
11. Drainage hole
The appliance weighs 32.5 kg. In order to comply with Health and
Safety Manual Handling guidelines, two people will be required to
lift it.
Transport and store in an upright position. Leave the unit in an
upright position for at least 3 hours before first use.
Choose the optimum location for the
appliance:
It must be on an external wall with
2 m free clearance on both inside and
outside to allow good airflow, and
more than 1 m from the ceiling.
The wall must be able to withstand
the weight of the unit.
The wall must be perfectly flat.
There must be no electrical wiring,
gas pipes, or structural steelwork in
the wall in the area where the
appliance is to be mounted.
Page 3
