1. Package Contents

Thank you for purchasing PLANET Industrial IP67 802.3bt PoE++

Splitter, IPOE-175S. In the following sections, the term “Outdoor PoE

Splitter” means the IPOE-175S.

Open the box of the IPOE-175S and carefully unpack it. The box should

contain the following items:

IPOE-175S x 1 User's Manual x 1 M22 Waterproof

Cable Gland x 3

Power Cable with 2-pin

Terminal Block x 1 Wall-mounted Kit x 1 Ground Wire x 1

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing

material, and use them again to repack the product in case there is a

need to return it to us for repair.

2.2 Power Input Port

Figure 2-2 shows the Power Output port side of the IPOE-175S

Figure 2-2: Power Output Port

2.3 802.3bt PoE++ Input Port and Data Output Port

Figure 2-3 shows the Date + PoE++ Input Port and Data Output Port

side of the IPOE-175S.

PoE++ and Data

Input Port

Data Output

Figure 2-3: Two RJ45 Ports

Caution

Make sure the clamping nut is tightly attached to the

cable gland body and the sealing insert is squeezed

tightly.

Step 5: Repeat Steps 1 to 4 for “Data” output Port and “PoE (Data +

Power)” input Port.

3. Installation

This section describes how to install the Outdoor PoE Splitter and make

connections to it. Please read the following topics and perform the

procedure in the order being presented.

3.1 Installing Cable Gland with Power Cable and RJ45

UTP Cable

The cable gland consists of the following:

3.2 Connecting Waterproof Cable Kit to the Outdoor

PoE Splitter

Step 1: Turn clockwise to tighten the connected to the gland body

Outdoor PoE Splitter.

2. Hardware Introduction

This section describes the functionalities of the Outdoor PoE Splitter’s

components.

2.1 Product Outlook

Unit: mm

Ready

PoE InData

PWR

DC Out:

12 V , 5A m ax .

V+

Figure 2-1: IPOE-175S product outlook

2.4 LED Indicators

LED Color Function

PWR Green Indicates it has power.

DC Ready Green Indicates the port is providing 12V DC in-line

power.

To install the 2-pin Terminal Block Connector on the Outdoor PoE

Splitter, simply follow the following steps:

Step 1: Insert positive DC power wire into V+, negative DC power

wire into , and grounding wire intoV- Ground.

V+

2-pin

Step 2: Tighten the wire-clamp screws for preventing the wires from

loosening and plug them into the Outdoor PoE Splitter

Note

1. The wire gauge should be in the range from 20 to 22

AWG.

2. The device must be grounded.

Step 2: Plug the power cable connector into the power output port.

Step 3: sealing insert Insert the into the cable gland body.

Step 4: Attach the clamping nut to the cable gland to complete the

cable assembly.

Note

1. Use only the waterproof cable gland provided in the

package of the IPOE-175S.

2. If the above installation procedure is not properly

followed, the warranty will be invalidated.

3. I the waterproof cable gland is found missing or

damage, please contact your local reseller where you

purchased from.

11.31mm

40.78mm

5.00mm

30.22mm

29.80mm

20.18

13.72

14.00

30.10

4. Never use any waterproof cable gland that is not

purchased from PLANET or doesn’t have the same

dimensions of the IPOE-175S; it will damage the device

permanently.

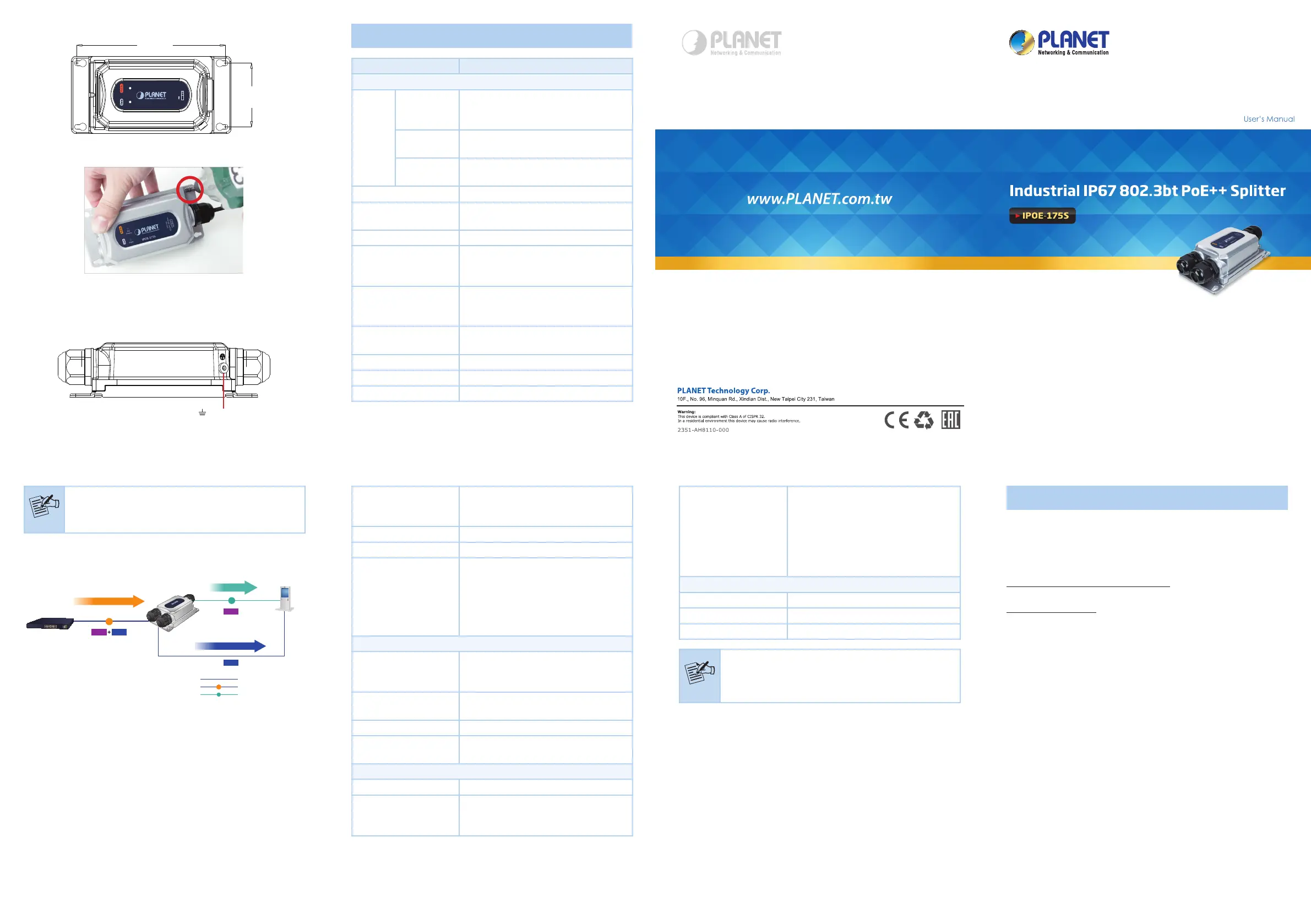

3.3 Wall-mount Installation

To install the Outdoor PoE Splitter on the wall, please follow the

instructions described below.

Step 1: Find the wall that you want to mount the Outdoor PoE Splitter

on.

- 10 - - 12 - - 13 - - 14 -

- 9 - - 11 -

Step 2: Refer to the picture below to screw the four screws on the wall.

140.36mm

59mm

Ready

PWR

DC Out:

12V , 5A m ax.

V+

Step 3: Use a screwdriver to screw them into the wall.

3.4 Grounding the Device

Users MUST complete grounding wired with the device; otherwise, a

sudden lightning could cause fatal damage to the device.

Earth Ground

4.ProductSpecications

Product IPOE-175S

Hardware Specications

Interface

Input Port

1 x 10/100/1000BASE-T Ethernet with

IEEE 802.3bt PoE++

“PoE + Data” in RJ45 port

Output Port 1 x 10/100/1000BASE-T

“Data” out RJ45 port

Output Power

Terminal Block

1 x 2-pin terminal block out port“DC”

- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)

Data Rate 10/100/1000Mbps

LED Indicator PWR (Green)

DC Ready x 1 (Green)

Input Voltage 44~56V DC

Power Requirement

4-pair 802.3at PoE+ and 802.3bt PoE++:

52~56V DC

802.3at PoE+: 48~56V DC

Power Consumption

Ethernet full loading without DC output:

Full loading with maximum 12V DC, 5A

output: 70watts

ESD Protection Air 8KV DC

Contact 6KV DC

Surge Protection 6KV

Enclosure IP67-rated and IK10 aluminum case

Installation Wall-mount ear

Standards Conformances

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit

Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt Power over Ethernet Plus

Plus

Environment

Operating Temperature -40 ~ 75 degrees C

Storage Temperature -40 ~ 85 degrees C

Humidity 5 ~ 95% (non-condensing)

Note

The PoE power output ability will depend on the distance.

5. Customer Support

Thank you for purchasing PLANET products. You can browse our online

FAQ resource and user’s manual on PLANET web site rst to check if it

could solve your issue. If you need more support information, please

contact PLANET support team.

PLANET online FAQs:

https://www.planet.com.tw/en/support/faq

Support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Note

EMD (Lightning) DAMAGE IS NOT CONVERED UNDER

WARRANTY.

3.5 Connecting IPOE-175S to PSE

Power

DC12V

Power Line (DC)

1000BASE-T UTP

PoE

1000BASE-T UTP with PoE

IPOE-175S

802.3bt PoE

++ PSE

PoE

Power Data

Data

100m

802.3bt PoE++

10/100/1000BASE-T

Non-PoE Device

Step 1: Connect attached “Power cable with 2-pin terminal block”

to the port of IPOE-175S Splitter.“DC Out”

Step 2: Connect the other end of DC power wires to remote device.

Tighten the wire-clamp screws for preventing the wires from

loosening.

Step 3: Connect the Cat5e/6 cable to “PoE In” port from an 802.3bt

PoE++ switch/injector to the IPOE-175S Splitter.

Step 4: Connect the Cat5e/6 cable from “Data” port of the IPOE-175S

to remote device.

Step 5: Power on the 802.3bt PoE++ switch/injector.

Step 6: Once the “DC Ready” LED indicator is steadily lit steadily, it

shows it is providing 12V DC power.

Dimensions (W x D x H)

150 x 43.8 x 72.94 mm

169.85 x 43.8 x 72.94 mm, with cable

gland

Weight 424g

MTBF >100,000 hours

Network Cable

10BASE-T: UTP category 3, 5 cable

(≤100m)

100BASE-TX: UTP category 5, 5e cable

(≤100m)

1000BASE-T: UTP category 5e, 6 cable

(≤100m)

Power over Ethernet

PoE Standard

IEEE 802.3bt PoE++ type 3 PD

Backward compatible with IEEE 802.3at

PoE+

PoE Power Supply Type 802.3bt PoE++/PoH (Power over HDBaseT)

802.3at PoE+ End-span/Mid-span

PoE Power Output DC 12V, 5A (60W, full load)

Power Pin Assignment 1/2 (-); 3/6 (+), 4/5 (+), 7/8 (-) or

1/2 (+); 3/6 (-), 4/5 (+), 7/8 (-)

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (Free fall)

IEC 60068-2-27 (Shock)

IEC 60068-2-6 (Vibration)
