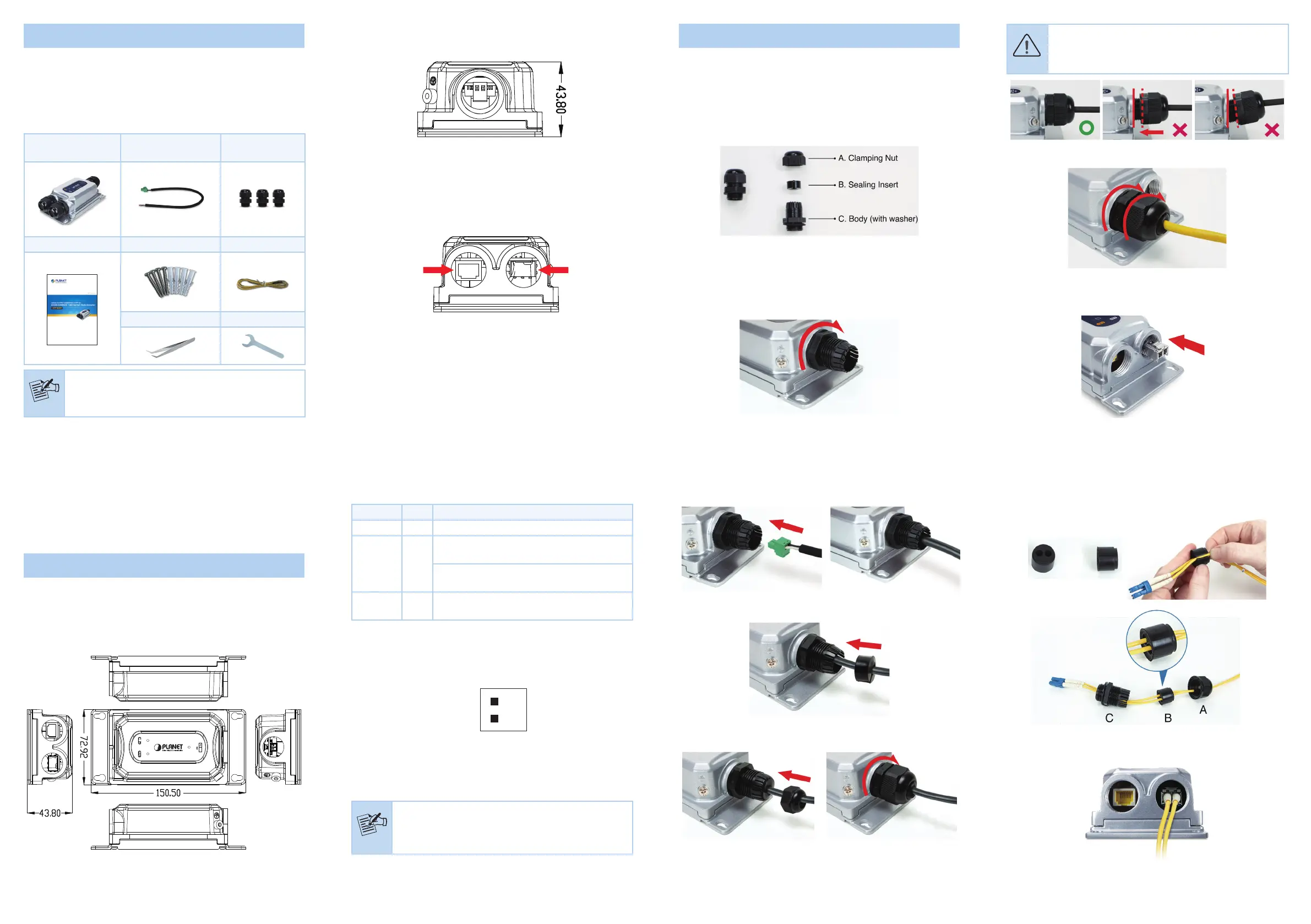

Pagina 1/4

- 2 - - 4 - - 6 - - 8 -

- 1 - - 3 - - 5 - - 7 -

1. Package Contents

Thank you for purchasing PLANET Industrial IP67 1000BASE-X SFP to

10/100/1000BASE-T 802.3at PoE+ Media Converter, IGTP-825AT. In the

following sections, the term means “Outdoor PoE+ Media Converter”

the IGTP-825AT.

Open the box of the Outdoor PoE+ Media Converter and carefully

unpack it. The box should contain the following items:

IGTP-825AT x 1 Power Cable with 2-pin

Terminal Block x 1

M22 Waterproof

Cable Gland x 3

User's Manual x 1 Wall-mounted Kit x 1 Ground Wire x 1

Pincher x 1 Spanner x 1

Note

Pincher for removing transceiver.

2.2 Power Input Port

Figure 2-2 shows the power input port side of the IGTP-825AT

Figure 2-2: IGTP-825AT Power Input port side

2.3 Data Input Port and 802.3at PoE+ Output Port

Figure 2-3 shows the “Data + PoE+” output port and “Data” input port

side of the IGTP-825AT.

PoE+ Output Data Port Input Port

Figure 2-3: IGTP-825AT RJ45 / SFP ports side

Caution

Make sure the clamping nut is tightly attached to the

cable gland body and the sealing insert is squeezed

tightly.

Step 5: “PoE (Data + Power)” Repeat Steps 1 to 4 for Output Port.

Fiber Cable Gland Installation

Step 6: Insert the SFP transceiver into the “Data” Input Port.

3. Installation

This section describes how to install the Outdoor PoE+ Media Converter

and make connections to it. Please read the following sections and

perform the procedure in the order being presented.

3.1 Installing Cable Gland with Power Cable and RJ45

UTP Cable

The cable gland consists of the following:

3.2 Connecting Waterproof Cable Kit to the Outdoor

PoE+ Media Converter

Step 1: Turn clockwise to tighten the connected to the gland body

Outdoor PoE+ Media Converter.

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing

material, and use them again to repack the product in case there is a

need to return it to us for repair.

2. Hardware Introduction

This section describes the functionalities of the Outdoor PoE+ Media

Converter’s components.

2.1 Product Outlook

Unit: mm

LNK/

ACT

PoE+Data

LNK

PWR

DC Input Ran ge:

24-56V , 2A max.

V+

Figure 2-1: IGTP-825AT product outlook

2.4 LED Indicators

LED Color Function

PWR Green Indicates it has power.

LINK/ACT Green

Lights to indicate the port is linked up at

10/100/1000Mbps.

Blinks to indicate that the IGTP-825AT is actively

sending or receiving data over that port.

LINK Green Indicate the port is linked up at 1000Mbps and

actively sending or receiving data over that port.

To install the 2-pin Terminal Block Connector on the Outdoor PoE+

Media Converter, simply follow the following steps:

Step 1: Insert positive DC power wire into V+, negative DC power

wire into , and grounding wire into V- Ground.

V+

2-pin

Step 2: Tighten the wire-clamp screws for preventing the wires

from loosening and plug them into the Outdoor PoE+ Media

Converter.

Note

1. The wire gauge should be in the range from 20 to 22

AWG.

2. The device must be grounded.

Step 2: Plug the power cable connector into the power input port.

Step 3: sealing insert Insert the into the cable gland body.

Step 4: Attach the clamping nut to the cable gland to complete the

cable assembly.

Step 7: Thread the cable gland over the ber cable in the order as

indicated below and attach the two-hole sealing to the ber

cable.

Step 8: ConnectthebercabletotheSFPtransceiver.

Step 9: Turn clockwise to tighten the gland body.

- 10 - - 12 - - 13 - - 14 -

- 9 - - 11 -

Step 10: Repeat Steps 3 and 4

Note

1. Use only the waterproof cable gland provided in the

package of the IGTP-825AT.

2. If the above installation procedure is not properly

followed, the warranty will be invalidated.

11.31mm

40.78mm

5.00mm

30.22mm

29.80mm

20.18

13.72

14.00

30.10

3. If the waterproof cable gland is found missing or

damage, please contact your local reseller where you

purchased from.

4. Never use any waterproof cable gland that is not

purchased from PLANET or doesn’t have the same

dimensions of the IGTP-825AT; it will damage the

device permanently.

Note

EMD (Lightning) DAMAGE IS NOT CONVERED UNDER

WARRANTY.

3.5 Connecting IGTP-825AT to PD

Step 1: Connect the additional Cat5e/6 cable from the PoE+ Out of

the IGTP-825AT to a remote PD.

PoE IP Camera

Power Supply

DC24-56V

Power

Power Line (DC)

1000BASE-SX/LX Fiber Optic

PoE

1000BASE-T UTP with PoE

IGTP-825AT

PoE

Power Data

Data

100m

802.3at PoE+

Ethernet Switch

1000

Step 2: The PoE+ Out port is the power injector which transmits DC

voltage to the Cat5e/6 cable and transfer data from the Data

source.

Step 3: Once the IGTP-825AT detects the existence of an IEEE

802.3at/af device, the LED indicator will be lit LINK/ACT

steadily, showing it is providing power.

Note

According to IEEE 802.3at/af standard, the IGTP-825AT

will not inject power to the cable if not connected to a

standard IEEE 802.3at/af device.

ESD Protection Air 8KV DC

Contact 6KV DC

Surge Protection 6KV

Enclosure IP67-rated and IK10 aluminum metal case

Installation Wall-mount ear

Dimensions (W x D x H) 150 x 43.8 x 72.94 mm

169.85 x 43.8 x 72.94 mm, with cable gland

Weight 389g

MTBF >100000 hours

Power over Ethernet

PoE Standard

IEEE 802.3at Power over Ethernet Plus / End-

span PSE

Backward compatible with IEEE 802.3af Power

over Ethernet

PoE Power Output 55V DC, max. 30 watts

PoE Power Supply Type End-span

Power Pin Assignment 1/2 (+), 3/6 (-)

PoE Power Budget 30 watts (max.) @ IEEE 802.3at PoE+ input

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE

Protocols and Standards

Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x Flow Control

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

Stability Testing

IEC 60068-2-32 (Free fall)

IEC 60068-2-27 (Shock)

IEC 60068-2-6 (Vibration)

Environment

Temperature Operating: -40~75 degrees C

Storage: -40~85 degrees C

Humidity Operating: 5~90% (non-condensing)

Storage: 5~90% (non-condensing)

Note

The PoE power output ability will depend on the distance.

5. Customer Support

Thank you for purchasing PLANET products. You can browse our online

FAQ resource and user’smanual on PLANETweb site rst to check ifit

could solve your issue. If you need more support information, please

contact PLANET support team.

PLANET online FAQs:

https://www.planet.com.tw/en/support/faq?method=category&c1=2

Support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other

trademarks belong to their respective owners.

3.3 Wall-mount Installation

To install the Outdoor PoE+ Media Converter on the wall, please follow

the instructions described below.

Step 1: Find the wall that you want to mount the Outdoor PoE+ Media

Converter on.

Step 2: Refer to the picture below to screw the four screws on the wall.

140.00mm

129.00mm

60.00mmØ4.50mm

Ø7.00mm

Step 3: Use a screwdriver to screw them into the wall.

3.4 Grounding the Device

Users MUST complete grounding wired with the device; otherwise, a

sudden lightning could cause fatal damage to the device.

Earth Ground

4.ProductSpecications

Product IGTP-825AT

HardwareSpecications

Interface

Input Port

(SFP Slot) 1 x 1000BASE-SX/LX/BX in SFP port“Data”

Output Port

1 x 10/100/1000BASE-T Ethernet with IEEE

802.3at PoE+ out RJ45 port“Data + DC”

- Auto MDI/MDI-X, auto-negotiation RJ45

connector

Input Power

Terminal Block

1 x terminal block2-pin

- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)

Cable

10BASE-T:UTPcategory3,5cable(≤100m)

100BASE-TX: UTP category 5,5e cable

(≤100m)

1000BASE-T:UTPcategory5e,6cable(≤100m)

1000BASE-SX/LX:

- Multi-mode:50/125μmor62.5/125μm

opticalber

- Single-mode:9/125μmopticalber

LED

PWR (Green)

TP 10/100/1000BASE-T: (Green)LNK/ACT

Fiber 1000BASE-X: (Green)LNK

Input Voltage 24~56V DC

Power Consumption

Voltage System on Full Load (Max.)

DC 24V 0.72W 43.4W

DC 36V 0.72W 41.04W

DC 54V 1.08W 40.5W
