Amplifier Owner’s Manual
Models: RX2 750.5 â—Ź RX2 400.4
Amplifier
Manual
The RX2-series ampliers are the next evolution of the
reliable and great sounding RX series. With a new, more
efcient circuit design, we have increased power output
while decreasing chassis size (most models). These ampliers
will be the reference for style and value in any installation.
Built with the legendary Phoenix Gold reliability, they feature
heavy duty heatsinks, robust unregulated power supplies,
and oversized direct input power and speaker terminals.
They also sound sweet thanks to the audiophile grade
output transistors. We made upgrading your stock system
easy by allowing high level inputs so you can keep the OEM
radio, and still upgrade the sound. RX2-series ampliers are
ready to impress with their effortless ability to provide power
and clarity while keeping the chassis at a convenient size
for any installation. The devil is in the details, so it just made
sense that we allow the PG name plate to be removed and
turned to match the orientation you might need for your
install because we know your going to want show off your
system and make all you’re friends jealous.
• Class-D Topology RX2 750.5
• Class-A/B Topology RX2 400.4
• Small Footprint Chassis Design
• Robust Unregulated Power Supplies
• Rotatable Name Badge for Installation Flexibility
• High Level Inputs for Easy OEM Integration
• Remote Bass Controller Included (RX2 750.5)
• Audio Precision® Quality Control Verication
Features
Amplifier Owner’s Manual
© 2018 Phoenix Gold • www.phoenixgold.com

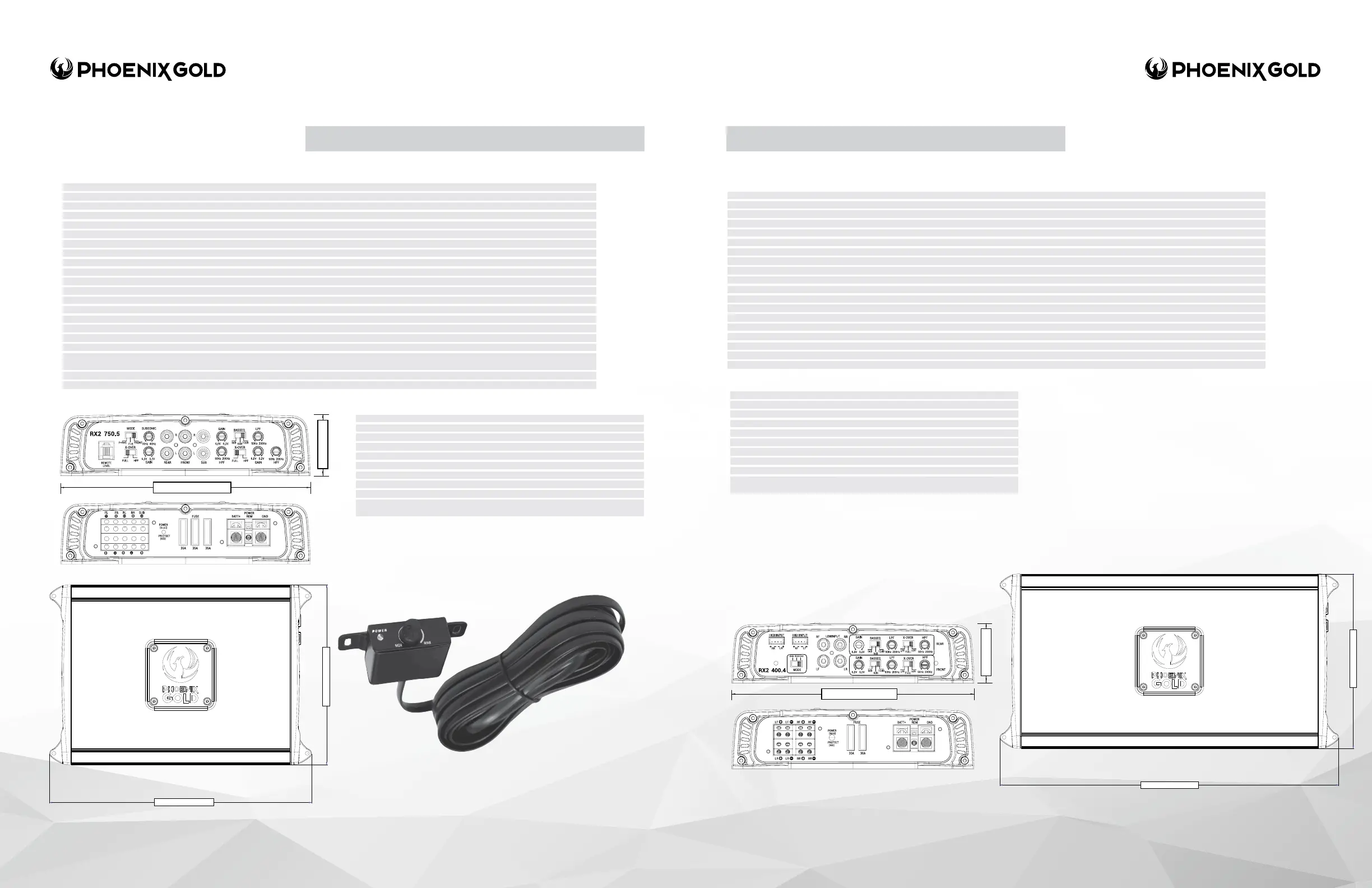

SPECIFICATIONS
IMPORTANT: A power birth certicate is included for each amplier. RX2 ampliers are
conservatively rated and will exceed their RMS power rating shown here. All RMS power
ratings and measurements are at 14.4 volts with no more than 1% THD.
SPECIFICATIONS
Remote Bass Controller:
Under dash or console mountable level controller. Fine tune your bass
output with a simple turn of the precision controller. Amplier Status LED for
easy reference of amplier. 16ft of cable included.
RX2 750.5 SPECIFICATIONS
RMS Power Ratings listed at less than 1% THD @ 14.4v
Number of Channels: 5
4Ω: CH 1-4 60W x 4
2Ω: CH 1-4 90w x 4
4Ω: CH 5 250W x 1
2Ω: CH 5 400w x 1
3CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged + CH 5 4Ω 180W x 2 + 250W x 1
3CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged + CH 5 2Ω 180W x 2 + 400W x 1
Total RMS Power (Sum of rated power): 760W
Bridgeable: Yes
Crossover Mode: FLAT/HP/LP
CH 1-4: 50Hz - 200Hz @ 12dB / Oct Linkwitz Riley
CH 5: 50Hz - 200Hz @ 12dB / Oct Linkwitz Riley
Subsonic: 10Hz – 40Hz
Input Channels: 2CH F, 4CH F/R or 6CH F/R/S
Input Mode: Unbalanced
Input Sensitivity: .2v - 6v Unbalanced RCA Low-Level
Processing: Bass Boost 0dB +6dB +12dB @45hz
Signal to Noise (@ CEA Standard): >80dB
Frequency Response: Full Range 10-40k
Sub 15-200Hz
Topology Class D
Heatsink Type: Extruded Aluminum
Cooling Type: Radiation
Operating Voltage: 8V to 16V
Switchable Auto-Turn On: Yes
Power Supply Type: Unregulated
Onboard Thermal Management
Power Terminal: 4 Gauge
Speaker Terminal: 10 Gauge
Onboard Fusing: 3 x 35A ATC
Recommended Inline Fusing: 80A
Dimensions (L x W x H): 11.81” x 8.11” x 1.98”
300mm x 206mm x 50.5mm
11. 8 1in /3 0 0.00 mm
8 .11 in /20 6 .0 0 mm
1.98 in / 50. 5 m m
8.11in /206.00 mm
Amplifier Owner’s Manual
© 2018 Phoenix Gold • www.phoenixgold.com
RX2 750.5
MULTI-CHANNEL POWER AMPLIFIERS
Features listed below are in order from left to right on
the amplier.
REMOTE LEVEL CONTROL
This port is for connecting the remote subwoofer level
control. This allows up to 20dB of volume adjustment.
This is not a bass boost, it controls the level of the low
pass signal.
MODE - (FRONT, REAR AND SUB INPUTS)
Mode allows either 2ch, 4ch or 6(5) channel inputs
to be used to drive the amplier and no use of
Y-connectors are needed.
â—Ź Select if you only have 2ch of signal. The FRONT
amplier will split the signal internally and send to Rear
and Sub channels.
● Select if you have 4ch of signal. The amplier F+R
will split the signal internally from the front and rear
channels and send to Sub channel.
● Select if you have 6ch of signal. The amplier F+R+S
will sum the 2ch sub input to create channel 5. This
setup will also have full control from your source unit for
front rear and sub levels.
X-OVER (REAR)
Full HPF or is selectable. Select Full if you are using an
outboard crossover/processor or you wish the Rear
channels to amplify full range signal. Select HPF (High
Pass Filter) to activate the internal crossover which is
continuously variable from 50Hz to 200Hz.
SUBSONIC
Controls the subsonic highpass lter crossover point.
Continuously variable from 10Hz to 40Hz to remove low
frequencies to increase system efciency, output and
speaker protection on the Sub channel (5).
GAIN (REAR)
Used to adjust the input sensitivity to match the input
level signal on the Rear channels. Continuously variable
from 0.2V to 6V. Adjust this with the help of a DMM and
a test signal or an Oscilloscope. See System Tuning
section for setup instructions.
REAR, FRONT AND SUB INPUTS
Connect preamp signal cables from headunit to
these inputs. These inputs are controlled by the MODE
switch. Be sure to select the correct mode for the
amount of inputs you will be using for your installation.
GAIN (SUB)
Used to adjust the input sensitivity to match the
input level signal on the Sub channels. Continuously
variable from 0.2V to 6V. Adjust this with the help of a
DMM and a test signal or an Oscilloscope. See System
Tuning section for setup instructions.
HPF (HIGH PASS FILTER - FRONT)
Controls the highpass crossover point for the Front
channels. Continuously variable from 50Hz to 200Hz.
BASS EQ (SUB)
Selectable Bass EQ with boost adjustment to 0dB, 6dB
or 12dB.
X-OVER (FRONT)
Full HPF or is selectable. Select Full if you are using an
outboard crossover/processor or you wish the Front
channels to amplify full range signal. Select HPF (High
Pass Filter) to activate the internal crossover which is
continuously variable from 50Hz to 200Hz.
LPF (LOW PASS FILTER - SUB)
Controls the lowpass crossover point for the SUB
channel. Continuously variable from 50Hz to 200Hz.
GAIN (FRONT)
Used to adjust the input sensitivity to match the input
level signal on the Front channels. Continuously
variable from 0.2V to 6V. Adjust this with the help of a
DMM and a test signal or an Oscilloscope. See System
Tuning section for setup instructions.
HPF (HIGH PASS FILTER - FRONT)
Controls the highpass crossover point for the Front
channels. Continuously variable from 50Hz to 200Hz.
