Amplifier Owner’s Manual
Models: RX2 1000.1 â—Ź RX2 500.1 â—Ź RX2 250.1
Amplifier
Manual
The RX2-series ampliers are the next evolution of the
reliable and great sounding RX series. With a new, more
efcient circuit design, we have increased power output
while decreasing chassis size. These ampliers will be the
reference for style and value in any installation. Built with
the legendary Phoenix Gold reliability, they feature heavy
duty heatsinks, robust unregulated power supplies, and
oversized direct input power and speaker terminals. They
also sound sweet thanks to the audiophile grade output
transistors. We made upgrading your stock system easy by
allowing high level inputs so you can keep the OEM radio,
and still upgrade the sound. RX2-series ampliers are ready
to impress with their effortless ability to provide power and
clarity while keeping the chassis at a convenient size for
any installation. The devil is in the details, so it just made
sense that we allow the PG name plate to be removed and
turned to match the orientation you might need for your
install because we know your going to want show off your
system and make all you’re friends jealous.
• Class-D Topology RX2 1000.1 / RX2 500.1
• Class-A/B Topology RX2 250.1
• Small Footprint Chassis Design
• Robust Unregulated Power Supplies
• Rotatable Name Badge for Installation Flexibility
• High Level Inputs for Easy OEM Integration
• Remote Bass Controller Included
• Audio Precision® Quality Control Verication
Features
Amplifier Owner’s Manual
© 2018 Phoenix Gold • www.phoenixgold.com
SPECIFICATIONS
IMPORTANT: A power birth certicate is included for each amplier. RX2 ampliers are conservatively rated and will exceed their RMS power rating shown
here. All RMS power ratings and measurements are at 14.4 volts with no more than 1% THD.
SPECIFICATIONS
RX2 1000.1 SPECIFICATIONS
RMS Power Ratings listed at less than 1% THD @ 14.4v
Number of Channels: 1
1Ω: 1000W
2Ω: 700W p2-x1
4Ω: 400W x 1
Bridgeable: N/A
Crossover Mode: LP
CH 1: 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley
Subsonic : 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley
Input Channels: 2CH L/R
Input Mode: Unbalanced / Balanced
Input SensItivity: .2v - 5v Unbalanced Low-Level RCA
.2v - 5v Unbalanced Low-Level RCA
Processing: Bass Boost 0dB / +6dB / +12dB @45hz
Signal to Noise (@ CEA Standard): >70dB
Frequency Response: 15Hz- 250Hz
Topology Class: D
Heatsink Type: Extruded Aluminum
Bass EQ: 0dB, +6dB +12dB
Subsonic Crossover Range: 10Hz to 55Hz @12dB
Cooling Type: Radiation
Operating Voltage: 8V to 16V
Power Supply Type: Unregulated with OTM
Onboard Thermal Management
Power Terminal: 4 Gauge
Speaker Terminal: 10 Gauge
Recommended Fusing: 3 x 35A ATC
Dimensions (L x W x H): 11.81” x 8.11” x 1.98”
RX2 500.1 SPECIFICATIONS
RMS Power Ratings listed at less than 1% THD @ 14.4v
Number of Channels: 1
2Ω: 500W x 1
4Ω: 350 p2-x1
Total RMS Power (Sum of rated power): 500W
Bridgeable: N/A
Crossover Mode: LP
CH 1 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley
Subsonic: 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley
Input Channels: 2CH L/R
Input Mode: Unbalanced / Balanced
Input Sensativity: .2v - 5v Unbalanced Low-Level RCA
.2v - 5v Unbalanced Low-Level RCA
Processing: Bass Boost 0dB / +6dB / +12dB @45hz
Input Selection: 200mV-6v
Signal to Noise (@ CEA Standard): >80dB
Frequency Response: CH1 15Hz - 250Hz
Topology Class: D
Heatsink Type: Extruded Aluminum
Bass EQ: 0dB, +6dB +12dB
Subsonic Crossover Range: 10Hz to 55Hz @12dB
Cooling Type: Radiation
Operating Voltage: 8V to 16V
Power Supply Type: Unregulated with OTM
Onboard Thermal Management
Power Terminal: 4 Gauge
Speaker Terminal: 10 Gauge
Recommended Inline Fusing: 40A
Onboard Fusing: 2 x 25A ATC
Dimensions (L x W x H): 8.66” x 8.11” x 1.98”

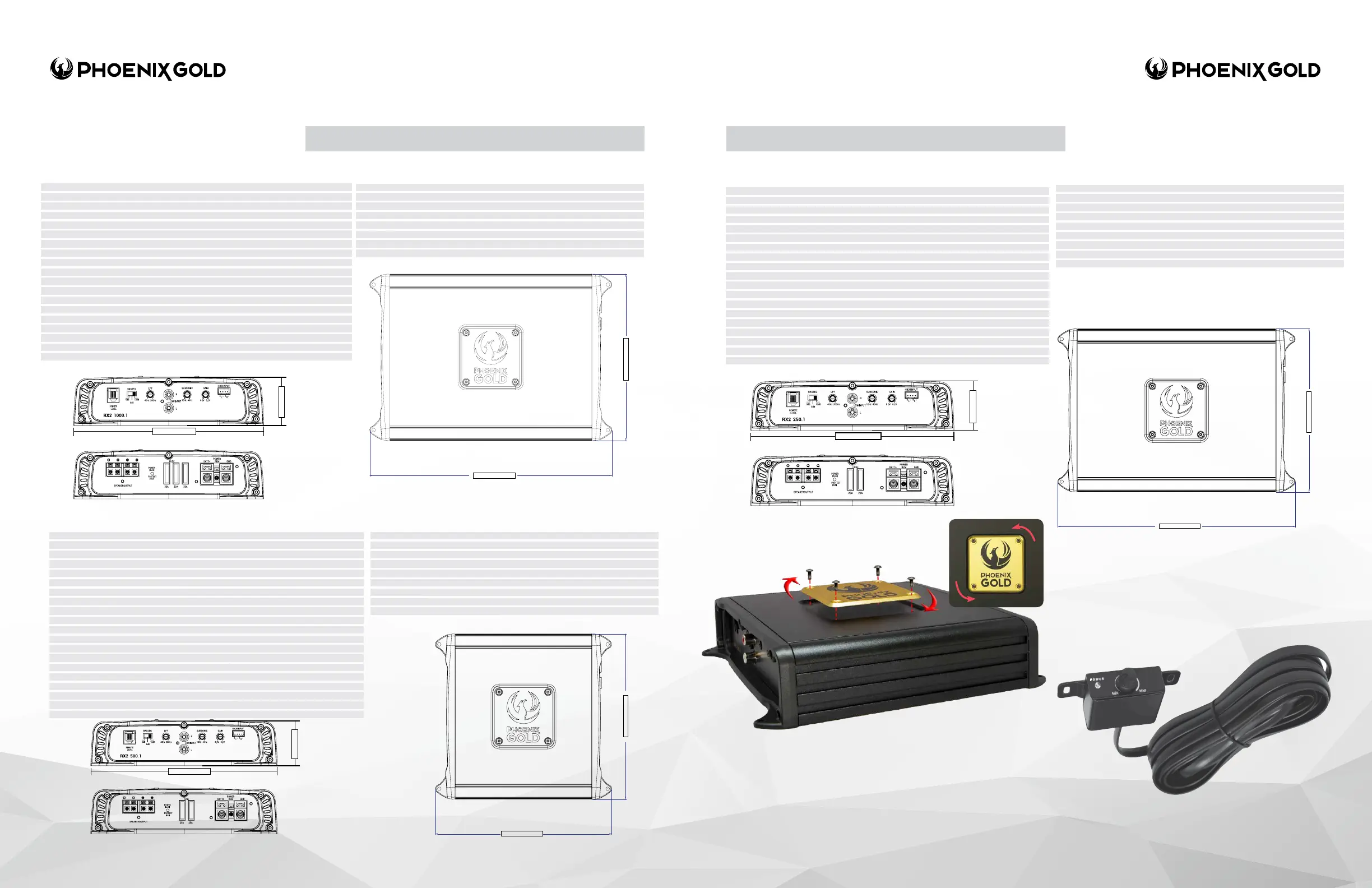

8.66in /220.00 mm
8.11in /206.00 mm
8.11in /206.00 mm
1.98in/50. 5 mm
11.81i n /300.00 mm
8.11in / 206.00 mm
8.11in / 206.0 0 mm
1.98in/50. 5 mm
Amplifier Owner’s Manual
© 2018 Phoenix Gold • www.phoenixgold.com
REMOTE LEVEL CONTROL
This port is for connecting the remote subwoofer level
control. This allows up to 20dB of volume adjustment.
This is not a bass boost, it controls the level of the low
pass signal.
BASS EQ
Selectable EQ with boost adjustment to 0dB, 6dB or
12dB.
LPF LOW PASS FILTER
Controls the lowpass crossover point. Continuously
variable from 40Hz to 200Hz.
LOW INPUT
Connect preamp signal cables from the head unit or
signal processor to these terminals.
SPEAKER OUTPUTS
Used to connect the amplier to speakers. RX2 250.1’s
and RX2 500.1’s minimum impedance is 2 ohms.
RX2 1000.1’s minimum impedance is 1 ohm.
POWER/PROTECT LED
Amplier status indicator. Blue indicates all systems
working and amplier is on. Red indicates protection
mode, from Thermal, Short Circuit or Blown Fuse. (See
Troubleshooting)
FUSE
On-Board fuse protection via ATC fuses. If blown, only
replace with same value fuses or risk damage to unit
and voiding the warranty.
SUBSONIC
Controls the subsonic highpass lter crossover point.
Continuously variable from 10Hz to 40Hz to remove low
frequencies to increase system efciency, output and speaker
protection.
GAIN
Used to reach maximum amplier power with a wide variety of
input signal sources and levels.
HIGH INPUT
Used when utilizing a source unit that has high level output
and no RCA level signal connections such as an OEM factory
source unit or aftermarket head unit.
BATT+
This must be connected to the fused positive terminal (+12V)
of the car’s battery. A fuse must be located within 18 inches of
the battery to protect the vehicle and should be fused at, or
below, the ampliers onboard fuse rating.
REMOTE
This must be connected to switched +12V, usually a trigger
wire coming from the head unit or an ignition lead if one is not
available.
GROUND
This must be connected to the negative terminal of the car’s
battery or bolted to a clean, unpainted part of the chassis of
the vehicle, use of an Stinger Expert Ground Terminal (SPTE) is
recommended.
RX2 1000.1 - RX2 500.1 - RX2 250.1
MONOBLOCK POWER AMPLIFIERS
