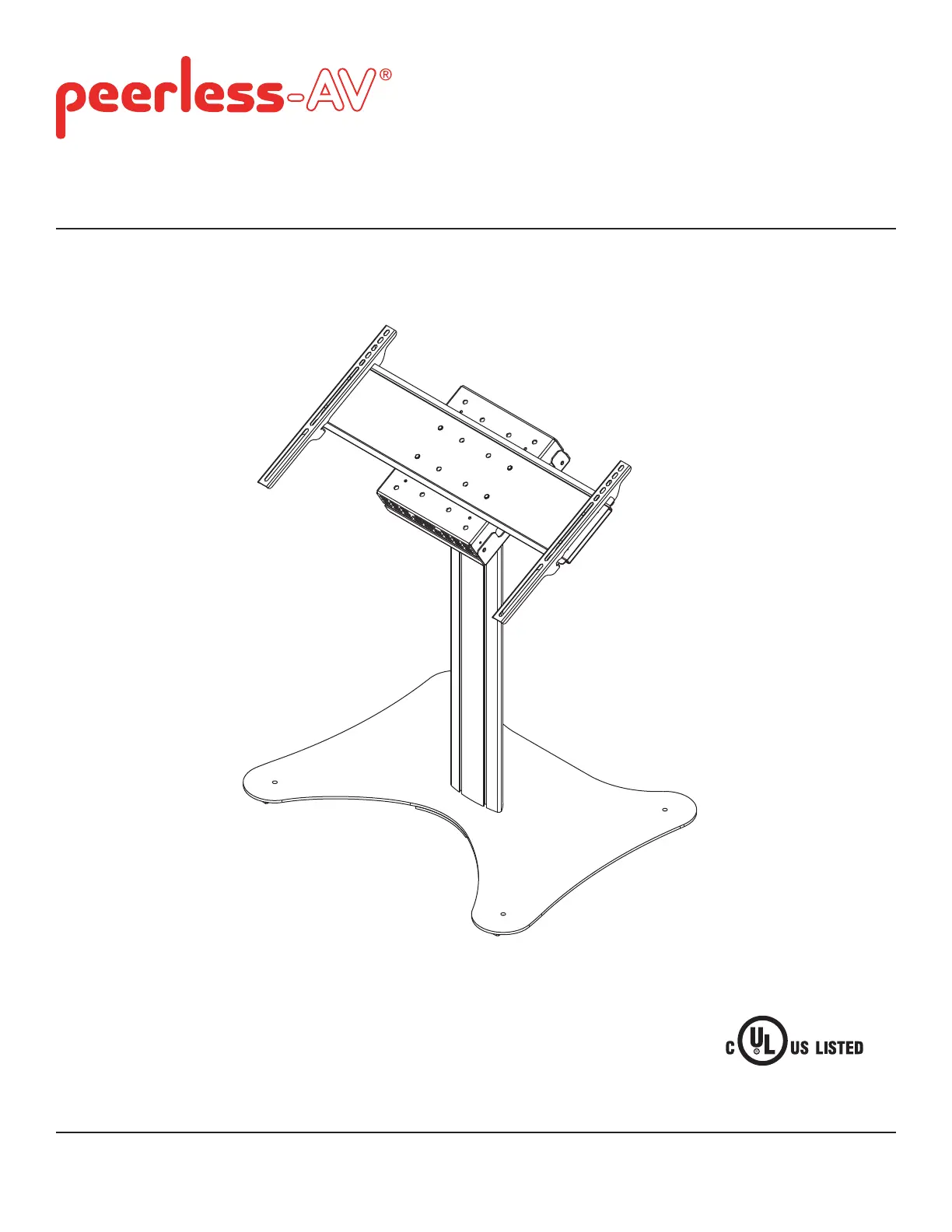

Installation and Assembly:
32" - 65" (81 - 165 cm) Kiosk Stand
Models: SS560FK
ISSUED: 09-30-11 SHEET #: 009-9056-5 (2014-04-08)
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
Max UL Load Capacity:
150 lb (68 kg) display
15 lb (6.8 kg) component
Suitable For Institutional Use
2 of 10 ISSUED: 09-30-11 SHEET #: 009-9056-5 (2014-04-08)
NOTE: Read entire instruction sheet before you start installation and assembly.
Table of Contents
Parts List............................................................................................................................................................................ 3, 4
Assembling Stand...................................................................................................................................................................5
Installing Adapter Brackets to Flat Panel Display ...................................................................................................................7
Mounting Flat Panel Display ...................................................................................................................................................9
Cable Management ................................................................................................................................................................9
Tools Needed for Assembly
• phillips screwdriver
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, and fully understands
these instructions.
• Never exceed the Maximum UL Load Capacity on page 1. Use with heavier televisions may result in instability
causing tip over resulting in death or serious injury.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• The cart or stand is not affi xed or secured to the fl oor, and may therefore tip over and/or fall if screen and/or stand
is shaken or hit. Not recommended for use in areas with heavy traffi c.
• Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control
or toys placed on the furnishing may encourage a child to climb on the furnishing resulting in the furnishing tipping
over on to the child.
• Relocating audio and/or video equipment from this cart or stand to furniture not specifi cally designed to support
audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning
onto a child.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
WARNING
3 of 10 ISSUED: 09-30-11 SHEET #: 009-9056-5 (2014-04-08)
Before you begin, make sure all parts shown are included with your product.
Parts List
Description Qty. Part Number
A
base 1 009-1425
Bcolumn 1 009-1426
Ccolumn bracket 1 009-1424
Dtilt plate 1 009-1423
Eadapter plate 1 201-1110
Fadapter bracket 2 202-1655
H3/8-16 x 1" button socket cap screw 3 520-1354
I5/16"-18 x 3/8" button socket cap screw 4 520-1693
JM10 lock washer 3 540-9424
KM10 x 15 mm button socket cap screw 4 520-9262
L3/8-16 X 2-1/2" button socket cap screw 3 520-9550
M6 mm allen wrench 1 560-9716
N7/32" allen wrench 1 560-9715
O3/16" allen wrench 1 560-0071
Ptop plate 1 201-1724
Qbottom plate 1 201-1699
Rrubber feet (pack of four) 1 570-1036
SM8 x 15mm socket pin screw 4 520-1068
TM10 x 15mm penta-pin screw 4 520-9263
UM10 penta-pin tool 1 520-9260
V4mm allen wrench 1 560-9646
Parts may appear slightly dierent than illustrated.
ABC
D
H
L
J
K
I
F
M
N
O
E
