● Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and a longer service life. Keep this manual in a
safe place for future reference.
● The application software and instruction manual PDF fi le are stored on
the internal memory of the camera.
● We recommend that you take test shots to get accustomed to your
camera before taking important photographs.
● In the interest of continually improving products, Olympus reserves the
right to update or modify information contained in this manual.
● The screen and camera illustrations shown in this manual were produced
during the development stages and may differ from the actual product.
Instruction Manual
DIGITAL CAMERA
μ
2
EN
Contents
Contents
Contents
ContentsContents
Step
Printing
“Direct printing (PictBridge)” (p. 47)
“Print Reservations (DPOF)” (p. 50)
Step
How to Use the Camera
“Camera Settings” (p. 3)
Step
Shooting and Playing Back Images
“Shooting, Playback, and Erasing” (p. 15)
Step
Preparing the Camera
“Preparing the Camera” (p. 10)
Names of Parts .............................. 6
Preparing the Camera ................. 10
Shooting, Playback, and
Erasing ......................................... 15
Using Shooting Modes ................ 22
Using Shooting Functions .......... 27
Menus for Shooting Functions ... 31
¾
¾
¾
¾
¾
¾
Menus for Playback, Editing, and
Printing Functions ....................... 35
Menus for Other Camera
Settings ........................................ 41
Printing ......................................... 47
Usage Tips ................................... 52
Appendix ...................................... 57
¾
¾
¾
¾
¾
Step
Checking the contents of the box
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.
Digital camera
Strap
USB cable AV cable
USB-AC adapter
(F-2AC)
Lithium Ion Battery
(LI-42B)
or
3
EN
Camera Settings
Using the Direct Buttons
Using the Direct Buttons
Using the Direct Buttons
Using the Direct Buttons Using the Direct Buttons
Frequently used functions can be accessed using the direct buttons.
Shutter button (p. 15, 52)
Zoom buttons (p. 17, 19)
q button (switching
between shooting and
playback) (p. 16, 18, 42)
m button (p. 4)
E button (camera guide/
menu guide) (p. 21)
Operation guide
The symbols displayed for image selections FGHI
and settings indicate that the wheel controller is to
be used by pressing, not turning, the wheel controller
sections shown below.
N
ORM
OK
SINGLE PRINT
PRINT
4/304/30
MORE
’10/02/26 12:30’10/02/26 12:30
N
ORM
14M
FILE
100 0004100 0004
02 26 12 30:..2010
MENU
OK
SETCANCEL
X
Y M D TIME
Y / M / DY / M / D
Wheel controller
H (left)
G (down) /
D button (erase) (p. 19)
F (up) /
INFO button (changing
information display) (p. 17, 20)
I (right)
A button
Operation guides displayed at the bottom of the screen
indicate that the button, button, or zoom mA
buttons can be used.
MENU
OK
SEL. IMAGE
ERASE/CANCEL
Operation guide
OK
SET
SHADOW ADJUST
AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION
NORMAL
MENU
OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE
14M14M
4
EN
Using the Menu
Using the Menu
Using the Menu
Using the MenuUsing the Menu
Use the menu to change camera settings such as the shooting mode.
Press the button to display the function menu. The function menu can be used to set frequently m
used shooting and playback functions such as shooting mode.
PHOTO SURFING
EVENT
BEAUTY FIX
EDIT
ERASE
SETUP
SLIDESHOWSLIDESHOW
Use to select a menu and press FG
the button.A
14
M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
Shooting Playback
Selected option
To select the shooting mode
Use to select the shooting mode and HI
press the button.A
To select the function menu
Use to select a menu and use to FG HI
select a menu option. Press the button to A
set the function menu.
o [SETUP]
menu
Shooting
mode
In the [SETUP] menu, various camera functions can be set,
including shooting and playback functions not displayed in the
function menu, and other settings such as date, time and screen
display.
Function
menu
Select [SETUP] and then press the A
button.
The [SETUP] menu is displayed.
SHADOW ADJUST
AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION
NORMAL
MENU
OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE
14M14M
Press H FG to select the page tabs. Use
to select the desired page tab and press .I
x
--.--.-- --:--X
MENU
OK
SETEXIT
WORLD TIME
VIDEO OUT
OFFPOWER SAVE
NTSC
1
2
3
1
2
Page tab
MENU
OK
SETEXIT
1
2
3
1
2
OFFPOWER SAVE
x
VIDEO OUT NTSC
--.--.-- --:----.--.-- --:--XX--.--.-- --:----.--.-- --:--XX
WORLD TIME
Submenu 1
Use FG to select the desired submenu 1
and then press the button.A
MENU
OK
SETEXIT
1
2
3
1
2
--.--.-- --:--X
WORLD TIME x
VIDEO OUT NTSC
OFFPOWER SAVEPOWER SAVE OFF
MENU
OK
SETEXIT
1
2
3
1
2
HOME
--.--.-- --:--X
WORLD TIME
VIDEO OUTVIDEO OUT
OFFPOWER SAVEPOWER SAVE OFF
POWER SAVE
ON
OFFOFF
Submenu 2
●
Use FG to select the desired submenu 2
and then press the button.A
Once a setting is selected, the display returns
to the previous screen.
There may be additional operations.
“Menu Settings” (p. 31 to 46)
MENU
OK
SETEXIT
1
2
3
1
2
--.--.-- --:--X
WORLD TIME x
VIDEO OUT NTSC
ONONPOWER SAVEPOWER SAVE
Press the m button to complete the
setting.
Some functions cannot be used in some
shooting modes. In such cases, the
following message is displayed after
setting.
SHADOW ADJUST
AUTO
AF MODE iESP
ESP/*1 ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION
NORMAL
MENU
OK
SETEXIT
1
2
3
1
2
CONFLICTING SETTINGS
IMAGE SIZEIMAGE SIZE
14M14M
●
5
EN

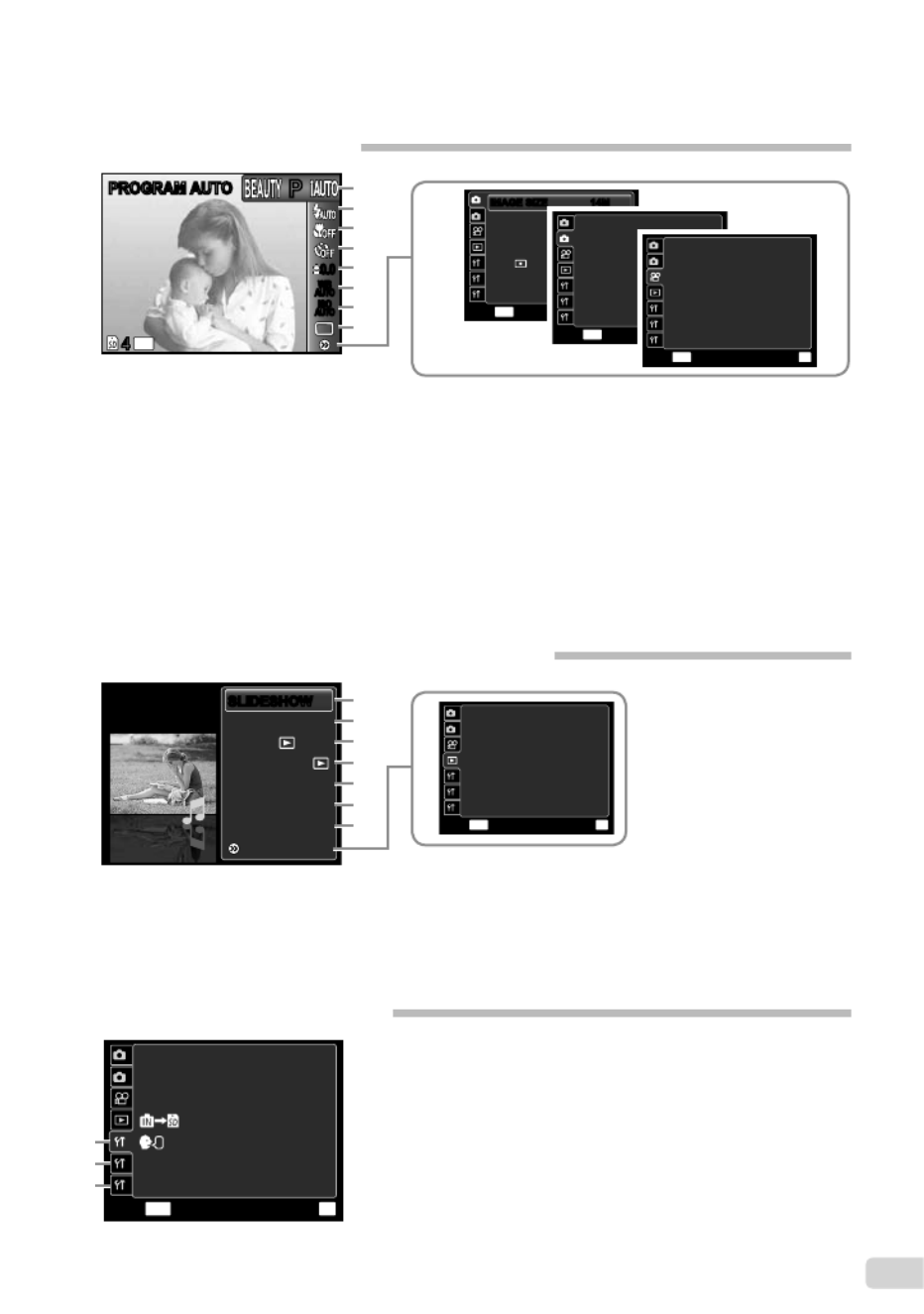

Menu Index
Menus for Shooting Functions
1 Shooting mode
P (PROGRAM AUTO) .......p. 15
M (iAUTO) ....................p. 22
s (SCENE MODE) ......p. 22
P (MAGIC FILTER) .....p. 23
p (PANORAMA) ............... p. 24
Q(BEAUTY) ................ p. 26
A (MOVIE) ....................... p. 16
2 Flash .................................. p. 27
3 Macro ................................p. 27
4 Self-timer ...........................p. 28
5 Exposure compensation ....p. 28
6 White balance ....................p. 28
7 ISO ....................................p. 29
8 Drive ..................................p. 30
9 (SETUP)o
IMAGE SIZE (Still images)
.......................................p. 31
IMAGE SIZE (Movies) .......p. 31
COMPRESSION (Still images)
.......................................p. 31
FRAME RATE (Movies) .....p. 31
SHADOW ADJUST ...........p. 32
AF MODE ..........................p. 32
1 SLIDESHOW .....................p. 35
2 PHOTO SURFING.............p. 35
3 EVENT q ........................p. 36
4 COLLECTION q .............p. 36
5 BEAUTY FIX......................p. 37
Menus for Playback, Editing, and Printing Functions
6 EDIT ..................................p. 37
7 ERASE ..............................p. 39
8 (SETUP)o
PRINT ORDER ..................p. 39
0 (Protect) .....................p. 39
14
M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
PHOTO SURFING
EVENT
COLLECTION
BEAUTY FIX
EDIT
ERASE
SETUP
SLIDESHOWSLIDESHOW
6
7
3
2
1
5
4
1 (Settings 1)r
INTERNAL/SD ................... p. 41
MEMORY FORMAT/
FORMAT ............................ p. 41
DATA REPAIR ...................p. 41
u COPY .....................p. 41
l (Language) ................p. 41
RESET...............................p. 42
USB CONNECTION ..........p. 42
2 (Settings 2)s
q POWER ON ................p. 42
Menus for Other Camera Settings
SAVE SETTINGS .............. p. 42
PW ON SETUP .................p. 42
SOUND SETTINGS .......... p. 43
FILE NAME .......................p. 43
PIXEL MAPPING ...............p. 44
s (Monitor) ..................... p. 44
3 (Settings 3)t
X (Date/time) ..................p. 44
WORLD TIME....................p. 45
VIDEO OUT .......................p. 45
POWER SAVE...................p. 46
ESP/n ............................p. 32
FINE ZOOM ......................p. 33
DIGITAL ZOOM .................p. 33
R (Still images) ..................p. 33
R (Movies) .........................p. 33
IMAGE STABILIZER
(Still images)/
IS MOVIE MODE
(Movies) ............................. p. 34
REC VIEW .........................p. 34
ICON GUIDE ..................... p. 34
8
9
8
COPY
ENGLISH
RESET
USB CONNECTION
PC
MENU
OK
MEMORY FORMAT
SETEXIT
INTERNAL/SD
DATA REPAIR
AUTO
1
2
1
2
3
3
2
1
3
2
1
4
MENU
OK
SETEXIT
PRINT ORDER
y
0
R
1
2
3
1
2
SHADOW ADJUST
AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION
NORMAL
MENU
OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE
14M14M
REC VIEW ON
ON
ICON GUIDE
IMAGE STABILIZER
ON
ROFF
MENU
OK
SETEXIT
1
2
3
1
2
IMAGE SIZE VGA
IS MOVIE MODE
OFF
ON
FRAME RATE
30fps
MENU
OK
SETEXIT
R
1
2
3
1
2
6
5
7
y (Rotate).........................p. 40
R (Add sound to still images)
.......................................p. 40
6
EN
Names of Parts

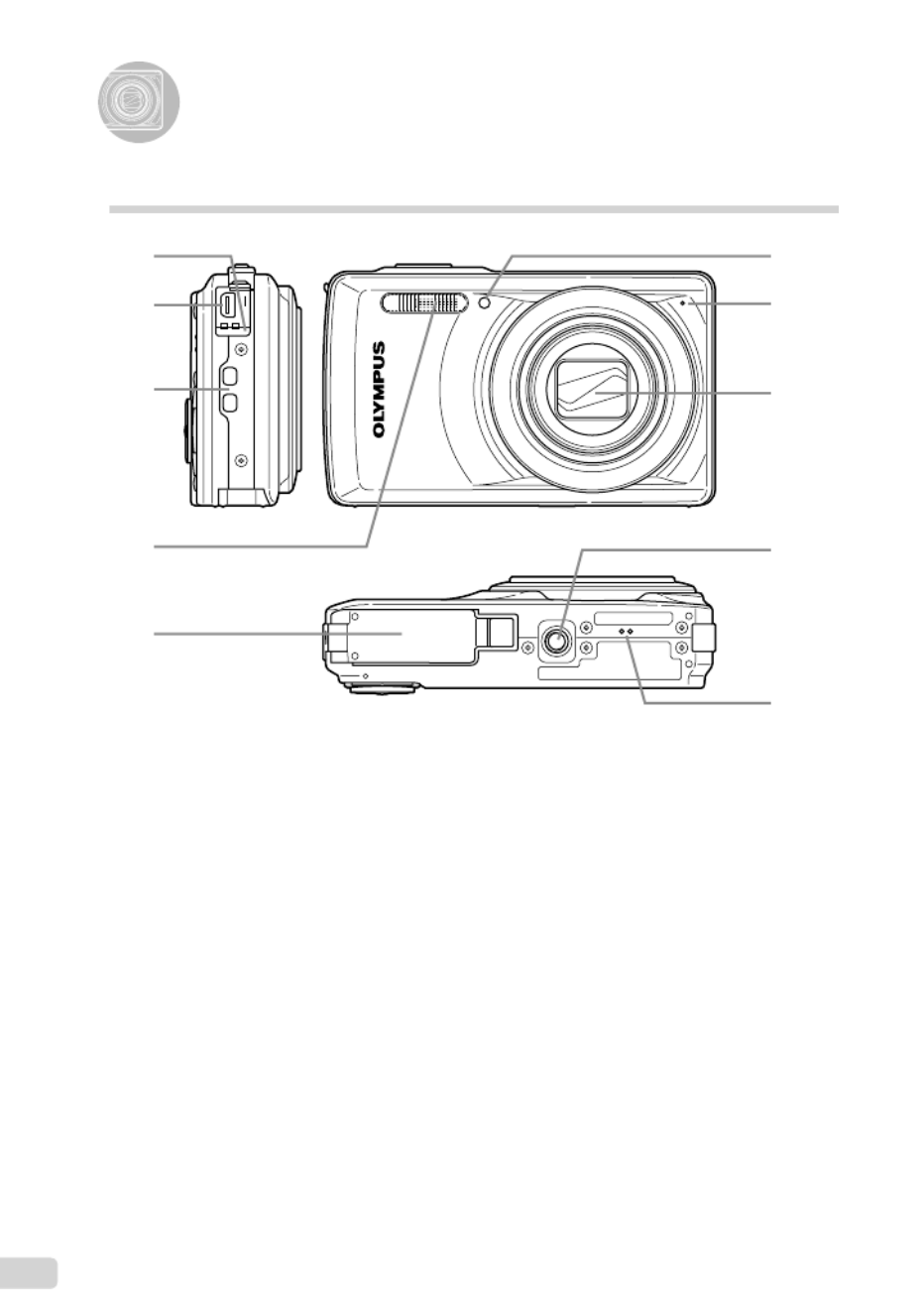

1 Connector cover ..................... p. 11, 12
2 Multi-connector ........... p. 11, 12, 45, 47
3 Strap eyelet .................................... p. 7
4 Flash ............................................ p. 27
5 Battery/card compartment cover
....................................................p. 10
Camera unit
1
2
3
5
4
7
6
8
9
10
6 Self-timer lamp ............................. p. 28
7 Microphone ............................p. 33, 40
8 Lens ............................................. p. 57
9 Tripod socket
10 Speaker
7
EN
4
5
9
10
8
7
62
3
1

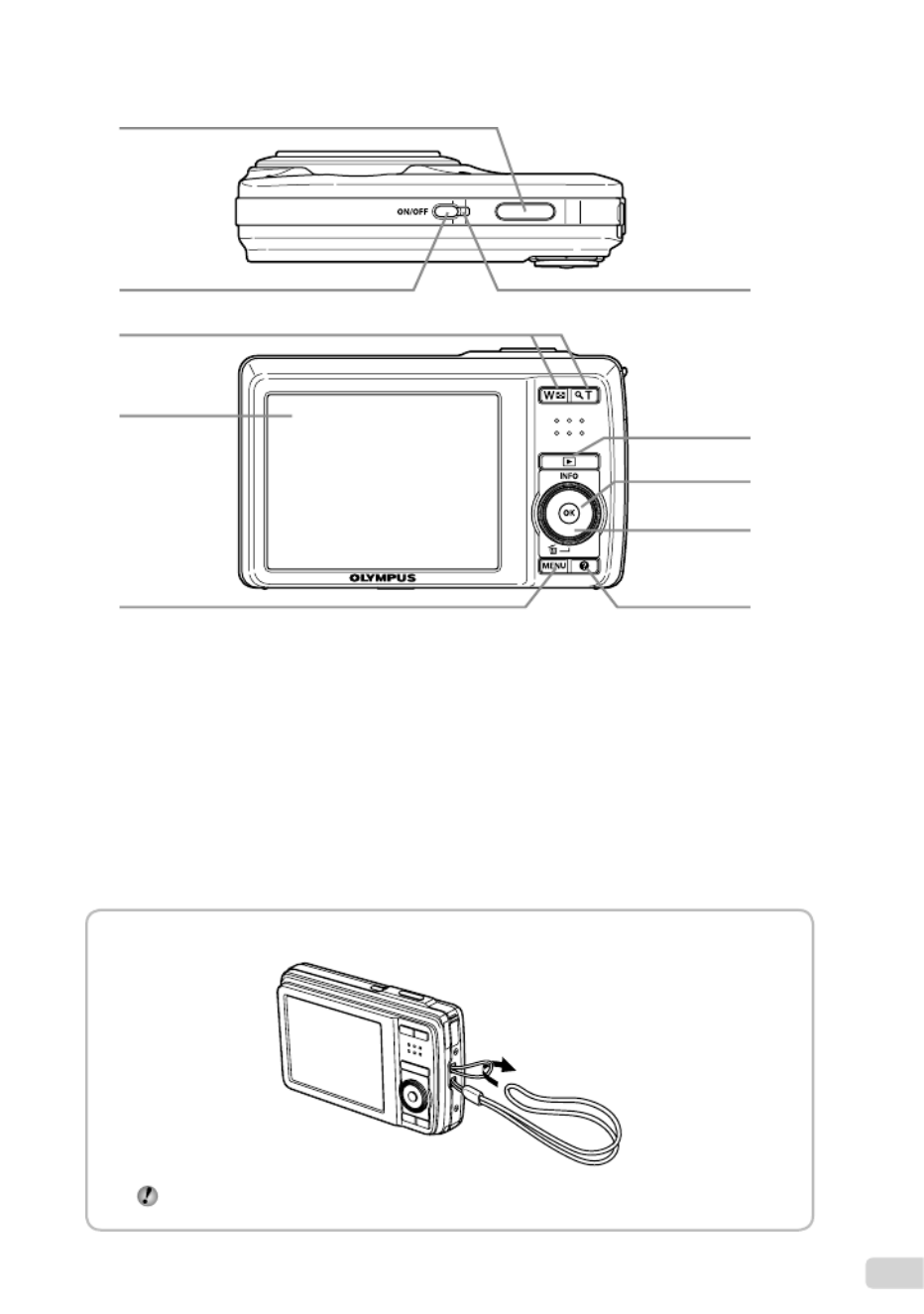

1 Shutter button .........................p. 15, 52
2 button ........................p. 13, 15n
3 Zoom buttons ......................... p. 17, 19
4 Monitor ......................... p. 8, 15, 44, 52
5 m button .............................. p. 3, 4
6 Indicator lamp ......................... p. 11, 12
7 q button (switching between shooting
and playback) ................... p. 16, 18, 42
8 A button (OK) ............................... p. 3
9 Wheel controller ............................. p. 3
INFO button (changing information
display) ............................. p. 17, 20
D button (erase) .................... p. 19
10 E button
(camera guide/menu guide) ......... p. 21
Attaching the camera strap
Pull the strap tight so that it does not come loose.
8
EN
Monitor
Shooting mode display
Still image
Movie
1/100 F3.01/100 F3.0
PP
14
M
44
N
ORM
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:34 ONON
0.00.0
AUTO
WB
AUTO
WB
VGA
1 2
3
4
5
6
7
8
9
11
15161718 14 13 12
19
2324
20
21
22
1 2
4
5
6
7
11
10
14151718 121316
19
21
1 Battery check .........................p. 12, 53
2 Shooting mode .......................p. 15, 22
3 Flash ............................................p. 27
Flash standby/fl ash charge .......... p. 52
4 Macro/super macro ......................p. 27
5 Self-timer ...................................... p. 28
6 Exposure compensation ...............p. 28
7 White balance ..............................p. 28
8 ISO ............................................... p. 29
9 Drive ............................................. p. 30
10 Recording with sound (movies)
........... .........................................p. 33
11 [SETUP] menu ...........................p. 4, 5
12 World time .................................... p. 45
13 Image stabilization (still images)/
Digital image stabilization (movies)
....................................................p. 34
14 Metering ....................................... p. 32
15 Shadow Adjustment Technology
....................................................p. 32
16 Compression (still images) .....p. 31, 60
Frame rate (movies) ...............p. 31, 60
17 Image size .............................. p. 31, 60
18 Number of storable still pictures
(still images) ...........................p. 15, 60
Remaining recording time (movies)
.............................................. p. 16, 60
19 Current memory ...........................p. 59
20 Histogram ..................................... p. 17
21 AF target mark .............................p. 15
22 Camera shake warning
23 Aperture value .............................. p. 15
24 Shutter speed ............................... p. 15
9
EN

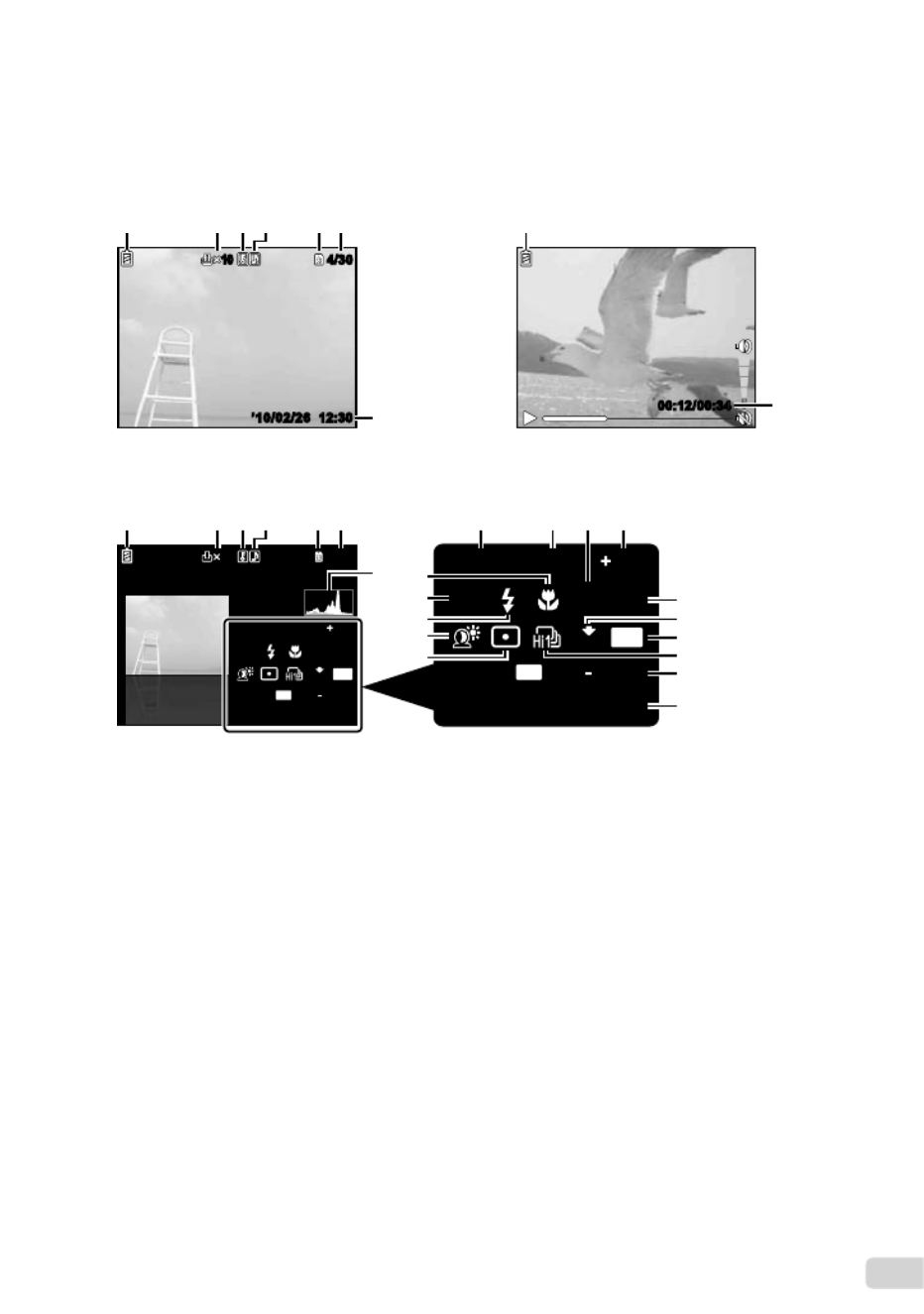

Playback mode display
Standard display
1010
’10/02/26 12:30’10/02/26 12:30
4/304/30
00:1 00:3400:12/00:342/
1 65432
17
1
6
Still image Movie
Advanced display
1010
4/304/30
1/1000 F3.0 2.0
AUTO
WB
AUTO
ISO
P
N
ORM
14
M
FILE
100 0004
’10/02/26 12:30
1/1000 F3.0 2.0
AUTO
WB
AUTO
ISO
P
FILE
100 0004
’10/02/26 12:30
N
ORM
14
M
1 6 8 9 11105432
7
12
14
16
17
18
19
20 13
15
22
21
●
●
1 Battery check .........................p. 12, 53
2 Print reservation/
number of prints .................. p. 50/p. 49
3 Protect .......................................... p. 39
4 Adding sound .........................p. 33, 40
5 Current memory ...........................p. 59
6 Frame number/total number of images
(still images) ................................. p. 18
Elapsed time/total recording time
(movies) .......................................p. 18
7 Histogram ..................................... p. 17
8 Shutter speed ...............................p. 15
9 Aperture value ..............................p. 15
10 ISO ............................................... p. 29
11 Exposure compensation ...............p. 28
12 White balance .............................. p. 28
13 Compression (still images) ..... p. 31, 60
Frame rate (movies) ............... p. 31, 60
14 Image size .............................. p. 31, 60
15 Drive ............................................. p. 30
16 File number
17 Date and time .........................p. 13, 44
18 Metering ....................................... p. 32
19 Shadow Adjustment Technology
...................................................p. 32
20 Flash ............................................p. 27
21 Shooting mode ....................... p. 15, 22
22 Macro ........................................... p. 27
10
EN
Preparing the Camera
Insert the battery by putting in the ▼ marked
side fi rst, with the marks toward the C
battery lock knob.
Damage to the battery exterior (scratches,
etc.) may produce heat or an explosion.
Insert the battery while sliding the battery
lock knob in the direction of the arrow.
Slide the battery lock knob in the direction
of the arrow to unlock, and then remove the
battery.
Turn off the camera before opening the
battery/card compartment cover.
When using the camera, be sure to close
the battery/card compartment cover.
Battery charge and camera
setup
Connect the camera to the computer to charge
the battery and setup the camera.
System requirements
Windows XP (SP2 or later)/Windows Vista/
Windows 7
When using another system other
than the above or no computer,
see “Charging the battery with the
included USB-AC adapter” (p. 12).
Inserting the battery
Battery/card compartment coverBattery/card compartment cover
Battery lock knobBattery lock knob
11
EN

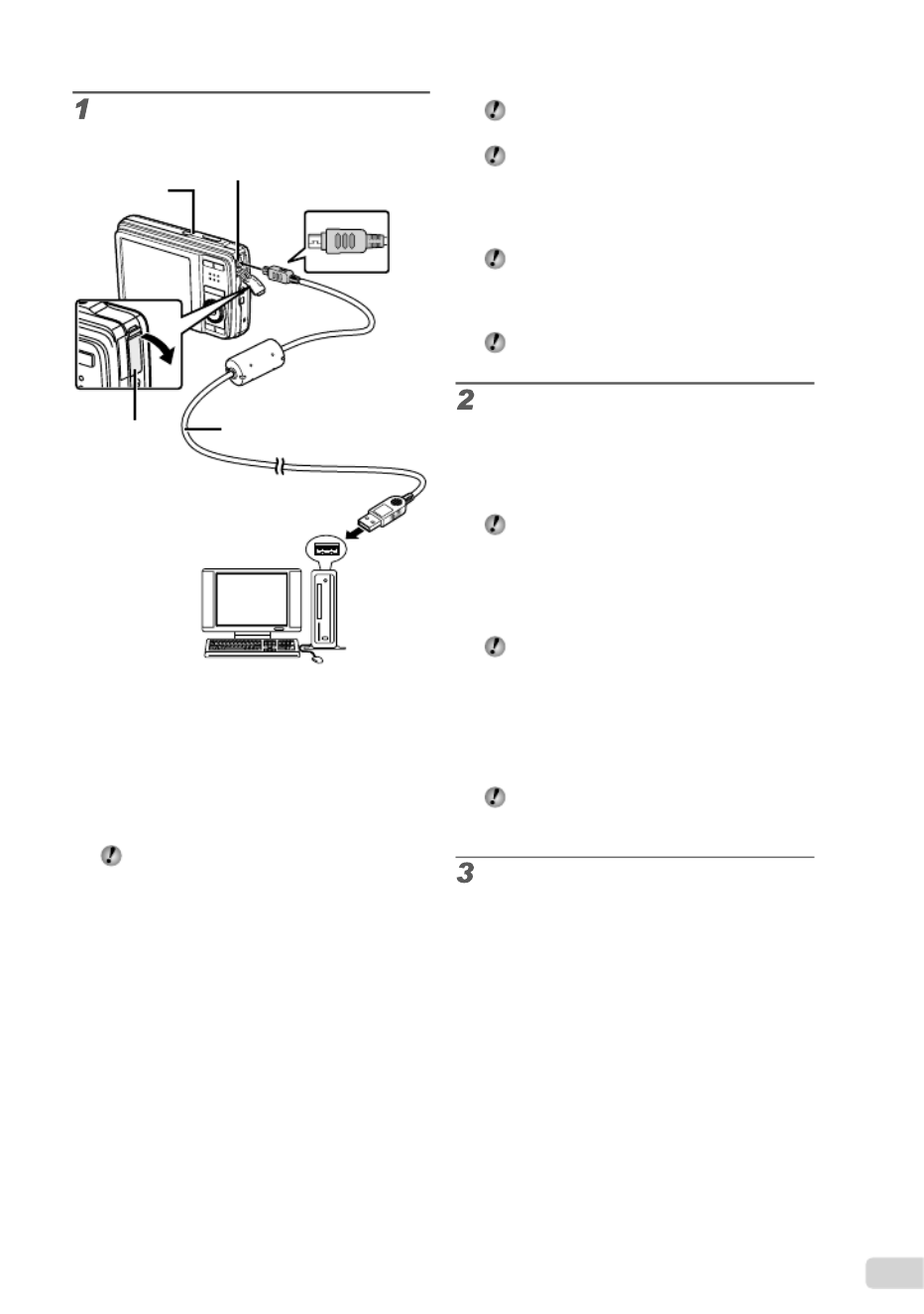

Do not insert SD/SDHC memory cards
before the camera setup.
Do not format the internal memory until the
camera setup is complete. Doing so will
erase the camera instruction manual and
the PC software (ib) data that are stored on
the internal memory.
Check that your computer meets the
following system requirements:
Windows XP (SP2 or later)/
Windows Vista/Windows 7
Refer to the PC software (ib) help guide for
details on how to use the PC software (ib).
Select and execute “OLYMPUS
Camera Initialization”, which is
displayed on the computer screen
when the camera is recognized by
the computer.
If nothing is displayed on the camera screen
even after connecting the camera to the
computer, the battery may be exhausted.
Leave the camera connected to the
computer until the battery has charged, then
disconnect and reconnect the camera.
Even if a computer has USB ports, proper
operation is not guaranteed in the following
cases:
Computers with USB ports installed using an
expansion card, etc.
Computers without a factory-installed OS and
home-built computers
Double-click the icon for the camera drive
(Removable Disk), and then execute
Setup. exe to start the camera setup.
Follow the instructions on the
computer screen and setup the
camera.
●
●
Connect the camera to the
computer.
Multi-connector
Connector
cover
USB cable (supplied)
Computer (on
and running)
Indicator lamp
Charging the battery
When the camera is connected to the
computer, the battery in the camera will be
charged.
When charging, the indicator lamp light. When
charging is complete, the indicator lamp will turn
off.
If the indicator lamp does not light, the
camera may be incorrectly connected, or
the battery, camera, computer or USB cable
may not be functioning correctly.
Camera setup
Set the camera date and time, time zone
and display language automatically; install
the camera instruction manual and PC
software (ib).
●
12
EN
Charging the battery with the
included USB-AC adapter
The included USB-AC adapter (F-2AC)
(hereafter referred as AC adapter) has
been designed to be used for charging
and playback. Make sure that shooting
is not being used while the AC adapter is
connected to the camera.
3
1
Multi-connector
AC outlet
Connector
cover
USB cable (supplied)
3
1
Multi-connector
AC outlet
Connector
cover
USB cable (supplied)
Indicator lamp
On: Charging
Off: Charged
Indicator lamp
On: Charging
Off: Charged
The battery is not fully charged at shipment.
Before use, be sure to charge the battery
until the indicator lamp turns off (up to
3 hours).
If the indicator lamp does not light, the AC
adapter is not connected to the camera
correctly, or the battery, camera, or AC
adapter may be broken.
For details on the battery and the AC
adapter, see “Battery, USB-AC adapter
(included), Charger (sold separately)”
(p. 57).
Battery can be charged by connecting
the camera to the computer. However,
when charging with the system other than
Windows XP (SP2 or later)/Windows Vista/
Windows 7, charging takes much time.
When to charge the batteries
Charge the battery when the error message
shown below appears.
Monitor top left Error message
Flashes in red
44
BATTERY EMPTY
14
M
When not using a computer
See the next section under “Setting the date,
time and time zone.”
When using a computer with system
other than Windows XP (SP2 or later)/
Windows Vista/Windows 7
The Instruction Manual PDF fi le can be
saved on a computer with the following
procedure.
Connect the camera to the computer and
copy the instruction manual PDF fi le for
your language in the “Manual” folder in the
internal memory of the camera.
13
EN
Setting the date, time and
time zone
The date and time set here are saved to image
fi le names, date prints, and other data.
Press the n button to turn on
the camera.
The date and time setting screen is displayed
when the date and time are not set.
Date and time setting screen
X
Y/ M/ D
Y M D TIME
-- -- -- --:..
MENU
CANCEL
--------
Use FG to select the year for [Y].
-- -- -- --:.
MENU
CANCEL
X
.
Y/ M/ D
Y M D TIME
20102010
Press I to save the setting for [Y].
-- -- --:..2010
X
Y/ M/ D
Y M D TIME
MENU
CANCEL
0000
●
As in Steps 2 and 3, use FGHI
and the button to set [M] A
(month), [D] (day), [TIME] (hours
and minutes), and [Y/M/D] (date
order).
For precise setting, press the button as A
the time signal strikes 00 seconds.
To change the date and time, adjust the
setting from the menu. [ ] (Date/time) X
(p. 44)
Use HI to select the [ ] time x
zone and then press the button.A
Use FG to turn daylight saving time ([SUMMER])
on or off.
’10.02.26 12:30
SUMMER
OK
SET
Seoul
Tokyo
Seoul
Tokyo
The menus can be used to change the
selected time zone. [WORLD TIME] (p. 45)
●
14
EN
Changing the display language
The language for the menu and error messages
displayed on the monitor is adjustable.
1 Display the [SETUP] menu.
“Using the Menu” (p. 4)
2 Use FG to select the r (Settings
1) tab and then press .I
COPY
ENGLISH
RESET
USB CONNECTION
PC
MENU
OK
MEMORY FORMAT
DATA REPAIR
SETEXIT
1
2
3
1
2
INTERNAL/SDINTERNAL/SD AUTOAUTO
3 Use FG to select [ ] and press l
the button.A
4 Use FGHI to select your
language and press the button.A
5 Press the m button.
Inserting the SD/SDHC
memory card (sold separately)
Always use SD/SDHC memory cards with
this camera. Do not insert other types of
memory card. “Using a SD/SDHC memory
card” (p. 58)
Although the camera can store images in
internal memory, SD/SDHC memory cards
(sold separately) can be also used to store
pictures.
1
Insert the card straight until it clicks into
place.
Do not touch the contact area directly.
2
“Number of storable pictures (still images)/
Continuous recording length (movies) in the
internal memory and SD/SDHC memory
cards” (p. 60)
To remove the SD/SDHC memory card
Press the card in until it clicks and comes
out slightly, then remove the card.
Write-protect switchWrite-protect switch
15
EN
Shooting, Playback, and Erasing
2 Hold the camera and compose the
shot.
Horizontal grip
Vertical grip
Monitor
When holding the camera, take care not to
cover the ash with your ngers, etc.
3 Press the shutter button halfway
down to focus on the subject.
When the camera focuses on the subject, the
exposure is locked (shutter speed and aperture
value are displayed), and the AF target mark
changes to green.
The camera was unable to focus if the AF target
mark ashes red. Try focusing again.
PP
1/4001/400 F3.0F3.0
AF target mark
Press halfway
Shutter speed Aperture value
“Focusing” (p. 54)
●
●
Shooting with the optimum
aperture value and shutter
speed ( mode)P
In this mode, automatic shooting settings are
activated while also allowing changes to a wide
range of other shooting menu functions, such
as exposure compensation, white balance, etc.
as needed.
1 Press the n button to turn on
the camera.
P mode indicator
14
M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
Number of storable still pictures (p. 60)
Monitor
(standby mode screen)
If P mode is not displayed, press the m
button to display the function menu screen
and then set the shooting mode to . “Using P
the Menu” (p. 4)
Current shooting mode display
44
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
14
M
PP
Press the n button again to turn off
the camera.
16
EN

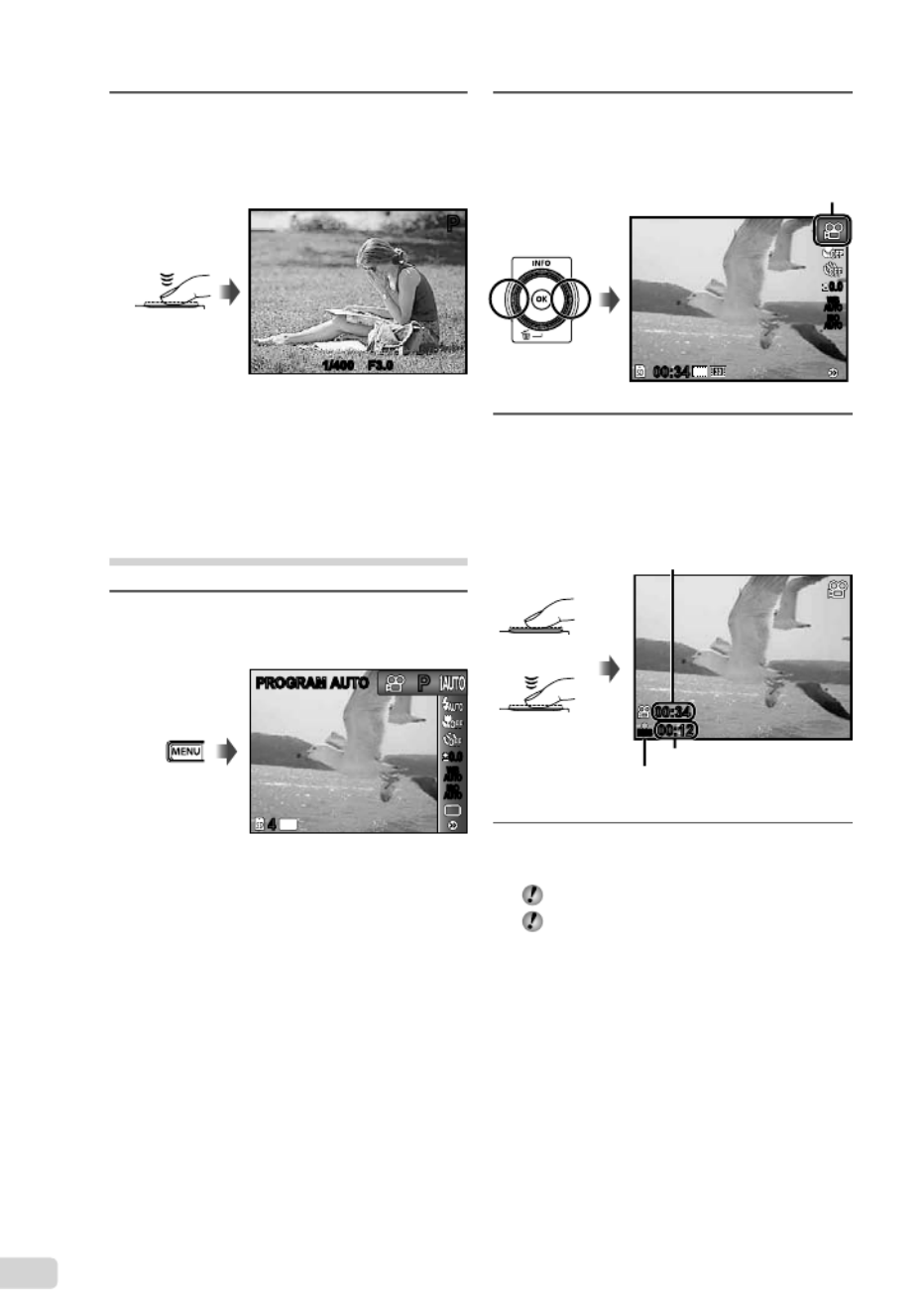

4 To take the picture, gently press
the shutter button all the way down
while being careful not to shake the
camera.
PP
1/4001/400 F3.0F3.0
Image review screen
Press fully
To view images during shooting
Pressing the button enables playback of q
images. To return to shooting, either press
the button or press the shutter button q
halfway down.
Shooting movies ( mode)n
1 Press the m button to display
the function menu screen.
14
M
44
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PP
PROGRAM AUTOPROGRAM AUTO
2 Use the HI buttons to set the
shooting mode to and then A
press the button.A
A mode indicator
00:3400:34
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
VGA
3 Press the shutter button halfway
down to focus on the subject, and
gently press the button all the way
down to start recording.
Press halfway
Press fully
00:1200:12
RECREC
00:3400:34
Lights up red when recording
Recording time
Continuous recording length
(p. 60)
4 Gently press the shutter button all
the way down to stop recording.
Sound will also be recorded.
During sound recording, only the digital
zoom can be used. To record a movie with
optical zoom, set [ ] (movies) (p. 33) to R
[OFF].
17
EN

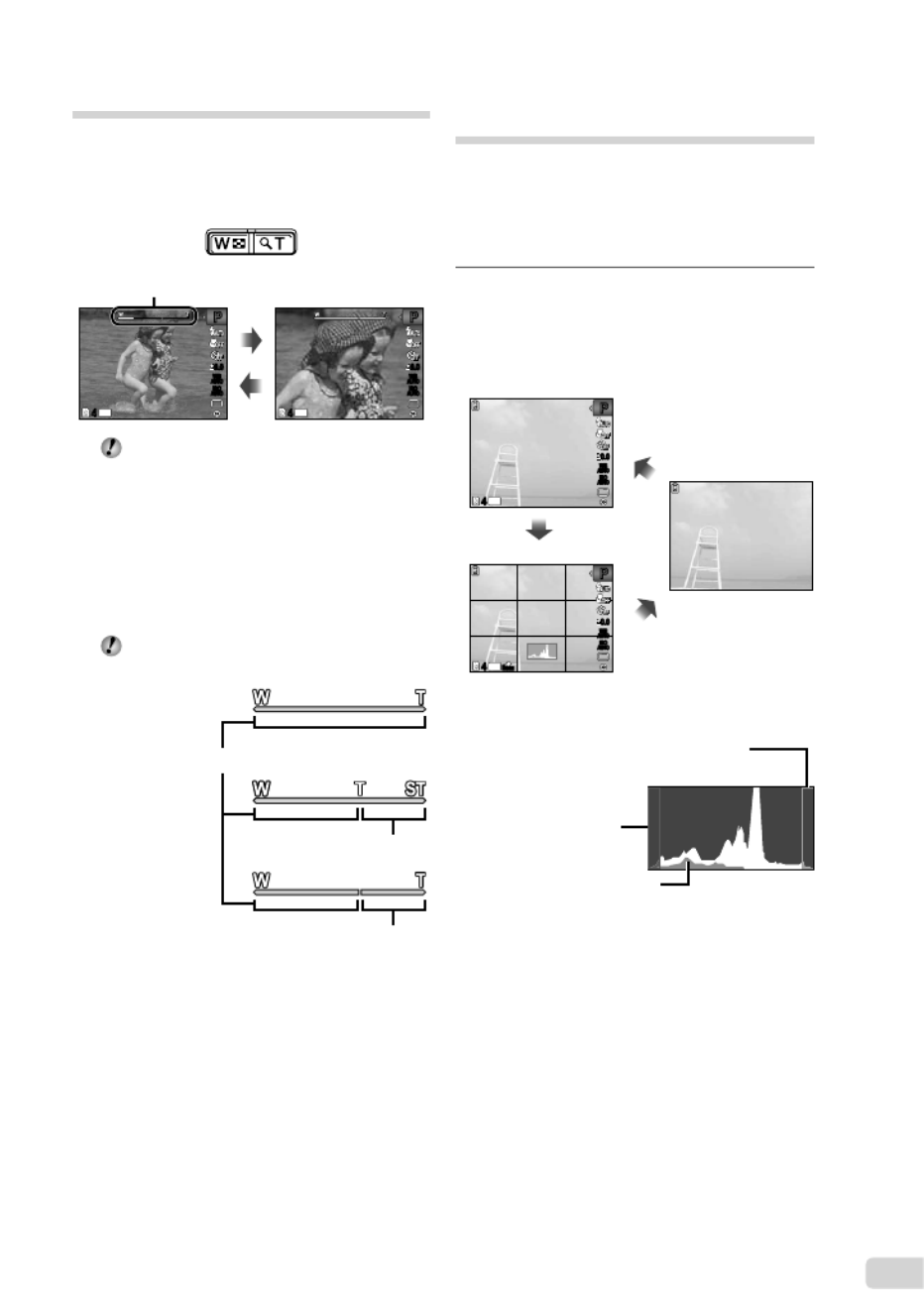

Using the zoom
Pressing the zoom buttons adjusts the shooting
range.
Pressing the wide
(W) button
Pressing the telephoto
(T) button
14
M
44 44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14
M
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
Zoom bar
Optical zoom: 7x
Digital zoom: 5x
To take larger images without reducing
image quality
[FINE ZOOM] (p. 33)
To take larger images
[DIGITAL ZOOM] (p. 33)
The zoom bar appearance identi es the
status of the ne zoom/digital zoom.
Fine zoom
range
Digital zoom
range
When using
optical zoom
When using
ne zoom
When using
digital zoom
Optical zoom range
Changing the shooting
information display
The display of the screen information can
be changed to best match the situation, for
example, the need for a clear view of the screen
or for making a precise composition by using the
grid display.
1 Press F (INFO).
The displayed shooting information changes in
the order shown below each time the button is
pressed. “Shooting mode display” (p. 8)
14M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14M
44
N
ORM
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
Normal
Detailed
No information
Reading a histogram
If the peak lls too much of the frame,
the image will appear mostly white.
If the peak lls too
much of the frame,
the image will
appear mostly black.
The green section shows
luminance distribution
within the screen’s center.
●
18
EN

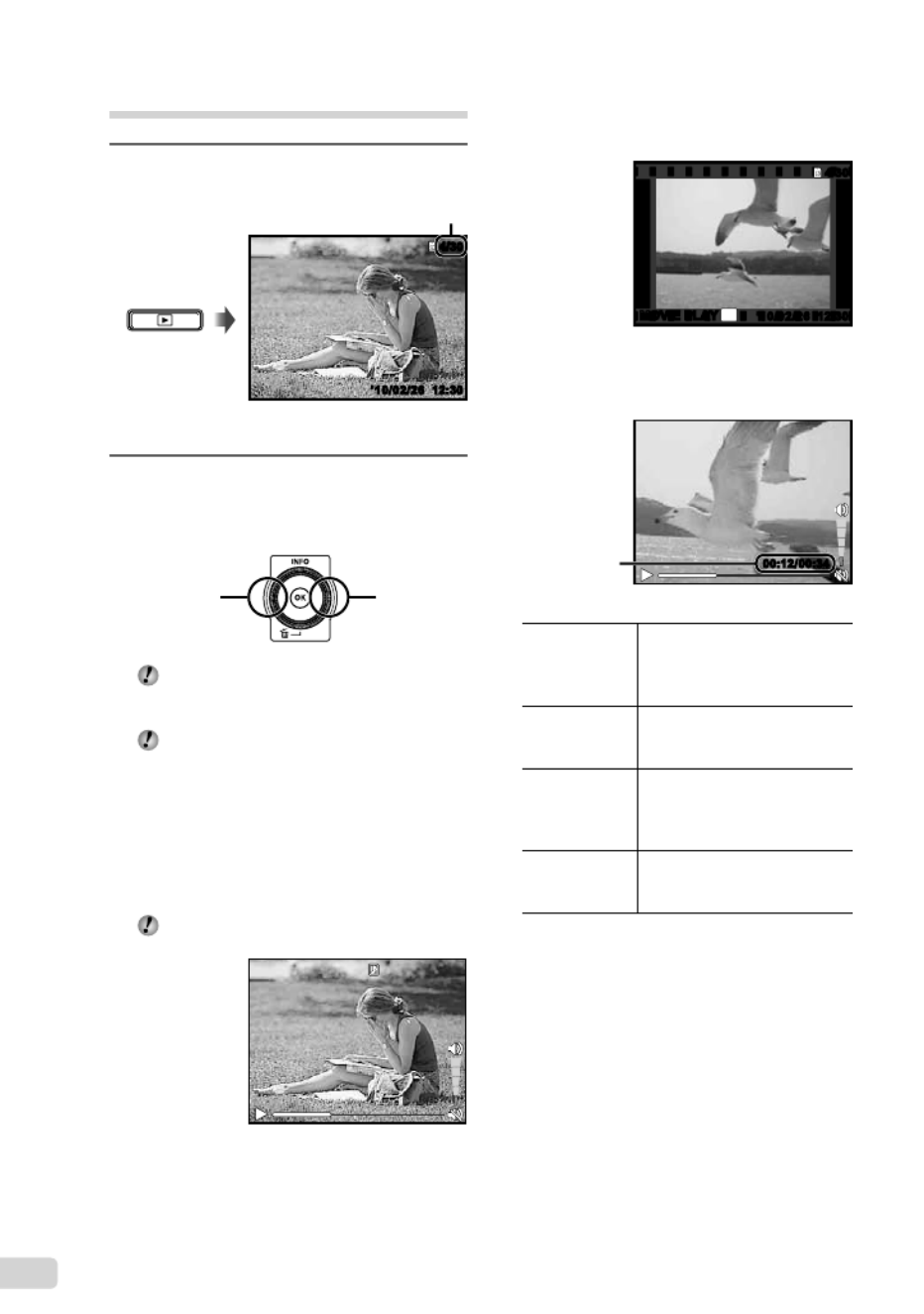

To play back movies
Select a movie, and press the button.A
’10/02/26 12:30’10/02/26 12:30
4/304/30
OK
MOVIE PLAYMOVIE PLAY
Movie
Operations during movie playback
00:1 00:3400:12/00:342/
During playback
Elapsed time/
Total recording
time
Pausing and
restarting
playback
Press the button to pause A
playback. During pause, fast
forward or reverse, press the
A button to restart playback.
Fast forward
Press to fast forward. Press I
I again to increase the fast
forward speed.
Rewind
Press to rewind. The speed H
at which the recording rewinds
increases each time is H
pressed.
Adjusting the
volume
Turn the wheel controller
or use to adjust the FG
volume.
Viewing images
1 Press the q button.
Number of frames/
Total number of images
’10/02/26 12:30’10/02/26 12:30
4/304/30
Playback image
2 Turn the wheel controller to select
an image.
It can be performed by pressing .HI
Displays
previous
Displays
next image
Keep turning the wheel controller to fast
forward or reverse. It can be performed by
holding .HI
The display size of the images can be
changed. “Index view, close-up view, and
event index” (p. 19)
To play sound recordings
To play sound recorded with an image,
select the image and press the button. A A
! icon appears on images with which sound
has been recorded.
[R] (still images) (p. 33, 40)
During audio playback
●
19
EN
Operations while playback is paused
During pause
00:14/00:3400:14/00:34
Cueing
Use to display the F rst
frame and press to display G
the last frame.
Advancing
and rewinding
one frame at a
time *1
Turn the wheel controller to
advance or rewind by one
frame at a time. Keep turning
the wheel controller for
continuous advance or rewind.
Resuming
playback
Press the button to resume A
playback.
To operate with HI
*1
Press I H or to advance or rewind one frame
at a time. Hold or pressed for continuous I H
advance or rewind.
To stop movie playback
Press the button.m
Erasing images during
playback (Single image erase)
1 Display the image you want to erase
and press (G D).
MENU
OK
ERASE
SEL. IMAGE
ALL ERASE
CANCELCANCEL
ERASE
SETBACK
2 Press FG to select [ERASE], and
press the button.A
[ALL ERASE] (p. 39) and [SEL. IMAGE]
(p. 39) can be used to erase multiple images
at the same time.

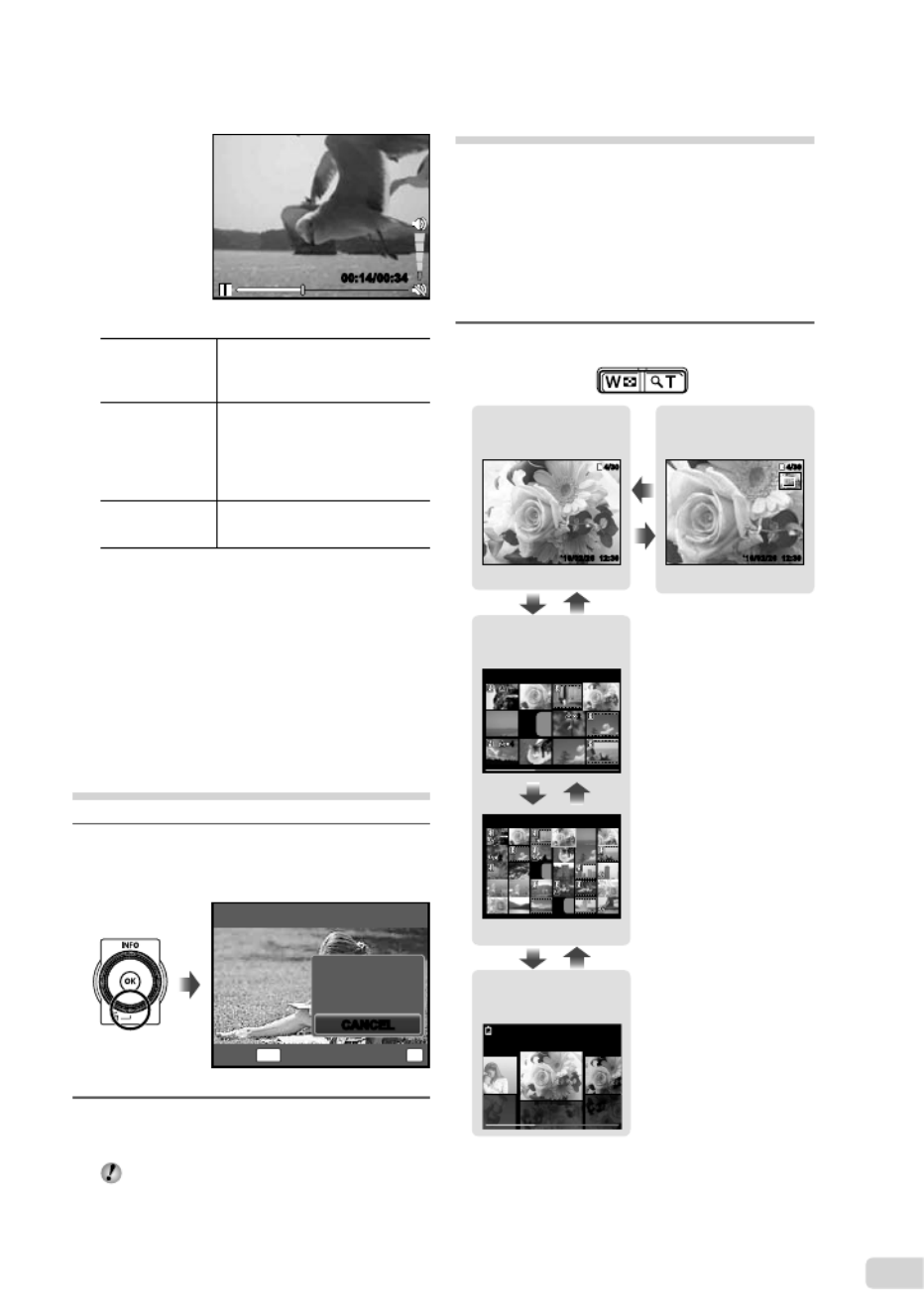

Index view, close-up view, and
event index
Index view enables quick selection of a desired
image. Close-up view (up to 10x magni cation)
allows checking of image details. In event
index *1, images are grouped by the shooting
dates and representative images for an event
can be displayed.
*1 Pictures with different dates can be grouped into the
same event using the PC software (ib).
1 Press the zoom buttons.
’10/02/26 12:30’10/02/26 12:30
4/304/30
’10/02/26
’10/02/26 12:30’10/02/26 12:30
2
44
’10/02/26
42
W T
W T
W
T
2
2 4
W T
4/304/30
’10/02/26
Index view
Single-image view Close-up view
Event index
20
EN
To select an image in index view
Use to select an image, and press FGHI
the button to display the selected image A
in single-image view.
To scroll an image in close-up view
Use to move the viewing area.FGHI
To select an image in event index
Use to select the representative image HI
and press the button. The images in the A
selected event are played back.

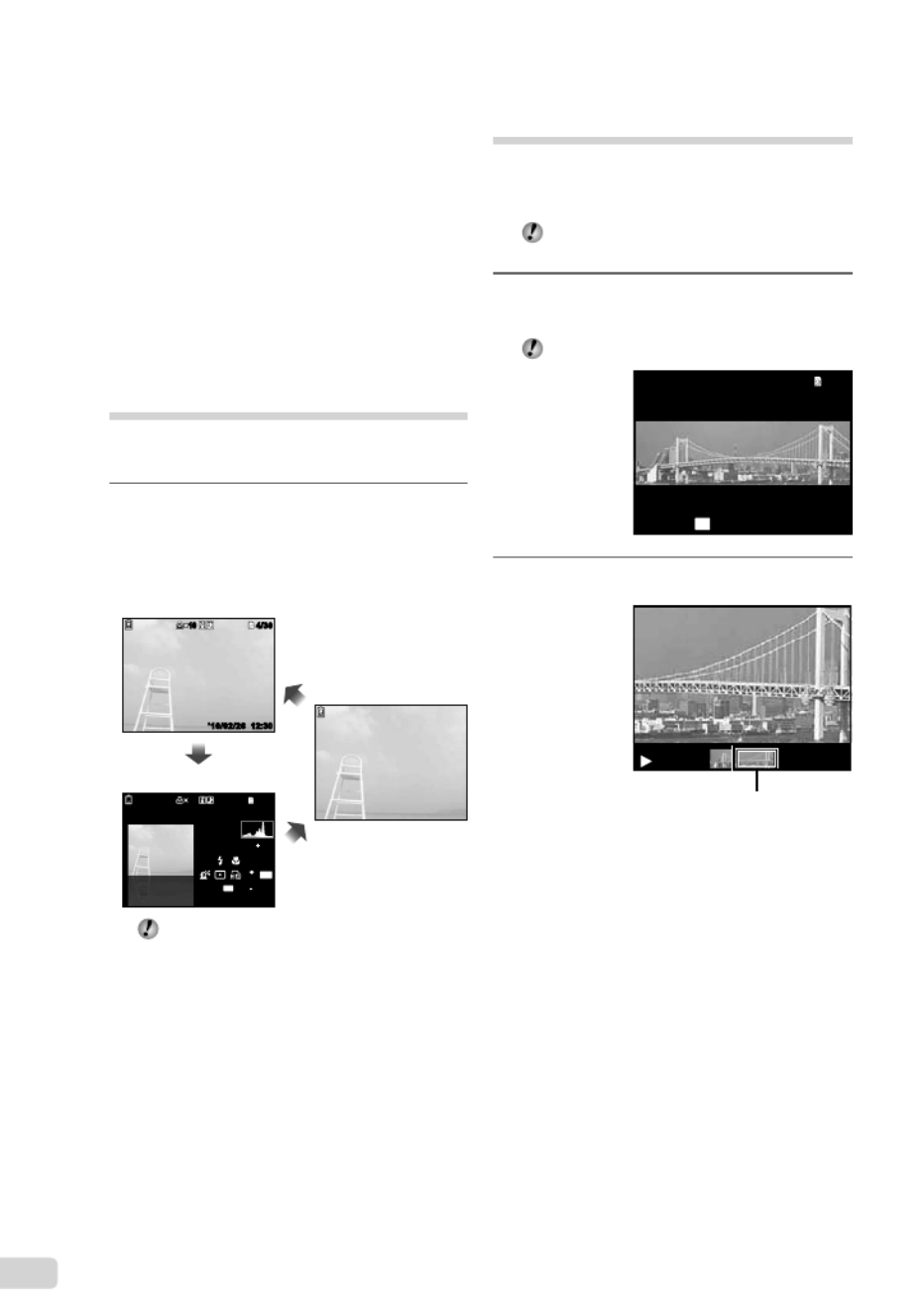

Changing the image
information display
Shooting information settings displayed on the
screen can be changed.
1 Press F (INFO).
The displayed image information changes in
the order shown below each time the button is
pressed.
1010
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
1010
4/304/30
1/1000 F3.0 2.0
AUTO
WB
AUTO
ISO
P
FILE
100 0004
’10/02/26 12:30
N
ORM
14
M
Normal
Detailed
No information
“Reading a histogram” (p. 17)
●
Playing back panorama
images
Panorama images that were combined together
using [AUTO] or [MANUAL] can be scrolled for
viewing.
“Creating panoramic images ( mode)” p
(p. 24)
1 Select a panorama image during
playback.
“Viewing images” (p. 18)
’10/02/26 12:30’10/02/26 12:30
4/304/30
OK
REPLAY
2 Press the A button.
Current viewing area
To control panorama image playback
Zoom in/Zoom out: Press the button to A
pause playback. Then press the zoom button
to enlarge/shrink the image.
Playback direction: Press to FGHI
pause playback and scroll the image in the
direction of the pressed button.
Pause: Press the button.A
Restart scrolling: Press the button.A
Stop playback: Press the button.m
21
EN

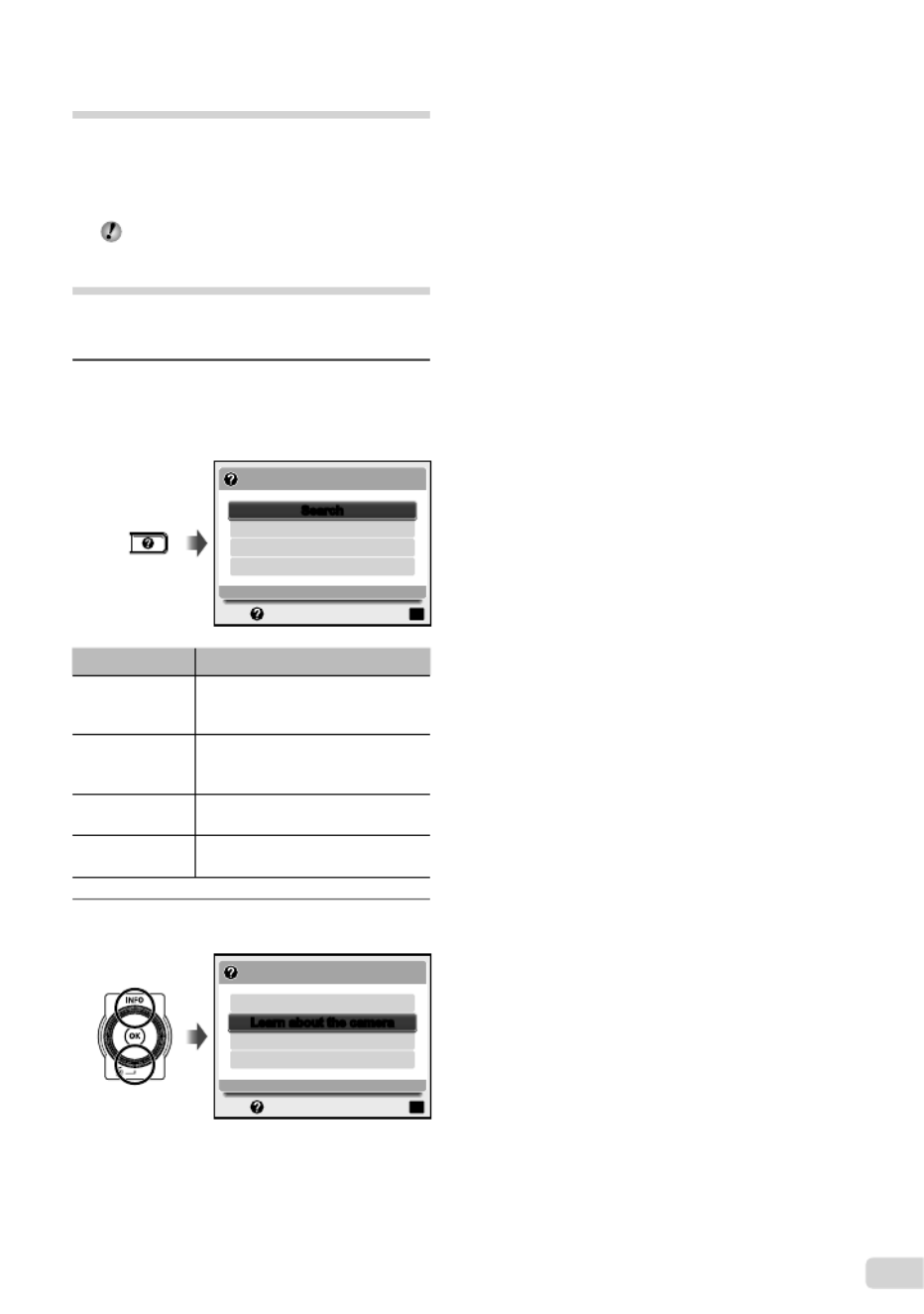

Using the menu guide
If the button is pressed while settings are E
being adjusted in the playback function or
[SETUP] menus, a description of the selected
option is displayed.
“Using the Menu” (p. 4)
Using the camera guide
Use the camera guide to look up camera
operations.
1 Press the E button in the standby
mode screen or the playback
screen.
IN-CAMERA MANUAL
Learn about the camera
OK
History
Message
SET
EXIT
SearchSearch
Submenu 2 Application
Search
Functions or operating methods
can be searched from a term or
shooting objective.
Learn about the
camera
Information is shown about
recommended functions and basic
operating methods for the camera.
History Searches can be performed from
the search history.
Message Messages from the camera can
be viewed.
2 Use FG to select the desired item.
OK
Search
IN-CAMERA MANUAL
History
Message
SETEXIT
Learn about the cameraLearn about the camera
Follow the on-screen instructions to search the
desired contents.
●
22
EN

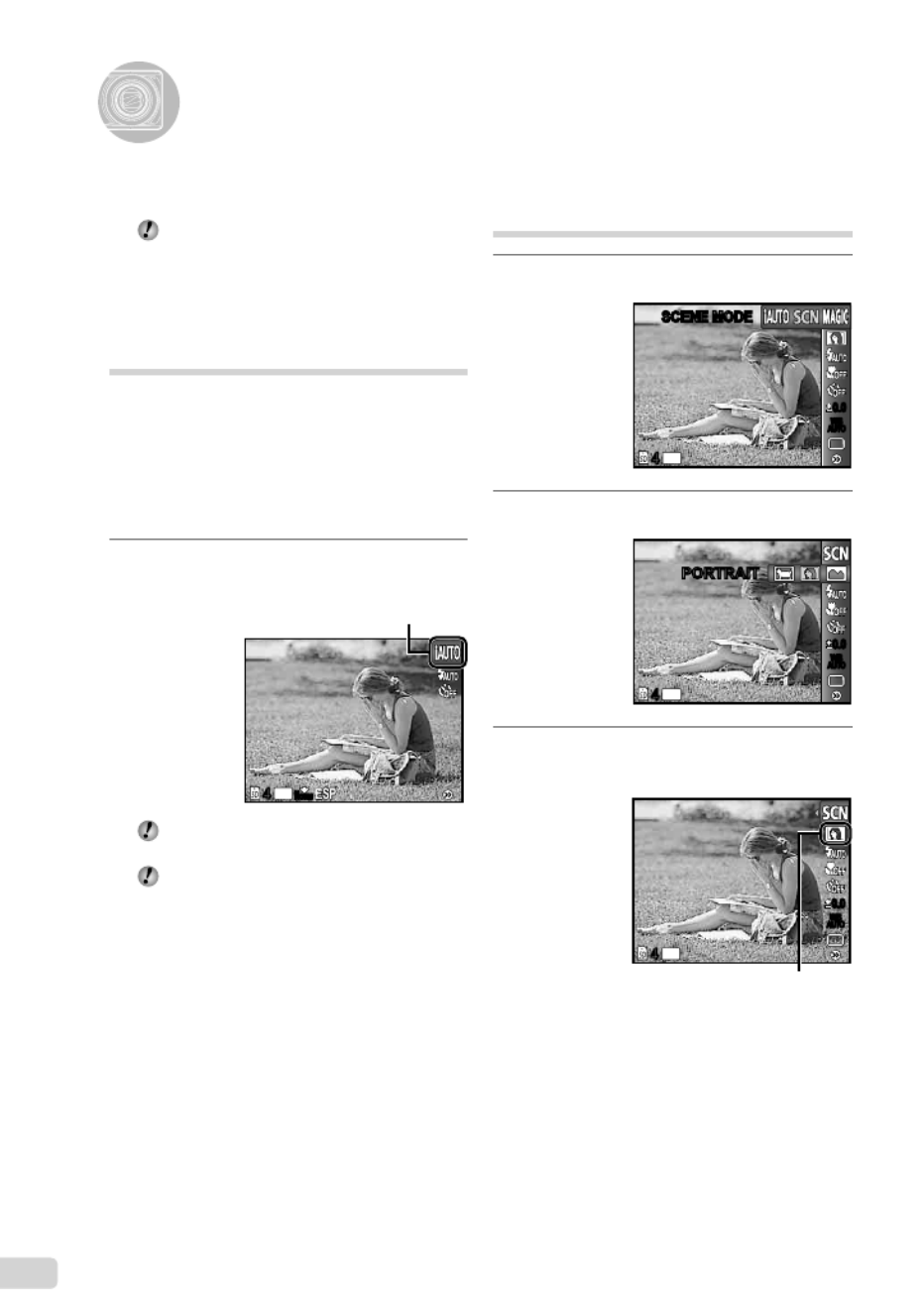

Using Shooting Modes
Using the best mode for the
shooting scene ( mode)s
1 Set the shooting mode to .s
14
M
44
SCENE MODESCENE MODE
0.00.0
AUTO
WB
AUTO
WB
2 Press G to go to the submenu.
14
M
44
0.00.0
AUTO
WB
AUTO
WB
PORTRAITPORTRAIT
3 Use HI to select the mode and
then press the button to set.A
14
M
44
0.00.0
AUTO
WB
AUTO
WB
Icon indicating the scene mode
that is set
To change the shooting mode
The shooting mode ( , , , , P M s P
p, , ) can be changed with using Q n
the function menu.
“Using the Menu” (p. 4)
Shooting with automatic
settings ( mode)M
The camera will automatically select the optimal
shooting mode for the scene. This is a fully
automatic mode that allows you to take a picture
suited to the scene by simply pressing the
shutter button. In mode, settings in the M
shooting menu can be selected, but the changed
setting is not re ected in the actual shot.
1 Set the shooting mode to .M
44
14
M
N
ORM
The icon changes depending on the scene
that the camera automatically selects.
In some cases, the camera may not select
the desired shooting mode.
When the camera cannot identify the
optimal mode, mode will be selected.P
23
EN

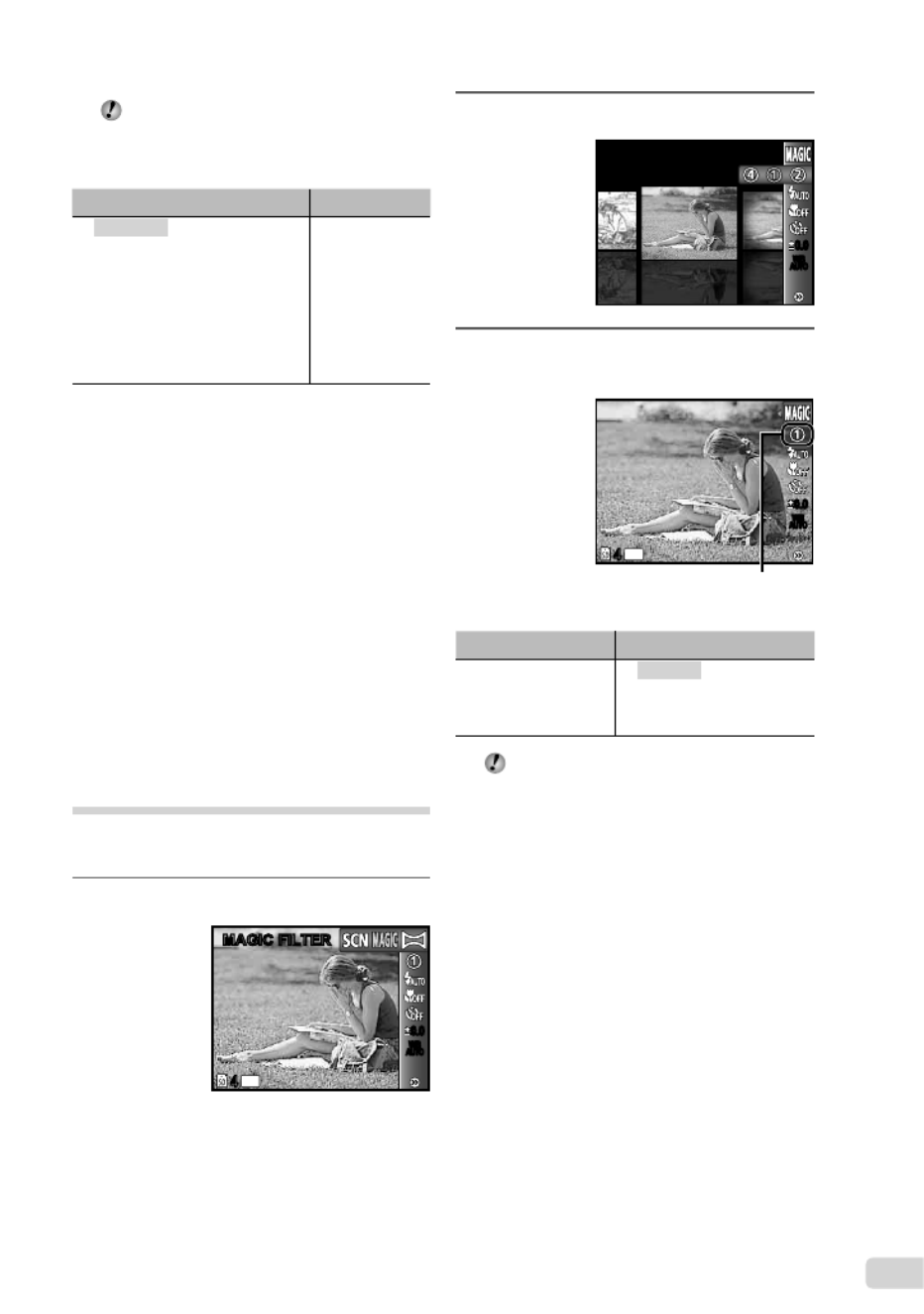

In s modes, the optimum shooting
settings are pre-programmed for speci c
shooting scenes. For this reason, settings
may not be changed in some modes.
Option Application
B F PORTRAIT/ LANDSCAPE/
G NIGHT SCENE *1/
M NIGHT+PORTRAIT/
C N SPORT/ INDOOR/
W CANDLE/
R SELF PORTRAIT/
S SUNSET *1/X FIREWORKS *1/
V CUISINE/ DOCUMENTS/d
q BEACH & SNOW/ PET
The camera
takes a picture
using the
optimum settings
for the scene
conditions.
*1 When the subject is dark, noise reduction is
automatically activated. This approximately doubles
the shooting time during which no other pictures can
be taken.
To take pictures of a moving subject
like a pet ([ PET] mode)
1 Use HI to select [ PET], and press
the button to set.A
2 Hold the camera to align the AF target
mark on the subject and press the A
button.
When the camera recognizes the subject,
the AF target mark automatically tracks the
subject movement to focus on it continuously.
“To focus on a moving subject continuously
(AF Tracking)” (p. 32).
Shooting with special effects
( mode)P
To add expression to your photo, select the
desired special effect.
1 Set the shooting mode to .P
MAGIC FILTERMAGIC FILTER
0.00.0
AUTO
WB
AUTO
WB
14
M
44
●
2 Press G to go to the submenu.
POP ART
0.00.0
AUTO
WB
AUTO
WB
3 Use HI to select the desired effect
and then press the button to set.A
0.00.0
AUTO
WB
AUTO
WB
14
M
44
Icon indicating mode that P
is set
Shooting mode Option
MAGIC FILTER
[ POP ART
\ PIN HOLE
] FISH EYE
@ DRAWING
In P mode, the optimum shooting
settings are pre-programmed for each
scene effect. For this reason, some settings
cannot be changed in some modes.
24
EN

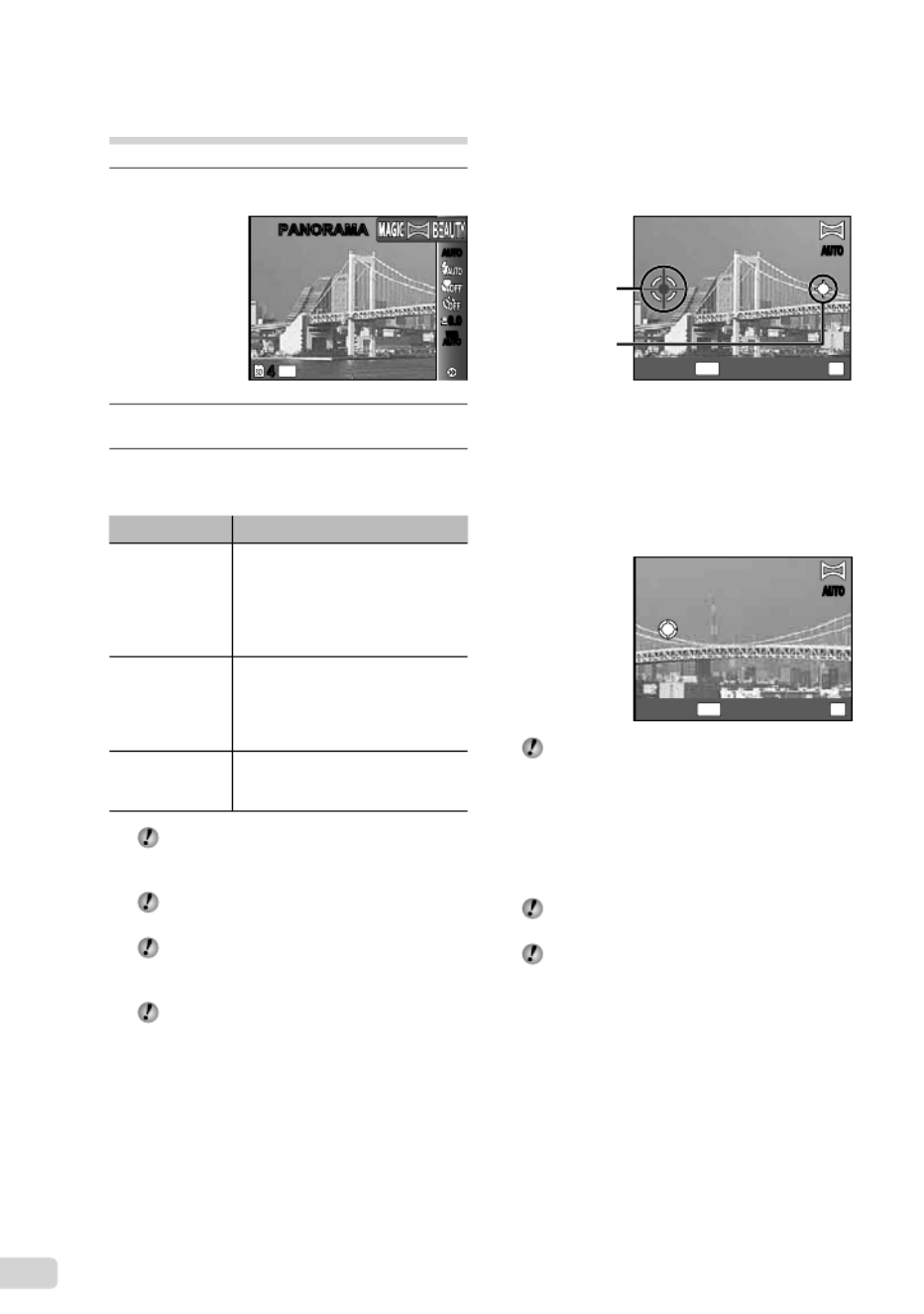

Creating panoramic images
( mode)p
1 Set the shooting mode to .p
PANORAMAPANORAMA
0.00.0
AUTO
WB
AUTO
WB
AUTOAUTO
14
M
44
2 Press G to go to the submenu.
3 Use HI to select the desired mode
and then press the button to set.A
Submenu 1 Application
AUTO
Three frames are taken and
combined by the camera. The
user only composes the shots
so that the target marks and
pointers overlap, and the camera
automatically releases the shutter.
MANUAL
Three frames are taken and
combined by the camera. The
user composes the shots using
the guide frame and manually
releases the shutter.
PC
The frames that were taken are
combined into a panorama image
using the PC software (ib).
For details on installing the PC software
(ib), see “Battery charge and camera setup”
(p. 10).
When set to [AUTO] or [MANUAL], [IMAGE
SIZE] (p. 31) is xed to [ ].2
The focus, exposure (p. 28), zoom position
(p. 27), and white balance (p. 28) are locked
at the rst frame.
The ash (p. 27) is xed to $ (FLASH OFF)
mode.
Taking pictures with [AUTO]
1 Press the shutter button to take the rst
frame.
2 Move the camera slightly in the direction
of the second frame.
AUTOAUTO
MENU
OK
SAVECANCEL
Target mark
Pointer
Screen when combining images
from left to right
3 Move the camera slowly while keeping it
straight, and stop the camera where the
pointer and target mark overlap.
The camera releases the shutter
automatically.
AUTOAUTO
MENU
OK
SAVECANCEL
To combine only two pictures, press the
A button before taking a third frame.
4 3 Repeat Step to take a third frame.
After the third frame is taken, the camera
automatically processes the frames and the
combined panorama image is displayed.
To exit the panorama function without
saving an image, press the button.m
If the shutter does not automatically release,
try [MANUAL] or [PC].
●
●
25
EN
Taking pictures with [MANUAL]
1 Use HI to specify at which edge the
next picture is to be connected.
MANUALMANUAL
1 21 2
MENU
BACK
Direction for
combining the
next frame
2 Press the shutter button to take the rst
frame.
1st frame
MANUALMANUAL
1 21 2
MANUALMANUAL
1 21 2
MENU
BACK
MENU
OK
SAVECANCEL
Joint areas
3 Compose the next shot so that joint area
1 overlaps joint area 2.
Composition of the 2nd frame
MANUALMANUAL
1 21 2
MENU
OK
SAVECANCEL
4 Press the shutter button to take the next
shot.
To combine only two pictures, press the
A button before taking the third frame.
5 3 4 Repeat steps and to take a third
frame.
After the third frame is taken, the camera
automatically processes the frames and the
combined panorama image is displayed.
To exit the panorama function without
saving an image, press the button.m
●
Taking pictures with [PC]
1 Use FGHI to select the direction that
the frames are combined.
2 Press the shutter button to take the rst
frame, and then compose the second
shot.
PCPC
1 21 2
MENU
EXIT
PCPC
1 21 2
MENU
BACK
Before rst
shot
After rst
shot
After the rst shot, the area shown in white
reappears on the side of the display opposite
the pan direction. Frame subsequent
photographs so that they overlap with the
image in the monitor.
3 2 Repeat Step until the number of
desired frames is taken, and then press
the button or button when A m
nished.
Panorama shooting is possible for up to
10 frames.
Refer to the PC software (ib) help guide for
details on how to make panorama images.
●
26
EN
Smoothing out skin tone and
texture ( mode)Q
The camera identi es a person’s face and gives
the skin a smooth, translucent look for taking
the picture.
1 Set the shooting mode to .Q
14
M
44
0.00.0
AUTO
WB
AUTO
WB
BEAUTYBEAUTY
PP
2 Point the camera toward the
subject. Check the frame appearing
around the face detected by the
camera, and then press the shutter
button to take the picture.
The unedited image and edited image are both
saved.
If the image cannot be retouched, only the
unedited image is saved.
The frame may not appear or may take
some time to appear for some subjects. In
addition, this function may have no visible
effect on some subjects.
The [IMAGE SIZE] of the retouched image
is limited to [ ] or lower.n
●
●
27
EN
Using Shooting Functions
Shooting closeups
(Macro shooting)
This function enables the camera to focus and
shoot subjects at close distances.
1 Select the macro option in the
shooting function menu.
14
M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
OFFOFF
2 Use HI to select the setting
option, and press the button to A
set.
Option Description
OFF Macro mode is deactivated.
MACRO
This enables shooting as close as
10 cm/3.9 in. *1 (60 cm/23.6 in. *2) to
the subject.
SUPER MACRO *3
This enables shooting as close
as 2 cm/0.8 in. to the subject.
Subjects at 70 cm/27.6 in. or
farther cannot be brought into
focus.
*1 When the zoom is at the widest (W) position.
*2 When the zoom is at the most telephoto (T) position.
*3 The zoom is automatically xed.
The ash (p. 27) and zoom (p. 17) cannot
be set when [ SUPER MACRO] is a
selected.
“Using the Menu” (p. 4)
Using the ash
The ash functions can be selected to best
match the shooting conditions.
1 Select the ash option in the
shooting function menu.
14
M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
FLASH AUTOFLASH AUTO
2 Use HI to select the setting
option, and press the button to A
set.
Option Description
FLASH AUTO The ash res automatically in
low-light or backlight conditions.
REDEYE
Pre- ashes are emitted to reduce
the occurrence of red eye in your
photos.
FILL IN The ash res regardless of the
available light.
FLASH OFF The ash does not re.
28
EN
Using the self-timer
After the shutter button is pressed all the way
down, the picture is taken after a short delay.
1 Select the self-timer option in the
shooting function menu.
14
M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
OFF
1212
22
OFF
2 Use HI to select the setting
option, and press the button to A
set.
Option Description
Y OFF The self-timer is deactivated.
Y 12 SEC
The self-timer lamp turns on for
approx. 10 seconds, then blinks
for approx. 2 seconds, and then
the picture is taken.
Y 2 SEC
The self-timer lamp blinks for
approx. 2 seconds, then the
picture is taken.
Self-timer shooting is automatically canceled
after one shot.
To cancel the self-timer after it starts
Press the button.m
Adjusting the brightness
(Exposure compensation)
The standard brightness (appropriate exposure)
set by the camera based on the shooting mode
(except for ) can be adjusted brighter or M
darker to obtain a desired shot.
1 Select the exposure compensation
option in the shooting function
menu.
0.0
0.30.30.00.00.30.3
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PP
2 Use HI to select the desired
brightness, and press the A button.
Adjusting to a natural color
scheme (White balance)
For more natural coloring, choose a white
balance option suited to the scene.
1 Select the white balance option in
the shooting function menu.
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PP
WB AUTO
29
EN
Use HI to select the setting
option, and press the button to A
set.
Option Description
WB AUTO
The camera automatically adjusts
the white balance according to the
shooting scene.
5For shooting outdoors under a
clear sky.
3For shooting outdoors under a
cloudy sky.
1For shooting under tungsten
lighting.
w
For shooting under daylight
uorescent lighting (household
lighting, etc.)
x
For shooting under neutral
uorescent lighting (desk lamps,
etc.)
yFor shooting under white
uorescent lighting (of ces, etc.)
Selecting the ISO sensitivity
Abbreviation for the International
Organization for Standardization. ISO
standards specify the sensitivity for digital
cameras and lm, thus codes such as “ISO
100” are used to represent sensitivity.
In the ISO setting, although smaller values
result in less sensitivity, sharp images can
be taken under fully lit conditions. Larger
values result in higher sensitivity, and
images can be taken at fast shutter speeds
even under low light conditions. However,
high sensitivity introduces noise into the
resulting picture, which may give it a grainy
appearance.
Select the ISO setting option in the
shooting function menu.
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
1600
ISOISO
1600
1/4001/400 F3.0F3.0
HIGH
ISO
HIGH
ISO
ISO AUTOISO AUTO
Use HI to select the setting
option, and press the button to A
set.
Option Description
ISO AUTO
The camera automatically adjusts
the sensitivity according to the
shooting scene.
HIGH ISO AUTO
The camera uses a higher
sensitivity compared to
[ISO AUTO] to minimize blur
caused by a moving subject or by
camera shake.
Value The ISO sensitivity is xed to the
selected value.
30
EN
Sequential shooting (Drive)
Pictures are taken sequentially while the shutter
button is held down.
Select the drive option in the
shooting function menu.
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PP
SEQUENTIALSEQUENTIAL
Option Description
oOne frame is shot each time the
shutter button is pressed.
j*1
Take sequential shots using the
focus, brightness (exposure) and
white balance set in the fi rst frame.
cThe camera takes sequential shots
at a faster speed than in [ ].j
dThe camera takes sequential shots
at approximately 14 frames/sec.
*1 The shooting speed varies depending on the
settings for [IMAGE SIZE/COMPRESSION] (p. 31).
When set to [ ], the jfl ash (p. 27) cannot
be set to [REDEYE]. In addition, when
set to [ ] or [ ], the c d fl ash is fi xed to
[FLASH OFF].
When set to [ ] or [ ], [IMAGE SIZE] c d
is limited to [ ] or lower, and the ISO 3
sensitivity is fi xed to [ISO AUTO].
31
EN
For information on using the menus, see “Using the Menu” (p. 4).
Menus for Shooting Functions
The default settings of the function are highlighted in .
Selecting the image quality for still images [IMAGE SIZE/COMPRESSION]
I (Shooting menu 1) IMAGE SIZE/COMPRESSION
Available shooting modes: PMsPpQ
Submenu 1 Submenu 2 Application
IMAGE SIZE
14M (4288×3216) Suitable for printing pictures over A3 (11×17 in.).
8M (3264×2448) Suitable for printing pictures up to A3 (11×17 in.).
5M (2560×1920) Suitable for printing pictures at A4 (8.5×11 in.).
3M (2048×1536) Suitable for printing pictures up to A4 size (8.5×11 in.).
2M (1600×1200) Suitable for printing pictures at A5 (5×7 in.).
1M (1280×960) Suitable for printing pictures at postcard size.
VGA (640×480) Suitable for viewing pictures on a TV or using pictures on emails and
web sites.
16:9 (1920×1080)FSuitable for playing pictures on a widescreen TV and for printing on A5
or 5"×7".
COMPRESSION FINE Shooting at high quality.
NORMAL Shooting at normal quality.
“Number of storable pictures (still images)/Continuous recording length (movies) in the internal
memory and SD/SDHC memory cards” (p. 60)
Selecting the image quality for movies [IMAGE SIZE/FRAME RATE]
A (Movie menu) IMAGE SIZE/FRAME RATE
Available shooting mode: A
Submenu 1 Submenu 2 Application
IMAGE SIZE VGA (640×480)/
QVGA (320×240) Select the image quality based on the image size and frame rate.
Higher frame rates provide smoother movie images.
FRAME RATE N 30fps*1/
O 15fps*1
*1 frames per second
“Number of storable pictures (still images)/Continuous recording length (movies) in the internal
memory and SD/SDHC memory cards” (p. 60)
32
EN
Brightening the subject against
backlight [SHADOW ADJUST]
I (Shooting menu 1) SHADOW ADJUST
Available shooting modes:
P MsPp
Q
Submenu 2 Application
AUTO
The shadow adjustment effect is
applied when shooting against
backlight.
OFF The effect is not applied.
ON
Shoot with automatic adjustment
to brighten an area that has
become darker.
When set to [ON], [ESP/ ] (p. 32) is n
automatically fi xed to [ESP].
Selecting the focusing area [AF MODE]
I (Shooting menu 1) AF MODE
Available shooting modes:
P MsPp
Q
Submenu 2 Application
FACE/iESP*1
The camera focuses automatically.
(If a face is detected, it is shown
by a white frame*1; when the
shutter button is pressed halfway
and the camera focuses, the
frame turns to green*2. If no face is
detected, the camera chooses a
subject in the frame and focuses
automatically.)
SPOT
The camera focuses on the
subject located within the AF
target mark.
AF TRACKING
The camera tracks the subject
movement automatically to focus
on it continuously.
*1 For some subjects, the frame may not appear or
may take some time to appear.
*2 If the frame blinks in red, the camera cannot focus.
Try refocusing on the subject.
To focus on a moving subject
continuously (AF Tracking)
1 Hold the camera to align the AF target
mark on the subject and press the
A button.
2 When the camera recognizes the subject,
the AF target mark automatically tracks
the subject movement to focus on it
continuously.
3 To cancel the tracking, press the
A button.
Depending on the subjects or the shooting
conditions, the camera may be unable to
lock the focus or fail to track the subject
movement.
When the camera fails to track the subject
movement, the AF target mark changes to
red.
Selecting the method for measuring
the brightness [ESP/ ]n
I (Shooting menu 1) ESP/n
Available shooting modes:
P MsPp
Q
Submenu 2 Application
ESP
Shoots to obtain a balanced
brightness over the entire screen
(Meters the brightness at the
center and surrounding areas of
the screen separately).
5 (spot)
Shoots the subject at the center
during backlighting (Meters the
brightness at the center of the
screen).
When set to [ESP], the center may
appear dark when shooting against strong
backlighting.
33
EN
For information on using the menus, see “Using the Menu” (p. 4).
Shooting at higher magnifi cations than
optical zoom without reducing the
image quality [FINE ZOOM]
I (Shooting menu 1) FINE ZOOM
Available shooting modes:
P MsPp
Q
Submenu 2 Application
OFF Optical zoom is used to zoom in
for shooting.
ON
Optical zoom and image cropping
are combined to zoom in for
shooting (up to 47×).
This function will not reduce the image
quality since it dose not convert the data
with fewer pixels into the data with larger
pixels.
When set to [ON], [IMAGE SIZE] is limited
to [ ] or lower.4
The setting is not available when
[DIGITAL ZOOM] is set to [ON].
[FINE ZOOM] is not available when
[ SUPER MACRO] (p. 27) is selected.a
Shooting at higher magnifi cations than
optical zoom [DIGITAL ZOOM]
I (Shooting menu 1) DIGITAL ZOOM
Available shooting modes:
P MsPp
Q
Submenu 2 Application
OFF Only optical zoom is used to zoom
in for shooting.
ON
Optical zoom and digital zoom are
combined to zoom in for shooting
(Approx. 35× (max.)).
The setting is not available when [FINE
ZOOM] is set to [ON].
[DIGITAL ZOOM] is not available when
[ SUPER MACRO] (p. 27) is selected.a
Recording sound when shooting still
images [ ]R
J (Shooting menu 2) R
Available shooting modes:
P MsPp
Q
Submenu 2 Application
OFF No sound is recorded.
ON
The camera automatically starts
recording sound for approx.
4 seconds after a picture is taken.
This is useful for recording notes
or comments about the picture.
When recording, aim the microphone (p. 6)
at the source of the sound you want to
record.
Recording sound when shooting
movies [ ]R
A (Movie menu) R
Available shooting mode: A
Submenu 2 Application
OFF No sound is recorded.
ON Sound is recorded.
When set to [ON], only the digital zoom can
be used during movie recording. To record
the movie with the optical zoom, set [ ] R
(movies) to [OFF].
34
EN

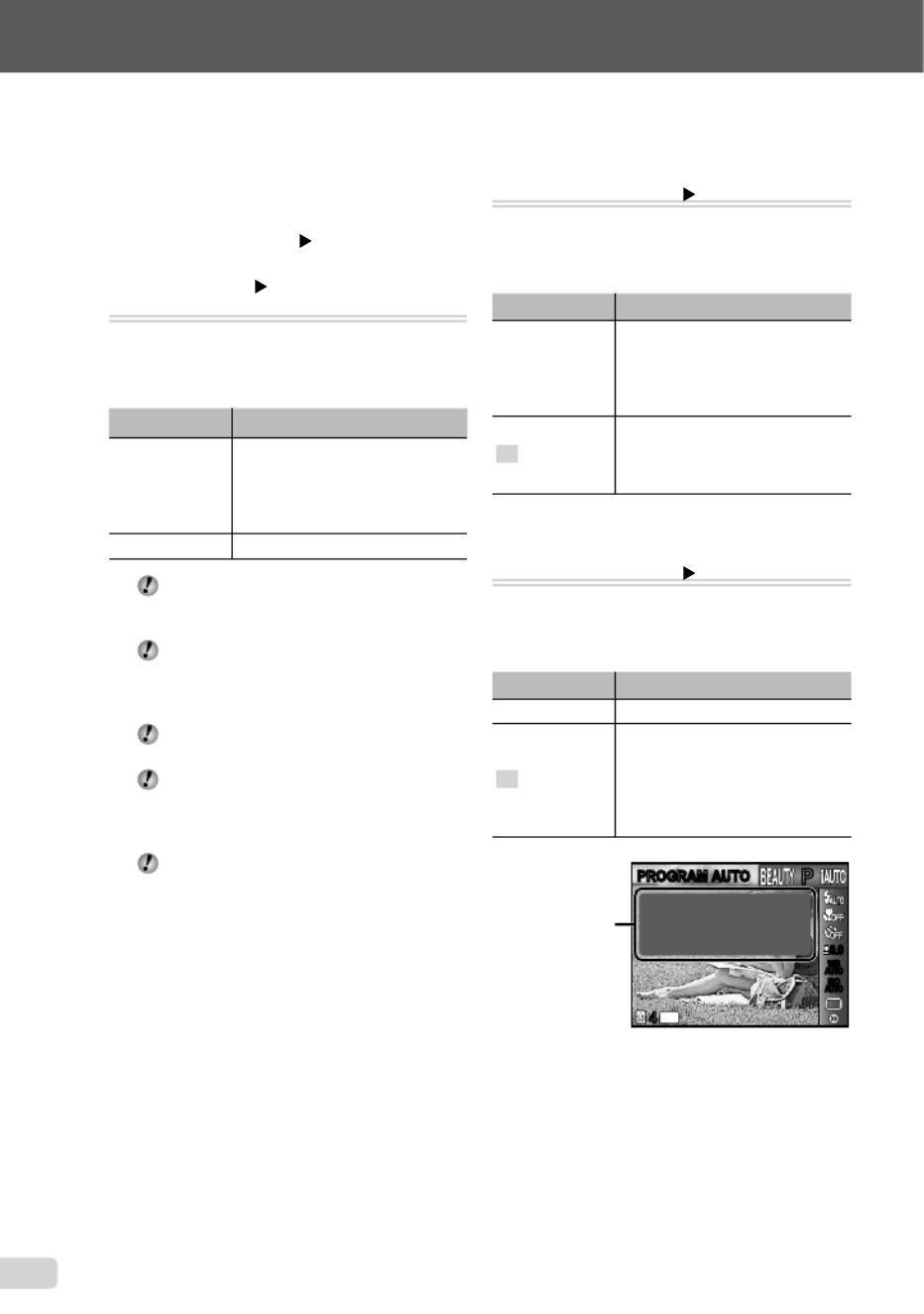

Reducing the blur caused by the
camera shake when shooting
[IMAGE STABILIZER] (still images)/
[IS MOVIE MODE] (movies)
I (Shooting menu 1)
IMAGE STABILIZER (still images)/
A (Movie menu)
IS MOVIE MODE (movies)
Available shooting modes:
P MsPp
A Q
Submenu 2 Application
OFF
The image stabilizer is
deactivated. This is recommended
for shooting when the camera is
fi xed in place on a tripod or other
stable surface.
ON The image stabilizer is activated.
The camera’s default settings are [IMAGE
STABILIZER] (still images) to [ON] and [IS
MOVIE MODE] (movies) to [OFF].
There may be a noise coming from inside
the camera when the shutter button is
pressed with [IMAGE STABILIZER] (still
images) set to [ON].
Images may not be stabilized if camera
shake is too severe.
When the shutter speed is extremely slow,
such as when taking pictures at night,
[IMAGE STABILIZER] (still images) may not
be as effective.
When shooting while the [IS MOVIE MODE]
(movies) is set to [ON], the image will be
enlarged somewhat before saving.
Viewing the image immediately after
shooting [REC VIEW]
J (Shooting menu 2) REC VIEW
Available shooting modes:
P MsPp
Q
Submenu 2 Application
OFF
The image being recorded is not
displayed. This allows the user
to prepare for the next shot while
following the subject in the monitor
after shooting.
ON
The image being recorded is
displayed. This allows the user to
make a brief check of the image
that was just taken.
Displaying icon guides [ICON GUIDE]
J (Shooting menu 2) ICON GUIDE
Available shooting modes:
P MsPp
A Q
Submenu 2 Application
OFF No icon guide is displayed.
ON
The explanation of the selected
icon will be displayed when
a shooting mode or shooting
function menu icon is selected
(position the cursor on the icon for
a while to display the explanation).
Icon guide
14
M
44
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PP
Functions can be changed
manually.
PROGRAM AUTOPROGRAM AUTO
35
EN
For information on using the menus, see “Using the Menu” (p. 4).

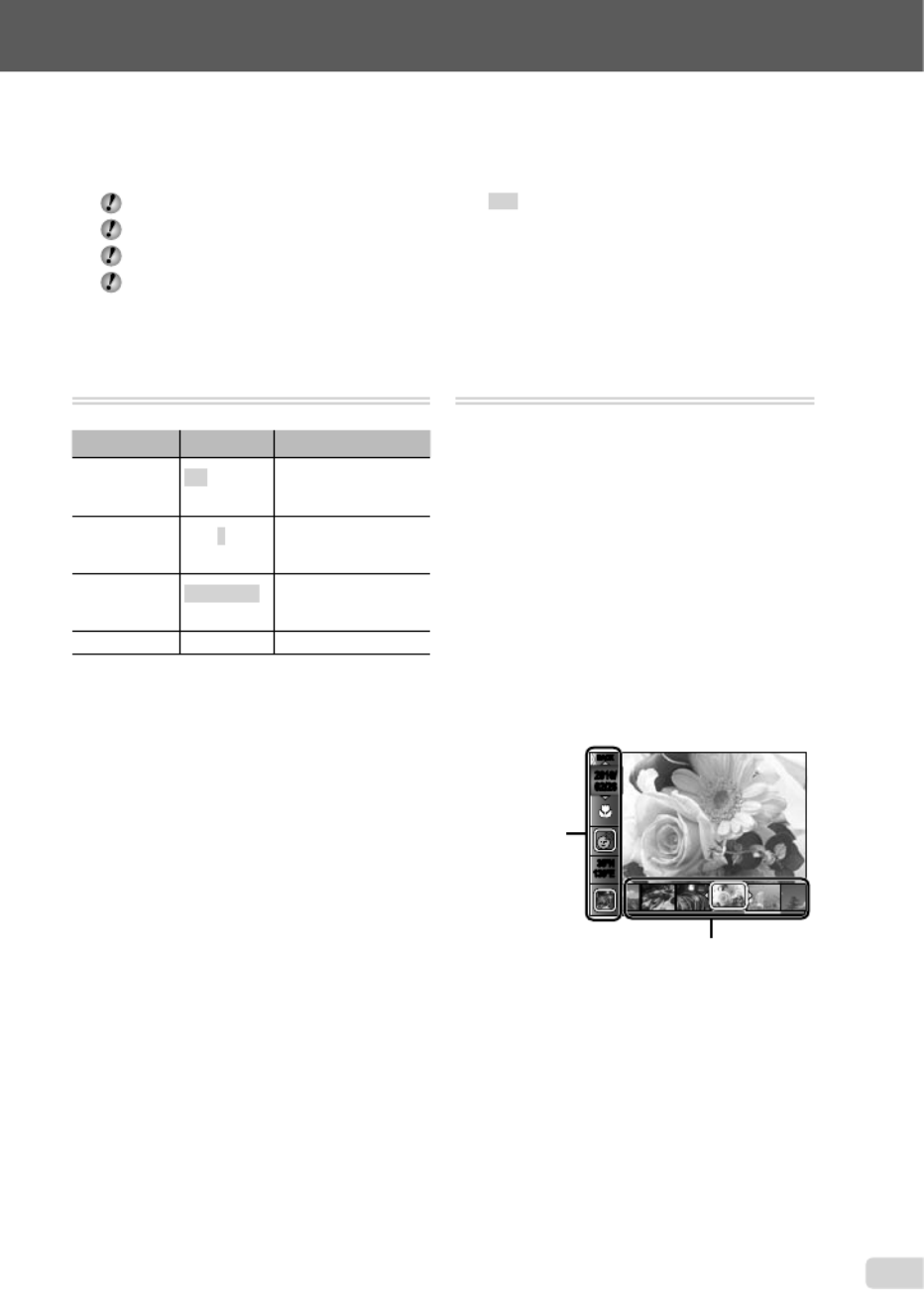

Menus for Playback, Editing, and
Printing Functions
The default settings of the function are highlighted in .
Data must have been created with the PC software (ib) before using some function.
Refer to the PC software (ib) help guide for details on how to use the PC software (ib).
For details on installing the PC software (ib), see “Battery charge and camera setup” (p. 10).
Playing back pictures automatically
[SLIDESHOW]
SLIDESHOW
Submenu 1 Submenu 2 Application
SLIDE
ALL/EVENT/
COLLECTION
Selects the content
to be included in the
slideshow.
BGM OFF/1/2/3/4/
5
Selects the
background music
options.
TYPE
STANDARD/
FADE/ZOOM
Selects the type of
transition effect used
between slides.
START Starts the slideshow.―
Single-frame advance/rewind:
During a slideshow, press to skip ahead I
one frame or press to go back one frame.H
Searching for images and playing back
the related images [PHOTO SURFING]
PHOTO SURFING
In [PHOTO SURFING], images can be
searched and related images can be played
back by selecting the related items.
To start [PHOTO SURFING]
Press the button to start A
[PHOTO SURFING].
When a related item of the image displayed
is selected with , images related to the FG
item are displayed in the lower part of the
monitor. Use to display an image.HI
To select the related items undisplayed,
press the button when selecting an item.A
To stop [PHOTO SURFING], press the
m button, or select [BACK] and press
the button.A
2010/
02/26
2010/
02/26
35ºN
139ºE
35ºN
139ºE
BACKBACK
Related items
Images corresponding the
related items
36
EN

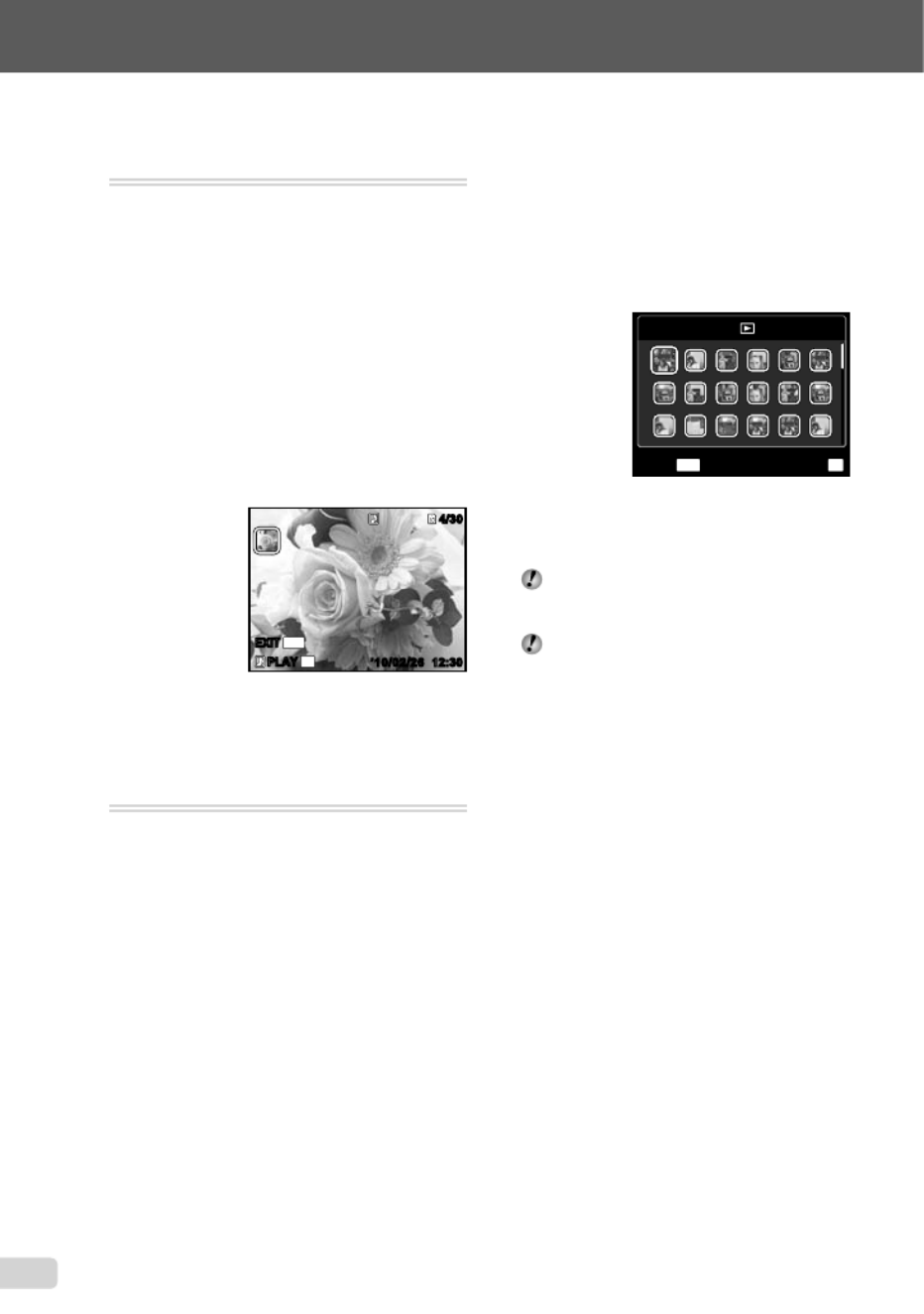

Viewing images by event [EVENT ]q
EVENT q
In [EVENT ], images in an event are q
played back. (Images with the same
shooting date are grouped into the same
event.)
To start [EVENT ]q
Press the button to start [EVENT ]. Aq
(The event, including the image for which
single-image view was being performed
when the playback function menu was
selected, is played back.)
Use to advance or rewind by one HI
frame.
To stop [EVENT ], press the q
m button.
’10/02/26 12:30’10/02/26 12:30
4/304/30
MENU
OK
EXITEXIT
PLAYPLAY
Playing back images by Collection
created with the PC software (ib)
[COLLECTION ]q
COLLECTION q
In [COLLECTION ], the collection is q
played back that has been created with the
PC software (ib) and imported back from a
computer.
To start [COLLECTION ]q
Press the button, and then use AFGHI
to select the desired collection. Press the
A button again to start playback of the
selected collection. Use to advance or HI
rewind by one frame.
To stop [COLLECTION ], press the q
m button.
COLLECTION
MENU
OK
SETBACK
Using a PC software (ib) and importing
data back to the camera
The following functions can be performed
when data created with the PC software (ib)
is imported back to the camera.
Refer to the PC software (ib) help guide for
details on how to use the PC software (ib).
[PHOTO SURFING]
Information of persons or shooting locations
and new Collections can be added in the
related items.
[EVENT ]q
Images can be played back by event created
with the PC software (ib).
Event index (p. 19)
The representative images for an event
created with the PC software (ib) can be
displayed.
37
EN
For information on using the menus, see “Using the Menu” (p. 4).

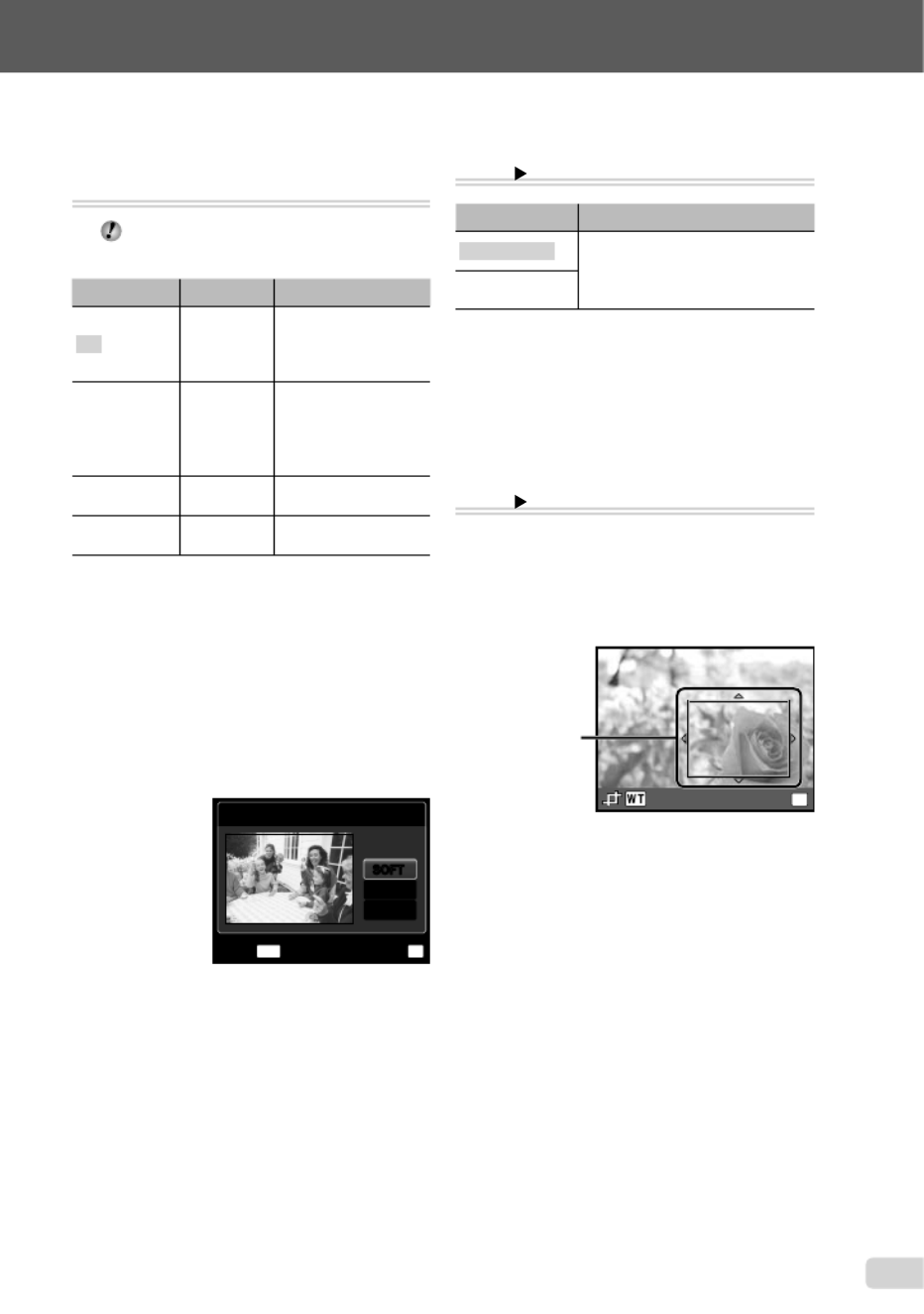

Retouching the skin and eyes
[BEAUTY FIX]
BEAUTY FIX
Depending on the picture, the editing may
not be effective.
Submenu 1 Submenu 2 Application
ALL ―
[CLEAR SKIN],
[SPARKLE EYE] and
[DRAMATIC EYE] are
applied together.
CLEAR SKIN SOFT/AVG/
HARD
Makes skin look
smooth and
translucent. Select the
correction effect from
3 levels.
SPARKLE EYE ―Enhances the contrast
of the eyes.
DRAMATIC
EYE ―Enlarges the subject’s
eyes.
1 Use to select a correction item, and FG
press the button.A
2 Use to select an image for HI
retouching, and press the button.A
The retouched image is saved as a separate
image.
When [CLEAR SKIN] is selected
Use to select the retouching level, and FG
press the button.A
CLEAR SKIN
MENU
OK
SETBACK
AVG
SOFTSOFT
HARD
●
Changing the image size [ ]Q
EDIT Q
Submenu 2 Application
C 640 × 480 This saves a high-resolution image
as a separate image with a smaller
size for use in e-mail attachments
and other applications.
E 320 × 240
1 Use HI to select an image.
2 Use FG to select an image size and
press the button.A
The resized image is saved as a separate
image.
Cropping image [ ]P
EDIT P
1 Use HI to select an image, and press
the button.A
2 Use the zoom buttons to select the size of
the cropping frame, and use to FGHI
move the frame.
Cropping frame
OK
SET
3 Press the A button after you have
selected the area to trim.
The edited image is saved as a separate
image.
●
●
38
EN

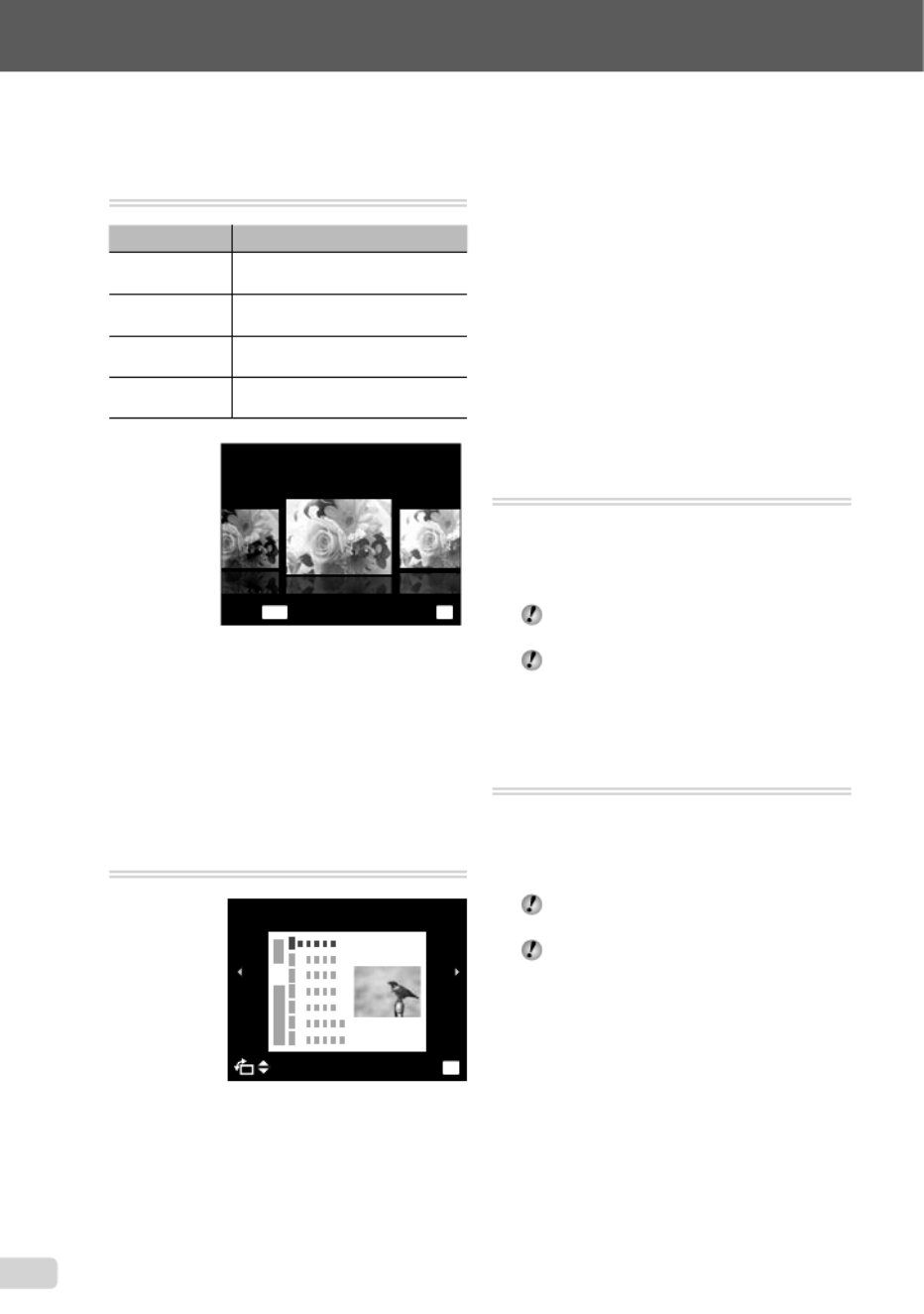

Changing the color tone of image
[COLOR EDIT]
EDIT COLOR EDITX
Submenu 2 Application
BLACK & WHITE This changes the image to black
and white.
SEPIA This changes the image to a
sepia tone.
HIGH
SATURATION
This increases the color saturation
of the image.
LOW
SATURATION
This slightly increases the color
saturation of the image.
COLOR EDIT
MENU
OK
SETEXIT
SEPIA
1 Use HI to select an image, and press
the button.A
2 Use HI to select the desired color, and
press the button.A
The image with the selected color is saved as
a separate image.
Adding a calendar to an image
[CALENDAR]
EDIT CALENDARX
CALENDAR
OK
SET
●
1 Use HI to select an image, and press
the button.A
2 Use HI to select a calendar. Use FG
to select the image orientation, and then
press the button.A
3 Use FG to select the Year of the
calendar, and press .I
4 Use FG to select the Month of the
calendar, and press the button.A
The edited image is saved as a separate
image.
Brightening areas that are dark
due to backlight or other reasons
[SHADOW ADJ]
EDIT SHADOW ADJX
1 Use HI to select an image, and press
the button.A
The edited image is saved as a separate
image.
Depending on the picture, the editing may
not be effective.
The retouching process may lower the
image resolution.
Retouching red eyes in fl ash shooting
[REDEYE FIX]
EDIT REDEYE FIXX
1 Use HI to select an image, and press
the button.A
The edited image is saved as a separate
image.
Depending on the picture, the editing may
not be effective.
The retouching process may lower the
image resolution.
●
●
●
39
EN
For information on using the menus, see “Using the Menu” (p. 4).
Erasing images [ERASE]
ERASE
Submenu 1 Application
ALL ERASE All images in the internal memory
or card will be erased.
SEL. IMAGE Images are individually selected
and erased.
ERASE/
ERASE EVENT*1 Deletes the image displayed.
CANCEL Cancels deletion of the image.
*1 If G is pressed when an event is played back, all
images in the event are erased.
When erasing pictures in the internal
memory, do not insert the card into the
camera. Or set [INTERNAL/SD] to [IN].
Before erasing pictures from a memory
card, insert the card into the camera
and select [AUTO] for [INTERNAL/SD].
“Selecting a storage device [INTERNAL/
SD]” (p. 41)
Protected images cannot be erased.
To individually select and erase
images [SEL. IMAGE]
1 Use FG to select [SEL. IMAGE], and
press the button.A
2 Use HI to select the image to be
erased, and press the button to add a A
R mark to the image.
Press the W zoom button to display an index
view. Images can be quickly selected using
the buttons. Press the T button to FGHI
return to the single frame display.
MENU
OK
SEL. IMAGE
ERASE/CANCEL
R mark
●
3 2 Repeat Step to select the images to be
erased, and then press the button m
to erase the selected images.
4 Use FG to select [YES], and press the
A button.
The images with a mark are erased.R
To erase all images [ALL ERASE]
1 Use FG to select [ALL ERASE], and
press the button.A
2 Use FG to select [YES], and press the
A button.
Saving print settings to the image data
[PRINT ORDER]
q (Playback menu) PRINT ORDERX
“Print reservations (DPOF)” (p. 50)
Print reservation can be set only for still
images that are recorded to the card. Set
[INTERNAL/SD] to [AUTO].
Protecting images [ ]0
q 0 (Playback menu) X
Protected images cannot be erased by
[ERASE] (p. 19, 39), [ERASE EVENT]
(p. 39), [SEL. IMAGE] (p. 39), or [ALL
ERASE] (p. 39), but all images are erased
by [MEMORY FORMAT]/[FORMAT] (p. 41).
1 Use HI to select an image.
2 Press the A button.
Press the button again to cancel the A
settings.
3 If necessary, repeat Steps and 1 2
to protect other images, and press the
m button.
●
●
40
EN
Rotating images [ ]y
q (Playback menu) y
1 Use HI to select an image.
2 Press the A button to rotate the image.
3 If necessary, repeat Steps and to 1 2
make settings for other images, and press
the button.m
The new picture orientations will be saved
even after the power is turned off.
Adding sound to still images [ ]R
q (Playback menu) R
1 Use HI to select an image.
2 Aim the microphone toward the sound
source.
Microphone
3 Press the A button.
Recording starts.
The camera adds (records) sound for approx.
4 seconds while playing back the image.
●
●
41
EN
For information on using the menus, see “Using the Menu” (p. 4).
The default settings of the function are highlighted in .
Restoring data in the camera
[DATA REPAIR]
r (Settings 1) DATA REPAIR
Playback will become available by
performing [DATA REPAIR] when images
never appear on the monitor after button q
is pressed. However, data such as
collections and other groups created with
the PC software (ib) is deleted from the
database in the camera.
Import the data back into the camera from a
computer to playback the data created with
the PC software (ib).
Copying images in the internal memory
to the card [ COPY]u
r u (Settings 1) COPY
To copy images in the internal memory
to the card
Use to select an image, and press the HI
A button.
Changing the display language [ ]l
r (Settings 1) l
“Changing the display language” (p. 14)
Submenu 2 Application
Languages
The language for the menus and
error messages displayed on the
monitor is selected.
Menus for Other Camera Settings
Selecting a storage device
[INTERNAL/SD]
r (Settings 1) INTERNAL/SD
Submenu 2 Application
AUTO
If a card is inserted, the card is
automatically selected. If no card
is inserted, internal memory is
used.
IN*1 Internal memory is selected.
*1 Internal memory is used even if a card is inserted.
Erasing data completely
[MEMORY FORMAT]/[FORMAT]
r (Settings 1) MEMORY FORMAT/
FORMAT
Before formatting, check that no important
data is left in the internal memory or card.
If the internal memory is formatted, the
camera instruction manual and the PC
software (ib) data that are stored on the
internal memory are erased. If necessary,
store the backup before formatting.
Cards must be formatted with this camera
before fi rst use or after being used with
other cameras or computers.
Submenu 2 Application
YES*1
Completely erases the image data
in the internal memory or card
(including protected images).
NO Cancels formatting.
*1 If [AUTO] is selected for [INTERNAL/SD] and a card
is inserted, the card will be formatted. If no card is
inserted, internal memory will be formatted.
If [IN] is selected for [INTERNAL/SD], internal
memory will be formatted whether a card is inserted
or not.
42
EN
Restoring the shooting functions to the
default settings [RESET]
r (Settings 1) RESET
Submenu 2 Application
YES
Restores the following menu
functions to the default settings.
Flash (p. 27)
Macro (p. 27)
Self-timer (p. 28)
Exposure compensation (p. 28)
White balance (p. 28)
ISO (p. 29)
Drive (p. 30)
Menu functions in [I, J,
A] (p. 31 to 34)
•
•
•
•
•
•
•
•
NO The current settings will not be
changed.
Selecting a method for connecting
the camera to other devices
[USB CONNECTION]
r (Settings 1) USB CONNECTION
Submenu 2 Application
AUTO
When the camera is connected
to another device, the settings
selection screen is displayed.
STORAGE
Select when connecting the
camera to a computer via a
storage device.
PC Select when connecting a camera
and computer.
PRINT Select when connecting to a
PictBridge-compatible printer.
System requirements
Windows : Windows 2000 Professional/
XP Home Edition/
XP Professional/Vista/
Windows 7
Macintosh : Mac OS X v10.3 or later
When using another system other than
Windows XP (SP2 or later)/Windows Vista/
Windows 7, set to [STORAGE].
Even if a computer has USB ports, proper
operation is not guaranteed in the following
cases:
Computers with USB ports installed using an
expansion card, etc.
Computers without a factory-installed OS and
home-built computers
Turning on the camera with the q
button [ POWER ON]q
s (Settings 2) POWER ONq
Submenu 2 Application
YES
Pressing the button turns on q
the camera and starts the camera
in the playback mode.
NO
The camera is not turned on. To
turn on the camera, press the
n button.
Saving the mode when the camera is
turned off [SAVE SETTINGS]
s (Settings 2) SAVE SETTINGS
Submenu 2 Application
YES
The shooting mode is saved
when the camera is turned off and
is reactivated the next time the
camera is turned on.
NO
The shooting mode is set to P
mode when the camera is turned
on.
Choosing the opening screen display
[PW ON SETUP]
s (Settings 2) PW ON SETUP
Submenu 2 Application
OFF No opening screen is displayed.
ON The opening screen is displayed
when the camera is turned on.
●
●
43
EN
For information on using the menus, see “Using the Menu” (p. 4).
Selecting the camera sound and its volume [SOUND SETTINGS]
s (Settings 2) SOUND SETTINGS
Submenu 2 Submenu 3 Submenu 4 Application
SILENT MODE*1, 2 OFF/ON —
Select [ON] to disable camera sounds
(operation sounds, shutter sound, and
warning sounds) and mute sound during
playback.
BEEP
SOUND TYPE 1/2/3 Selects the operating sound and volume
of the camera buttons (except the shutter
button).
VOLUME OFF (No Sound)/
LOW/HIGH
SHUTTER SOUND
SOUND TYPE 1/2/3 Selects the type and volume of the shutter
sound.
VOLUME OFF (No Sound)/
LOW/HIGH
8OFF (No Sound)/
LOW/HIGH — Selects the warning sound volume.
q VOLUME OFF (No Sound) or
5 levels of volume — Selects the image playback volume.
*1 Even when [SILENT MODE] is [ON], can be used to adjust volume during playback.FG
*2 Even when [SILENT MODE] is [ON], sound is played when images are displayed on a television.
Resetting the fi le names of pictures
[FILE NAME]
s (Settings 2) FILE NAME
Month: 1 to C
(A=October,
B=November,
C=December)
Day: 01 to 31
Pmdd
Folder name Folder name File name
DCIM 100OLYMP
999OLYMP
Automatic
numbering
Automatic
numbering
Submenu 2 Application
RESET
This resets the sequential number
for the folder name and fi le name
whenever a new card is inserted.*1
This is useful when grouping
images on separate cards.
AUTO
Even when a new card is inserted,
this continues the numbering for
the folder name and fi le name from
the previous card. This is useful for
managing all image folder names
and fi les names with sequential
numbers.
*1 The number for the folder name is reset to 100, and
the one for the fi le name is reset to 0001.
44
EN
Adjusting the CCD and the image
processing function [PIXEL MAPPING]
s (Settings 2) PIXEL MAPPING
This function has already been adjusted
at factory shipping, and no adjustment is
needed right after purchase. Approximately
once a year is recommended.
For best results, wait at least one minute
after taking or viewing pictures before
performing pixel mapping. If the camera is
turned off during pixel mapping, be sure to
perform it again.
To adjust the CCD and the image
processing function
Press the button when [START] A
(Submenu 2) is displayed.
The camera checks and adjusts the CCD and the
image processing function at the same time.
Adjusting the brightness of the monitor
[ ]s
s (Settings 2) s
To adjust the monitor brightness
1 Use FG to adjust the brightness while
viewing the screen, and then press the
A button.
MENU
OK
SETBACK
s
●
Setting the date and time [ ]X
t (Settings 3) X
“Setting the date, time and time zone”
(p. 13)
To select the date display order
1 Press I after setting Minute, and use
FG to select the date display order.
02 26 12 30:..2010
MENU
OK
SETCANCEL
X
Y M D TIME
Y / M / DY / M / D
Date order
45
EN
For information on using the menus, see “Using the Menu” (p. 4).
Choosing home and alternate time zones [WORLD TIME]
t (Settings 3) WORLD TIME
You will not be able to select a time zone using [WORLD TIME] if the camera clock has not fi rst been
set using [ ].X
Submenu 2 Submenu 3 Application
HOME/ALTERNATE
xThe time in the home time zone (the time zone selected for in x
submenu 2).
yThe time in the travel destination time zone (the time zone selected
for in submenu 2).y
x*1 — Select the home time zone ( ).x
y*1, 2 — Select the travel destination time zone ( ).y
*1 In areas where daylight saving time is in effect, use to turn daylight saving time ([SUMMER]) on.FG
*2 When you select a time zone, the camera automatically calculates the time difference between the selected
zone and the home time zone ( ) to display the time in the travel destination time zone ( ).x y
Selecting a video signal system to match your TV [VIDEO OUT]
t (Settings 3) VIDEO OUT
The TV video signal system varies depending on the countries and regions. Before viewing camera
images on your TV, select the video output according to your TV’s video signal type.
Submenu 2 Application
NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on.
PAL Connecting the camera to a TV in European countries, China, and so on.
The factory default settings differ according to the region where the camera is sold.
To play back camera images on a TV
1 Use the camera to select the same video signal system as the one of connected TV
([NTSC]/[PAL]).
2 Connect the TV and camera.
Connect to the TV
video input jack (yellow)
and audio input jack
(white).
Multi-connector
AV cable (supplied)
46
EN
3 Turn on the TV, and change “INPUT” to
“VIDEO (an input jack connected to the
camera).”
For details on changing the input source of
the TV, refer to the TV’s instruction manual.
4 Press the q button, and use to HI
select the image for playback.
Depending on the TV’s settings, the
displayed images and information may
become cropped.
Saving battery power between shots
[POWER SAVE]
t (Settings 3) POWER SAVE
Submenu 2 Application
OFF Cancels [POWER SAVE].
ON
When the camera is not being
used for approx. 10 seconds, the
monitor automatically turns off to
save battery power.
To resume standby mode
Press any button.
47
EN
Printing
Turn on the printer, and then
connect the printer and camera.
I button
USB cable (supplied)
Multi-connector
OK
CUSTOM PRINT
EASYPRINT START
Press I to start printing.
To print another image, use HI
to select an image, and press the
A button.
To exit printing
After a selected image is displayed on the
screen, disconnect the USB cable from the
camera and printer.
OK
PRINTEXIT
Direct printing (PictBridge*1 )
By connecting the camera to a PictBridge-
compatible printer, you can print images directly
without using a computer.
To fi nd out if your printer supports PictBridge,
refer to the printer’s instruction manual.
*1 PictBridge is a standard for connecting digital
cameras and printers of different makers and
printing out pictures directly.
The printing modes, paper sizes, and other
parameters that can be set with the camera
vary depending on the printer that is used.
For details, refer to the printer’s instruction
manual.
For details on the available paper types,
loading paper, and installing ink cassettes,
refer to the printer’s instruction manual.
Printing images at the
printer’s standard settings
[EASY PRINT]
In the [SETUP] menu, set [USB
CONNECTION] to [AUTO] or [PRINT].
“Using the Menu” (p. 4)
Display the image to be printed on
the monitor.
“Viewing images” (p. 18)
Printing can also be started when the
camera is turned off. After performing Step
2, use to select [EASY PRINT], press FG
the button. Use to select an image, AHI
and press the button.A
48
EN

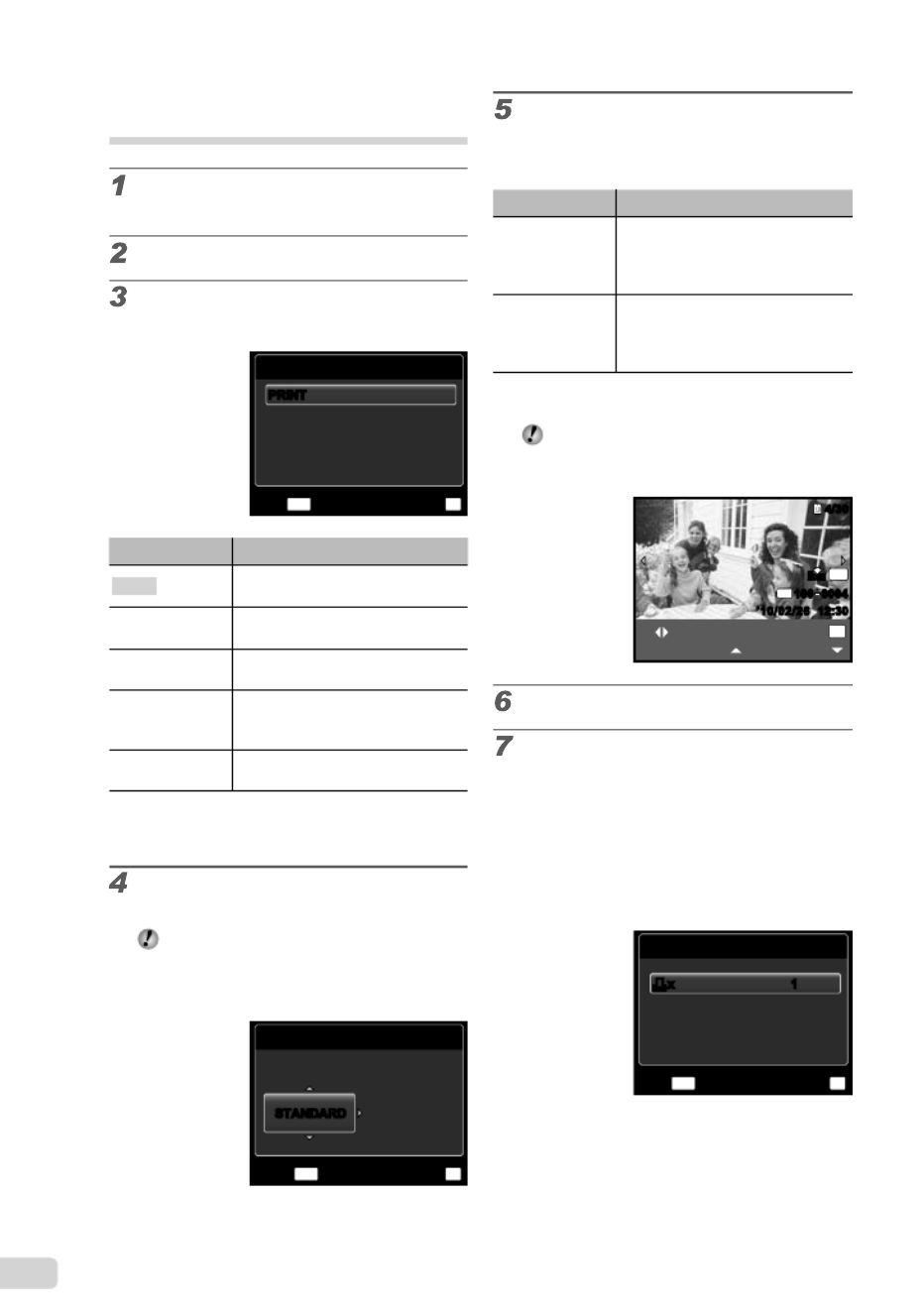

Changing the printer’s settings
for printing [CUSTOM PRINT]
Follow Steps 1 and 2 for [EASY
PRINT] (p. 47).
Press the A button.
Use FG to select the print mode,
and press the button.A
PRINT MODE SELECT
MULTI PRINT
PRINT ORDER
ALL INDEX
MENU
OK
SETEXIT
ALL PRINT
PRINTPRINT
Submenu 2 Application
PRINT This prints the image selected in
Step 6.
ALL PRINT This prints all images stored in the
internal memory or card.
MULTI PRINT This prints one image in a multiple
layout format.
ALL INDEX
This prints an index of all images
stored in the internal memory
or card.
PRINT ORDER*1 This prints images based on the
print reservation data on the card.
*1 [PRINT ORDER] is available only when print
reservations have been made. “Print Reservations
(DPOF)” (p. 50)
Use FG to select [SIZE] (Submenu
3), and press .I
If the [PRINTPAPER] screen is not
displayed, the [SIZE], [BORDERLESS],
and [PICS/SHEET] are set to the printer’s
standard.
PRINTPAPER
SIZE BORDERLESS
STANDARD
OK
SET
MENU
BACK
STANDARDSTANDARD
Use FG to select the
[BORDERLESS] or [PICS/SHEET]
settings, and press the button.A
Submenu 4 Application
OFF/ON*1
The image is printed with a border
around it ([OFF]).
The image is printed to fi ll the
entire paper ([ON]).
(The number of
images per sheet
varies depending
on the printer.)
The number of images per sheet
([PICS/SHEET]) is selectable only
when [MULTI PRINT] is selected
in Step 3.
*1 The available settings for [BORDERLESS] vary
depending on the printer.
If [STANDARD] is selected in Steps 4 and 5,
the image is printed at the printer’s standard
settings.
N
ORM
OK
SINGLE PRINT
PRINT
4/304/30
MORE
’10/02/26 12:30’10/02/26 12:30
N
ORM
14
M
FILE
100 0004100 0004
Use HI to select an image.
Press F to make a print reservation
for the current image. Press to G
make the detailed printer settings
for the current image.
To make the detailed printer settings
1 Use FGHI to select the setting, and
press the button.A
PRINT INFO
FILE NAME
P
DATE
WITHOUT
WITHOUT
MENU
OK
SETEXIT
<x<x11
49
EN

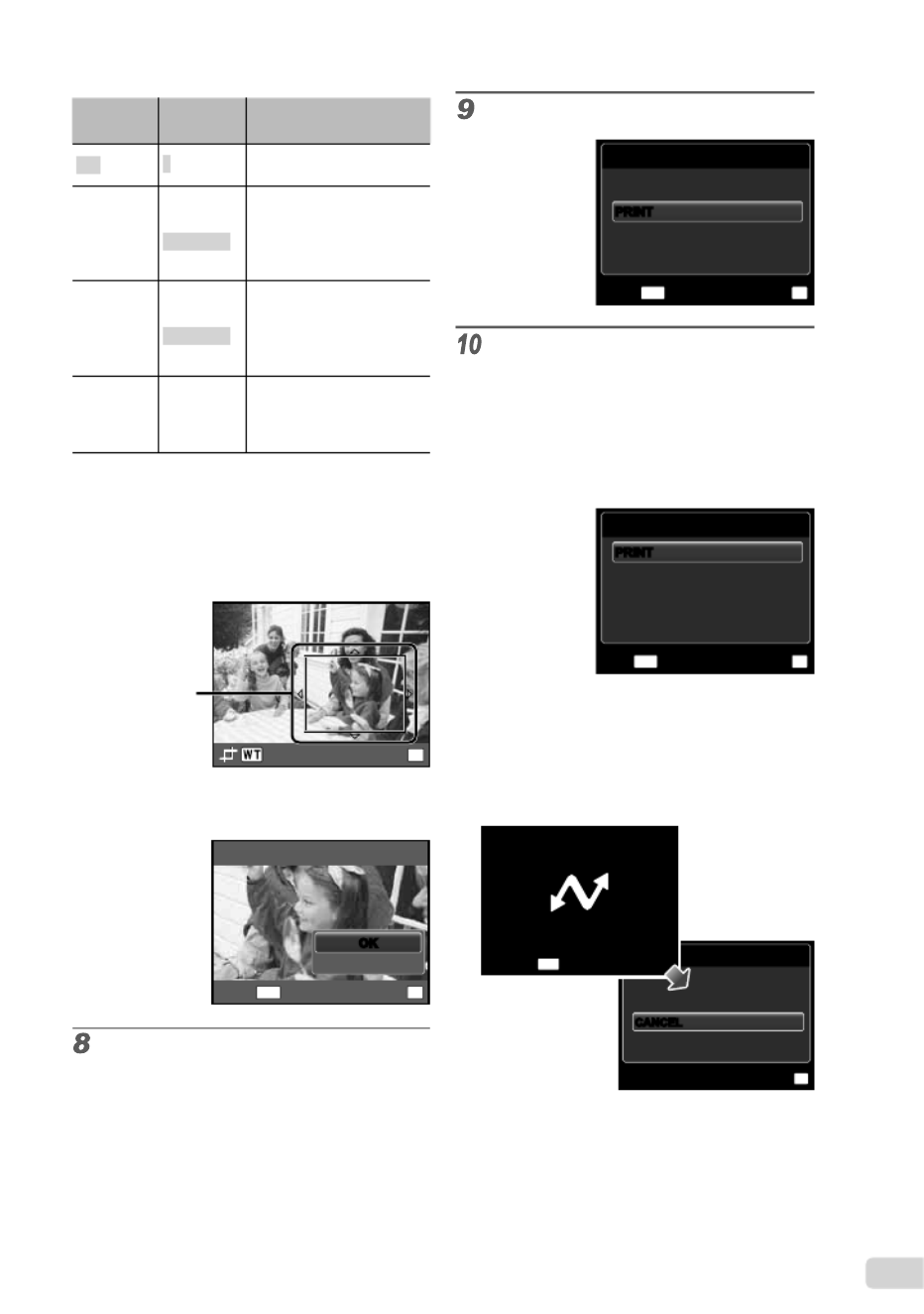

Submenu
5
Submenu
6Application
<×0 to 10 This selects the number
of prints.
DATE WITH/
WITHOUT
Selecting [WITH] prints the
images with the date.
Selecting [WITHOUT]
prints the images without
the date.
FILE NAME WITH/
WITHOUT
Selecting [WITH] prints the
fi le name on the image.
Selecting [WITHOUT] does
not print any fi le name on
the image.
P
(Proceeds
to the
setting
screen.)
This selects a portion of
the image for printing.
To crop an image [ ]P
1 Use the zoom buttons to select the size
of the cropping frame, use FGHI
to move the frame, and then press the
A button.
Cropping frame
OK
SET
2 Use FG to select [OK], and press the
A button.
MENU
OK
P
CANCEL
OKOK
SETBACK
If necessary, repeat Steps 6 and 7
to select the image to be printed,
make the detailed settings, and set
[SINGLEPRINT].
Press the A button.
PRINT
MENU
OK
CANCEL
SETBACK
PRINTPRINT
Use FG to select [PRINT], and
press the button.A
Printing starts.
When [OPTION SET] is selected in [ALL PRINT]
mode, [PRINT INFO] screen is displayed.
When printing is fi nished, the [PRINT MODE
SELECT] screen is displayed.
PRINT MODE SELECT
MULTI PRINT
PRINT ORDER
ALL INDEX
MENU
OK
SETEXIT
ALL PRINT
PRINTPRINT
To cancel printing
1 Press the m button while [DO NOT
REMOVE USB CABLE] is displayed.
2 Select [CANCEL] using and then FG
press the button.A
PRINT
OK
SET
CONTINUE
CANCELCANCEL
MENU
DO NOT REMOVE USB CABLE
CANCEL
●
●
●
50
EN

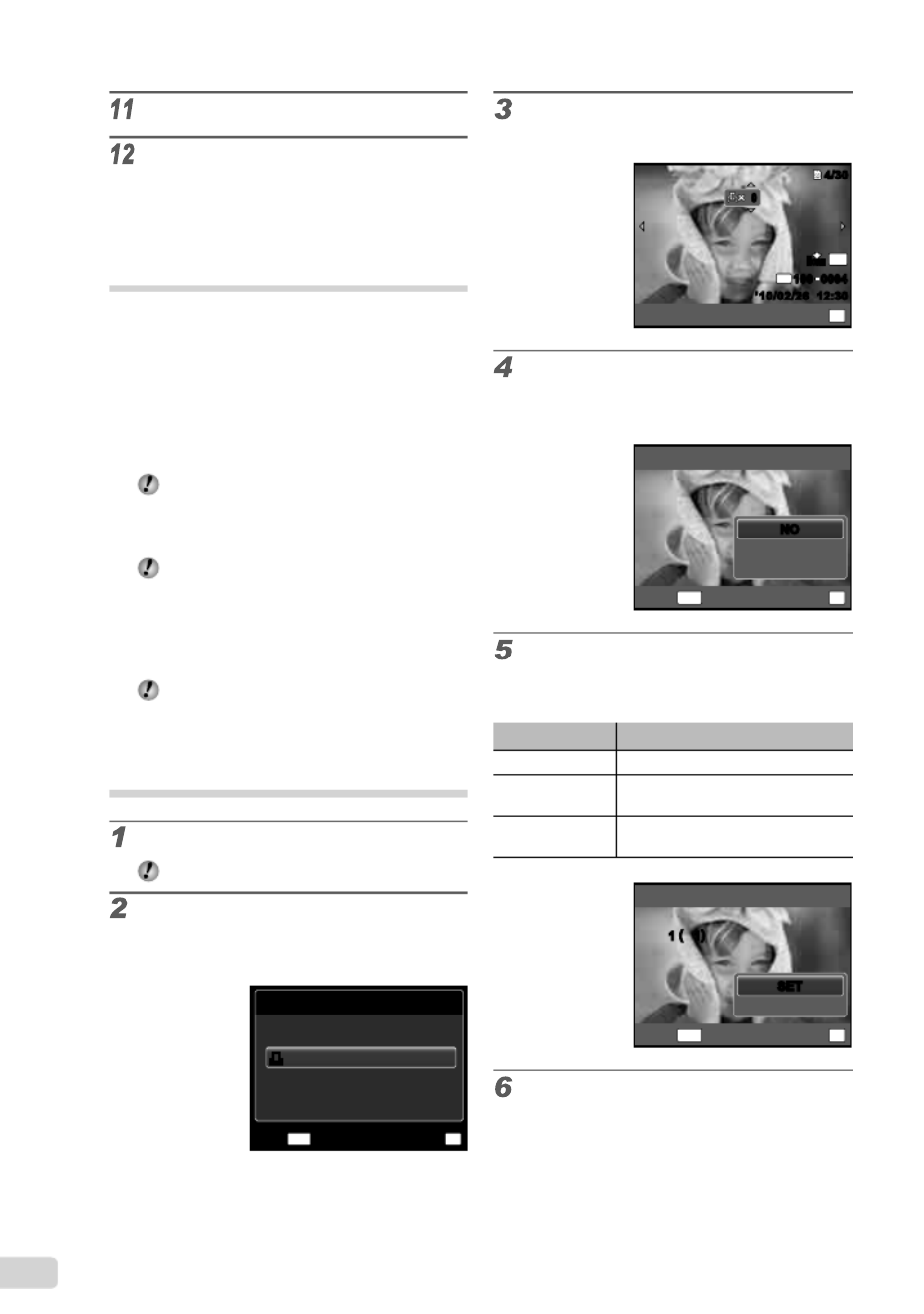

Press the m button.
When the message [REMOVE USB
CABLE] is displayed, disconnect
the USB cable from the camera and
printer.
Print Reservations (DPOF*1 )
In print reservations, the number of prints and
date imprint option are saved in the image on
the card. This enables easy printing at a printer
or print shop supporting DPOF by using only the
print reservations on the card without a computer
or a camera.
*1 DPOF is a standard for storing automatic printout
information from digital cameras.
Print reservations can be set only for the
images stored on the card. Insert a card
with recorded images before making print
reservations.
DPOF reservations set by another DPOF
device cannot be changed by this camera.
Make changes using the original device.
Making new DPOF reservations with this
camera will erase the reservations made by
the other device.
DPOF print reservations can be made for up
to 999 images per card.
Single-frame print
reservations [ ]<
Display the [SETUP] menu.
“Using the Menu” (p. 4)
From the playback menu , select q
[PRINT ORDER] and then press the
A button.
PRINT ORDER
U
MENU
OK
SETEXIT
<<
Use FG to select [ ], and press <
the button.A
N
ORM
4/304/30
’10/02/26 12:30’10/02/26 12:30
N
ORM
14
M
FILE
100 0004100 0004
OK
00
SET
Use HI to select the image for
print reservation. Use FG to select
the quantity. Press the button.A
MENU
OK
X
DATE
TIME
SETBACK
NONO
Use FG to select the [ ] (date X
print) screen option, and press the
A button.
Submenu 2 Application
NO This prints the image only.
DATE This prints the image with the
shooting date.
TIME This prints the image with the
shooting time.
PRINT ORDER
CANCEL
1( 1)
1( 1)
MENU
OK
SETBACK
SETSET
Use FG to select [SET], and press
the button.A
51
EN
Reserving one print each of all
images on the card [ ]U
Follow Steps 1 and 2 in [ ] (p. 50).<
Use FG to select [ ], and press U
the button.A
Follow Steps 5 and 6 in [ ].<
Resetting all print reservation
data
Follow Steps 1 and 2 in [ ] (p. 50).<
Select either [ ] or [ ], and press < U
the button.A
PRINT ORDER SETTING
MENU
OK
PRINT ORDERED
SETBACK
KEEP
RESETRESET
Use FG to select [RESET], and
press the button.A
Resetting the print reservation
data for selected images
Follow Steps 1 and 2 in [ ] (p. 50).<
Use FG to select [ ], and press <
the button.A
Use FG to select [KEEP] and
press the button.A
Use HI to select the image with
the print reservation you want to
cancel. Use to set the print FG
quantity to “0”.
If necessary, repeat Step 4, and then
press the button when Afi nished.
Use FG to select the [ ] (date X
print) screen option, and press the
A button.
The settings are applied to the remaining images
with the print reservation data.
Use FG to select [SET], and press
the button.A
●
52
EN
Usage Tips
If the camera does not work as intended, or if
an error message is displayed on the screen,
and you are unsure of what to do, refer to the
information below to fi x the problem(s).
Troubleshooting
Battery
“The camera does not work even when
batteries are installed”.
Insert recharged batteries in the correct direction.
“Inserting the battery” (p. 10), “Charging the
battery with the included USB-AC adapter” (p. 12)
Battery performance may have been reduced
temporarily due to low temperature. Take the
batteries out of the camera, and warm them by
putting them in your pocket for a while.
Card/Internal memory
“An error message is displayed”.
“Error message” (p. 53)
Shutter button
“No picture is taken when the shutter
button is pressed”.
Cancel sleep mode.
To save battery power, the camera automatically
goes into sleep mode and the monitor turns off
if there is no operation for 3 minutes when the
camera is turned on. No picture is taken even if
the shutter button is fully pressed in this mode.
Operate the zoom buttons or other buttons to
restore the camera from sleep mode before
taking a picture. If the camera is left for another
12 minutes, it automatically turns off. Press the
n button to turn the camera on.
Press the button to switch to the shooting q
mode.
Wait until (#fl ash charge) stops blinking before
taking pictures.
With prolonged camera use, the internal
temperature may increase, resulting in automatic
shutdown. If this occurs, remove the battery
from the camera and wait until the camera
has suffi ciently cooled. The camera’s external
temperature may also increase during use,
however this is normal and does not indicate
malfunction.
●
●
●
●
●
●
Monitor
“Diffi cult to see”.
Condensation*1 may have occurred. Turn off the
power, and wait for the camera body to become
acclimated to the surrounding temperature and dry
out before taking pictures.
*1 Dew drops can form in the camera when it is
suddenly taken from a cold location into a warm,
humid room.
“Vertical lines appear on the screen”.
This condition may occur when the camera is
pointed at an extremely bright subject under a
clear sky and so on. The lines do not appear,
however, in the fi nal image.
“The light is caught in the picture”.
Shooting with fl ash in dark situations results in
an image with many fl ash refl ections on dust in
the air.
Date and time function
“Date and time settings return to the
default setting”.
If the batteries are removed and left out of the
camera for about 3 days*2, the date and time
settings return to the default setting, and must
be reset.
*2 The time until the date and time settings return
to the default setting varies depending on how
long the batteries have been loaded.
“Setting the date, time and time zone” (p. 13)
Miscellaneous
“The camera makes a noise when taking
pictures”.
The camera may activate the lens and make a
noise even if no operation is performed. This
is because the camera automatically performs
actions of auto focus as far as it is ready to shoot.
●
●
●
●
●
53
EN
Error message
When one of the messages below is
displayed on the monitor, check the
corrective action.
Error message Corrective action
CARD ERROR
Card problem
Insert a new card.
WRITE
PROTECT
Card problem
The card write-protect switch is
set to the “LOCK” side. Release
the switch.
MEMORY FULL
Internal memory problem
Insert a card.
Erase unwanted images.*1
•
•
CARD FULL
Card problem
Replace the card.
Erase unwanted images.*1
•
•
CARD SETUP
OK
SET
FORMAT
POWER OFFPOWER OFF
Card problem
Use to select [FORMAT], FG
and press the button. Next, A
use to select [YES], and FG
press the button.A*2
MEMORY SETUP
OK
MEMORY FORMAT
SET
POWER OFFPOWER OFF
Internal memory problem
Use FG to select [MEMORY
FORMAT], and press the
A button. Next, use to FG
select [YES], and press the
A button.*2
NO PICTURE
Internal memory/Card problem
Take pictures before viewing
them.
ERROR
Problem with selected image
Use photo retouch software,
etc. to view the image on a
computer. If the image still
cannot be viewed, the image fi le
is corrupted.
THE IMAGE
CANNOT
BE EDITED
Problem with selected image
Use photo retouch software, etc.
to edit the image on a computer.
BATTERY
EMPTY
Battery problem
Charge the battery.
NO
CONNECTION
Connection problem
Connect the camera and
computer or printer correctly.
NO PAPER
Printer problem
Load paper into the printer.
Error message Corrective action
NO INK
Printer problem
Refi ll the ink in the printer.
JAMMED
Printer problem
Remove the jammed paper.
SETTINGS
CHANGED*3
Printer problem
Return to the status where the
printer can be used.
PRINT ERROR
Printer problem
Turn off the camera and printer,
check the printer for any
problems, and then turn the
power on again.
CANNOT PRINT*4
Problem with selected image
Use a computer to print.
*1 Before erasing important images, download them to
a computer.
*2 All data will be erased.
*3 This is displayed, for instance, when the printer’s
paper tray has been removed. Do not operate
the printer while making the print settings on the
camera.
*4 This camera may be unable to print images taken by
other cameras.
54
EN
Shooting tips
When you are unsure of how to take a picture
that you envision, refer to the information below.
Focusing
“Focusing on the subject”
Taking a picture of a subject not in the center
of the screen
After focusing on an object at the same distance
as the subject, compose the shot, and take the
picture.
Pressing the shutter button halfway (p. 15)
Set [AF MODE] (p. 32) to [FACE/iESP]
Taking a picture in [AF TRACKING] mode
(p. 32)
The camera tracks the subject movement
automatically to focus on it continuously.
Taking a picture of subjects where autofocus
is diffi cult
In the following cases, after focusing on an object
(by pressing the shutter button halfway down) with
high contrast at the same distance as the subject,
compose the shot, and take the picture.
Subjects with low contrast
When extremely bright objects
appear in the center of the
screen
Object with no vertical lines*1
*1 It is also effective to compose the shot by holding the
camera vertically to focus, and then returning to the
horizontal position to take the picture.
When objects are at different
distances
●
●
●
●
Fast-moving object
The subject is not in the center
of the frame
Camera shake
“Taking pictures without camera shake”
Taking pictures using [IMAGE STABILIZER]
(p. 34)
When a picture is taken of a shadowy subject, the
CCD*1 shifts to correct for camera shake even if
the ISO speed is not increased. This function is
also effective when taking pictures at a high zoom
magnifi cation.
*1 A device that takes light received through the
lens and converts it into electric signals.
Shooting movies using [IS MOVIE MODE]
(p. 34)
Select (SPORT) in the scene mode (p. 23)C
The (SPORT) mode uses a fast shutter speed C
and can reduce the blur incurred by a moving
subject.
Taking pictures at a high ISO sensitivity
If a high ISO sensitivity is selected, pictures can
be taken at a high shutter speed even at locations
where a fl ash cannot be used.
“Selecting the ISO sensitivity” (p. 29)
●
●
●
●
55
EN
Exposure (brightness)
“Taking pictures with the right
brightness”
Taking pictures of a subject against a backlight
Faces or backgrounds are bright even when shot
against backlight.
[SHADOW ADJUST] (p. 32)
Taking pictures using [FACE/iESP] (p. 32)
Appropriate exposure is obtained for a face
against backlight, and the face is brightened.
Taking pictures using [ ] for [ESP/ ] n n
(p. 32)
Brightness is matched with a subject in the center
of the screen and the image is not affected by
background light.
Taking pictures using [FILL IN] (p. 27) fl ash
A subject against backlight is brightened.
Taking pictures of a white beach or snow
scene
Set the mode to [ BEACH & SNOW] (p. 23)q
Taking pictures using exposure compensation
(p. 28)
Adjust the brightness while viewing the screen
for taking the picture. Normally, taking pictures of
white subjects (such as snow) results in images
that are darker than the actual subject. Use the
exposure compensation to adjust in the positive
(+) direction to express whites as they appear.
When taking pictures of black subjects, on the
other hand, it is effective to adjust in the negative
(-) direction.
Color hue
“Taking pictures with colors at the same
shade as they appear”
Taking pictures by selecting white balance
(p. 28)
Best results in most environments can normally
be obtained with the [WB AUTO] setting, but for
some subjects, you should try experimenting
with different settings. (This is especially true for
sunshade under a clear sky, mixed natural and
artifi cial light settings, and so on.)
Taking pictures using [FILL IN] (p. 27) fl ash
Use of the fl ash is also effective for shooting under
fl uorescent and other artifi cial lighting.
●
●
●
●
●
●
●
●
Image quality
“Taking sharper pictures”
Taking pictures with the optical zoom
Avoid using digital zoom (p. 33) to take pictures.
Taking pictures at a low ISO sensitivity
If the picture is taken with a high ISO sensitivity,
noise (small colored spots and color unevenness
that were not in the original image) can occur, and
the image can appear grainy.
“Selecting the ISO sensitivity” (p. 29)
Panorama
“Taking pictures so that the frames are
stitched smoothly”
A tip for panoramic shooting
Taking pictures by pivoting with the camera at the
center prevents shifting of the image. When taking
pictures of close objects in particular, pivoting with
the lens end at the center produces favorable
results.
[PANORAMA] (p. 24)
Batteries
“Making batteries last longer”
Avoid any of the following operations when not
actually taking pictures because they deplete
the battery power
Repeatedly pressing the shutter button
halfway.
Repeatedly using the zoom.
Set [POWER SAVE] (p. 46) to [ON]
●
●
●
●
●
●
●
56
EN
Playback/Editing tips
Playback
“Playing images in the internal memory
and card”
Remove the card and display the images in
internal memory
“Inserting the battery” (p. 10), “Inserting the
SD/SDHC memory card (sold separately)”
(p. 14)
Selecting a storage device
[INTERNAL/SD] (p. 41)
Editing
“Erasing the sound recorded to a still
image”
Record over the sound with silence when
playing back the image
“Adding sound to still images [ ]” (p. 40) R
●
●
●
●
57
EN
Appendix
Battery, USB-AC adapter
(included), Charger (sold
separately)
This camera uses one Olympus lithium ion
battery (LI-42B/LI-40B). No other type of
batteries can be used.
Caution:
There is a risk of explosion if the battery is
replaced with the incorrect battery type.
Dispose of the used battery following the
instructions. (p. 63)
Power consumption by the camera varies
depending on which functions are used.
During the conditions described below, power
is consumed continuously and the battery
becomes exhausted quickly.
The zoom is used repeatedly.
The shutter button is pressed halfway
repeatedly in shooting mode, activating the
auto focus.
A picture is displayed on the monitor for an
extended period of time.
The camera is connected to a printer.
Using an exhausted battery may cause the
camera to turn off without displaying the
battery level warning.
The rechargeable battery is not fully charged
at the time of purchase. Before using the
camera, charge it by connecting it to a
computer, or charge it using the included
USB-AC adapter (F-2AC), a separately sold
AC adapter (F-1AC/D-7AC) or charger (LI-
41C/LI-40C).
When the included USB-AC adapter (F-2AC)
is used, charging usually takes approximately
3 hours (varies on usage).
The included USB-AC adapter (F-2AC) has
been designed to be used for charging and
playback. Make sure that shooting is not being
used while the USB-AC adapter is connected
to the camera.
The included USB-AC adapter (F-2AC) is
designed to be used only with this camera.
Other cameras cannot be charged with this
USB-AC adapter.
•
•
•
•
•
•
•
•
•
•
•
•
Camera care
Exterior
Wipe gently with a soft cloth. If the camera is
very dirty, soak the cloth in mild soapy water
and wring well. Wipe the camera with the
damp cloth and then dry it with a dry cloth. If
you have used the camera at the beach, use a
cloth soaked in clean water and wrung well.
Monitor
Wipe gently with a soft cloth.
Lens
Blow dust off the lens with a commercial
blower, then wipe gently with a lens cleaner.
Battery/USB-AC adapter
Wipe gently with a soft, dry cloth.
Do not use strong solvents such as benzene
or alcohol, or chemically treated cloth.
Mold may form on the lens surface if the
lens is left dirty.
Storage
When storing the camera for extended
periods, remove the battery, AC adapter and
card, and keep in a cool, dry place that is well
ventilated.
Periodically insert the battery and test the
camera functions.
Avoid leaving the camera in places where
chemical products are handled since this
may result in corrosion.
•
•
•
•
•
•
58
EN
Do not connect the included USB-AC adapter
(F-2AC) to equipment other than this camera.
For plug-in type USB-AC adapter:
The included USB-AC adapter (F-2AC) is
intended to be correctly orientated in a vertical
or fl oor mount position.
Charging the battery by
connecting the camera to a
computer
The battery can be charged by connecting the
camera to a computer.
Using a separately sold AC
adapter
An AC adapter (D-7AC/sold separately) is useful
for time-consuming tasks such as when running
a slideshow for a long period of time. To use
a separately sold AC adapter for this camera,
the multi-adapter (CB-MA1, CB-MA3/sold
separately) is required.
Do not use any other AC adapter with this
camera.
Using a separately sold
charger
A charger (LI-41C/LI-40C: sold separately) can
be used to charge the battery. In this case,
remove the battery from the camera and set the
battery to the charger.
Using your charger and
USB-AC adapter abroad
The charger and USB-AC adapter can be
used in most home electrical sources within
the range of 100 V to 240 V AC (50/60Hz)
around the world. However, depending on the
country or area you are in, the AC wall outlet
may be shaped differently and the charger and
USB-AC adapter may require a plug adapter to
match the wall outlet. For details, ask at your
local electrical shop or travel agent.
Do not use travel voltage converters as
they could damage your charger and
USB-AC adapter.
•
•
•
•
Using a SD/SDHC memory card
A card (and internal memory) also corresponds
to the fi lm that records images in a fi lm camera.
Otherwise, the recorded images (data) can be
erased, and retouching is also available with
the use of a computer. Cards can be removed
from the camera and exchanged, but this is
not possible with the internal memory. Use of
larger capacity cards enables you to take more
pictures.
SD/SDHC memory card write-protect
switch
The SD/SDHC memory card body has a
write-protect switch. If you set the switch to
the “LOCK” side, you will not be able to write
to the card, delete data or format. Return the
switch to enable writing.
LOCK
Cards compatible with this camera
SD/SDHC memory cards (for more
information, visit the Olympus website)
59
EN
Using a new card
Cards must be formatted with this camera
before fi rst use or after being used with other
cameras or computers.
[MEMORY FORMAT]/[FORMAT] (p. 41)
Checking the image saving location
The memory indicator shows whether the
internal memory or card is being used during
shooting and playback.
Current memory indicator
v: Internal memory is being used
w: Card is being used
Current memory
indicator
Playback mode
Shooting mode
’10/02/26 12:30’10/02/26 12:30
4/304/30
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14
M
Even if [MEMORY FORMAT]/[FORMAT],
[ERASE], [ERASE EVENT], [SEL. IMAGE],
or [ALL ERASE] is performed, the data in
the card is not completely erased. When
disposing of the card, damage the card to
prevent the disclosure of personal data.
Readout/recording process of the card
During shooting, the current memory
indicator blinks red while the camera is
writing data. Never open the battery/card
compartment cover or unplug the USB
cable. This can not only damage the image
data but also render the internal memory or
card unusable.
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
14
M
Flashes in red
60
EN
Number of storable pictures (still images)/Continuous recording length (movies) in the
internal memory and SD/SDHC memory cards
The fi gures in the following tables are quoted only as a rough guideline. The actual number of
storable pictures or continuous recording lengths will differ according to the shooting conditions and
memory cards used.
The fi gures in the table below are the number of the storable pictures when using the internal
memory formatted. [MEMORY FORMAT]/[FORMAT] (p. 41)
Still pictures
IMAGE SIZE COMPRES SION
Number of storable still pictures
Internal memory SD/SDHC memory card (1 GB)
With sound Without sound With sound Without sound
6 4288×3216 L123 124 141 141
M242 244 276 278
4 3264×2448 L210 212 240 242
M408 414 465 472
n 2560×1920 L335 340 383 387
M671 688 766 786
3 2048×1536 L530 541 605 617
M1,020 1,060 1,163 1,210
2 1600×1200 L855 884 976 1,008
M1,607 1,711 1,834 1,952
1 1280×960 L1,293 1,360 1,476 1,551
M2,411 2,652 2,751 3,026
7 640×480 L4,080 4,822 4,655 5,502
M6,631 8,841 7,565 10,087
0 1920×1080 L791 816 903 931
M1,515 1,607 1,729 1,834
Movies
IMAGE SIZE FRAME RATE
Continuous recording length
Internal memory SD/SDHC memory card (1 GB)
With sound Without sound With sound Without sound
8 640×480 N7 min. 48 sec. 7 min. 51 sec. 8 min. 54 sec. 8 min. 57 sec.
O15 min. 32 sec. 15 min. 42 sec. 17 min. 43 sec. 17 min. 55 sec.
9 320×240 N21 min. 5 sec. 21 min. 24 sec. 24 min. 4 sec. 24 min. 25 sec.
O41 min. 34 sec. 42 min. 49 sec. 47 min. 25 sec. 48 min. 51 sec.
The maximum fi le size of a single movie is 2 GB, regardless of the capacity of the card.
Increasing the number of pictures that can be taken
Either erase unwanted images, or connect the camera to a computer or other device to save
the images, and then erase the images in the internal memory or card. [ERASE] (p. 19, 39),
[ERASE EVENT] (p. 39), [SEL. IMAGE] (p. 39), [ALL ERASE] (p. 39), [MEMORY FORMAT]/
[FORMAT] (p. 41)
61
EN
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED OLYMPUS
SERVICE PERSONNEL.
An exclamation mark enclosed in a
triangle alerts you to important operating
and maintenance instructions in the
documentation provided with the product.
DANGER If the product is used without observing
the information given under this symbol,
serious injury or death may result.
WARNING If the product is used without observing the
information given under this symbol, injury
or death may result.
CAUTION If the product is used without observing the
information given under this symbol, minor
personal injury, damage to the equipment,
or loss of valuable data may result.
WARNING!
TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK,
NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO
WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.
General Precautions
Read All Instructions — Before you use the
product, read all operating instructions. Save all
manuals and documentation for future reference.
Cleaning — Always unplug this product from the
wall outlet before cleaning. Use only a damp
cloth for cleaning. Never use any type of liquid or
aerosol cleaner, or any type of organic solvent to
clean this product.
Attachments — For your safety, and to avoid
damaging the product, use only accessories
recommended by Olympus.
Water and Moisture — For precautions on
products with weatherproof designs, read the
weatherproofi ng sections.
Location — To avoid damage to the product, mount
the product securely on a stable tripod, stand,
or bracket.
Power Source — Connect this product only to the
power source described on the product label.
Lightning — If a lightning storm occurs while using
an AC adapter, remove it from the wall outlet
immediately.
Foreign Objects — To avoid personal injury, never
insert a metal object into the product.
Heat — Never use or store this product near any
heat source such as a radiator, heat register,
stove, or any type of equipment or appliance that
generates heat, including stereo amplifi ers.
Handling the Camera
WARNING
Do not use the camera near fl ammable or
explosive gases.
Do not use the fl ash and LED on people
(infants, small children, etc.) at close range.
You must be at least 1 m (3 ft.) away from the
faces of your subjects. Firing the fl ash too close
to the subject’s eyes could cause a momentary
loss of vision.
Keep young children and infants away from
the camera.
Always use and store the camera out of the
reach of young children and infants to prevent
the following dangerous situations which could
cause serious injury:
Becoming entangled in the camera strap,
causing strangulation.
Accidentally swallowing the battery, cards or
other small parts.
Accidentally fi ring the fl ash into their own eyes
or those of another child.
Accidentally being injured by the moving parts
of the camera.
Do not look at the sun or strong lights with the
camera.
Do not use or store the camera in dusty or
humid places.
Do not cover the fl ash with a hand while fi ring.
Use SD/SDHC memory cards only. Never use
other types of cards.
If you accidently insert another type of card into
the camera, contact an authorized distributor or
service center. Do not try to remove the card by
force.
CAUTION
Stop using the camera immediately if you
notice any unusual odors, noise, or smoke
around it.
Never remove the batteries with bare hands,
which may cause a fi re or burn your hands.
Never hold or operate the camera with wet
hands.
Do not leave the camera in places where it may
be subject to extremely high temperatures.
Doing so may cause parts to deteriorate and, in
some circumstances, cause the camera to catch
fi re. Do not use the charger or AC adapter if it is
covered (such as a blanket). This could cause
overheating, resulting in fi re.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
62
EN
Handle the camera with care to avoid getting a
low-temperature burn.
When the camera contains metal parts,
overheating can result in a low-temperature
burn. Pay attention to the following:
When used for a long period, the camera will
get hot. If you hold on to the camera in this
state, a low-temperature burn may be caused.
In places subject to extremely cold
temperatures, the temperature of the camera’s
body may be lower than the environmental
temperature. If possible, wear gloves when
handling the camera in cold temperatures.
Be careful with the strap.
Be careful with the strap when you carry the
camera. It could easily catch on stray objects
and cause serious damage.
Battery Handling Precautions
Follow these important guidelines to prevent
batteries from leaking, overheating, burning,
exploding, or causing electrical shocks or
burns.
DANGER
The camera uses a lithium ion battery specifi ed
by Olympus. Charge the battery with the specifi ed
AC adapter or charger. Do not use any other AC
adapters or chargers.
Never heat or incinerate batteries.
Take precautions when carrying or storing
batteries to prevent them from coming into contact
with any metal objects such as jewelry, pins,
fasteners, etc.
Never store batteries where they will be
exposed to direct sunlight, or subjected to high
temperatures in a hot vehicle, near a heat source,
etc.
To prevent causing battery leaks or damaging their
terminals, carefully follow all instructions regarding
the use of batteries. Never attempt to disassemble
a battery or modify it in any way, solder, etc.
If battery fl uid gets into your eyes, fl ush your eyes
immediately with clear, cold running water and
seek medical attention immediately.
Always store batteries out of the reach of small
children. If a child accidentally swallows a battery,
seek medical attention immediately.
WARNING
Keep batteries dry at all times.
To prevent batteries from leaking, overheating,
or causing a fi re or explosion, use only batteries
recommended for use with this product.
Insert the battery carefully as described in the
operating instructions.
If rechargeable batteries have not been recharged
within the specifi ed time, stop charging them and
do not use them.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Do not use a battery if it is cracked or broken.
If a battery leaks, becomes discolored or
deformed, or becomes abnormal in any other way
during operation, stop using the camera.
If a battery leaks fl uid onto your clothing or skin,
remove the clothing and fl ush the affected area
with clean, running cold water immediately. If
the fl uid burns your skin, seek medical attention
immediately.
Never subject batteries to strong shocks or
continuous vibration.
CAUTION
Before loading, always inspect the battery carefully
for leaks, discoloration, warping, or any other
abnormality.
The battery may become hot during prolonged
use. To avoid minor burns, do not remove it
immediately after using the camera.
Always unload the battery from the camera before
storing the camera for a long period.
Caution for Usage Environment
To protect the high-precision technology contained
in this product, never leave the camera in the
places listed below, no matter if in use or storage:
Places where temperatures and/or humidity
are high or go through extreme changes.
Direct sunlight, beaches, locked cars, or near
other heat sources (stove, radiator, etc.) or
humidifi ers.
In sandy or dusty environments.
Near fl ammable items or explosives.
In wet places, such as bathrooms or in the rain.
When using products with weatherproof designs,
read their manuals as well.
In places prone to strong vibrations.
Never drop the camera or subject it to severe
shocks or vibrations.
When mounted on a tripod, adjust the position of
the camera with the tripod head. Do not twist the
camera.
Do not touch electric contacts on cameras.
Do not leave the camera pointed directly at the
sun. This may cause lens or shutter curtain
damage, color failure, ghosting on the CCD, or
may possibly cause fi res.
Do not push or pull severely on the lens.
Before storing the camera for a long period,
remove the batteries. Select a cool, dry location
for storage to prevent condensation or mold from
forming inside the camera. After storage, test the
camera by turning it on and pressing the shutter
button to make sure that it is operating normally.
Always observe the operating environment
restrictions described in the camera’s manual.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
63
EN
Battery Handling Precautions
This camera uses a lithium ion battery specifi ed by
Olympus. Do not use any other type of battery.
If the battery’s terminals get wet or greasy, camera
contact failure may result. Wipe the battery well
with a dry cloth before use.
Always charge a battery when using it for the fi rst
time, or if it has not been used for a long period.
When operating the camera with battery power
at low temperatures, try to keep the camera and
spare battery as warm as possible. A battery that
has run down at low temperatures may be restored
after it is warmed at room temperature.
The number of pictures you can take may vary
depending on the shooting conditions or battery.
Before going on a long trip, and especially before
traveling abroad, purchase extra batteries. A
recommended battery may be diffi cult to obtain
while traveling.
Please recycle batteries to help save our planet’s
resources. When you throw away dead batteries,
be sure to cover their terminals and always
observe local laws and regulations.
LCD Monitor
Do not push the monitor forcibly; otherwise the
image may become vague, resulting in a playback
mode failure or damage to the monitor.
A strip of light may appear on the top/bottom of the
monitor, but this is not a malfunction.
When a subject is viewed diagonally in the
camera, the edges may appear zigzagged on the
monitor. This is not a malfunction; it will be less
noticeable in playback mode.
In places subject to low temperatures, the LCD
monitor may take a long time to turn on or its
color may change temporarily. When using the
camera in extremely cold places, it is a good idea
to occasionally place it in a warm place. An LCD
monitor exhibiting poor performance due to low
temperatures will recover in normal temperatures.
The LCD used for the monitor is made with
high-precision technology. However, black spots
or bright spots of light may appear constantly on
the LCD Monitor. Due to its characteristics or the
angle at which you are viewing the monitor, the
spot may not be uniform in color and brightness.
This is not a malfunction.
Legal and Other Notices
Olympus makes no representations or warranties
regarding any damages, or benefi t expected by
using this unit lawfully, or any request from a third
person, which are caused by the inappropriate use
of this product.
Olympus makes no representations or warranties
regarding any damages or any benefi t expected
by using this unit lawfully which are caused by
erasing picture data.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Disclaimer of Warranty
Olympus makes no representations or warranties,
either expressed or implied, by or concerning any
content of these written materials or software, and
in no event shall be liable for any implied warranty
of merchantability or fi tness for any particular
purpose or for any consequential, incidental or
indirect damages (including but not limited to
damages for loss of business profi ts, business
interruption and loss of business information)
arising from the use or inability to use these
written materials or software or equipment. Some
countries do not allow the exclusion or limitation
of liability for consequential or incidental damages
or of the implied warranty, so the above limitations
may not apply to you.
Olympus reserves all rights to this manual.
Warning
Unauthorized photographing or use of
copyrighted material may violate applicable
copyright laws. Olympus assumes no
responsibility for unauthorized photographing,
use or other acts that infringe upon the rights of
copyright owners.
Copyright Notice
All rights reserved. No part of these written
materials or this software may be reproduced
or used in any form or by any means, electronic
or mechanical, including photocopying and
recording or the use of any type of information
storage and retrieval system, without the prior
written permission of Olympus. No liability
is assumed with respect to the use of the
information contained in these written materials
or software, or for damages resulting from
the use of the information contained therein.
Olympus reserves the right to alter the features
and contents of this publication or software
without obligation or advance notice.
•
•
64
EN
FCC Notice
Radio and Television Interference
Changes or modifi cations not expressly approved
by the manufacturer may void the user’s authority
to operate this equipment. This equipment has
been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide
reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Adjust or relocate the receiving antenna.
Increase the distance between the camera and
receiver.
Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
Consult your dealer or an experienced radio/TV
technician for help. Only the OLYMPUS-supplied
USB cable should be used to connect the
camera to USB enabled personal computers
(PC).
Any unauthorized changes or modifi cations to
this equipment would void the user’s authority
to operate it.
Use Only Dedicated Rechargeable
Battery, Battery Charger and
AC adapter
We strongly recommend that you use only
the genuine Olympus dedicated rechargeable
battery, battery charger and AC adapter with
this camera. Using a non-genuine rechargeable
battery, battery charger and/or AC adapter
may result in fi re or personal injury due to
leakage, heating, ignition or damage to the
battery. Olympus does not assume any liability
for accidents or damage that may result from
the use of a battery, battery charger and/or
AC adapter that are not genuine Olympus
accessories.
•
•
•
•
•
•
•
•
65
EN
Representative plug of power supply cord of countries/regions around the
world
A Type
(American Type)
B Type
(British Type)
BF Type
(British Type)
B3 Type
(British Type)
C Type
(CEE Type)
SE Type
(CEE Type)
O Type
(Oceania Type)
The representative supply voltage and plug type are described in this chart.
Depending on the area, different types of plugs and supply voltages are used.
Attention: Power cord meeting demands from each country shall be used.
- For only the United States
Use a UL Listed, 1.5 - 4.5 m (5 - 15 ft), Type SPT-2 or NISPT-2, AWG no. 18 power supply cord, rated for
125 V 7 A, with a non-polarized NEMA 1-15P plug rated for 125 V 15 A”.
Europe
Countries/Regions Voltage
Frequency (Hz)
Plug type
Austria 230 50 C
Belgium 230 50 C
Czech
220 50 C
Denmark 230 50 C
Finland 230 50 C
France 230 50 C
Germany 230 50 C
Greece 220 50 C
Hungary 220 50 C
Iceland 230 50 C
Ireland 230 50 C/BF
Italy 220 50 C
Luxemburg 230 50 C
Netherlands 230 50 C
Norway 230 50 C
Poland 220 50 C
Portugal 230 50 C
Romania 220 50 C
Russia 220 50 C
Slovak 220 50 C
Spain 127/230 50 C
Sweden 230 50 C
Switzerland 230 50 C
UK 240 50 BF
Asia
Countries/Regions Voltage
Frequency (Hz)
Plug type
China 220 50 A
Hong Kong 200/220 50 BF
India 230/240 50 C
Indonesia 127/230 50 C
Japan 100 50/60 A
Korea (rep) 220 60 C
Malaysia 240 50 BF
Philippines 220/230 60 A/C
Singapore 230 50 BF
Taiwan 110 60 A
Thailand 220 50 C/BF
Vietnam 220 50 A/C
Oceania
Countries/Regions Voltage
Frequency (Hz)
Plug type
Australia 240 50 O
New Zealand 230/240 50 O
North America
Countries/Regions Voltage
Frequency (Hz)
Plug type
Canada 120 60 A
USA 120 60 A
Central America
Countries/Regions Voltage
Frequency (Hz)
Plug type
Bahamas 120/240 60 A
Costa Rica 110 60 A
Cuba 110/220 60 A/C
Dominican (rep) 110 60 A
El Salvador 110 60 A
Guatemala 120 60 A
Honduras 110 60 A
Jamaica 110 50 A
Mexico 120/127 60 A
Nicaragua 120/240 60 A
Panama 110/220 60 A
South America
Countries/Regions Voltage
Frequency (Hz)
Plug type
Argentina 220 50 C/BF/O
Brazil 127/220 60 A/C
Chile 220 50 C
Colombia 120 60 A
Peru 220 60 A/C
Venezuela 120 60 A
Middle East
Countries/Regions Voltage
Frequency (Hz)
Plug type
Iran 220 50 C/BF
Iraq 220 50 C/BF
Israel 230 50 C
Saudi Arabia 127/220 50 A/C/BF
Turkey 220 50 C
UAE 240 50 C/BF
Africa
Countries/Regions Voltage
Frequency (Hz)
Plug type
Algeria 127/220 50 C
Congo (dem) 220 50 C
Egypt 220 50 C
Ethiopia 220 50 C
Kenya 240 50 C/BF
Nigeria 230 50 C/BF
South Africa 220/230 50 C/BF
Tanzania 230 50 C/BF
Tunisia 220 50 C
66
EN
For customers in North and South
America
For customers in USA
Declaration of Conformity
Model Number : STYLUS-7030/μ-7030
Trade Name : OLYMPUS
Responsible Party :
Address : 3500 Corporate
Parkway, P.O. Box
610, Center Valley, PA
18034-0610, U.S.A.
Telephone Number : 484-896-5000
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
For customers in Canada
This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
OLYMPUS WORLDWIDE LIMITED
WARRANTY - IMAGING PRODUCTS
Olympus warrants that the enclosed Olympus®
imaging product(s) and related Olympus®
accessories (individually a “Product” and
collectively the “Products”) will be free from
defects in materials and workmanship under
normal use and service for a period of one (1)
year from the date of purchase.
If any Product proves to be defective within the
one-year warranty period, the customer must
return the defective Product to any of Olympus
Service Centers, following the procedure
set forth below (See “WHAT TO DO WHEN
SERVICE IS NEEDED”).
Olympus, at its sole discretion, will repair,
replace, or adjust the defective Product, provided
that Olympus investigation and factory inspection
disclose that (a) such defect developed under
normal and proper use and (b) the Product is
covered under this limited warranty.
Repair, replacement, or adjustment of defective
Products shall be Olympus’s sole obligation and
the customer’s sole remedy hereunder.
The customer is liable and shall pay for shipment
of the Products to the Olympus Service Center.
Olympus shall not be obligated to perform
preventive maintenance, installation,
deinstallation, or maintenance.
Olympus reserves the right to (i) use
reconditioned, refurbished, and/or serviceable
used parts (that meet Olympus’s quality
assurance standards) for warranty or any other
repairs and (ii) make any internal or external
design and/or feature changes on or to its
products without any liability to incorporate such
changes on or to the Products.
WHAT IS NOT COVERED BY THIS
LIMITED WARRANTY
Excluded from this limited warranty and not
warranted by Olympus in any fashion, either
express, implied, or by statute, are:
(a)
products and accessories not manufactured by
Olympus and/or not bearing the “OLYMPUS” brand
label (the warranty coverage for products and
accessories of other manufacturers, which may be
distributed by Olympus, is the responsibility of the
manufacturers of such products and accessories
in accordance with the terms and duration of such
manufacturers’ warranties);
(b)
any Product which has been disassembled,
repaired, tampered with, altered, changed, or
modifi ed by persons other than Olympus’s own
authorized service personnel unless repair by
others is made with the written consent of Olympus;
(c) defects or damage to the Products resulting
from wear, tear, misuse, abuse, negligence,
sand, liquids, impact, improper storage,
nonperformance of scheduled operator and
maintenance items, battery leakage, use of non-
“OLYMPUS” brand accessories, consumables, or
supplies, or use of the Products in combination
with non-compatible devices;
(d) software programs;
(e) supplies and consumables (including but not
limited to lamps, ink, paper, fi lm, prints, negatives,
cables and batteries); and/or
(f) Products which do not contain a validly placed
and recorded Olympus serial number, unless they
are a model on which Olympus does not place
and record serial numbers.
EXCEPT FOR THE LIMITED WARRANTY SET
FORTH ABOVE, OLYMPUS MAKES NO AND
DISCLAIMS ALL OTHER REPRESENTATIONS,
GUARANTIES, CONDITIONS, AND
WARRANTIES CONCERNING THE
PRODUCTS, WHETHER DIRECT OR INDIRECT,
EXPRESS OR IMPLIED, OR ARISING UNDER
ANY STATUTE, ORDINANCE, COMMERCIAL
USAGE OR OTHERWISE, INCLUDING BUT
NOT LIMITED TO ANY WARRANTY OR
REPRESENTATION AS TO THE SUITABILITY,
DURABILITY, DESIGN, OPERATION, OR
67
EN
CONDITON OF THE PRODUCTS (OR ANY
PART THEREOF) OR THE MERCHANTABILITY
OF THE PRODUCTS OR THEIR FITNESS FOR
A PARTICULAR PURPOSE, OR RELATING
TO THE INFRINGEMENT OF ANY PATENT,
COPYRIGHT, OR OTHER PROPRIETARY
RIGHT USED OR INCLUDED THEREIN.
IF ANY IMPLIED WARRANTIES APPLY AS
A MATTER OF LAW, THEY ARE LIMITED
IN DURATION TO THE LENGTH OF THIS
LIMITED WARRANTY.
SOME STATES MAY NOT RECOGNIZE
A DISCLAIMER OR LIMITATION OF
WARRANTIES AND/OR LIMITATION OF
LIABILITY SO THE ABOVE DISCLAIMERS AND
EXCLUSIONS MAY NOT APPLY.
THE CUSTOMER MAY ALSO HAVE DIFFERENT
AND/OR ADDITIONAL RIGHTS AND REMEDIES
THAT VARY FROM STATE TO STATE.
THE CUSTOMER ACKNOWLEDGES AND
AGREES THAT OLYMPUS SHALL NOT
BE RESPONSIBLE FOR ANY DAMAGES
THAT THE CUSTOMER MAY INCUR FROM
DELAYED SHIPMENT, PRODUCT FAILURE,
PRODUCT DESIGN, SELECTION, OR
PRODUCTION, IMAGE OR DATA LOSS OR
IMPAIRMENT OR FROM ANY OTHER CAUSE,
WHETHER LIABILITY IS ASSERTED IN
CONTRACT, TORT (INCLUDING NEGLIGENCE
AND STRICT PRODUCT LIABILITY) OR
OTHERWISE. IN NO EVENT SHALL OLYMPUS
BE LIABLE FOR ANY INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES OF
ANY KIND (INCLUDING WITHOUT LIMITATION
LOSS OF PROFITS OR LOSS OF USE),
WHETHER OR NOT OLYMPUS SHALL BE OR
SHOULD BE AWARE OF THE POSSIBILITY OF
SUCH POTENTIAL LOSS OR DAMAGE.
Representations and warranties made by any
person, including but not limited to dealers,
representatives, salespersons, or agents of
Olympus, which are inconsistent or in confl ict
with or in addition to the terms of this limited
warranty, shall not be binding upon Olympus
unless reduced to writing and approved by an
expressly authorized offi cer of Olympus.
This limited warranty is the complete and
exclusive statement of warranty which
Olympus agrees to provide with respect to the
Products and it shall supersede all prior and
contemporaneous oral or written agreements,
understandings, proposals, and communications
pertaining to the subject matter hereof.
This limited warranty is exclusively for the
benefi t of the original customer and cannot be
transferred or assigned.
WHAT TO DO WHEN SERVICE IS NEEDED
The customer must transfer any image or other
data saved on a Product to another image or
data storage medium and/or remove any fi lm
from the Product prior to sending the Product to
Olympus for service.
IN NO EVENT SHALL OLYMPUS BE
RESPONSIBLE FOR SAVING, KEEPING OR
MAINTAINING ANY IMAGE OR DATA SAVED
ON A PRODUCT RECEIVED BY IT FOR
SERVICE, OR ON ANY FILM CONTAINED
WITHIN A PRODUCT RECEIVED BY IT
FOR SERVICE, NOR SHALL OLYMPUS BE
RESPONSIBLE FOR ANY DAMAGES IN
THE EVENT ANY IMAGE OR DATA IS LOST
OR IMPAIRED WHILE SERVICE IS BEING
PERFORMED (INCLUDING, WITHOUT
LIMITATION, DIRECT, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
LOSS OF PROFITS OR LOSS OF USE),
WHETHER OR NOT OLYMPUS SHALL BE OR
SHOULD BE AWARE OF THE POSSIBILITY OF
SUCH POTENTIAL LOSS OR IMPAIRMENT.
Package the Product carefully using ample
padding material to prevent damage in transit
and either deliver it to the Authorized Olympus
Dealer that sold you the Product or ship it
postage prepaid and insured to any of our
Olympus Service Centers.
When returning Products for service, your
package should include the following:
1 Sales receipt showing date and place of
purchase.
2 Copy of this limited warranty bearing the
Product serial number corresponding to the
serial number on the Product (unless it is a
model on which Olympus does not place and
record serial numbers).
3 A detailed description of the problem.
4 Sample prints, negatives, digital prints (or fi les on
disk) if available and related to the problem.
When service is completed, the Product will be
returned to you postage prepaid.
WHERE TO SEND PRODUCT FOR
SERVICE
See “WORLDWIDE WARRANTY” for the
nearest service center.
INTERNATIONAL WARRANTY SERVICE
International warranty service is available under
this warranty.
68
EN
For customers in Europe
“CE” mark indicates that this product complies
with the European requirements for safety,
health, environment and customer protection.
“CE” mark cameras are intended for sales in
Europe.
This symbol [crossed-out wheeled bin WEEE
Annex IV] indicates separate collection of waste
electrical and electronic equipment in the EU
countries.
Please do not throw the equipment into the
domestic refuse.
Please use the return and collection systems
available in your country for the disposal of this
product.
This symbol [crossed-out wheeled bin Directive
2006/66/EC Annex II] indicates separate
collection of waste batteries in the EU countries.
Please do not throw the batteries into the
domestic refuse. Please use the return and
collection systems available in your country for
the disposal of the waste batteries.
Provisions of warranty
1 If this product proves to be defective, although it
has been used properly (in accordance with the
written Handling Care and Operating instructions
supplied with it), during the applicable national
warranty period and has been purchased from
an authorized Olympus distributor within the
business area of Olympus Europa Holding GmbH
as stipulated on the website: http://www.olympus.
com this product will be repaired, or at Olympus’s
option replaced, free of charge. To claim under
this warranty the customer must take the product
before the end of the applicable national warranty
period to the dealer where the product was
purchased or any other Olympus service station
within the business area of Olympus Europa
Holding GmbH as stipulated on the website:
http://www.olympus.com. During the one year
period of the World Wide Guarantee the customer
may turn the product in at any Olympus service
station. Please notice that not in all countries
such Olympus service station exists.
2 The customer shall transport the product to the
dealer or Olympus authorized service station
at his own risk and shall be responsible for any
costs incurred in transporting the product.
Provisions of Guarantee
1 “OLYMPUS IMAGING CORP., Shinjuku
Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku,
Tokyo 163-0914, Japan grants a one year World
Wide Guarantee. This worldwide Guarantee
must be presented at an Olympus authorized
repair service station before any repair can
be made under conditions of this Guarantee.
This Guarantee is valid only if the Guarantee
Certifi cate and proof of purchase are presented
at the Olympus repair service station. Please note
that this Guarantee is in addition to and does not
affect the customer’s legal warranty rights under
the applicable national legislation governing the
sale of consumer goods mentioned above.
2 This Guarantee does not cover the following
and the customer will be required to pay repair
charge, even for defects occurring within the
Guarantee period referred to above.
Any defect that occurs due to mishandling
(such as an operation performed that is not
mentioned in the Handling Care or other
sections of the instructions, etc.)
Any defect that occurs due to repair,
modifi cation, cleaning, etc. performed by
anyone other than Olympus or an Olympus
authorized service station.
Any defect or damage that occurs due to
transport, a fall, shock, etc. after purchase of
the product.
Any defect or damage that occurs due to fi re,
earthquake, fl ood damage, thunderbolt, other
natural disasters, environmental pollution and
irregular voltage sources.
Any defect that occurs due to careless or
improper storage (such as keeping the
product under conditions of high temperature
and humidity, near insect repellents such as
naphthalene or harmful drugs, etc.), improper
maintenance, etc.
Any defect that occurs due to exhausted
batteries, etc.
Any defect that occurs due to sand, mud, etc.
entering the inside of the product casing.
When the Guarantee Certifi cate is not
returned with the product.
When any alterations whatsoever are made to
the Guarantee Certifi cate regarding the year,
month and date of purchase, the customer’s
name, the dealer’s name, and the serial
number.
When proof of purchase is not presented with
this Guarantee Certifi cate.
3 This Guarantee applies to the product only; the
Guarantee does not apply to any other accessory
equipment, such as the case, strap, lens cap and
batteries.
4 Olympus’s sole liability under this Guarantee shall
be limited to repairing or replacing the product.
Any liability under the Guarantee for indirect
or consequential loss or damage of any kind
incurred or suffered by the customer due to a
defect of the product, and in particular any loss
or damage caused to any lenses, fi lms, other
equipment or accessories used with the product
or for any loss resulting from a delay in repair or
loss of data, is excluded. Compelling regulations
by law remain unaffected by this.
a.
b.
c.
d.
e.
f.
g.
h.
i.
j.
69
EN
Notes regarding Guarantee maintenance
1 This Guarantee will only be valid if the Guarantee
Certifi cate is duly completed by Olympus or an
authorized dealer or other documents contain
suffi cient proof. Therefore, please make sure
that your name, the name of the dealer, the
serial number and the year, month and date of
purchase are all completed or the original invoice
or the sales receipt (indicating the dealer’s
name, the date of purchase and product type) is
attached to this Guarantee Certifi cate. Olympus
reserves the right to refuse free-of-charge service
if neither Guarantee Certifi cate is completed
nor the above document is attached or if the
information contained in it is incomplete or
illegible.
2 Since this Guarantee Certifi cate will not be re-
issued, keep it in a safe place.
* Please refer to the list on the web site: http://
www.olympus.com for the authorized international
Olympus service network.
For customers in Asia
Provisions of warranty
1 lf this product proves to be defective, although it
has been used properly (in accordance with the
written Handling Care and Operating instructions
supplied with it), during a period of up to one
year from the date of purchase this product will
be repaired, or at Olympus’s option replaced,
free of charge. To claim under warranty the
customer must take the product and this Warranty
certifi cate before the end of the one year warranty
period to the dealer where the product was
purchased or any Olympus authorized service
station listed in the instructions and request the
necessary repairs.
2 The customer shall transport the product to the
dealer or Olympus authorized service station
at his own risk and shall be responsible for any
costs incurred in transporting the product.
3 This warranty does not cover the following
and the customer will be required to pay repair
charge, even for defects occurring within the one
year period referred to above.
Any defect that occurs due to mishandling
(such as an operation performed that is not
mentioned in the Handling Care or other
sections of the instructions, etc.)
Any defect that occurs due to repair,
modifi cation, cleaning, etc. performed by
anyone other than Olympus or an Olympus
authorized service station.
Any defect or damage that occurs due to
transport, a fall, shock, etc. after purchase of
the product.
Any defect or damage that occurs due to fi re,
earthquake, fl ood damage, thunderbolt, other
natural disasters, environmental pollution and
irregular voltage sources.
a.
b.
c.
d.
Any defect that occurs due to careless or
improper storage (such as keeping the
product under conditions of high temperature
and humidity, near insect repellents such as
naphthalene or harmful drugs, etc.), improper
maintenance, etc.
Any defect that occurs due to exhausted
batteries, etc.
Any defect that occurs due to sand, mud, etc.
entering the inside of the product casing.
When this Warranty Certifi cate is not returned
with the product.
When any alterations whatsoever are made
to the Warranty Certifi cate regarding the year,
month and date of purchase, the customer’s
name, the dealer’s name, and the serial
number.
When proof of purchase is not presented with
this Warranty Certifi cate.
4 This Warranty applies to the product only; the
Warranty does not apply to any other accessory
equipment, such as the case, strap, lens cap and
batteries.
5 Olympus’ sole liability under this warranty shall be
limited to repairing or replacing the product and
any liability for indirect or consequential loss or
damage of any kind incurred or suffered by the
customer due to a defect in the product, and in
particular any loss or damage caused to any fi lm
or lenses or other equipment or accessories used
with the product or for any loss resulting from
delay in repair, is excluded.
Notes;
1 This Warranty is in addition to and does not affect
the customer’s statutory right.
2 lf you have any queries regarding this Warranty,
call any of the Olympus authorized service
stations listed in the instructions.
Notes regarding warranty maintenance
1 This Warranty will only be valid if the Warranty
Certifi cate is duly completed by Olympus or the
dealer. Make sure that your name, the name of
the dealer, the serial number and the year, month
and date of purchase are all completed.
2 Since this Warranty Certifi cate will not be
re-issued, keep it in a safe place.
3 Any request for repair by a customer in same
country where the product was purchased shall
be subject to the terms of the warranty issued by
the Olympus distributor in that country. Where
the local Olympus distributor does not issue a
separate warranty or where the customer is not in
the country where the product was purchased the
terms of this worldwide warranty shall apply.
4 Where applicable, this Warranty is valid
worldwide. The Olympus authorized service
stations listed in this Warranty will gladly honor it.
* Please refer to the appended list for the
authorized international Olympus service
network.
e.
f.
g.
h.
i.
j.
70
EN
Disclaimer of Warranty
Olympus makes no representations or
warranties, either expressed or implied, by or
concerning any content if these written materials
or software, and in no event shall be liable
for any implied warranty of merchantability or
fi tness for any particular purpose or for any
consequential, incidental or indirect damages
(including but not limited to damages for loss
of business profi ts, business interruption and
loss of business information) arising from the
use of inability to use these written materials or
software. Some states do not allow the exclusion
or limitation of liability for consequential or
incidental damages, so the above limitations
may not apply to you.
Trademarks
IBM is a registered trademark of International
Business Machines Corporation.
Microsoft and Windows are registered trademarks
of Microsoft Corporation.
Macintosh is a trademark of Apple Inc.
The SDHC logo is a trademark.
All other company and product names are
registered trademarks and/or trademarks of their
respective owners.
The standards for camera fi le systems referred to
in this manual are the “Design rule for Camera File
system/DCF” standards stipulated by the Japan
Electronics and Information Technology Industries
Association (JEITA).
•
•
•
•
•
•
71
EN
SPECIFICATIONS
Camera
Product type : Digital camera (for shooting and displaying)
Recording system
Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File
system (DCF))
Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge
Sound with still
pictures
:Wave format
Movie : AVI Motion JPEG
Memory : Internal memory
SD memory card
SDHC memory card
No. of effective pixels : 14,000,000 pixels
Image pickup device : 1/2.3” CCD (primary color fi lter)
Lens : Olympus lens 5.0 to 35.0 mm, f3.0 to 5.9
(equivalent to 28 to 196 mm on a 35 mm camera)
Photometric system : Digital ESP metering, spot metering system
Shutter speed : 4 to 1/2000 sec.
Shooting range : 0.7 m (2.3 ft.) to (normal))
0.1 m (0.3 ft.) to (W), 0.6 m (2.0 ft.) to (T) (macro mode)) )
0.02 m (0.8 in.) to 0.7 m (2.3 ft.) (W only) (super macro mode)
Monitor : 2.7” TFT color LCD display, 230,000 dots
Connector : DC-IN jack, USB connector, A/V OUT jack (Multi-connector)
Automatic calendar
system
:2000 up to 2099
Operating environment
Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/
-20 °C to 60 °C (-4 °F to 140 °F) (storage)
Humidity : 30 % to 90 % (operation)/10 % to 90 % (storage)
Power supply : One Olympus lithium ion battery (LI-42B/LI-40B) or separately sold AC adapter
Dimensions : 93.2 mm (W) × 55.5 mm (H) × 26.2 mm (D)
(3.7 × 2.2 × 1.0 in.) (excluding protrusions)
Weight : 140 g (4.9 oz) (including battery and card)
72
EN
Lithium ion battery (LI-42B)
Product type : Lithium ion rechargeable battery
Standard voltage : DC 3.7 V
Standard capacity : 740 mAh
Battery life : Approx. 300 full charges (varies on usage)
Operating environment
Temperature : 0°C to 40°C (32°F to 104°F) (charging)/
-10°C to 60°C (14°F to 140°F) (operation)/
-20°C to 35°C (-4°F to 95°F) (storage)
Dimensions : 31.5 mm (W) × 39.5 mm (H) × 6.0 mm (D) (1.2 × 1.5 × 0.2 in.)
Weight : Approx. 15 g (0.5 oz)
USB-AC adapter (F-2AC)
Model No. : F-2AC-1A/F-2AC-2A/F-2AC-1B/F-2AC-2B
Power requirements : AC 100 to 240 V (50/60 Hz)
Output : DC 5 V, 500 mA
Operating environment
Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/
-20 °C to 60 °C (-4 °F to 140 °F) (storage)
Dimensions : 50.0 mm (W) × 54.0 mm (H) × 22.0 mm (D) (2.0 × 2.1 × 0.9 in.)
Weight : Approx. 46.0 g (1.6 oz) (F-2AC-1A)/Approx. 42.0 g (1.5 oz) (F-2AC-2A)/
Approx. 44.0 g (1.6 oz) (F-2AC-1B)/Approx. 40.0 g (1.4 oz) (F-2AC-2B)
Design and specifi cations subject to change without notice.
VN684801
Product specificaties
Merk: | Olympus |
Categorie: | Digitale camera |
Model: | STYLUS-7030 |
Heb je hulp nodig?
Als je hulp nodig hebt met Olympus STYLUS-7030 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Digitale camera Olympus
16 Februari 2022
17 Augustus 2022
16 Augustus 2022
8 Februari 2022
16 Augustus 2022
7 Februari 2022
17 Augustus 2022
16 Februari 2022
9 Februari 2022
17 Augustus 2022
Handleiding Digitale camera
- Digitale camera Braun
- Digitale camera Bosch
- Digitale camera HP
- Digitale camera Sony
- Digitale camera Samsung
- Digitale camera Xiaomi
- Digitale camera Casio
- Digitale camera Panasonic
- Digitale camera Nikon
- Digitale camera Epson
- Digitale camera Canon
- Digitale camera JVC
- Digitale camera Motorola
- Digitale camera Medion
- Digitale camera Quintezz
- Digitale camera Toshiba
- Digitale camera VTech
- Digitale camera A-Rival
- Digitale camera AEE
- Digitale camera Agfa
- Digitale camera Agfaphoto
- Digitale camera Aiptek
- Digitale camera Albrecht
- Digitale camera Apeman
- Digitale camera Argus
- Digitale camera Beha-Amprobe
- Digitale camera BenQ
- Digitale camera BlackVue
- Digitale camera BML
- Digitale camera Bolyguard
- Digitale camera Brinno
- Digitale camera Bushnell
- Digitale camera Denver
- Digitale camera Digital Blue
- Digitale camera Dnt
- Digitale camera Drift
- Digitale camera Easypix
- Digitale camera Ematic
- Digitale camera Envivo
- Digitale camera Fisher Price
- Digitale camera Flir
- Digitale camera Fuji
- Digitale camera Fujifilm
- Digitale camera GE
- Digitale camera Gembird
- Digitale camera General Electric
- Digitale camera Genius
- Digitale camera Geonaute
- Digitale camera Goclever
- Digitale camera GoPro
- Digitale camera Guardo
- Digitale camera HTC
- Digitale camera Ingo
- Digitale camera Insta360
- Digitale camera Ion
- Digitale camera Kodak
- Digitale camera Kompernass - Lidl
- Digitale camera Konica
- Digitale camera Konig Electronic
- Digitale camera Kyocera
- Digitale camera Lamax
- Digitale camera Leica
- Digitale camera Lexibook
- Digitale camera Liquid Image
- Digitale camera Maginon
- Digitale camera Magpix
- Digitale camera Minolta
- Digitale camera Minox
- Digitale camera Mustek
- Digitale camera Nytech
- Digitale camera Pentax
- Digitale camera Plawa
- Digitale camera Polaroid
- Digitale camera Powerfix
- Digitale camera Praktica
- Digitale camera Pulsar
- Digitale camera Qware
- Digitale camera RadioShack
- Digitale camera Red
- Digitale camera Renkforce
- Digitale camera Revue
- Digitale camera Ricoh
- Digitale camera Rollei
- Digitale camera Sakar
- Digitale camera SeaLife
- Digitale camera Sigma
- Digitale camera Silvercrest
- Digitale camera Sipix
- Digitale camera Somikon
- Digitale camera Spypoint
- Digitale camera Storex
- Digitale camera Targa
- Digitale camera Technaxx
- Digitale camera Tevion
- Digitale camera TomTom
- Digitale camera Traveler
- Digitale camera Trust
- Digitale camera Umax
- Digitale camera Veho
- Digitale camera Vivitar
- Digitale camera Voigtlaender
- Digitale camera Wanscam
- Digitale camera WASPcam
- Digitale camera Yakumo
- Digitale camera Jobo
- Digitale camera Odys
- Digitale camera Oregon Scientific
- Digitale camera Duramaxx
- Digitale camera Guide
Nieuwste handleidingen voor Digitale camera
22 Oktober 2024
14 Februari 2024
4 Februari 2024
25 December 2023
25 December 2023
16 Oktober 2023
16 Oktober 2023
16 Oktober 2023
16 Oktober 2023
16 Oktober 2023
