NL-6003P u-blox NEO-6P MD6/seriell Receiver

Operation manual (62457)

1. Introduction

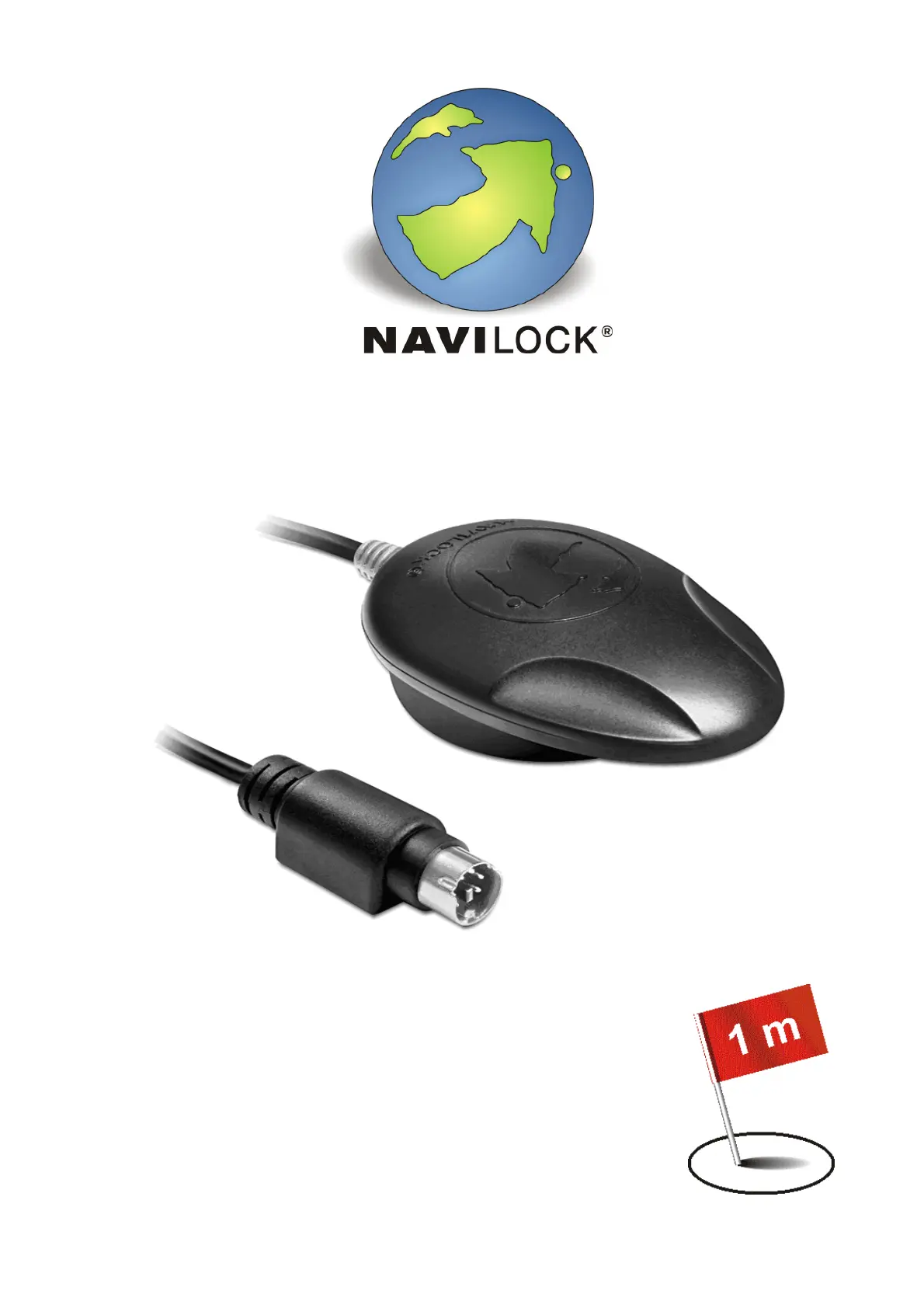

The NL-6003P is a MD6/serial GNSS receiver with internal antenna and ublox NEO-6P GPS

module. This module allows a positioning accuracy of under one metre through a combination of

PPP (Precision point Positioning) and SBAS technologies. The MD6/serial interface enables

connection to a notebook, UMPC, tablet or car PC. The receiver's bottom side is rubberized and

magnetic, which allows for universal positioning. Thanks to its compact design and its high

precision positioning technology, it is the ideal companion at work and at leisure.

Contents*

• 1x Navilock NL-6003P

• 1x 8 cm CD ROM including operation manual

* Before using the device, please make sure that all the parts are included in the package. If any

parts are missing or damaged, please contact your dealer immediately.

Important health and safety information

When using this product, take the following precautions in order to avoid possible damages and legal consequences. Always follow

all safety and operation manuals exactly and keep them for future reference. Observe all warnings in the operation manual and on the

product. In order to avoid injuries, electrocution, fire and damages to the product, observe the following precautions:

ELECTRIC SECURITY

This product is designed for operation with power supply via the USB or PS/2 port. Any other operation mode can be dangerous and

may void the warranty claims for this product. This unit contains an internal back-up battery.

NOTE: RECYCLE OR DISPOSE OF USED BATTERIES OR RECHARGEABLE BATTERIES IN

ACCORDANCE WITH ALL APPLICABLE REGULATIONS AND THE INSTRUCTIONS

INCLUDED WITH THE PRODUCT.

PRECAUTIONS REGARDING DIRECT SUNLIGHT

Make sure the unit is not exposed to very high humidity and temperatures. Never leave the unit, the battery or the rechargeable

battery for an extended period in a vehicle or plate, where the temperature can increase to over 60°C (140°F), for example on the

dashboard of a car, the window sill or behind a pane of glass, which is directly exposed to the sun or very strong UV light. Otherwise

the unit or the vehicle may be damaged, and the battery or the rechargeable battery may overheat.

Damages requiring repairs

Disconnect the unit from the AC supply in the following cases; also disconnect the rechargeable battery and contact an authorized

repair man or your dealer.

• Liquid or an object has entered the product.

• The product has fallen down or was damaged.

• There are visible signs of overheating.

• When operated normally, the product does not function flawlessly.

Avoid using the unit directly after strong temperature changes.

If the unit is exposed to strong temperature and humidity fluctuations, condensation can form in the unit. In order to avoid damage to

the unit, please wait until the condensation has dried off before using the unit.

NOTE: If you bring the unit from a cold to a warm environment, or vice versa, first let it get

accustomed to the new temperature before turning it on.

2. Starting operation

You may connect the NL-6003P either to the serial interface of your PC using an MD6 to DB9

adapter cable, or to the USB interface of your PC using an MD6 to USB adapter cable.

MD6 to DB9: http://www.navilock.de/produkte/G_61265/merkmale.html?setLanguage=en

MD6 to USB: http://www.navilock.de/produkte/G_61264/merkmale.html?setLanguage=en

All values for the serial connection via DB9, such as COM Port, Baud rate etc., result from the

settings of this interface on your PC.

Use the following guide for USB adaptation:

Plug the USB cable into a free USB connector of your notebook, etc. Your Windows operating

system then detects the NL-6003P and attempts to install a driver. When automatic detection

does not work, install the Prolific USB driver from the supplied CD under the Installation -> NL-

6003P menu item.

Please restart your computer after the installation is completed. Afterwards, the GPS COM Port

will be available in the device manager under connections. Set this port in your navigation or

route planner software. Do not simultaneously use any other program accessing this COM Port.

3. LED indicator

flashes with satfix

lights without satfix

4. Application environment

The NL-6003P can be used as a MD6/Serial GPS receiver under Windows

CE/2000/XP/Vista/7/8. The corresponding driver is available on the CD-ROM.

5. Functional test with u-Center 7.xx

Download u-center from:

http://www.navilock.de/produkte/F_1037_NEO-6P_62457/software.html

Install the u-center software on your unit. Select the version suitable for your system. U-center is

a pure test program and cannot be used for navigation or orientation. It must always be closed

after the test. It blocks the COM port and does not allow any access of the navigation or route

software to the COM port. It also serves for updating the Assist GPS data and switching to

EGNOS or WAAS etc.

Product specificaties

Merk:	Navilock
Categorie:	GPS apparaat
Model:	NL-6003P
Kleur van het product:	Zwart
Gewicht:	- g
Breedte:	45 mm
Diepte:	65 mm
Hoogte:	22 mm
Interface:	MD6 Navilock
Ondersteunt Windows:	Ja
Frequentie:	1575.42 MHz
Ondersteunt Mac-besturingssysteem:	Ja
Gevoeligheid:	-160 dBmW
Ondersteunt Linux:	Ja
Aantal kanalen:	- kanalen
Antenne:	Intern
Chipset:	u-blox 6
Bedrijfstemperatuur (T-T):	-20 - 65 °C
Acquisitietijden - koud:	38 s
GPS-nauwkeurigheid - plaats:	2.5 m
Acquisitietijden - heet:	1 s
Navigation signals supported:	L1
Datums kaarten:	WGS-84
