Pagina 1/24

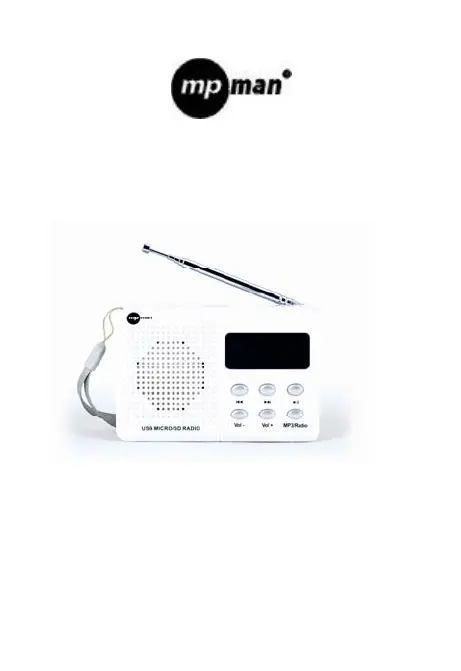

USB SD DIGITAL FM RECEIVER

Model No.: RPS500PLL

INSTRUCTION MANUAL

1. Display

2. Power ON/OFF

3. Previous

4. Volume -

5. Next

6. Volume +

7. Play/Pause

8. MP3/Radio

9. FM Antenna

10. DC 5V USB Cable connector

11. SD/MMC Card Slot

12. Headphone Jack

13. TF Card Slot

14. USB Connector

OPERATING INSTRUCTION

Battery Supply

Open the battery compartment and insert as indicated in the compartment

one Rechargeable Batteries, Li-ion 3.7V

Battery Charging

Connect the unit by inserting the USB cable into DC 5V IN jack, and

inserting the other end into the USB interface or USB charger. The

charging time is around 2 hours. The charging indicator will flash during

battery charging.

To use 5V AC/DC adapter for external DC charging, plug the connecting

cable to the DC jack. (Voltage adapter is an optional accessory. Do not

charge the battery with the AC / DC adapter for more than 24 hours.)

IMPORTANT

If the unit has not been used for a long period of time, the rechargeable

battery may be completely discharged into a “sleep mode” condition. This

is the characteristics of all the rechargeable battery. For the first time to

recharge (to wake up) the battery, it is recommended to charge for a period

exceed 5 hours but not exceed 24 hours.

Radio

1. Switch Power button to ON position to switch on the unit.

2. Press Next or Previous button for a second to start radio scanning.

3. Adjust the sound volume by pressing Vol- & Vol+

4. Switch Power button to OFF position to switch off the unit.

Radio Preset

1. Press Play Button for 2 seconds to start Auto-Scan Preset Stations. It

will auto-stop when all the stations have been found out.

2. Press Next or Previous button once to select preset stations.

To improve reception:

Pull out the telescopic aerial. To improve FM Reception incline and turn the

aerial, reduce its length if the FM-signal is too strong (very close to a

transmitter).

USB, SD/MMC CARD, TF Card PLAYBACK

Able to decode and playback all MP3 files which stored in the memory

media with USB connector, SD or MMC Card Slot, TF Card.

1. Press MP3/Radio once to MP3 mode.

2. Before connecting the USB media to the unit, make sure the port is in

correct direction and will connect. Or insert SD/MMC/TF Card straightly

without bending.

3. The system will automatically start reading the MP3 files in the USB

Storage Media, SD or MMC Card, TF Card.

4. Press Next / Previous / PLAY Buttons for Next / Previous / PLAY

FUNCTION.

Wrongly connect the USB Storage Media, or SD/MMC/TF Card upside

down could damage the unit or the USB Storage Media or SD/MMC/TF

Card. A locked SD/MMC/TF Card cannot detected or playback.

SPECIFICATIONS

Power Output: 1W RMS

Input Power: DC 5V

Rechargeable Battery: DC Li-ion 3.7V 400mAh

PRECAUTIONS:

1. Do not expose the unit to extreme temperature nor high humidity to

ensure normal functioning for a long lifetime.

For instances, never place the unit in bathing areas nor around stoves and

radiators.

Product specificaties

Merk:	Mpman
Categorie:	Radio
Model:	RPS500PLL
Kleur van het product:	Wit
Ingebouwd display:	Ja
Geïntegreerde geheugenkaartlezer:	Ja
Compatibele geheugenkaarten:	MMC, SD
Ingebouwde luidsprekers:	Ja
Gemiddeld vermogen:	- W
Aantal ingebouwde luidsprekers:	1
Hoofdtelefoonuitgangen:	1
Ondersteunde frequentiebanden:	FM, PLL
Radio:	Draagbaar
Apple docking-compatibiliteit:	Niet ondersteund
