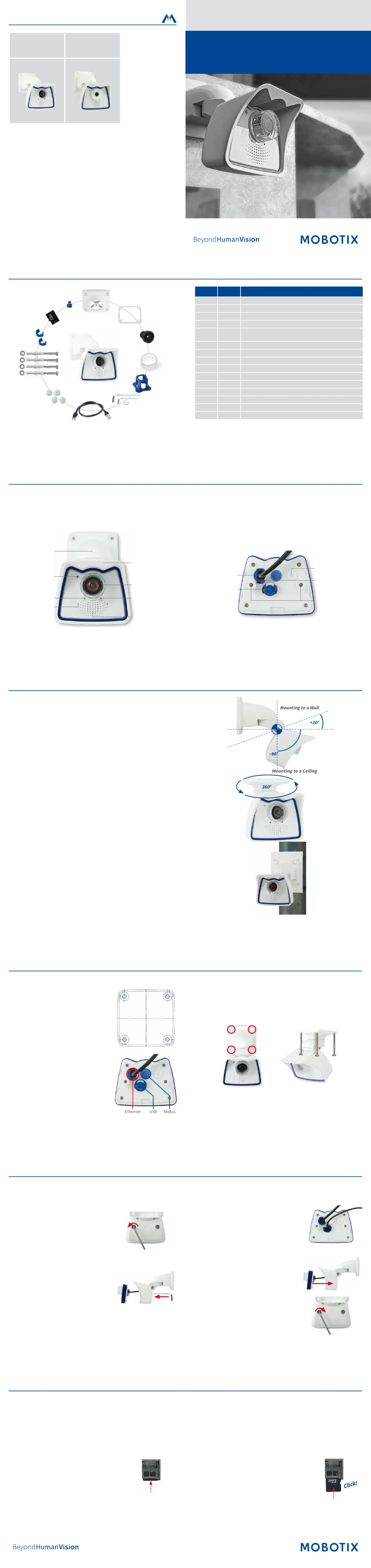

M26 Allround

Quick Install

32.818-003_EN_04/2018

Standard Delivery M26

1.2

1.3

1.9

1.10, 1.11, 1.12

1.14

1.8

1.13

1.5

1.4

1.6

1.1

1.15

Item Count Part Name

1.1 1 Camera in weatherproof housing, incl. VarioFlex wall mount

1.2 1 Ceiling mount

1.3 1 Sealing for wall and ceiling mount

1.4 1 Lens, installed (standard M14 or B016)

1.5 2 Lens cover, 1 installed, 1 replacement (not available for lens

B016, cover for B500 not shown, no replacement cover for B500)

1.6 1 Lens wrench B016 (only for D016/N016)

1.7 2 Allen wrench 5 mm, Allen wrench 2.5 mm

1.8 1 Special Ethernet cable 0.5 m/20", installed

1.9 4 Screw caps for stainless steel fastening screws

1.10 4 Stainless steel wood screws 6x50 mm

1.11 4 Stainless steel washers 6.4 mm dia.

1.12 4 Dowel S8

1.13 2

Cable lock with bayonet catch (Ethernet patch cable, MiniUSB)

1.14 1 MicroSD card installed

1.15 1 MiniUSB plug

Removing/Installing the Weatherproof Housing

For certain tasks (e.g., connecting additional wires, exchanging the SD card), you need to remove the weatherproof housing and install it again once you

are nished.

1. Remove the fastening screws at the back

Start by removing the two rubber plugs that

protect the fastening screws. Next, unscrew

the two fastening screws of the weatherproof

housing using the supplied Allen wrench 5 mm

(item 1.7), but do not remove the screws

2. Remove camera from weatherproof hous-

ing

Press the camera from the housing by gently

applying pressure on the screws in alternating

fashion from the rear using the long shank of

the Allen wrench. Unscrew the fastening screws

once the camera is free from the housing

3. Complete the tasks

Follow the procedures for the work inside the

housing as described in the M25 Camera Manual

in Chapter 2, «Installation» (e.g., connecting

additional wires, exchanging the SD card).

4. Insert the camera into the weatherproof housing

Start by inserting the camera into the weath-

erproof housing. Press the camera back into

the housing and take care not to squeeze and

damage any wires inside the housing.

5. Tighten the retaining screws

Aix the camera in the weatherproof housing

using the two retaining screws.

Finally, push in the two rubber plugs that

protect the retaining screws.

Mounting Options of the M26

1. Mounting to a Wall

When installing the M26 on a wall, for example, simply aix the pre-installed

and VarioFlex wall mount included in the delivery with the four supplied

screws and washers.

The camera can be turned or tilted 180° horizontally and 110° vertically

(from –90° to +20°).

2. Mounting to a Ceiling

By exchanging the wall mount for the separately supplied ceiling mount,

the M26 is ready to be mounted to ceilings in just a few easy steps thanks

to the VarioFlex system.

The camera can be turned or tilted 360° horizontally and 110° vertically

(from –90° to +20°).

3. Mounting to Poles (With Accessories)

If you want to mount the camera to a pole with a diameter from 60 to 180 mm,

you should consider using the Pole Mount (MX-MH-SecureFlex-ESWS) made

from white powder-coated stainless steel.

Just like when mounting to a wall, the camera can be turned 180° hor-

izontally and tilted 110° vertically (from –90° to +20°).

Connection and Initial Operation of the M26

For information on connecting the M26, please see the M25 Camera Manual, section «Network and Power Connection, Additional Cables» (PDF, available

on www.mobotix.com > Support > Download Center > Documentation > Manuals).

Please note that the boot options of this camera have changed compared to its predecessor (see «Boot Options of the M26» on page 2) and the camera

only has one key ("R"). Regarding the rest of the initial operation of the M26 please see the M25 Camera Manual in Chapter 3, «Initial Operation»

Microphone

Wall Mount

Recording

Weatherproof

housing

Lens and lens

cover

Speaker

Power/Status

Key R

Ethernet

Pressure vent

MxBus

Retaining screws

USB

Rear (without weatherproof housing)

Installing the M26

1. Drill the holes for the dowels (if required)

Use the drilling template for this step (see

below). Mark the holes for dowels or screws

(blue circles in gure). If required, drill the holes

for the dowels, push them in and cut the cut-

out for the cables. Guide the Ethernet cable

and any other cables that are to be connected

through the cut-out.

2. Connect the cables

If you want to connect additional cables

(USB, MxBus), remove the weatherproof

housing as shown in Section «Removing/

Installing the Weatherproof Housing», con-

nect the cabling as required and again install

the housing. Plug the pre-installed Ether-

net cable into a network socket (e.g., of an

MX-Overvoltage-Protection-Box).

3. Install the camera

Press the wall/ceiling mount and the wall sealing against the mounting

position and align the holes with the holes for the dowels/screws. Insert

the screws with washers and tighten them using a torque of 0.4 Nm. Finally,

press the white covers onto the screw heads.

Inserting/Exchanging the SD Card

All camera models can use the integrated MicroSD card (SDHC) to record video data. In order to exchange the MicroSD card, please proceed as outlined

in the following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > Download Center >

Documentation > White Lists in the document MicroSD Card Whitelist for MOBOTIX Cameras.

When replacing the SD card, make sure that recording has been deactivated in the browser (Admin Menu > Storage > Storage on External File Server /

Flash Device; activate recording again in the same dialog aer exchanging the card).

1. Remove the SD Card

Open the camera (see «Removing/Installing the Weath-

erproof Housing» ), remove all connectors in the cover

of the inner housing, then remove the cover. Remove

the four screws from the back plate and li o the

back plate. Gently push on the MicroSD card in the

card slot of the camera. The card is released from the

slot and can be removed from the camera.

2. Insert the SD Card

Push the MicroSD card into the card slot as shown,

until an audible and perceptible click indicates it is in

place

. Replace the back plate of the camera housing.

Variants

Mx-M26A/B*

B036 – B500

Mx-M26A/B*

B016

*Variant Mx-M26B supports MOBOTIX MxBus modules

Further information on www.mobotix.com:

• Products > Indoor Cameras > M26 Allround

• Support > Download Center > Documentation > Certicates & Declarations of Conformity

MOBOTIX, the MX logo, MxPEG and MxActivitySensor are trademarks of MOBOTIX AG registered in the Euro-

pean Union, the U.S.A., and other countries • Information subject to change without notice • MOBOTIX does

Technical Specications M26

Model Versions Mx-M26A/B* (all Day/Night image sensors)

*Variant Mx-M26B supports MOBOTIX MxBus modules

Lens Options MX-B016 bis MX-B500, 180° to 8° horizontal angle of view

Sensitivity Color sensor (day): 0,1 lx @ 1/60s; 0,005 lx @ 1s

BW sensor (night): 0,02 lx @ 1/60s; 0,001 lx @ 1s

Image Sensor 1/1.8“ CMOS, 6MP (3072x2048), progressive scan

Max. Image Size 6MP (3072x2048)

Image Formats

Freely congurable format 4:3, 8:3, 16:9 or customized format (image

cropping), like 2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080

(Full-HD), 1280x960 (MEGA)

Max. Frame Rate

MxPEG: 42@HD(1280x720), 34@Full-HD, 24@QXGA, 14@5Mp, 12@6MP

M-JPEG*: 25@HD(1280x720), 13@Full-HD, 9@QXGA, 5@5Mp, 4@6MP

H.264: 25@Full-HD, 20@QXGA

Video Codec MxPEG, M-JPEG, JPEG (max. output size 6MP)

H.264 (max. output size QXGA, bandwidth limitation applicable)

ONVIF ONVIF-S (camera soware V5.2.x and higher, 2

half of 2018)

DVR

On internal MicroSD card (SDXC, SDHC pre-installed)

External on USB device

External on NAS

Full image recording regardless of live image zoom

MxFFS

Pre-alarm and post-alarm images

DVR monitoring with error notication

Soware MxManagementCenter

Image Processing MxLEO, backlight compensation, automatic white balance, image

distortion correction

PTZ Digital pan/tilt/zoom; max. zoom 8x (continuous)

Alarm/Events

Temperature sensor, shock detector (with rmware version 5.0.1 and

higher), microphon, other sensors/IOs via MxMessageSystem, noti-

cation via e-mail, FTP, IP telephony (VoIP, SIP), visual/sound alarms,

pre- and postalarm images

Intelligent Video Analysis MxActivitySensor, video motion analysis, MxAnalytics

Audio

Microphone/ loudspeaker, both 16bit/16kHz (HD-Wideband-Audio))

Lip-synchronous audio, audio recording

VoIP/SIP, two-way communication, remote controlling using key

codes

Interfaces

Ethernet 100Base-T, MiniUSB, MxBus*;

inputs/outputs and RS232 via accessories

*Only variant Mx-M26B

Security User/Group management, SSL, IP address lter, IEEE802.1x, intrusion

detection, digital imge signature, MxFFS

Certications

EN55032:2012; EN55022:2010; EN55024:2010; EN50121-4:2015;

EN61000-6-1:2007; EN 61000-6-2:2005; EN61000-6-3:2007+A1:2011;

EN61000-6-4:2007+A1:2011; AS/ NZS CISPR22:2009+A1:2010; CFR47

FCC part15B

Power Supply Power over Ethernet (IEEE 802.3af)

Power Consumption Typ. 4 W

Power Consumption of

External Devices

At MxBus: max. 2,5 W, at USB: max. 2.5 W, total max. 3 W

The power consumption of the camera will increase accordingly!

Protection Classes IP66

IK10

Ambient Temperature –30 to 50 °C/–22 to 122 °F

Dimensions/Weight W x H x D: 140 x 189 x 220 mm; weight: about 350 g

Standard Delivery

Housing (high-resistance composite, PBT), white, conversion set for

ceiling mount, mounting supplies, wrenches, 50 cm patch cable,

soware, MicroSD card (installed)

Important Notes

Safety Warnings

Notes on Installing:

• This product must not be used in locations exposed to

the dangers of explosion.

• Make sure that you install this product as outlined in Chapter 2,

«Installation» of the corresponding manual. A faulty installation can

damage the camera!

• When installing this product, make sure that you are only using gen-

uine MOBOTIX parts and MOBOTIX connection cables.

• Only install this product on suitable, solid materials that provide for

a sturdy installation of the xing elements used.

Electrical installation: Electrical systems and equipment may

only be installed, modied and maintained by a qualied

electrician or under the direction and supervision of a quali-

ed electrician in accordance with the applicable electrical guidelines.

Make sure to properly set up all electrical connections.

Electrical surges: MOBOTIX cameras are protected against

the eects of small electrical surges by numerous measures.

These measures, however, cannot prevent the camera from

being damaged when stronger electrical surges occur. Special care should

be taken when installing the camera outside of buildings to ensure proper

protection against , since this also protects the building and the lightning

whole network infrastructure.

Max. power consumption of attached extension modules:

The power consumption of all attached must MxBus modules

not exceed 2,5 W. When attaching modules to the MxBus

connector and the USB socket, the power consumption of all attached

modules must not exceed 3 W, if the camera is powered by PoE class 3.

If PoE class 2 the power consumption of all attached modules is used,

must not exceed 1 W!

Never touch the lens: Due to the high performance of the

M26, the area of the image sensor can get quite hot, especially

when the ambient temperature is also high. This does not

aect the proper functioning of the camera in any way. For this reason,

the product must not be installed within the reach of persons without the

lens cover.

Power o before opening the camera: Make sure the power

supply to the camera is disconnected before opening the

camera housing (e.g., when inserting or exchanging lenses,

lens units and SD cards).

Network security: MOBOTIX products include all of the nec-

essary conguration options for operation in Ethernet net-

works in compliance with data protection laws. The operator

is responsible for the data protection concept across the entire system.

The basic settings required to prevent misuse can be congured in the

soware and are password-protected. This prevents unauthorized parties

from accessing these settings.

Legal Notes

Legal aspects of video and sound recording: You must com-

ply with all data protection regulations for video and sound

monitoring when using MOBOTIX products. Depending on

national laws and the installation location of the M26, the recording of

video and sound data may be subject to special documentation or it may

be prohibited. All users of MOBOTIX products are therefore required to

familiarize themselves with all valid regulations and comply with these

laws. MOBOTIX AG is not liable for any illegal use of its products.

1. Disposal

Electrical and electronic products contain many valuable

materials. For this reason, we recommend that you dispose of

MOBOTIX products at the end of their service life in accordance

with all legal requirements and regulations (or deposit these

products at a municipal collection center). MOBOTIX products must not be

disposed of in household waste! If the product contains a battery, please

dispose of the battery separately (the corresponding product manuals

contain specic directions if the product contains a battery).

2. Disclaimer

MOBOTIX AG does not assume any responsibility for damages,

which are the result of improper use or failure to comply to the

manuals or the applicable rules and regulations. Our General

Terms and Conditions apply. You can download the current version of the

General Terms and Conditions from our website at www.mobotix.com by

clicking on the link at the bottom of every page.COS

Boot Options of the M26

By default, the camera starts as DHCP client and automatically tries to get

an IP address from a DHCP server. To start the camera in a mode dierent

from the default mode, you can activate the boot menu of the camera.

1. Preparing the Camera

• Disconnect the camera's power supply.

• Make sure that you have suitable item such as a paper clip at hand,

but never use sharp or pointed objects!

• Reconnect the power supply of the camera.

2. Activating the Boot Menu

The right LED lights up red 5 to 10 seconds aer

establishing the power supply and will stay on for

10 seconds. Briey press the key by inserting the paper

clip into the hole indicated by the red circle in the

gure. The camera enters the boot menu, ready for

selecting one of the boot options.

The LED now ashes once and repeats the ash signal aer pausing for

one second (the number of ashes indicates the current boot option). To

go to the next boot option, briey press the key again (< 1 sec). Aer the

last boot option, the camera returns to the rst option (LED ashes once).

LED

ashes

Boot

Option Meaning Audio

Conrmation*

1 x —This option is not used on this camera

model. —

2 x Factory

Defaults

Starts the camera with factory defaults

(factory default IP address, users and

passwords will not be reset).

Boing

3 x Automatic

IP Address

Starts the camera as DHCP client and

tries to obtain an IP address from a DHCP

server. If a DHCP server cannot be found

or no IP address can be obtained, the

camera starts with its factory default

address.

Boing Boing

4 x Recovery

System

Starts the camera with the recovery sys-

tem, e.g., in order to recover from a failed

update of the camera soware.

Alarm Sound

*Only on cameras with audio option and installed speaker.

3. Selecting a Boot Option

Press the paper clip longer (> 2 sec) into the hole. The camera conrms the

selection by ashing rapidly three times. You can now remove the paper

clip. Aer 20 sec, the camera will conrm the selection by playing a sound

according to the table above.

If nothing is selected, the camera will resume its normal boot process

aer a certain time.

Initial Operation of the M26

The initial operation starts with connecting the power supply (see section «Network and Power Connection, Additional Cables» in the M25 Camera Manual).

The rst access follows the procedure described in the same manual in the «Initial Operation of the Camera» section. All other tasks require access to the

camera's user interface in the browser. Enter the camera’s IP address in the address bar of the browser (user "admin", password "meinsm"; password must

be changed upon rst login – camera soware V5.1.x and higher).

1. Set installed lens (only when exchanging)

Open the Admin Menu > Hardware Congura-

tion > Lens Conguration dialog and select the

installed lens. This step is required to select the

proper special functions of the installed lens (e.g.,

for wide-angle lenses).

2. Adjust lens focus (if required)

This step is only necessary if the lens has been

installed for the rst time or exchanged. In cameras

with a MX-B016 ("Hemispheric") lens, the lens has

been focused at the factory. Remove the dome

before proceeding.

Check the live image from the camera in the browser. Activate the focusing

aid in the browser (Focusing Aid Activated quick control, value).

Carefully turn the lens by hand in clockwise or counter-clockwise direction

until the red area of the focusing aid is as small as possible.

Once the focus is adjusted properly, deactivate the focusing aid again

( quick control, value).Focusing Aid Disabled

3. Save the conguration

In the live image of the browser, select the quick control Manage Settings

and set Store Entire Conguration as value. The camera stores the con-

guration in the permanent camera memory so that the settings will be

applied at the next camera reboot.

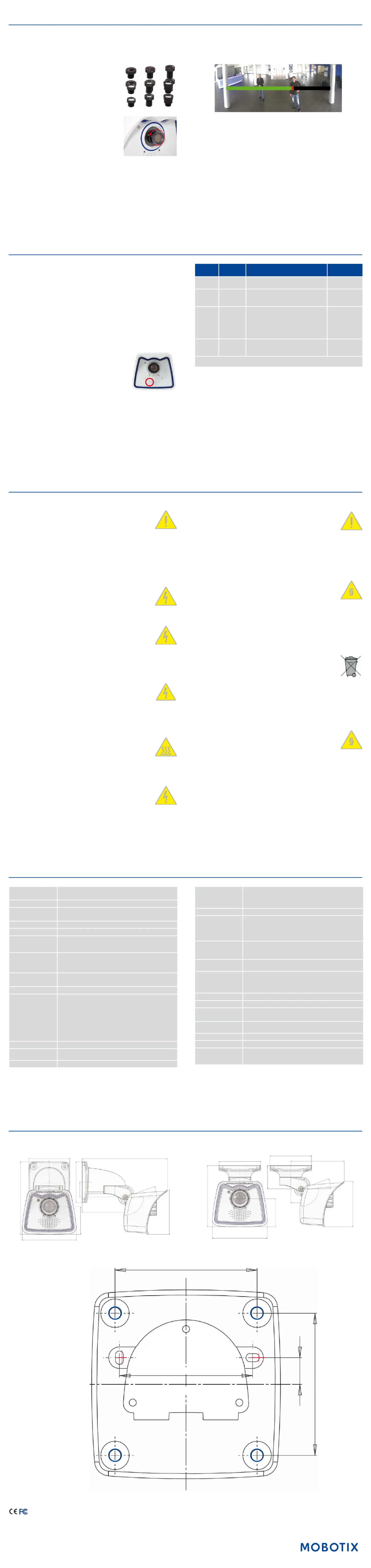

Dimensions/Drilling Template

1. Dimensions—Wall Mount 2. Dimensions—Ceiling Mount

106.5 mm/4.19 in

140.5 mm/5.53 in

112 mm/4.41 in

106.5 mm/4.19 in

39 mm/1.54 in

189 mm/7.44 in

115.5 mm/4.55 in

222 mm/8.74 in

–90°

+20°

72 mm/2.83 in

106.5 mm/4.19 in

27 mm/

1.06 in

137 mm/5.39 in

140.5 mm/5.53 in

156 mm/6.14 in

59 mm/2.32 in

115.5 mm/4.55 in

72 mm/2.83 in

–90°

+20°

80 mm/3.15 in

75 mm/2.95 in

15 mm/

0.59 in

Interface Box

Wall/ceiling mount M26

Product specificaties

Merk:	Mobotix
Categorie:	Bewakingscamera
Model:	M26 Allround
Kleur van het product:	Wit
Gewicht:	350 g
Breedte:	140 mm
Diepte:	220 mm
Hoogte:	189 mm
Soort:	IP-beveiligingscamera
Internationale veiligheidscode (IP):	IP66
LED-indicatoren:	Status
Bluetooth:	Nee
Stemcodecs:	G.711, G.722
Vormfactor:	Doos
USB-poort:	Ja
Ondersteuning voor plaatsing:	Binnen & buiten
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Ja
Montagewijze:	Muur
Maximum resolutie:	3072 x 2048 Pixels
Totaal aantal megapixels:	6 MP
Videocompressieformaten:	H.264, M-JPEG, MxPEG
Type stroombron:	Power over Ethernet (PoE)
Minimale belichting:	0.001 Lux
Aantal cameras:	1
Geïntegreerde geheugenkaartlezer:	Ja
Compatibele geheugenkaarten:	MicroSD (TransFlash)
Ingebouwde HDD:	Nee
Vaste focale lengte:	6.1 mm
Zoomcapaciteit:	Ja
Ingebouwde luidsprekers:	Ja
Certificering:	EN55032: 2012; EN55022: 2010; EN55024: 2010; EN50121-4: 2015; EN61000-6-1: 2007; EN 61000-6-2: 2005; EN61000-6-3: 2007 + A1: 2011; EN61000-6-4: 2007 + A1: 2011; AS / NZS CISPR22: 2009 + A1: 2010; CFR47 FCC 15B
Omvang optische sensor:	1/1.8 "
Type beeldsensor:	CMOS
Digitale zoom:	8 x
Interface:	RJ-45
Ingebouwde microfoon:	Ja
Ondersteunde grafische resoluties:	1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2592 x 1944,3072 x 2048
Bekabelingstechnologie:	10/100Base-T(X)
Netwerkstandaard:	IEEE 802.3af
Ondersteunde netwerkprotocollen:	IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP, NTP, SIP
Web-gebaseerd management:	Ja
Progressive scan:	Ja
Ethernet interface type:	Fast Ethernet
IK code:	IK10
Sample rate:	16 kHz
PTZ control:	Ja
Aantal lenzen:	1
Maximum aperture number:	1.8
Methode voor streaming:	Multicast
Aantal sensoren:	1
Videostreaming:	Ja
Wifi:	Nee
Stroomverbruik (typisch):	5 W
Bedrijfstemperatuur (T-T):	-40 - 50 °C
Code geharmoniseerd systeem (HS):	85258900
Kijkhoek lens, horizontaal:	60 °
Kijkhoek lens, verticaal:	45 °
Temperatuursensor:	Ja
