Pagina 1/4

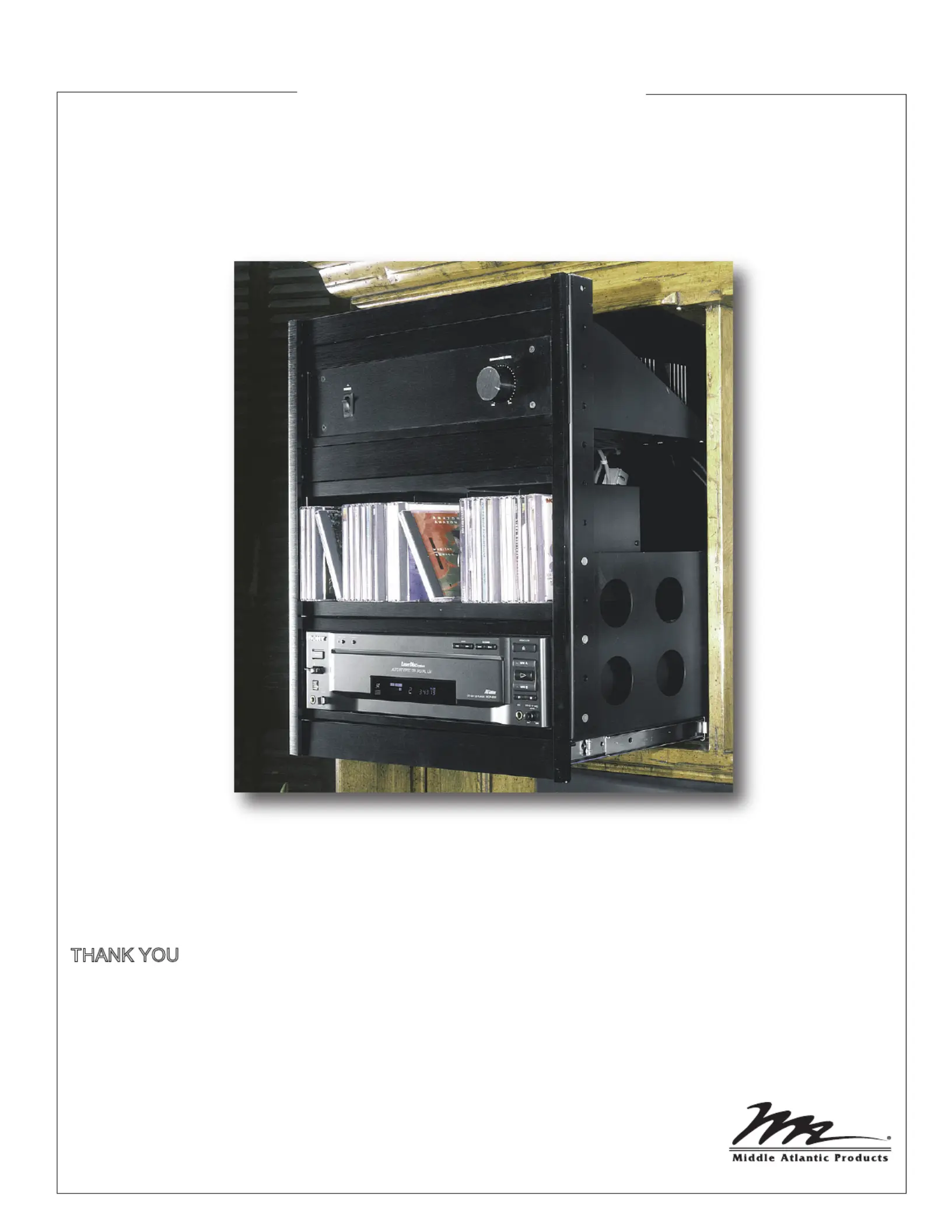

I-0900 Rev J

THANK YOU

Thank you for purchasing the SRS Series. Please read these instructions

thoroughly before installing/assembling this product.

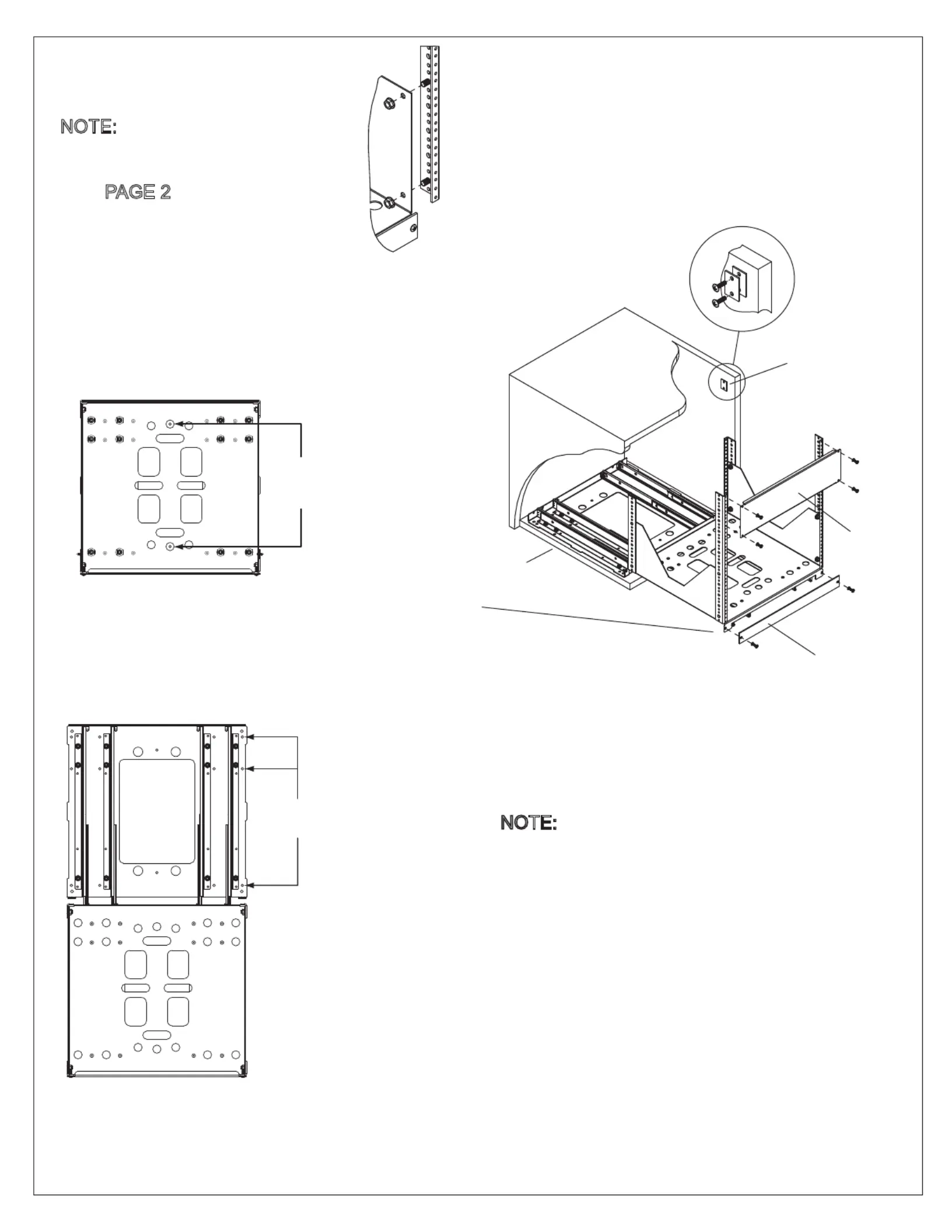

Page 2

12 MOUNTING

HOLES

BOTTOM

PAN

LOCKING

PANEL

SQUARING

PANEL

1) Position and center SRS in millwork with setback

desired.

2) Using 2 preliminary mounting hole locations attach

the SRS to the millwork.

PRELIMINARY

MOUNTING

HOLES

3) Remove "Locking Panel" and slide rack out

4) Secure SRS using 12 mounting points indicated

in drawing.

(4x)

5) Attach rackrail to the sliding section using hardware

provided, finger tighten only.

6) Install squaring panel approximately 1/3 of the way

down from the top of the rackrail using hardware

provided. NOTE: The squaring panel remains in place

until some of the equipment is loaded.

7) Final tighten the rackrail to the sliding section.

8) Test the sliding carriage operation. Adjust mounting

positions as necessary should interference with the

millwork occur.

9) Attach the Locking panel.

10) Rail Stops serve to maintain a plumb position when rack

is closed. Mount 2 stops per side in the highest position

possible while maintaining contact with the backside of

the rackrail in the closed position. Wood screws are

for this provided attachment. (see illustration above)

RAIL STOPS

(stack 2 per side)

NOTE: If optional cable carrier

is used it must be

installed prior to rackrail.

(See PAGE 2)

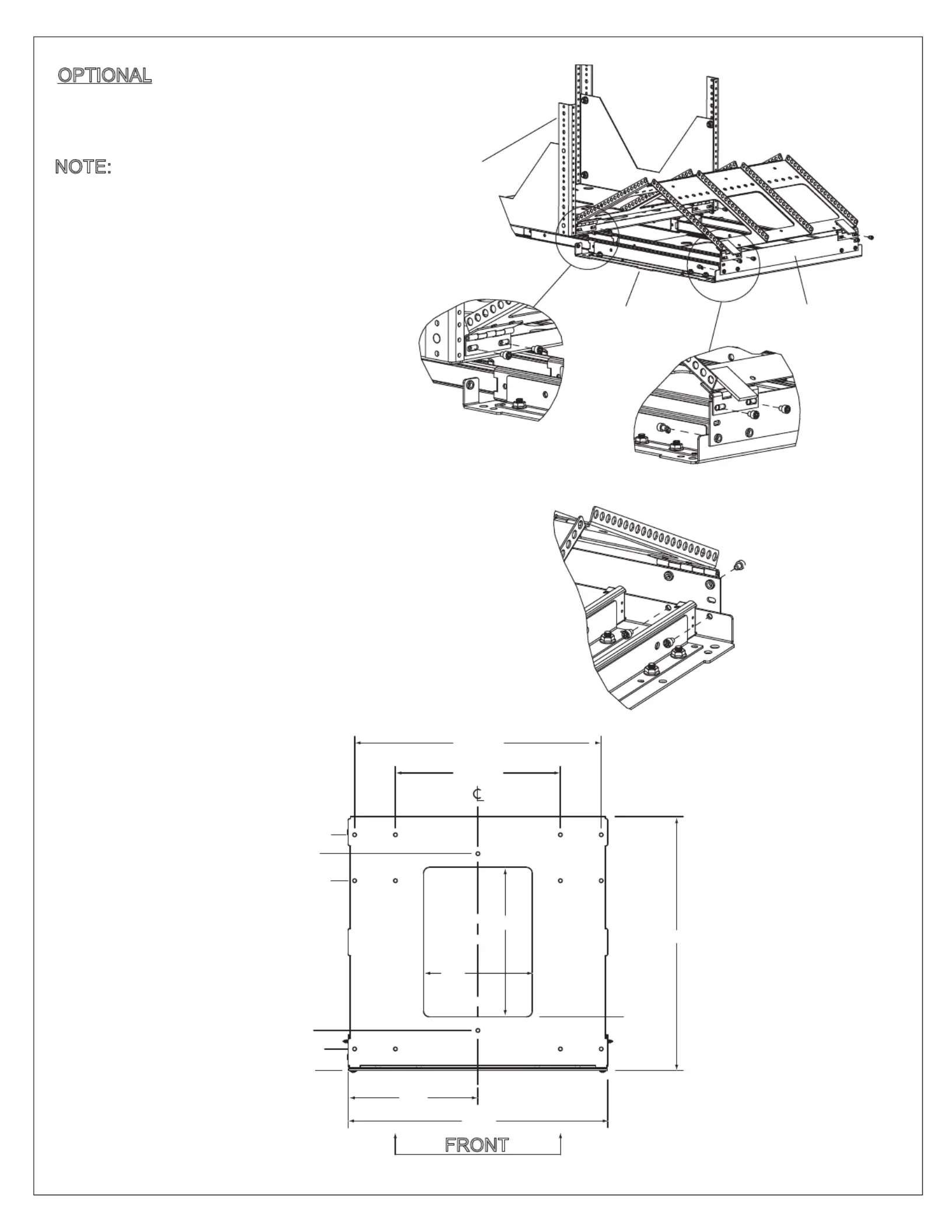

Page 3

OPTIONAL

SRS Cable Carrier Instructions

1) Attach the Hinge Mounting Plate

to the rear surface of the SRS bottom

pan with four 10-32 socket head screws.

2) Attach the Cable Carrier Hinge to the

rear of the Hinge Mounting Panel with

four 10-32 socket head screws.

3) Attach front of Cable Carrier to the

SRS Chassis with four 10-32 socket

head screws

NOTE: Carefully examine drawing

for details of which side hinge

mounting panel goes to

BOTTOM PAN HINGE MOUNTING

PLATE

SRS REAR RAILS

SRS Series rough-in pan

mounting point locations

3x 18.125

3x 12.125

4x 17.34

18.69

15.95

11.0

8.0

.000

(from trim)

9.55

19.09

FRONT

4x 13.97

2.95

4x 1.59

3.95

(only mounting holes shown)

Product specificaties

Merk:	Middle Atlantic
Categorie:	Niet gecategoriseerd
Model:	SRS4-14
Kleur van het product:	Zwart
Breedte:	483 mm
Diepte:	480 mm
Hoogte:	670 mm
Materiaal behuizing:	Staal
Maximale gewichtscapaciteit:	113 kg
Duurzaamheidscertificaten:	RoHS
Maat:	19 "
Rackcapaciteit:	14U
Code geharmoniseerd systeem (HS):	85389099
Diepte (max):	970 mm
