Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 7/30/19 INST99-7426
I N S TA L L AT I O N I N S T R U C T I O N S
99-7426
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted charcoal to match the factory finish
KIT COMPONENTS
• A) Radio housing • B) ISO DIN brackets • C) ISO DIN trim plate • D) ISO DDIN brackets • E) ISO DDIN trimplate • F) Pocket
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–DIN radio provision with pocket ........................3
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................4
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-7552
Antenna Adapter: 40-NI12
Nissan Murano (without Bose audio) * 2009-2014
* For models with climate controls located above the radio
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
A B C D E F
1.800.221.0932
|
MetraOnline.com
2

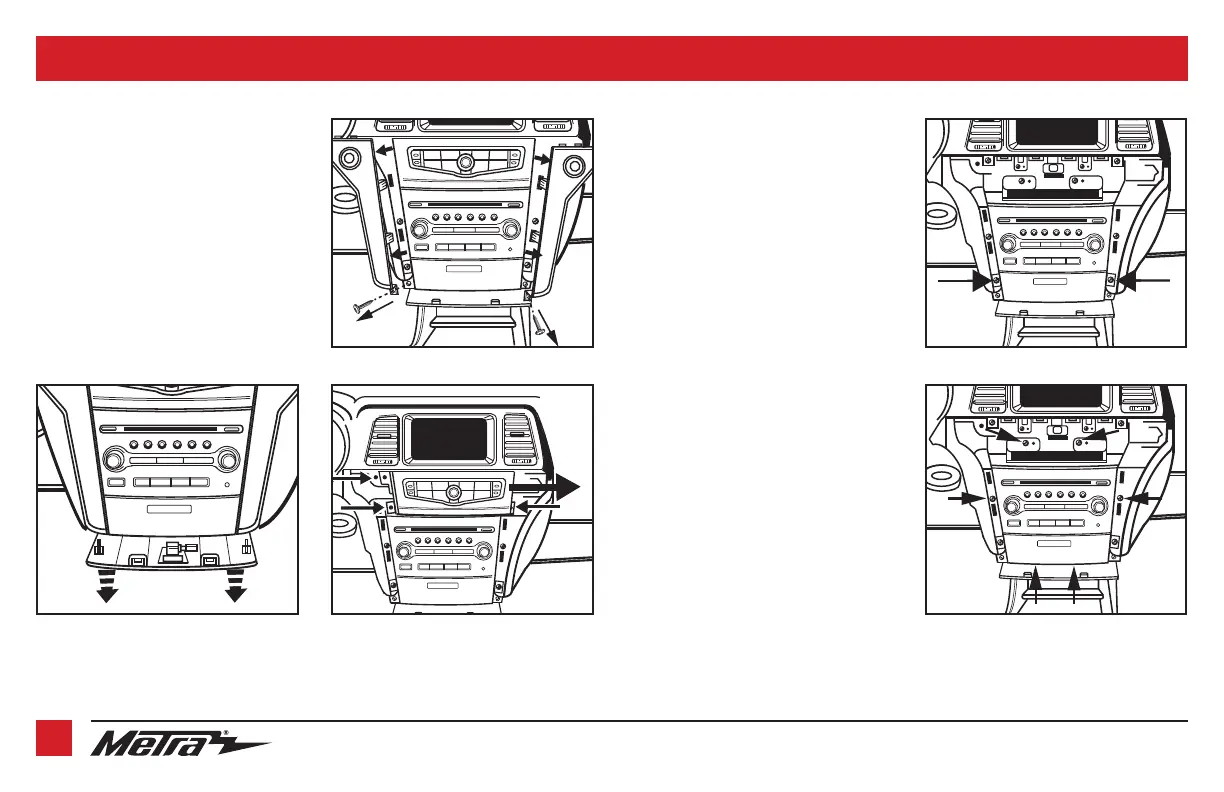

DASH DISASSEMBLY
1. Unclip and remove the trim panel at the
bottom center of the dash. (Figure A)
2. Remove (1) Phillips screw from the
bottom of each side trim panel, then
unclip and remove the panels. (Figure B)
3.
Remove (3) Phillips screws securing
the climate control panel, then unclip,
unplug, and remove the panel. (Figure C)
(Figure C)
(Figure B)
(Figure A)
4.
Remove (2) Phillips screws from the
panel below the radio (containing the
passenger air bag light), then unclip,
unplug, and remove the panel. (Figure D)
5. Remove (6) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove radio. (Figure E)
Continue to Kit Assembly
(Figure E)
(Figure D)
REV. 7/30/2019 INST99-7426 3
KIT ASSEMBLY
DIN radio provision with pocket
1. Remove the metal DIN sleeve from the
aftermarket radio.
2. Slide the sleeve into the and radio housing
secure by bending the metal locking tabs
down. (Figure A)
3. Slide the radio into the sleeve until it snaps
into place. (Figure B)
4. Snap the into the pocket radio housing.
(Figure C)
5. Locate the factory wiring harness and
antenna connector in the dash. Metra
recommends using the proper mating
adapter from Metra or AXXESS. Test the
radio and vehicle for proper operation.
6. Reassemble the dash in reverse order of
disassembly to complete the installation.
ISO DIN radio provision with pocket
1. Remove the metal DIN sleeve and trim ring
from the aftermarket radio.
2. Secure the ISO DIN brackets to the radio
using the screws supplied with the radio.
(Figure A)
3. Slide the radio into the until radio housing
it snaps into place. (Figure B)
4. Snap the onto the front ISO DIN trim plate
of the . (Figure B)radio housing
5. pocket Snap the into the . radio housing
(Figure C)
6. Locate the factory wiring harness and
antenna connector in the dash. Metra
recommends using the proper mating
adapter from Metra or AXXESS. Test the
radio and vehicle for proper operation.
7. Reassemble the dash in reverse order of
disassembly to complete the installation.
(Figure C)(Figure C)
(Figure A)(Figure A)
(Figure B)(Figure B)
Right
side clip
