Pagina 1/47

75” (1 cm) INTERACTIVE FLAT PANEL DISPLAY89

MA- 510WH7

MA- 510BK7

ENGLISH

USER MANUAL

English - 1 -

Contents

Important Safety Information 2 ..................................

General View 6 ..........................................................

Control Buttons on the Display 7 ...............................

Connecting the IR Receiver....................................8

Turning the Display On/O .....................................8

Infrared Overlay Touch Screen 9 ...............................

Remote Control 10 ....................................................

First Time Installation............................................ 11

Android Launcher ................................................. 11

Media Playback via USB Input 15 .............................

Settings Menu Content 17 .........................................

Connectivity 23 ..........................................................

DisplayPort 25 ...........................................................

HDMI Out 25 ..............................................................

Real Time Clock (RTC) 26 .........................................

Crestron Connected 26 .............................................

Controlling With An External PC 26 ...........................

RS232/LAN Command Tables ..............................28

RS232 HEX Commands 37 .......................................

Maximum Pixel Rates 39 ...........................................

Input Matrix 39 ...........................................................

Supported Media Formats from USB 40 ...................

System Features 42 ..................................................

Federal Communication Commission Interference

Statement 43 ............................................................

Accessories Included............................................43

Information for Users on Disposal of Old Equipment

and Batteries 43 ........................................................

License Notication ..............................................44

Vesa Wall Mount Measurements 45 ..........................

Installation On An Indented Wall 45 ..........................

English - 2 -

• Please place the product in a position that electric

cables cannot be aected by the operations on the

product.

• Follow all warnings and instructions marked on the

product.

• Follow the on screen instructions for operating the

related features.

• To prevent the risk of re or electric shock, please

do not overuse the plugs and extension cords.

Please do not open the lid of the monitor to service

yourself. If the required service needs are not met

by an authorized service, dangerous voltage and

other risks may occur.

• If you will not use the product for a long period of

time, unplug the power cord from the mains.

• Put the product on a well-ventilated place and

prevent from bright light, overheat and damp.

• The product should be kept in 0 C° - 40 C°.

Otherwise, the appliance may be damaged

permanently.

• Plug the appliance to a grounded outlet. Always use

the grounded power cord supplied with your product.

Manufacturer is not responsible for any damage

caused unearthed usage.

• The socket-outlet shall be installed near the

equipment and shall be easily accessible.

• Do not stay in contact with the parts of the product

that become hot for long periods of time. Doing so

may result in low-temperature burns.

• The LCD panel used in this product is made of glass.

Therefore, it can break when the product is dropped

or applied with impact. Be careful not to be injured by

broken glass pieces in case the LCD panel breaks.

• Usage of the monitor must not be accompanied

by fatal risks or dangers that, could lead directly

to death, personal injury, severe physical damage

or other loss, including nuclear reaction control in

nuclear facility, medical life support system, and

missile launch control in a weapon system.

• Do not expose the product to direct sunlight or do

not place open ames such as lit candles on the top

of or near the product.

• Do not place any heat sources such as electric

heaters, radiators, etc. near the product.

• In order to prevent a potential electrical shock, in

extreme weather (storms, lightning) disconnect the

product from the mains.

• Do not touch the controls other than those described

in the operating instructions. Improper adjustment of

controls not described in the instructions can cause

damage, which often requires extensive adjustment

work by a qualied technician.

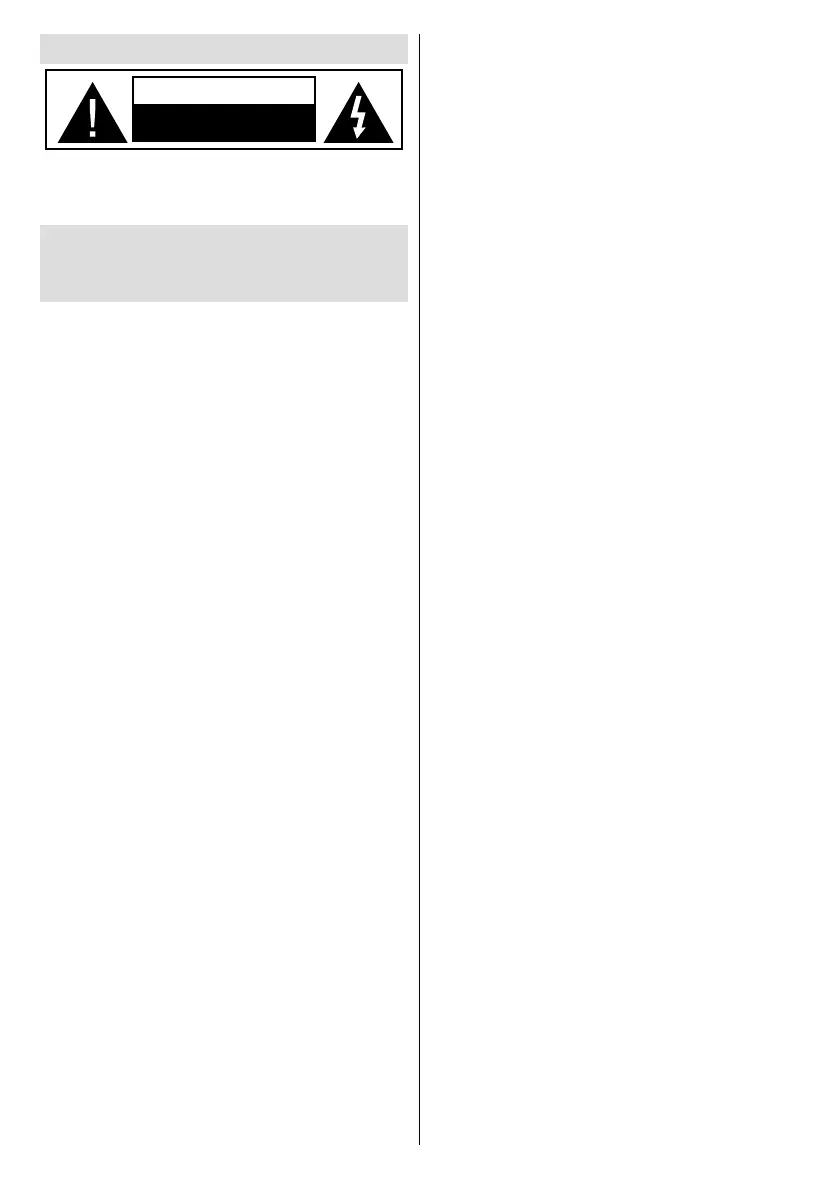

Important Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

Please read these instructions fully

and carefully before use and keep for

future reference

WARNING: This device is not intended for

use by persons (including children) without

physical, sensory or mental capabilities, or lack

of experience and/or knowledge unless they have

been given supervision or instruction concerning

use of the device by a person responsible for

their safety.

• This product is for indoor use only.

• Use this product at an altitude of less than 2000

meters above the sea level and in dry locations and

in regions with moderate or tropical climates.

• Please keep this manual for further use.

• Unplug your product before starting to clean. Do

not clean the product when it is on. Do not use

liquid or aerosol cleaners. Use a damp cloth for

cleaning. If that does not help, please use LCD

display cleansers. Do not apply the cleaner directly

on the product.

• To prevent breakdown, do not use non-advised

accessories.

• Please do not place your product near wash basins,

sinks, water pans, pools etc.

• Do not expose the product to dripping or splashing

of liquids and do not place objects lled with liquids,

such as vases, cups, etc. on or over the product

(e.g., on shelves above the unit).

• Please leave at least 5 cm of free space between the

product and walls or other furnitures for ventilation

purposes.

• That product can only be started by the dened

power source on its rating plate. For further

information, please contact with your dealer.

• As a safety precaution, a three-wired grounding plug

is given with the product. As a safety precaution,

please do not make any change on the grounding

plug. Always use earthed socket outlet for product.

• Please provide the plug and socket to supply the

needed power for appliance.

Product specificaties

Merk:	Maxell
Categorie:	Monitor
Model:	MA-7510BK
Kleur van het product:	Zwart
Gewicht:	59000 g
Breedte:	1684 mm
Diepte:	93 mm
Hoogte:	967 mm
Montage gereedschap:	Ja
Beeldschermdiagonaal:	75 "
Resolutie:	3840 x 2160 Pixels
Touchscreen:	Ja
Oorspronkelijke beeldverhouding:	16:9
USB-poort:	Ja
Ondersteuning voor plaatsing:	Binnen
Ethernet LAN:	Ja
Kijkhoek, horizontaal:	178 °
Kijkhoek, verticaal:	178 °
Meegeleverde kabels:	USB
Geïntegreerde geheugenkaartlezer:	Ja
Compatibele geheugenkaarten:	MicroSD (TransFlash)
Typische contrastverhouding:	1400:1
Helderheid:	400 cd/m²
Aantal HDMI-poorten:	4
PC audio ingang:	Ja
DVI-poort:	Nee
Aantal Ethernet LAN (RJ-45)-poorten:	2
Ingebouwde luidsprekers:	Ja
Gemiddeld vermogen:	24 W
Aantal ingebouwde luidsprekers:	2
Stroomverbruik (in standby):	- W
Certificering:	CE / R&TTE /RED
Beeldscherm, aantal kleuren:	1.073 biljoen kleuren
HD type:	4K Ultra HD
HDMI versie:	2.0
Display technologie:	LED
Responstijd:	8 ms
Levensduur paneel:	50000 uur
VESA-montage:	Ja
Paneelmontage-interface:	600 x 400 mm
Bedoeld voor:	Universeel
Bedrijfsuren (uren/dagen):	16/7
Aantal HDMI-invoerpoorten:	3
Remote (IR) ingang:	1
Computersysteem:	Nee
Aantal DisplayPorts:	2
VGA (D-Sub) invoer ports:	1
Schermdiameter in centimeters:	189 cm
Type processor:	Nee
DisplayPorts in:	1
DisplayPorts out:	1
LED backlight-type:	Direct-LED
Infrarood datapoort:	Ja
Hoeveelheid simultane aanraakpunten:	10
Actief weergavegebied (b x h):	1665.65 x 944.73 mm
Aantal HDMI-uitvoerpoorten:	1
Multi-touch:	Ja
Afstandsbediening inbegrepen:	Ja
Productontwerp:	Interactief flatscreen
Wifi:	Ja
AC-ingangsspanning:	110-240 V
AC-ingangsfrequentie:	50-60 Hz
Stroomverbruik (typisch):	270 W
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	20 - 80 procent
Batterijen inbegrepen:	Ja
