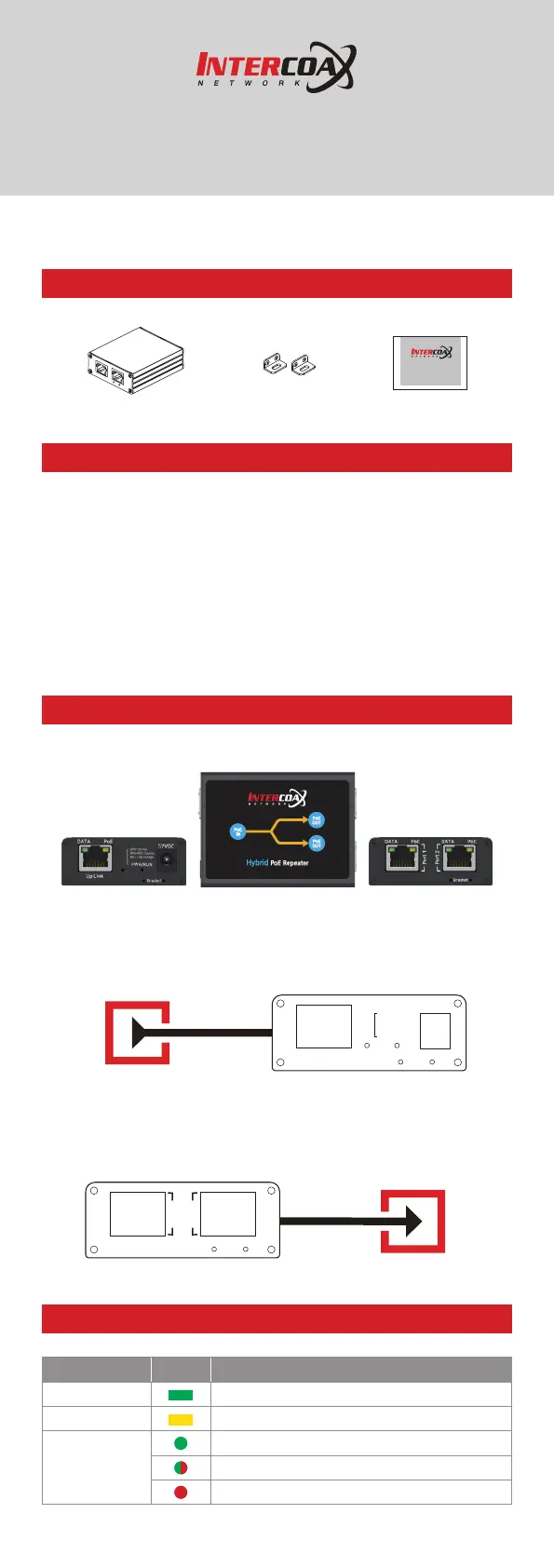

Pagina 1/2
Please read carefully the instruction manual before use. Contents of this manual are
subject to change without prior notice for reasons such as functionality enhancements.
Quick Start Guide
HPS-01
Package
HPS-01 Bracket Quick Start Guide
Features
๎š1 input 2 output design (Possible to connect 2 network devices using 1
cable)
๎šExtended Ethernet transmission distance up to 200m
(Configured with the Hybrid PoE Switch Series)
๎š10/100 Base-T Ethernet (Full Duplex)
๎šPower Status LED indication
๎šPoE input
๎šDC48~57V power input
๎šCascade configuration
๎šOver current protection for secured power supply
๎šSurge Protection
Installation Guide
1. Product Image
2. HPS-01 is powered by power supply or PSE (Power Sourcing Equipment)
such as PoE Switch or Injector.
3. Connect UTP cable from PSE to โ€œPoE INโ€ port. Data/PoE LED indicates
working status.
PoE IN
Bracket
57VDC
PWR/RUN
GRN: Normal
GRN+RED: Caution
RED: Low Voltage
DATA PoE
Up Link
4. Connect UTP cable from Camera to โ€œPoE OUTโ€ port and Data/PoE LED
indicates working status. Also, applying additional HPS-01s on the one
of โ€œPoE OUT โ€ port , it is possible to connect multiple network devices in a
cascade configuration.
PoE OUT
DATA
Port 1
PoE DATA PoE
Bracket
Port 2
Rev.4.1
LED Indicators
Indicator Color Function
DATA Blinking : Ethernet Data Act
PoE ON : PoE Powered
PWR/RUN
Normal (48VDC and more)
Caution
Power Shortage (38VDC and below)
Specification
Model HPS-01: 2 Port Hybrid PoE Switch
Interface Downlink 2 x RJ-45
Uplink 1 x RJ-45 โ€“ 10/100 Base-T with Auto-detect MDIX
Transmission Rate 100 Mbps Full Duplex
Transmission
distance Ethernet / PoE Up to 100m - 1000 Base-T
Up to 200m between devices โ€“ 10/100 Base-T
LED
Indication
Data 3 x Data Link (Green)
PoE 3 x PoE Link (Amber)
PWR
1 x Input Power Quality
(Green: Normal/48VDC and more, Green+Red:
Caution, Red : Power Shortage/38VDC and below
Power Input PoE IEEE802.3af, IEEE802.3at
DC DC48V ~ 57V
Power Output PoE IEEE802.3af, IEEE802.3at
Mechanical Dimension 80.4(L) x 61.6(W) x 24(H) mm
Weight 102g
Environment
Operating Temp. - 20 ~ 60 ยฐC
Storage Temp. - 30 ~ 80 ยฐC
Relative Humidity 10% ~ 90%
Compliance Certification FCC, CE, KC, RoHS
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kV(8 / 20us)
Optional Accessories 57VDC / 1.2A External Power Supply
Applications
Max. 200m
Cat.5e or Better
Max. 130m
Max. 100m
Max. 100m
Max. 130m
HPS-01
NVR
PoE Switch
Max. 130m
HPS-01
HPS-01
57V DC/1.2A Power Supply (optional)
รŽ
Transmission distance may vary depending on the type and quality of cable.
Caution
๎šPlease install the device following the installation guide.
๎šDo not touch the device and cable with wet hands.
๎šKeep away from moisture and shock.
๎šDo not install near any heat sources such as radiators, heat registers, stoves
or other apparatus that produce heat.
๎šIndoor use only.
๎šDo not use for other purposes.
๎šDo not disassemble or modify this device.
๎šDo not put any sticker or paint on it.
๎šIf this device is defective or malfunctioning, please unplug the power adapter
immediately and contact dealer or service center.
Warranty
๎šThis device has passed the quality control and product inspection.
๎šPlease install and use according to the installation guide.
๎šThe warranty period for this product is 24 months from the date of purchase.
๎šIf this device is defective or malfunctioning, please unplug the power
adapter immediately and contact dealer or service center.
๎šAny damages or breakage from userโ€™s abuse, accident, modification or
natural disasters will not be covered manufacturerโ€™s warranty.
Please visit below website for more detailed information.
Web : http://www.intercoax.com Tel : 031. 365. 3133~4
E-mail : info@intercoax.com Fax : 031. 365. 3135
This device complies with part 15 of the fcc rules. Operation is subject to
the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference
that may cause undesired operation
ยฉ Intercoax Co., Ltd.
