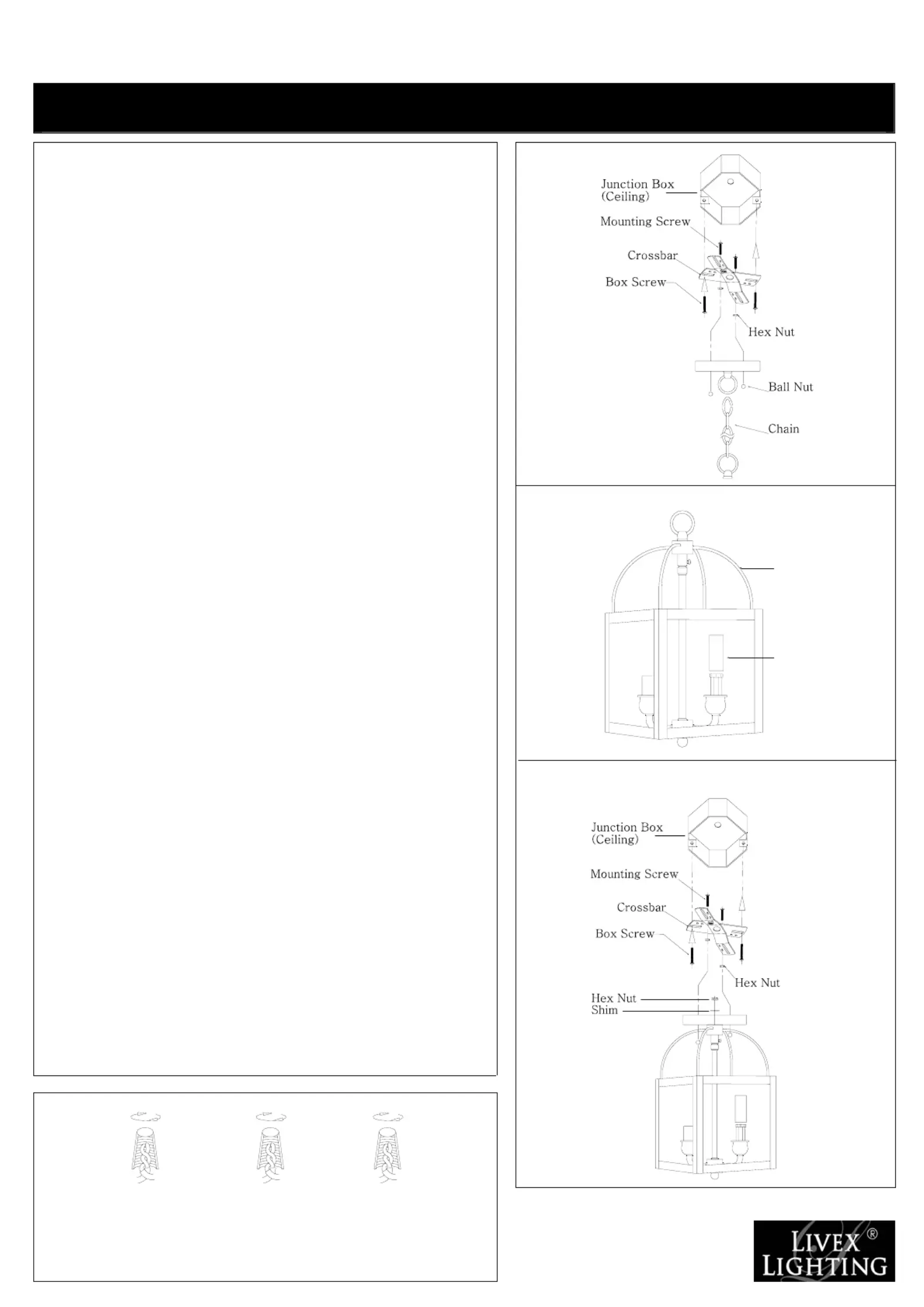

ASSEMBLING & INSTALLATION INSTRUCTIONS PRODUCT# MILFORD SERIES
4037 4041 4045 4055 For Chain Hang OR Ceiling Mount Light Fixture
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
Fig.1
ASSEMBLING THE FIXTURE (Fig.2).
1. Attach the socket sleeve (B) into the small cup of the lamp holder.
2. Install the light bulbs in accordance with the fixture specifications
NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
HANGING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture
from ceiling, including the old single bar.
2. Carefully unpack new fixture and lay all the parts on a clear
surface.
3. Attach the mounting screw part way into the side hole of the crook
cross bar, then lock it securely with hex nut until becoming. Attach
the cross bar to the junction box using two box screws. The side of
the cross bar marked “ ”GND must face out.
4. Using proper chain pliers to open one end link of the chain
provided and connect to the fixture loop. Close the link.
5. By measuring, determine correct number of links needed for
proper hanging height. Using proper chain pliers disconnect and
discard remaining chain.
6. Lace the fixture wires through the chain.
7. Open the other end link of the chain and hang the fixture on the
loop at the ceiling. Close the link.
8. Feed the fixture wires through the loop of the canopy and pull until
taut.
9. Slide canopy up flush to ceiling, lock it securely with ball nut.
**If you not need assembly the fixture loop , please pause
and refer to Fig 4.**
1. Take out the bottom loop of the canopy, then take the canopy to the
fixture body, lock it with the shim and hex nut until tight.
2. Attach the fixture body to the ceiling, lock it securely with the ball
nut.
CONNECTING THE WIRES (Fig.3)
1. Take the black wire from the ceiling junction box and the smooth
wire leg from the fixture and twist bare ends together. Twist wire
connector onto end of wire until snug.
2. Repeat same process with white junction box wire and ribbed wire
leg of fixture wire. NOTE: Twist wires together in the same
direction you twist the wire connector onto wires.
3. If your junction box has a grounding wire (green or bare copper),
attach this wire and the bare copper wire from the fixture together
as step 1.If junction box has no ground wire, attach the bare copper
fixture wire to the green ground screw on the single bar.
4. Tuck these wire connections neatly into the ceiling outlet box and
then raise the canopy all the way to the ceiling. Raise the loop and
thread onto ceiling loop protruding through canopy.
Your installation is now complete. Return power to the junction
box and test the fixture.
Fig.2
A
B
Fig.4
Fig.3
White or
HOUSE
Black
WIRES
(Hot)
Smooth
FIXTURE
WIRES
Black or
Ribbed
WIRES
FIXTURE
Bare Copper(Ground)
FIXTURE
WIRES
Copper
(Ground)
HOUSE
(Neutral)
WIRES
White
Bare
Green or
WIRES
HOUSE
