ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
7340 7341 7342 7343
îš‹ WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
îš‹ ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

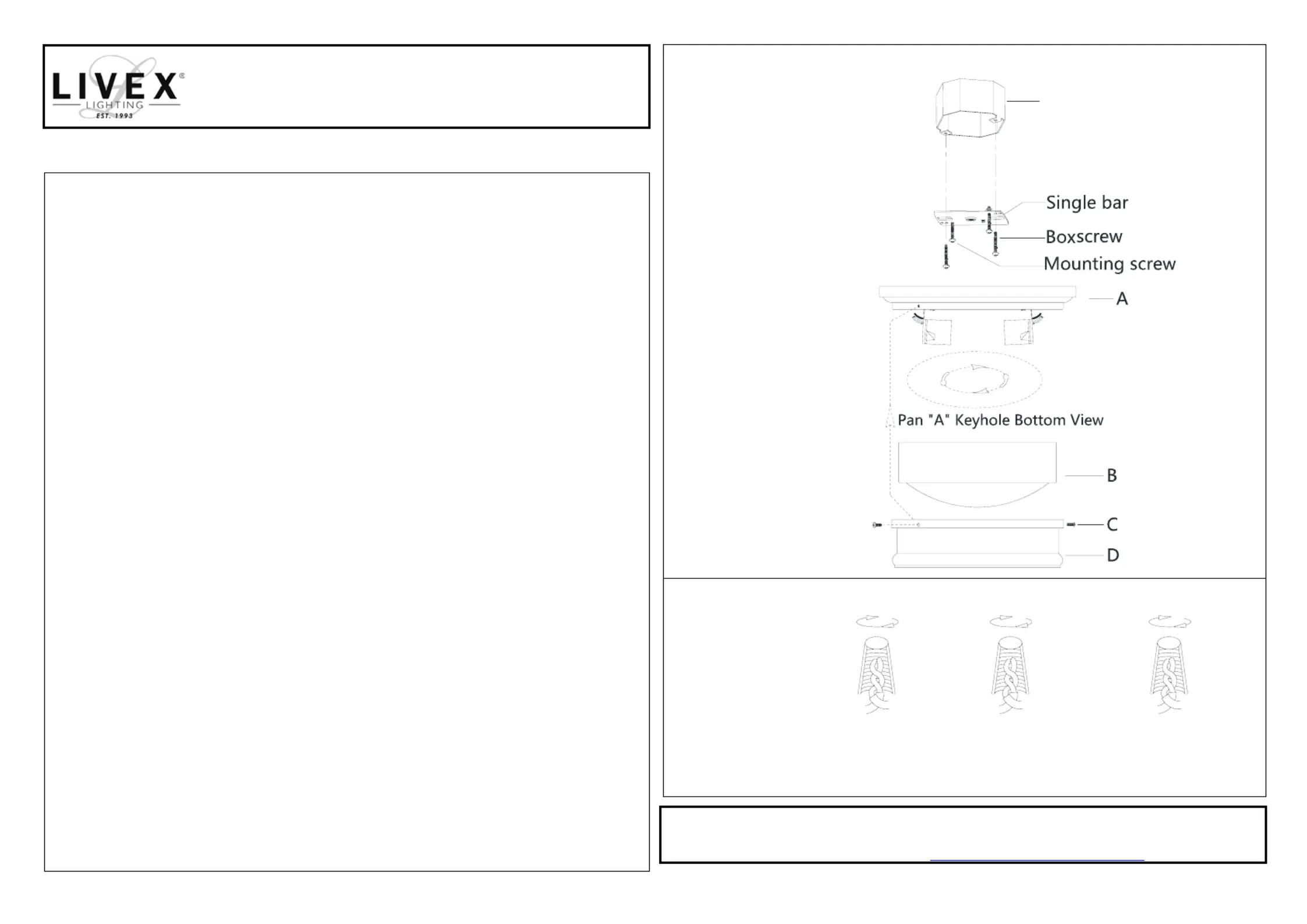

ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the fuse box or circuit breaker box. Remove the old
fixture from ceiling, including the single bar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area.
Take care not to lose any small parts necessary for installation.
3. Thread the pipe screw part way into the center hole of the single bar and
secure with hex nut.
4. Attach the single bar to the junction box using two box screws as shown. The
side of the single bar marked “GND” must face out . The junction box is not
included.
5. Hold the pan (A) towards the single bar and connect the electrical wires as
follows (See ). Connect the black wire from the fixture to the black Fig.2
house (hot) wire; connect the white wire from the fixture to the white
house (neutral) wire. Make sure all wire nuts are secured. You may wrap
the connections with electrical tape. If your Junction box has a ground
wire (green or bare copper) connects fixture’s ground wire to it. Otherwise
attach the bare copper fixture wire to the green ground screw on the
single bar. Tuck the wire connections neatly into the ceiling junction box
as you are holding the fixture assembly toward the ceiling.
6. Finish mounting the pan (A) by placing it over both mounting screws so
that the screws protrude from the keyholes in the bottom of the pan (A).
Rotate the pan (A) until the screw are seat in the slots of the keyholes and
tighten it with a screwdriver.
7. Install the light bulbs (Not included) in accordance with the fixture’s
specifications. DO NOT EXCEED THE MAXIMUM WATTAGE
RATING!
8. Attach the glass shade (B) to the crown (D), raise the assembly to the
pan, aligning the thread hole of pan with the crown's hole, then tighten it
with the screws (C).
Your installation is now complete. Return power to the
j
unction box and test the fixture.
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
White
(Neutral)
HOUSE
WIRES
Green or Bare
Copper(Ground)
Thank you for purchasing a LIVEX product.
Need assistance with parts or assembly? Please call customer service at: 800-761-8056
Or visit us online at: WWW.LIVEXLIGHTING.COM
©COPYRIGHT ALL RIGHTS RESERVED.LIVEX LIGHTING,INC. DOC20160407340
FIG.2
FIG.1
Junction box
(
Not included
)
