CDT ARCHITECTURAL
LOUDSPEAKER
OWNER'S MANUAL
™
IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8. DO NOT install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wider blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the
manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused
for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present within
this unit.
WARNING: To reduce the risk of fire or electrical shock, do not
expose this apparatus to rain or moisture.
WARNING: Voltages in this equipment are hazardous to life. No
user-serviceable parts inside. Refer all servicing to qualified
service personnel.
CAUTION: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate this device.

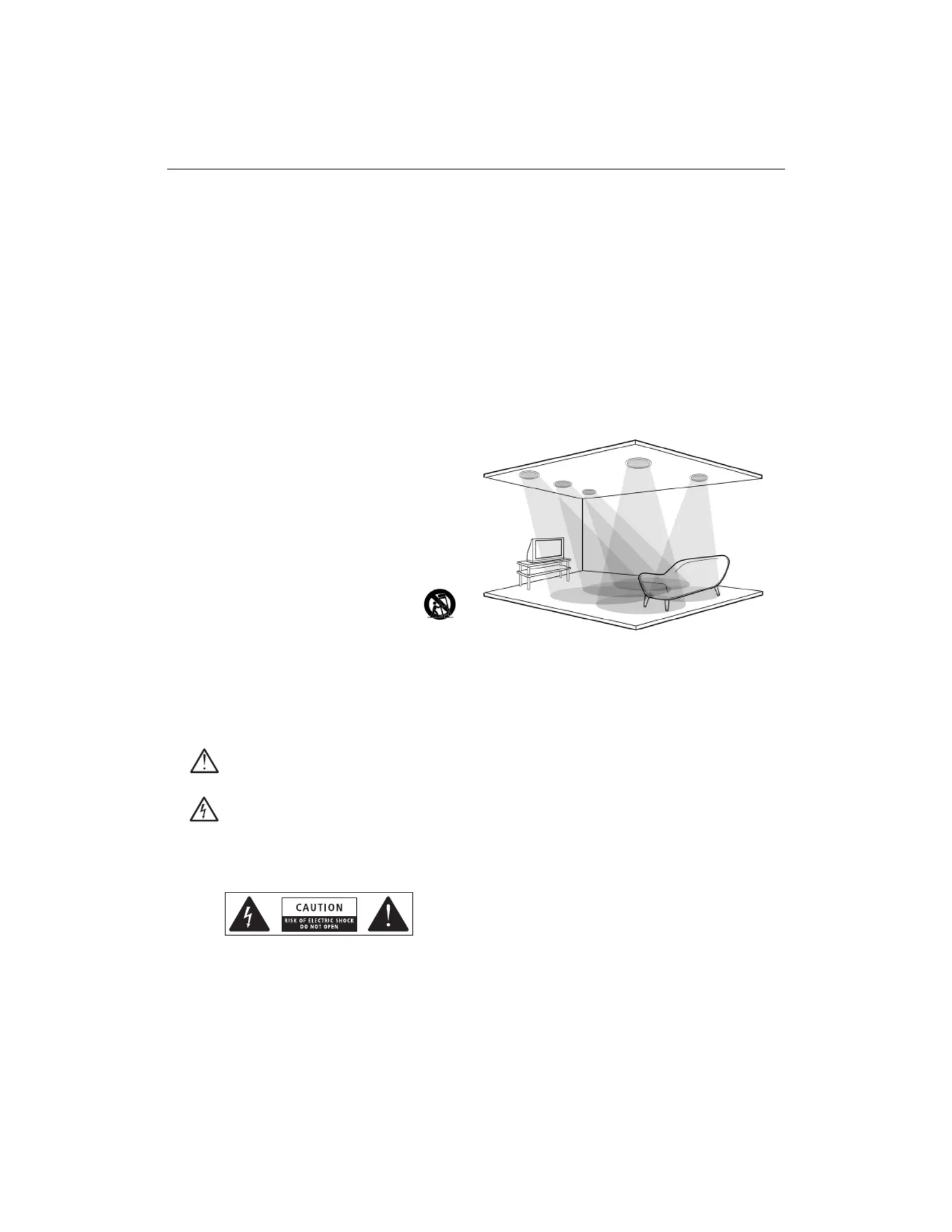

ABOUT YOUR KLIPSCH PURCHASE
Your new Klipsch architectural speakers have been designed to
deliver great sound while remaining unobtrusive wherever you
install them. These models feature Controlled Dispersion
Technology™. This allows you to point the sound as needed in
a variety of installations. Any CDT is suitable for use as front,
center or surround channels in audio or home theater
applications, or as part of a distributed sound system. Any CDT
model ending with SC is designed specifically for surround use
in home theater applications.
Minimum Tools Required
#2 Phillips Screwdriver
Wire strippers
Level
Stud finder
Saw
In-Ceiling Speaker Placement
Designed to function in any drywall or drop ceiling, Klipsch
in-ceiling speakers are engineered for years of performance.
Minimum construction requirements call for drywall or other
mounting surfaces to be at least 3/8" thick. In drop ceiling
installations, typical "drop in" 2’ x 4’ and 2’ x 2’ ceiling tiles are
composed of low density materials which have the potential over
time to sag and vibrate audibly. To maximize the acoustic
performance of your in-ceiling speakers, Klipsch recommends
you replace the original mounting panel with 1/2" to 3/4"
plywood or medium density fiberboard (MDF) (see above).
Speaker Installation (for New Construction, skip to step #3)
1. Cut the appropriate size opening in the wall or ceiling using
the template provided. If the template is not available, cutout
dimensions are provided on the Klipsch website,
www.klipsch.com. Sizes listed are minimum. If accuracy of cut
cannot be achieved, you may add 1/4" to each dimension. Be
careful not to cut through any existing wiring or plumbing. Avoid
compromising any fire stops between studs.
2. Run speaker wiring (18 gauge minimum) to the openings. Be
sure to comply with all building codes in your area.
3. Attach the wire to the speaker using the wire’s color coding or
markings as a guide to maintain proper polarity.
ARCHITECTURAL SPEAKERS
4. Insert the speaker assembly into the opening and attach by
tightening the four Phillips screws (below). The frame’s four
“dogs” will swivel out and “sandwich” the wall and frame togeth-
er as they are tightened. If you use a power tool to tighten these
screws, please use a low torque setting. Failure to do so could
result in damage to your speaker.
5. Adjust the direction of the speaker by swiveling it to the
left or right as needed. If desired, you may also adjust the tilt
of the speaker and gently adjust the horn to the desired angle.
Do not attempt to turn the tweeter stem while adjusting the
swivel tweeter.
6. At this point, you may paint the speaker grilles before attach-
ing them to the speaker. Klipsch grilles are designed to accept
most types of paint. Care should be taken to avoid excessive
paint build-up in the grille perforations.
7. Press the grille into place.

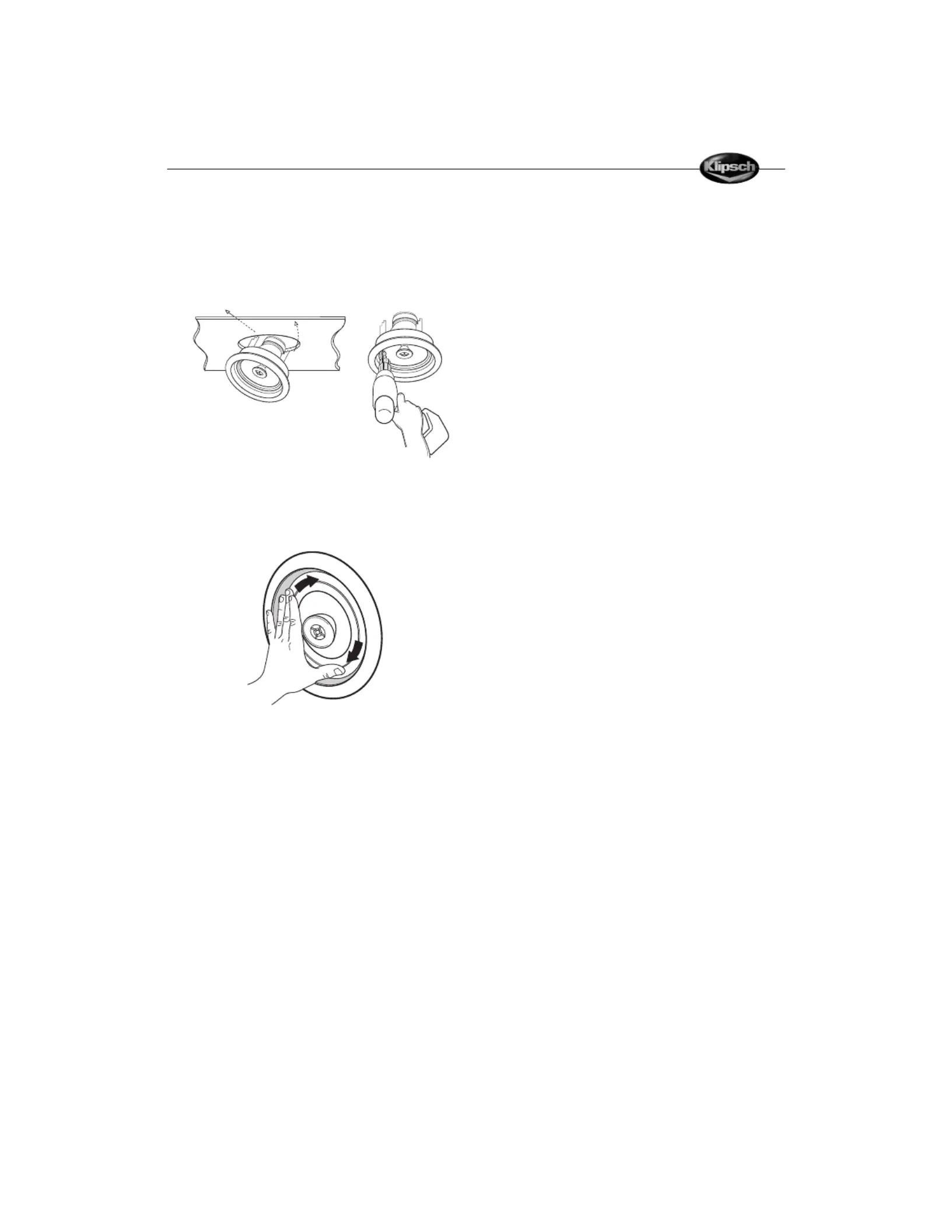

See back page for more illustrations.
OPERATING CONTROLS
Mid-Bass and Tweeter Attenuator Switch
(3000 and 5000 Series)
Some CDT models feature a Tweeter switch (3000 series) or
both a Mid-Bass and a Tweeter switch (3000 & 5000 series)
located on the front baffle. The switch allows a setting of either
0dB (normal) or –3dB in the respective frequency range. If
installing in an acoustically bright room, such as a bathroom or
kitchen, you may want to adjust the Tweeter level switch. If the
speaker is located in a corner and produces too much bass, you
may need to adjust the Mid-Bass level switch. The position
of the switches should always be checked prior to attaching
the grille.
LIMITED LIFETIME WARRANTY FOR KLIPSCH-BRANDED
IN-WALL, INCEILING AND OUTDOOR SPEAKERS
Klipsch warrants to the original retail purchaser that this product
is to be free from defective materials and workmanship for the
life of the product, if it is properly used and maintained. If this
product proves defective in either material or workmanship,
Klipsch, at its option, will (a) repair the product, or (b) replace the
product, at no charge for parts or labor. If the product model is
no longer available and cannot be repaired effectively or replaced
with an identical model, Klipsch at its sole option may replace
the unit with a current model of equal or greater value. In some
cases, modification to the mounting surface may be required
where a new model is substituted. Klipsch assumes no responsi-
bility or liability for such modification. To obtain a repair or
replacement under the terms of this warranty, please contact our
customer service group at 1-800-KLIPSCH. You will be required
to submit a copy of the original receipt via fax or email. The
receipt must reflect that you are the original purchaser, the prod-
uct was bought from an authorized Klipsch retailer, and the prod-
uct is still within warranty. You will be issued a return authoriza-
tion number (RA#) and asked to ship the defective product,
together with proof of purchase and RA#, prepaid insured to the
address set forth Klipsch 137 Heampstead #278 Hope, AR
71801. Freight collect shipments will be refused. Risk of loss or
damage in transit is to be borne by the purchaser. Once Klipsch
receives the defective product, a repair or replacement order will
be initiated.
Limitations:
• This limited warranty does not cover failure of the product
resulting from improper installation, misuse, abuse, acci-
dent, neglect, mishandling, or wear from ordinary use or
environmental deterioration.
• This limited warranty does not cover cosmetic damage,
including paint damage, or consequential damage to other
components or premises which may result for any reason
from the failure of the product.
• This limited warranty is null and void for products not used
in accordance with Klipsch’s instructions.
• This limited warranty is null and void for products with
altered or missing serial numbers and for products not pur-
chased from an authorized dealer.
• This limited warranty terminates if you sell or otherwise
transfer this product to another party.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE, JURISDICTION TO JURISDICTION OR COUNTRY TO COUN-
TRY. KLIPSCH’S RESPONSIBILITY FOR MALFUNCTIONS AND
DEFECTS IN HARDWARE IS LIMITED TO REPLACEMENT OR
REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. FOR
CANADIAN CUSTOMERS, KLIPSCH DISCLAIMS ALL OTHER WAR-
RANTIES AND CONDITIONS, EXPRESS OR IMPLIED, STATUTORY
OR OTHERWISE, FOR THE PRODUCT. FOR U.S. CUSTOMERS, ALL
EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME
STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE
EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS,
