Pagina 1/5

CDT ARCHITECTURAL

LOUDSPEAKER

OWNER'S MANUAL

™

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance

with the manufacturer's instructions.

8. DO NOT install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that

produce heat.

9. DO NOT defeat the safety purpose of the polarized or grounding

type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third

grounding prong. The wider blade or the third prong are provided

for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11. ONLY USE attachments/accessories specified by the

manufacturer.

12. USE only with a cart, stand, tripod, bracket, or table specified

by the manufacturer, or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused

for long periods of time.

14. REFER all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate

normally, or has been dropped.

This symbol indicates that there are important

operating and maintenance instructions in the

literature accompanying this unit.

This symbol indicates that dangerous voltage

constituting a risk of electric shock is present within

this unit.

WARNING: To reduce the risk of fire or electrical shock, do not

expose this apparatus to rain or moisture.

WARNING: Voltages in this equipment are hazardous to life. No

user-serviceable parts inside. Refer all servicing to qualified

service personnel.

CAUTION: Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate this device.

ABOUT YOUR KLIPSCH PURCHASE

Your new Klipsch architectural speakers have been designed to

deliver great sound while remaining unobtrusive wherever you

install them. These models feature Controlled Dispersion

Technology™. This allows you to point the sound as needed in

a variety of installations. Any CDT is suitable for use as front,

center or surround channels in audio or home theater

applications, or as part of a distributed sound system. Any CDT

model ending with SC is designed specifically for surround use

in home theater applications.

Minimum Tools Required

#2 Phillips Screwdriver

Wire strippers

Level

Stud finder

Saw

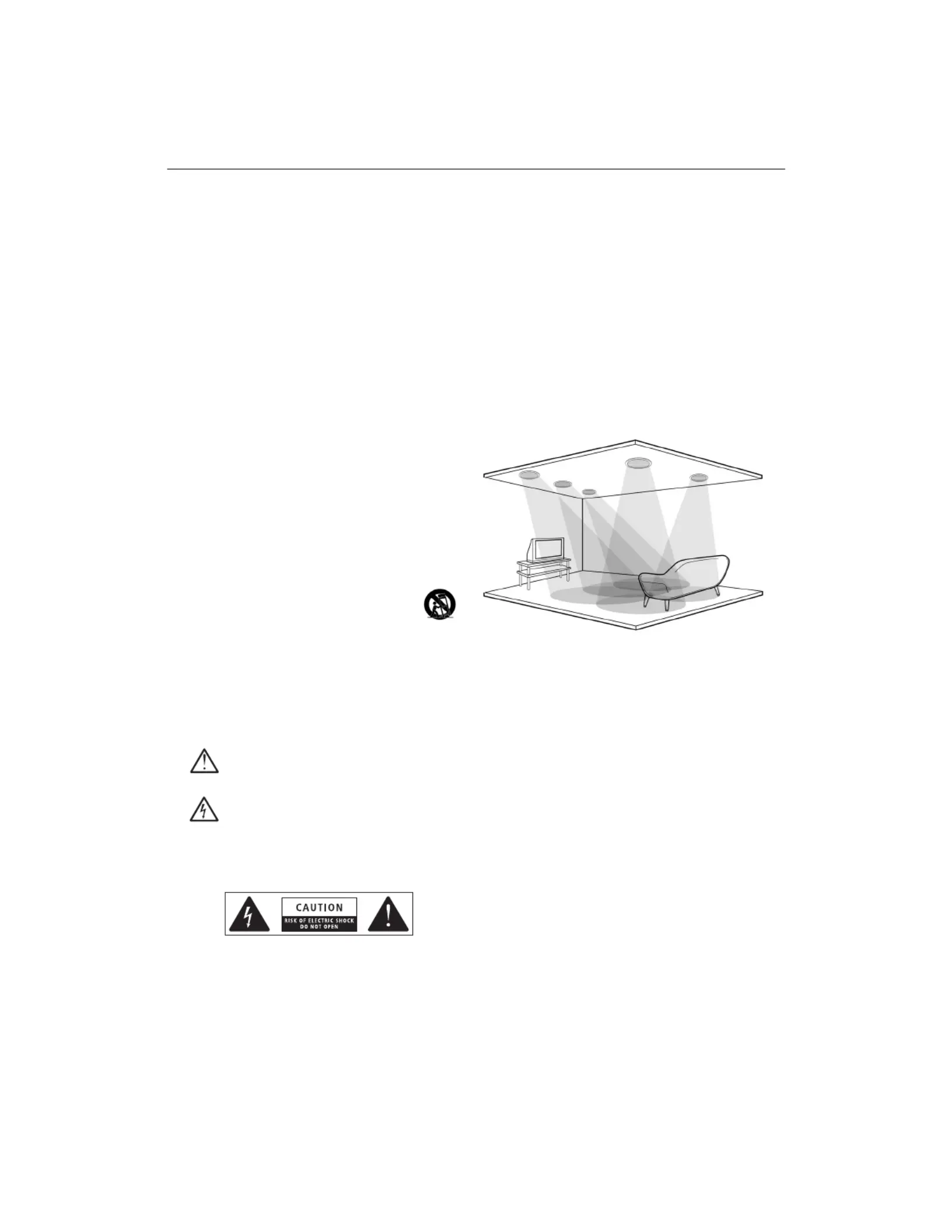

In-Ceiling Speaker Placement

Designed to function in any drywall or drop ceiling, Klipsch

in-ceiling speakers are engineered for years of performance.

Minimum construction requirements call for drywall or other

mounting surfaces to be at least 3/8" thick. In drop ceiling

installations, typical "drop in" 2’ x 4’ and 2’ x 2’ ceiling tiles are

composed of low density materials which have the potential over

time to sag and vibrate audibly. To maximize the acoustic

performance of your in-ceiling speakers, Klipsch recommends

you replace the original mounting panel with 1/2" to 3/4"

plywood or medium density fiberboard (MDF) (see above).

Speaker Installation (for New Construction, skip to step #3)

1. Cut the appropriate size opening in the wall or ceiling using

the template provided. If the template is not available, cutout

dimensions are provided on the Klipsch website,

www.klipsch.com. Sizes listed are minimum. If accuracy of cut

cannot be achieved, you may add 1/4" to each dimension. Be

careful not to cut through any existing wiring or plumbing. Avoid

compromising any fire stops between studs.

2. Run speaker wiring (18 gauge minimum) to the openings. Be

sure to comply with all building codes in your area.

3. Attach the wire to the speaker using the wire’s color coding or

markings as a guide to maintain proper polarity.

ARCHITECTURAL SPEAKERS

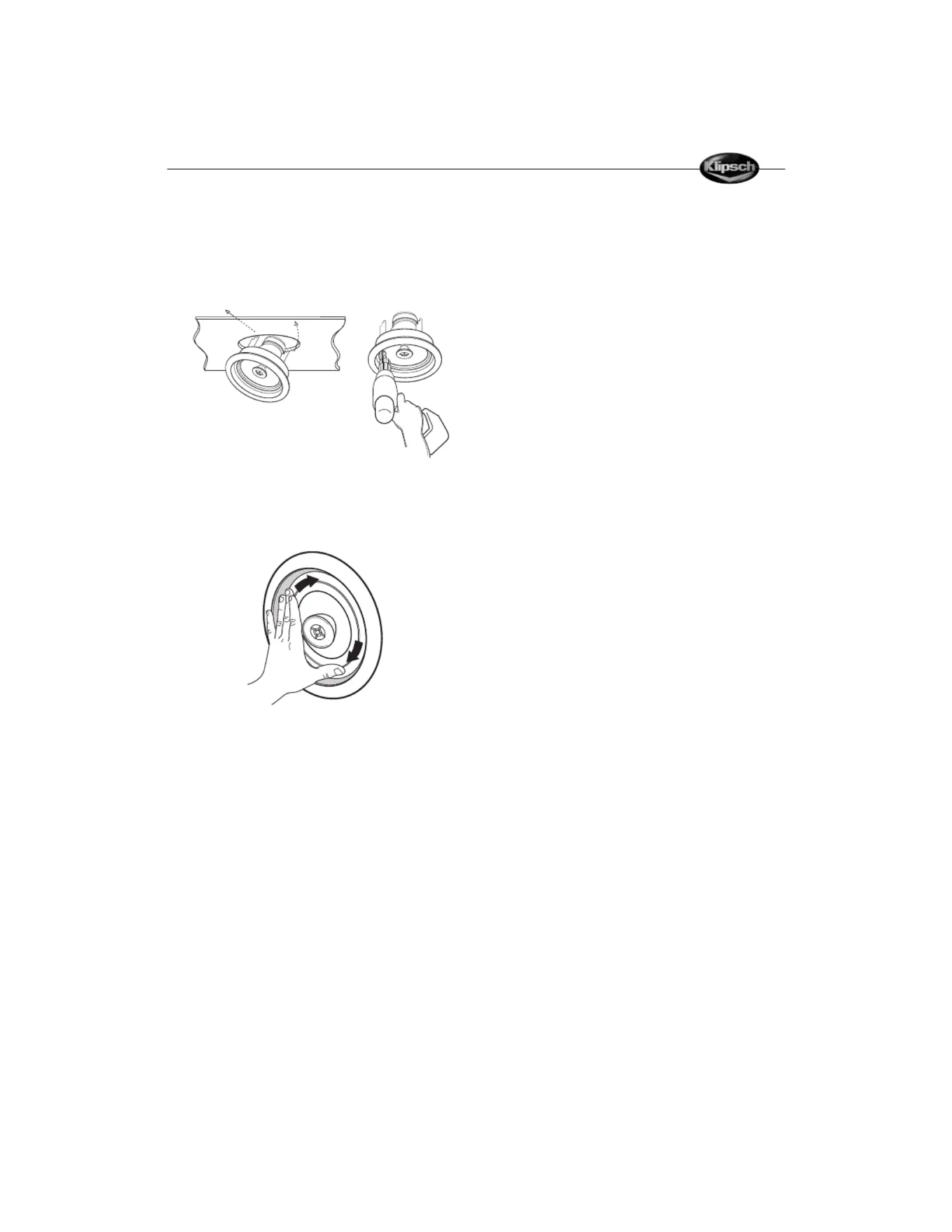

4. Insert the speaker assembly into the opening and attach by

tightening the four Phillips screws (below). The frame’s four

“dogs” will swivel out and “sandwich” the wall and frame togeth-

er as they are tightened. If you use a power tool to tighten these

screws, please use a low torque setting. Failure to do so could

result in damage to your speaker.

5. Adjust the direction of the speaker by swiveling it to the

left or right as needed. If desired, you may also adjust the tilt

of the speaker and gently adjust the horn to the desired angle.

Do not attempt to turn the tweeter stem while adjusting the

swivel tweeter.

6. At this point, you may paint the speaker grilles before attach-

ing them to the speaker. Klipsch grilles are designed to accept

most types of paint. Care should be taken to avoid excessive

paint build-up in the grille perforations.

7. Press the grille into place.

See back page for more illustrations.

OPERATING CONTROLS

Mid-Bass and Tweeter Attenuator Switch

(3000 and 5000 Series)

Some CDT models feature a Tweeter switch (3000 series) or

both a Mid-Bass and a Tweeter switch (3000 & 5000 series)

located on the front baffle. The switch allows a setting of either

0dB (normal) or –3dB in the respective frequency range. If

installing in an acoustically bright room, such as a bathroom or

kitchen, you may want to adjust the Tweeter level switch. If the

speaker is located in a corner and produces too much bass, you

may need to adjust the Mid-Bass level switch. The position

of the switches should always be checked prior to attaching

the grille.

LIMITED LIFETIME WARRANTY FOR KLIPSCH-BRANDED

IN-WALL, INCEILING AND OUTDOOR SPEAKERS

Klipsch warrants to the original retail purchaser that this product

is to be free from defective materials and workmanship for the

life of the product, if it is properly used and maintained. If this

product proves defective in either material or workmanship,

Klipsch, at its option, will (a) repair the product, or (b) replace the

product, at no charge for parts or labor. If the product model is

no longer available and cannot be repaired effectively or replaced

with an identical model, Klipsch at its sole option may replace

the unit with a current model of equal or greater value. In some

cases, modification to the mounting surface may be required

where a new model is substituted. Klipsch assumes no responsi-

bility or liability for such modification. To obtain a repair or

replacement under the terms of this warranty, please contact our

customer service group at 1-800-KLIPSCH. You will be required

to submit a copy of the original receipt via fax or email. The

receipt must reflect that you are the original purchaser, the prod-

uct was bought from an authorized Klipsch retailer, and the prod-

uct is still within warranty. You will be issued a return authoriza-

tion number (RA#) and asked to ship the defective product,

together with proof of purchase and RA#, prepaid insured to the

address set forth Klipsch 137 Heampstead #278 Hope, AR

71801. Freight collect shipments will be refused. Risk of loss or

damage in transit is to be borne by the purchaser. Once Klipsch

receives the defective product, a repair or replacement order will

be initiated.

Limitations:

• This limited warranty does not cover failure of the product

resulting from improper installation, misuse, abuse, acci-

dent, neglect, mishandling, or wear from ordinary use or

environmental deterioration.

• This limited warranty does not cover cosmetic damage,

including paint damage, or consequential damage to other

components or premises which may result for any reason

from the failure of the product.

• This limited warranty is null and void for products not used

in accordance with Klipsch’s instructions.

• This limited warranty is null and void for products with

altered or missing serial numbers and for products not pur-

chased from an authorized dealer.

• This limited warranty terminates if you sell or otherwise

transfer this product to another party.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU

MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO

STATE, JURISDICTION TO JURISDICTION OR COUNTRY TO COUN-

TRY. KLIPSCH’S RESPONSIBILITY FOR MALFUNCTIONS AND

DEFECTS IN HARDWARE IS LIMITED TO REPLACEMENT OR

REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. FOR

CANADIAN CUSTOMERS, KLIPSCH DISCLAIMS ALL OTHER WAR-

RANTIES AND CONDITIONS, EXPRESS OR IMPLIED, STATUTORY

OR OTHERWISE, FOR THE PRODUCT. FOR U.S. CUSTOMERS, ALL

EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT,

INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME

STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE

EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS,

Product specificaties

Merk:	Klipsch
Categorie:	Speaker
Model:	CDT-2800-C
Kleur van het product:	Wit
Gewicht:	3200 g
Materiaal behuizing:	ABS kunststof
Connectiviteitstechnologie:	Bedraad
Diameter:	249 mm
Gemiddeld vermogen:	50 W
Equalizer-instellingen:	Nee
Aanbevolen gebruik:	Overige
Impedantie:	8 Ohm
Geschikt voor buitengebruik:	Nee
Audio-uitgangskanalen:	1.0 kanalen
Speaker plaatsing:	Plafond-montage
Aantal drivers:	1
Woofer:	Nee
Peak Music Power Output (PMPO):	200 W
Frequentiebereik:	65 - 20000 Hz
Gevoeligheid:	93 dB
Luidspreker soort:	2-weg
Versterker:	Nee
Diameter woofer:	8 "
Diameter hogetonenluidspreker:	1 "
Tweeter:	Nee
Crossover frequentie:	2177 Hz
Driver cone material:	Zijde
