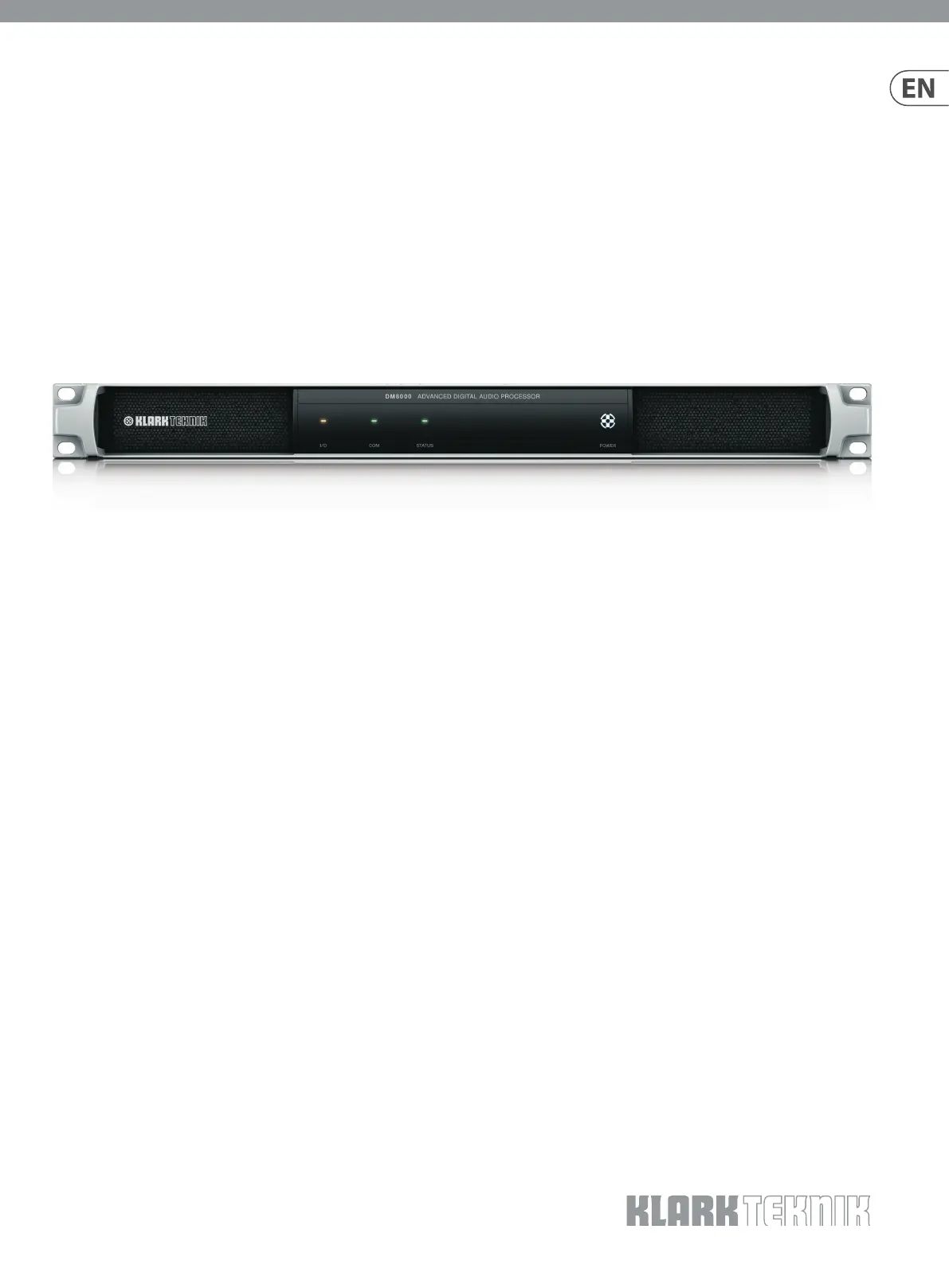

User Manual
DM8000 DSP Designer Software
Advanced Digital Audio Processor for Installation Applications with Con gurable DSP,
Audio Networking and Acoustic Echo Cancellation
2DM8000 User Manual
Table of Contents
1. Installation 3 ................................................................
1.1 System Requirements ........................................................ 3
1.2 Installation Procedure ....................................................... 3
2. Software Interface Overview 3 ...................................
2.1 Basic Screen Elements 3 .......................................................
3. Module Library ........................................................ 12
3.1 Input Output Modules .................................................... 12
3.2 Mixers.................................................................................... 15
3.3 Equalisers ............................................................................. 19
3.4 Filters ..................................................................................... 21
3.5 CrossOvers ..........................................................................23
3.6 Dynamics .............................................................................23
3.7 Routers .................................................................................27
3.8 Delays ...................................................................................28
3.9 Controls ................................................................................28
3.10 Meters .................................................................................36
3.11 Generators .........................................................................38
4. Building a Signal Processing Architecture ............ 39
4.1 Deploying Component Objects .................................. 40
5. Operation ................................................................. 41
5.1 Networking ......................................................................... 41
5.2 System Security ................................................................. 41
5.3 Third Party Control ........................................................... 43
6. Index ......................................................................... 58
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information
regarding MUSIC Groups Limited Warranty, please see complete details online at
music-group.com/warranty.
3DM8000 User Manual
1. Installation
1.1 System Requirements
Minimum Hardware
PC-based Hardware -Core 2 DUO CPU
-Ethernet port
-1 GB RAM
Recommended Operating Systems
Windows* -Windows 7, 32-bit of 64-bit
-Windows 8, 32-bit or 64 bit
* Windows is either a registered trademark or trademark of Microsoft Corporation in the United States
and/or other countries.
A PC computer running DM8000 DSP Designer Software with Window
operating systems must have a 10/100 BaseT network card (NIC) installed.
Ethernet switches must be 10/100 BaseT compatible, with sufficient ports for
connection to each DM8000 unit (multiple switches may be used).
For more information about DM8000 networking see on pgs. 38-39.Networking
1.2 Installation Procedure
To install the DM8000 DSP Designer software:
1. Go to the DM8000 product page at
http://www.music-group.com/brand/klarkteknik.
2. Click on the Downloads tab.
3. Click on the download icon for the latest version of the DM8000 DSP
Designer software.
4. Read the software End User License Agreement and click on “Agree.
5. Click on “Download.
6. Click on the downloaded .exe  le and follow the installation instructions.
2. Software Interface Overview
2.1 Basic Screen Elements
The DM8000 DSP Designer software deploys an interface structure similar to
software geared toward visual design, with standard pulldown menus, toolbars
and libraries.
2.1.1 Main Screen
Here is the you should see when you open and load the software:Main Screen
DM8000 Main Screen
The main screen of the DM8000 software has several sections:
2.1.2 Build Window
The Build Windowoccupies the largest portion of the main screen, at
the lower-right. This is the area where system design actually occurs,
with the placement and connection of Component Objects.
DM8000 Build Window
