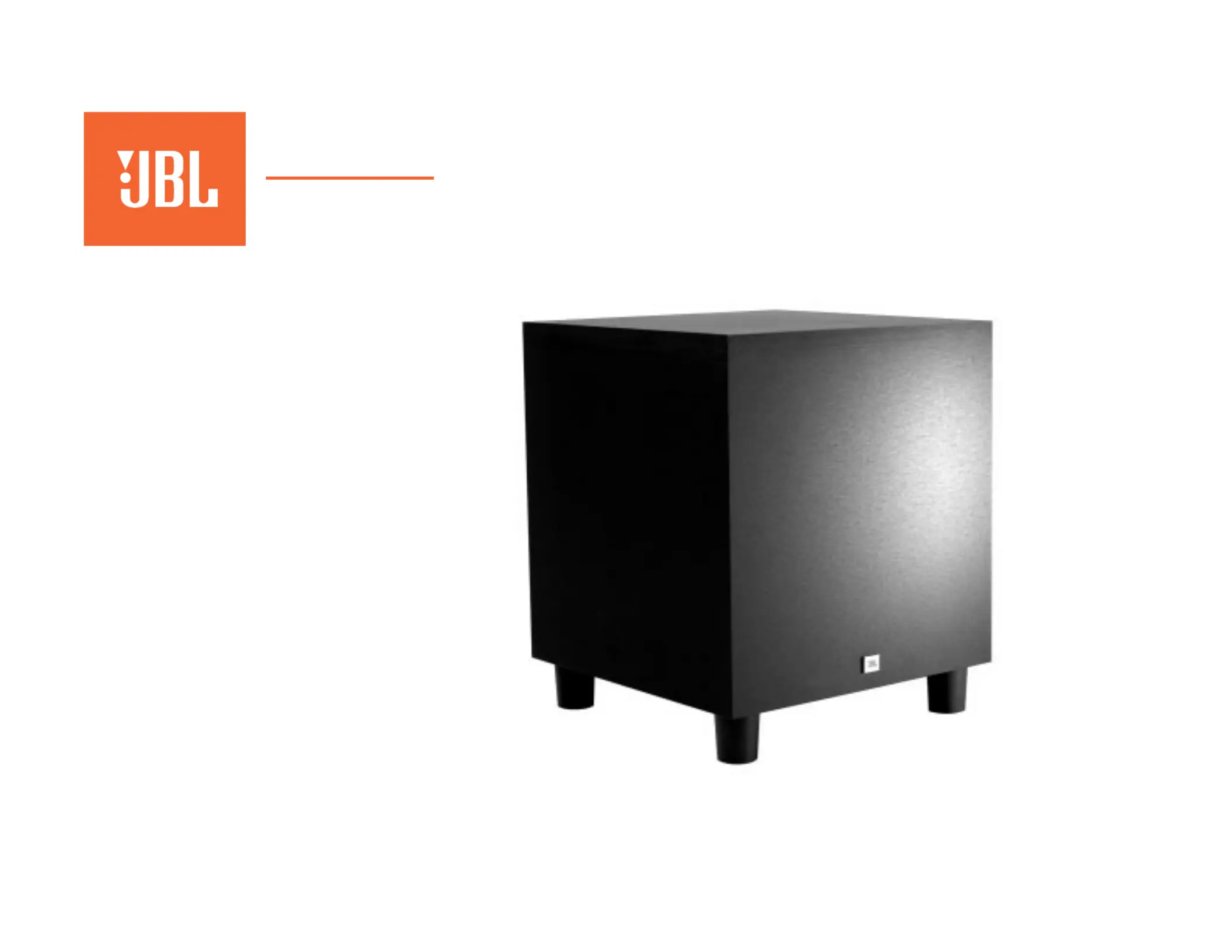

DPS-12

simple setup guide

thank you for choosing JBL. For more

than 50 years, JBL has been involved in every

aspect of music and lm recording and reproduc-

tion, from live performances to monitoring the

recordings you play in your home, car or oce.

We’re condent that the JBL loudspeakers you have

chosen will provide every note of enjoyment that

you expected – and that when you think about pur-

chasing additional audio equipment for your home,

car or oce, you will once again choose JBL.

Please take a moment to complete the enclosed

prole card. It enables us to keep you posted on

our latest advancements, and helps us to better

understand our customers and build products that

meet their needs and expectations.

JBL Consumer Products

– 2 –– 2 –

1. Read Instructions. All

the safety and operating

instructions should be

read before the product is

operated.

2. Retain Instructions. The

safety and operating instruc-

tions should be retained for

future reference.

3. Heed Warnings. All warn-

ings on the product and in

the operating instructions

should be adhered to.

4. Follow Instructions. All

operating and use instruc-

tions should be followed.

5. Water and Moisture. The

product should not be used

near water – for example,

near a bathtub, washbowl,

kitchen sink, laundry tub, in

a wet basement or near a

swimming pool, and the like.

6. Accessories. Do not place

this product on an unstable

cart, stand, tripod, bracket

or table. The product may

fall, causing serious injury to

a child or adult, and serious

damage to the product. Use

only with a cart, stand, tri-

pod, bracket or table recom-

mended by the manufacturer,

or sold with the product.

Any mounting of the product

should follow the manufac-

turer’s instructions, and

should use a mounting

accessory recommended by

the manufacturer.

7. Wall or Ceiling

Mounting. The product

should be mounted on a

wall or ceiling only when,

and as, recommended by the

manufacturer.

8. Ventilation. Slots and

openings in the cabinet are

provided for ventilation and

to ensure reliable operation

of the product and to protect

it from overheating, and

these openings must not be

blocked or covered. The

openings should never be

blocked by placing the prod-

uct on a bed, sofa, rug or

other similar surface. This

product should not be placed

in a built-in installation

such as a bookcase or rack

unless proper ventilation

is provided or the manufac-

turer’s instructions have

been adhered to.

9. Heat. The product should

be situated away from heat

sources such as radiators,

heat registers, stoves or

other products that produce

heat. If placed near an

amplier, check with

the manufacturer for

applicability.

10. Power Sources. This

product should be operated

only from the type of power

source indicated on the

marking label. If you are not

sure of the type of power

supply to your home, consult

your product dealer or local

power company. For products

intended to operate from

battery power, or other

sources, refer to the

operating instructions.

11. Grounding or

Polarization. This product

may be equipped with a

polarized alternating-current

line plug (a plug having one

blade wider than the other).

This plug will t into the

power outlet only one way.

This is a safety feature. If

you are unable to insert the

plug fully into the outlet, try

reversing the plug. If the

plug should still fail to t,

contact your electrician to

replace your obsolete outlet.

Do not defeat the safety pur-

pose of the polarized plug.

12. Power-Cord Protection.

Power-supply cords should

be routed so that they are

not likely to be walked on or

pinched by items placed

upon or against them, pay-

ing particular attention to

cords at plugs, convenience

receptacles and the point

where they exit from the

product.

13. Cleaning. Unplug this

product from the wall outlet

before cleaning. Do not use

liquid cleaners or aerosol

cleaners. Use a damp cloth

for cleaning.

14. Nonuse Periods. The

power cord of the product

should be unplugged from

the outlet when left unused

for long periods of time.

15. Lightning. For added

protection for this product

during a lightning storm, or

when it is left unattended

and unused for long periods

of time, unplug it from the

wall outlet and disconnect

the antenna or cable system.

This will prevent damage to

the product due to lightning

and power-line surges.

16. Overloading. Do not

overload wall outlets, exten-

sion cords or integral conve-

nience receptacles, as this

can result in a risk of re or

electric shock.

17. Object and Liquid

Entry. Never push objects of

any kind into this product

through openings, as they

may touch dangerous voltage

points or short-out parts

that could result in a re or

electric shock. Never spill

liquid of any kind on the

product.

18. Damage Requiring

Service. Unplug this product

from the wall outlet and

refer servicing to qualied

service personnel under the

following conditions:

a. The power-supply cord or

the plug has been damaged;

b. Objects have fallen onto,

or liquid has been spilled

into, the product; or

c. The product has been

exposed to rain or water; or

d. The product does not

operate normally when fol-

lowing the operating instruc-

tions. Adjust only those con-

trols that are covered by the

operating instructions, as an

improper adjustment of other

controls may result in dam-

age and will often require

extensive work by a qualied

technician to restore the

product to its normal opera-

tion; or

e. The product has been

dropped, or the enclosure

damaged; or

f. The product does not

appear to operate normally

or exhibits a marked change

in performance.

19. Attachments. Do not

use attachments not recom-

mended by the product man-

ufacturer, as they may cause

hazards.

20. Replacement Parts.

When replacement parts are

required, be sure the service

technician has used replace-

ment parts specied by

the manufacturer or that

have the same characteris-

tics as the original part.

Unauthorized substitutions

may result in re, electric

shock or other hazards.

21. Safety Check. Upon

completion of any service or

repairs to this product, ask

the service technician to

perform safety checks to

determine that the product

is in proper operating

condition.

22. Servicing. Do not

attempt to service this prod-

uct yourself, as opening or

removing covers may expose

you to dangerous voltage or

other hazards. Refer all ser-

vicing to qualied service

personnel.

Part No. JBLULA 6/96

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To prevent electric shock,

do not remove the grounding plug

on the power cord, or use any plug

or extension cord that does not have

a grounding plug provided.

Make certain that the

AC outlet is properly grounded.

Do not use an adapter plug

with this product.

The lightning ash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sucient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

read rst! Important Safety Precautions!

– 3 –

Placement

• As a general rule, bass

response increases as a

subwoofer is placed closer

to a wall. Therefore, bass

output is maximized when

the subwoofer is placed in

a corner.

• It is also recommended

that the subwoofer be

positioned along the

same wall as the front

loudspeakers.

Low-frequency sounds are

normally omnidirectional,

meaning the listener can’t

tell where they are

generated

from. However, frequencies

between 75Hz – 150Hz can

be localized, especially at

higher volume levels.

Positioning your subwoofer

as recommended will provide

the most natural soundstage

and imaging from your loud-

speaker system.

Remember that these are just

guidelines. Since every listen-

ing room is dierent, JBL

strongly recommends experi-

menting with the positioning

of your subwoofer to obtain

the most pleasing results in

your room. One technique that

can help you nd the ideal

subwoofer location is to tem-

porarily place the subwoofer

near the main listening loca-

tion. Then move

around the

room and determine

where you

hear the most pleasing bass

performance. This would then

be the ideal location for the

subwoofer.

When we designed the DPS-12

powered subwoofers, our goal

was to oer the user the best

possible performance com-

bined with the most exible

and complete installation

options. Please look over the

following four examples to

determine which description

best matches your system and

follow the corresponding

hookup instructions.

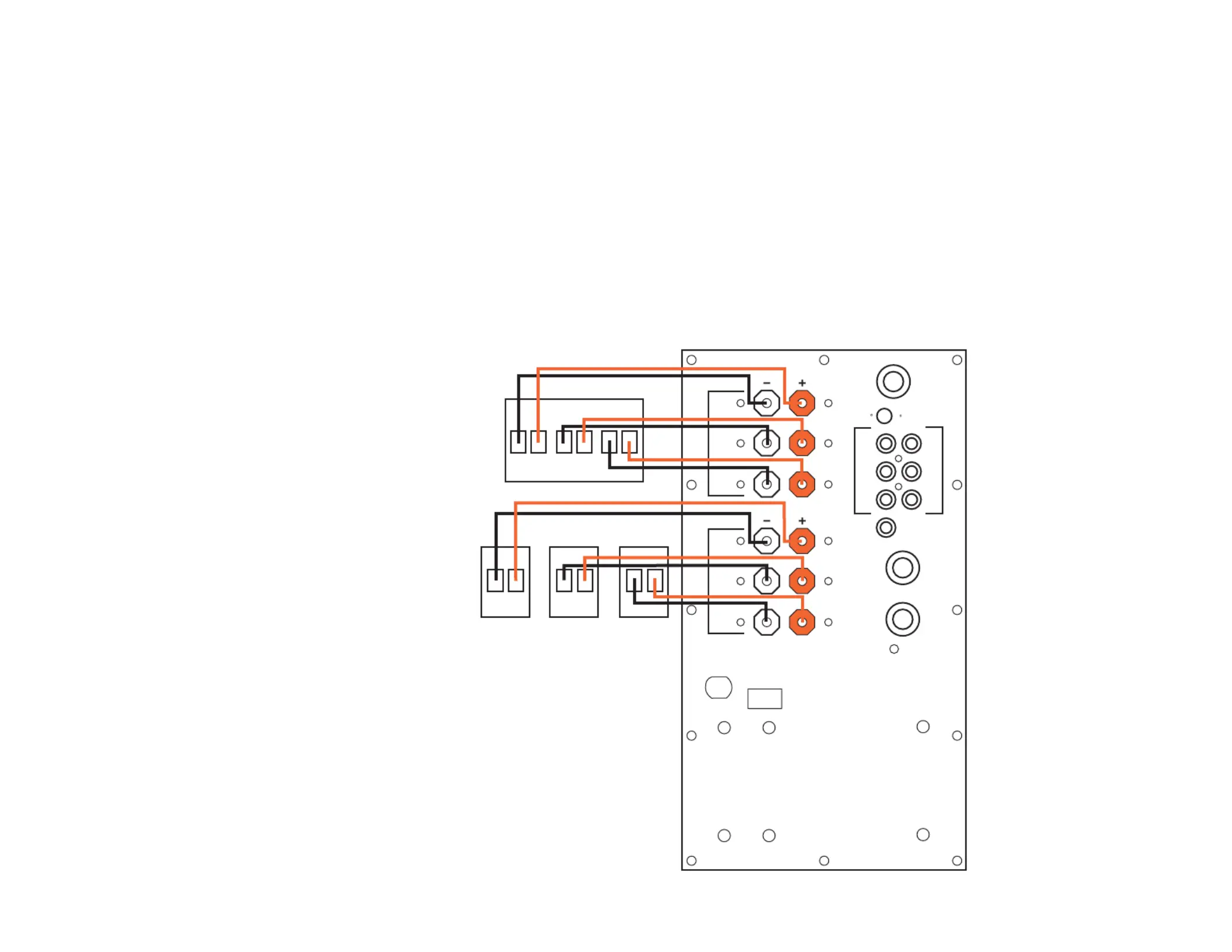

1) If your receiver/amplier

has no subwoofer

outputs or preamp

outputs for the left,

center and right

channels.

Hookup

+ +

High

Pass

60 180

120

90 150

Low

Pass

60 180

120

90 150

O On

Power

Direct

SPKR In

SPKR Out

RECEIVER/AMPLIFIER

– + – +

– +

Left Center Right

LEFT

SPEAKER

– +

CENTER

SPEAKER

– +

RIGHT

SPEAKER

Phase

0180

Level

Min Max

Video Contour

O On

~ 120V

60Hz, 350W
