DPS-10 simple setup guide
thank you for choosing JBL. For more
than 50 years, JBL has been involved in every
aspect of music and film recording and reproduc-
tion, from live performances to monitoring the
recordings you play in your home, car or office.
We’re confident that the JBL Loudspeakers you have
chosen will provide every note of enjoyment that
you expected – and that when you think about pur-
chasing additional audio equipment for your home,
car or office, you will once again choose JBL.
Please take a moment to complete the enclosed
profile card. It enables us to keep you posted on
our latest advancements, and helps us to better
understand our customers and build products that
meet their needs and expectations.
JBL Consumer Products
– 2 –– 2 –
1. Read Instructions. All
the safety and operating
instructions should be
read before the product is
operated.
2. Retain Instructions. The
safety and operating instruc-
tions should be retained for
future reference.
3. Heed Warnings. All warn-
ings on the product and in
the operating instructions
should be adhered to.
4. Follow Instructions. All
operating and use instruc-
tions should be followed.
5. Water and Moisture. The
product should not be used
near water – for example,
near a bathtub, washbowl,
kitchen sink, laundry tub, in
a wet basement or near a
swimming pool, and the like.
6. Accessories. Do not place
this product on an unstable
cart, stand, tripod, bracket
or table. The product may
fall, causing serious injury to
a child or adult, and serious
damage to the product. Use
only with a cart, stand, tri-
pod, bracket or table recom-
mended by the manufacturer,
or sold with the product.
Any mounting of the product
should follow the manufac-
turer’s instructions, and
should use a mounting
accessory recommended by
the manufacturer.
7. Wall or Ceiling
Mounting. The product
should be mounted on a
wall or ceiling only when
and as recommended by the
manufacturer.
8. Ventilation. Slots and
openings in the cabinet are
provided for ventilation and
to ensure reliable operation
of the product and to protect
it from overheating, and
these openings must not be
blocked or covered. The
openings should never be
blocked by placing the prod-
uct on a bed, sofa, rug or
other similar surface. This
product should not be placed
in a built-in installation
such as a bookcase or rack
unless proper ventilation
is provided or the manufac-
turer’s instructions have
been adhered to.
9. Heat. The product should
be situated away from heat
sources such as radiators,
heat registers, stoves or
other products that produce
heat. If placed near an
amplifier, check with
the manufacturer for
applicability.
10. Power Sources. This
product should be operated
only from the type of power
source indicated on the
marking label. If you are not
sure of the type of power
supply to your home, consult
your product dealer or local
power company. For products
intended to operate from
battery power, or other
sources, refer to the
operating instructions.
11. Grounding or
Polarization. This product
may be equipped with a
polarized alternating-current
line plug (a plug having one
blade wider than the other).
This plug will fit into the
power outlet only one way.
This is a safety feature. If
you are unable to insert the
plug fully into the outlet, try
reversing the plug. If the
plug should still fail to fit,
contact your electrician to
replace your obsolete outlet.
Do not defeat the safety pur-
pose of the polarized plug.
12. Power-Cord Protection.
Power-supply cords should
be routed so that they are
not likely to be walked on or
pinched by items placed
upon or against them, pay-
ing particular attention to
cords at plugs, convenience
receptacles and the point
where they exit from the
product.
13. Cleaning. Unplug this
product from the wall outlet
before cleaning. Do not use
liquid cleaners or aerosol
cleaners. Use a damp cloth
for cleaning.
14. Nonuse Periods. The
power cord of the product
should be unplugged from
the outlet when left unused
for long periods of time.
15. Lightning. For added
protection for this product
during a lightning storm, or
when it is left unattended
and unused for long periods
of time, unplug it from the
wall outlet and disconnect
the antenna or cable system.
This will prevent damage to
the product due to lightning
and power-line surges.
16. Overloading. Do not
overload wall outlets, exten-
sion cords or integral conve-
nience receptacles, as this
can result in a risk of fire or
electric shock.
17. Object and Liquid
Entry. Never push objects of
any kind into this product
through openings, as they
may touch dangerous voltage
points or short-out parts
that could result in a fire or
electric shock. Never spill
liquid of any kind on the
product.
18. Damage Requiring
Service. Unplug this product
from the wall outlet and
refer servicing to qualified
service personnel under the
following conditions:
a. The power-supply cord or
the plug has been damaged;
or
b. Objects have fallen onto,
or liquid has been spilled
into, the product; or
c. The product has been
exposed to rain or water; or
d. The product does not
operate normally when fol-
lowing the operating instruc-
tions. Adjust only those con-
trols that are covered by the
operating instructions, as an
improper adjustment of other
controls may result in dam-
age and will often require
extensive work by a qualified
technician to restore the
product to its normal opera-
tion; or
e. The product has been
dropped, or the enclosure
damaged; or
f. The product does not
appear to operate normally
or exhibits a marked change
in performance.
19. Attachments. Do not
use attachments not recom-
mended by the product man-
ufacturer, as they may cause
hazards.
20. Replacement Parts.
When replacement parts are
required, be sure the service
technician has used replace-
ment parts specified by
the manufacturer or that
have the same characteris-
tics as the original part.
Unauthorized substitutions
may result in fire, electric
shock or other hazards.
21. Safety Check. Upon
completion of any service or
repairs to this product, ask
the service technician to
perform safety checks to
determine that the product
is in proper operating
condition.
22. Servicing. Do not
attempt to service this prod-
uct yourself, as opening or
removing covers may expose
you to dangerous voltage or
other hazards. Refer all ser-
vicing to qualified service
personnel.
Part No. JBLULA 6/96
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To prevent electric shock,
do not remove the grounding plug
on the power cord, or use any plug
or extension cord that does not have
a grounding plug provided.
Make certain that the
AC outlet is properly grounded.
Do not use an adapter plug
with this product.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sucient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
read first! Important Safety Precautions!
– 3 –
Placement
• As a general rule, bass
response increases as a
subwoofer is placed closer
to a wall. Therefore, bass
output is maximized when
the subwoofer is placed in
a corner.
• It is also recommended
that the subwoofer be
positioned along the
same wall as the front
loudspeakers.
Low-frequency sounds are
normally omnidirectional,
meaning the listener can’t
tell where they are
generated
from. However, frequencies
between 75Hz – 150Hz can
be localized, especially at
higher volume levels.
Positioning your subwoofer
as recommended will provide
the most natural soundstage
and imaging from your loud-
speaker system.
Remember that these are just
guidelines. Since every listen-
ing room is different, JBL
strongly recommends experi-
menting with the positioning
of your subwoofer to obtain
the most pleasing results in
your room. One technique that
can help you find the ideal
subwoofer location is to tem-
porarily place the subwoofer
near the main listening loca-
tion. Then move
around the
room and determine
where you
hear the most pleasing bass
performance. This would then
be the ideal location for the
subwoofer.
When we designed the
DPS-10 powered subwoofer,
our goal was to offer the user
the best possible performance
combined with the the
most flexible and complete
installation options. Please
look over the following three
examples to determine which
description best matches your
system and follow the corre-
sponding hookup instructions.

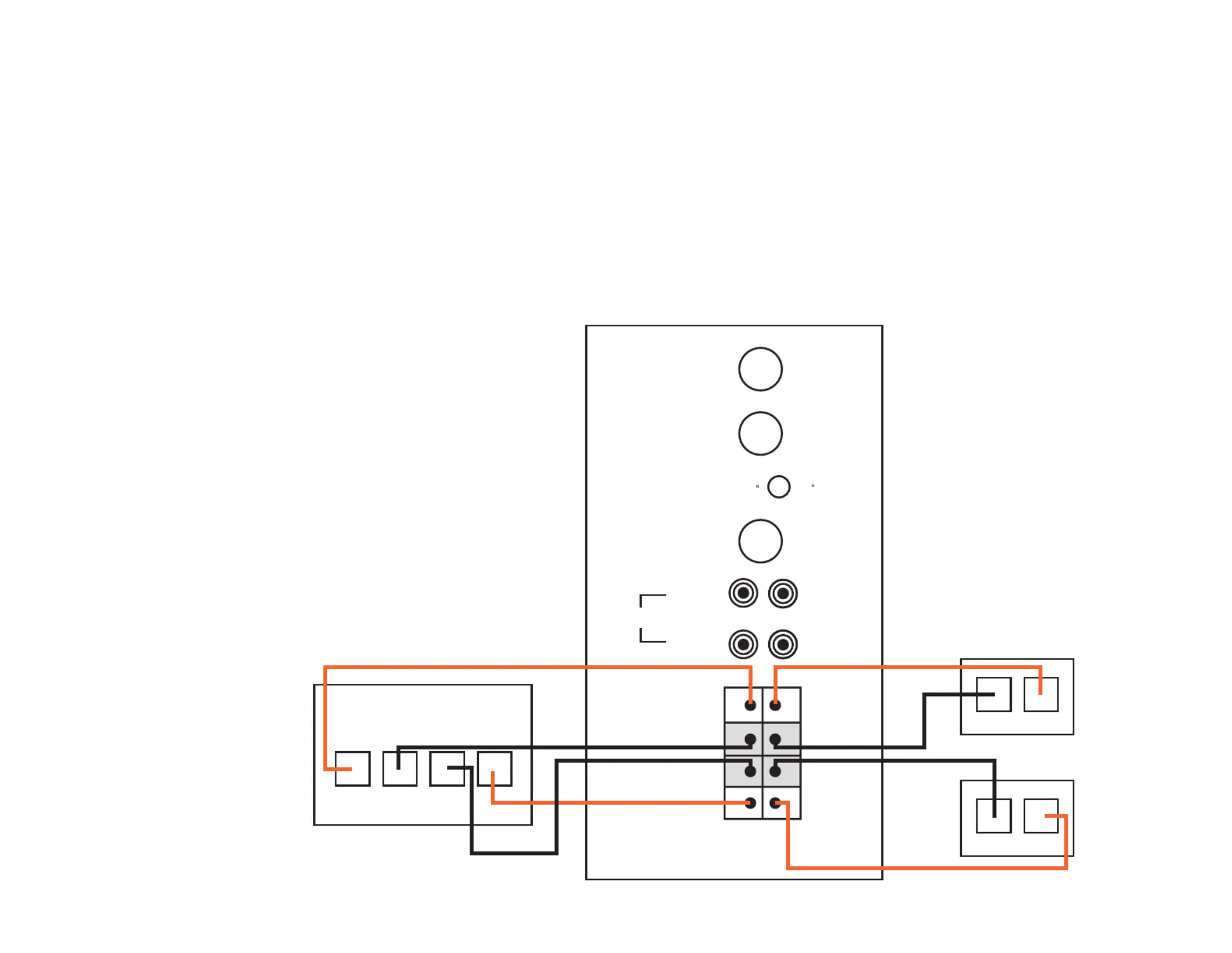

1) If your receiver/amplifier
has no subwoofer
outputs or preamp
outputs for the left
and right channels.
Hookup
Line
SPKR
In
SPKR
Out
High-Pass
Output
Input
R L
L
R
L
R
+
–
–
+
+
–
–
+
High
Pass
Phase
60 180
0180
120
90 150
Level
Min Max
Low
Pass
60 180
120
90 150
RECEIVER/AMPLIFIER
RIGHT
SPEAKER
SPEAKER OUTPUT
LEFT RIGHT
+ – – +
– +
LEFT
SPEAKER
– +

Product specificaties

Merk: JBL
Categorie: Subwoofer
Model: DPS-10

Heb je hulp nodig?

Als je hulp nodig hebt met JBL DPS-10 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden


Handleiding Subwoofer JBL

JBL

JBL Power P1022 Handleiding

12 December 2024
JBL

JBL Power P1222 Handleiding

12 December 2024
JBL

JBL BassPro SL2 Handleiding

8 December 2024
JBL

JBL W10GTi Handleiding

25 November 2024
JBL

JBL Venue SUB12 Handleiding

25 November 2024
JBL

JBL W10GTi II Handleiding

25 November 2024
JBL

JBL W12GTi Handleiding

25 November 2024
JBL

JBL Venue SUB10 Handleiding

25 November 2024
JBL

JBL SUB135 Handleiding

25 November 2024
JBL

JBL Power P1042 Handleiding

25 November 2024

Handleiding Subwoofer

Nieuwste handleidingen voor Subwoofer

Pioneer

Pioneer TS-A25S4 Handleiding

13 December 2024
Pioneer

Pioneer TS-A30S4 Handleiding

13 December 2024
Pioneer

Pioneer TS-A120S4E Handleiding

13 December 2024
ButtKicker

ButtKicker BK-LFE Handleiding

10 December 2024
Infinity

Infinity TSS-SUB750 Handleiding

9 December 2024
Infinity

Infinity TSS-SUB4000 Handleiding

9 December 2024
Infinity

Infinity Reference SUB R12 Handleiding

9 December 2024
AudioSource

AudioSource PSW110 Handleiding

9 December 2024
AudioSource

AudioSource PSW112 Handleiding

9 December 2024
Klipsch

Klipsch Reference RW-5802 II Handleiding

8 December 2024
