Thank you

for choosing the Infinity BassLink™T. BassLink T has been designed

to provide the kind of high-performance low-frequency reproduction that used to require

big, clumsy enclosures, large amplifiers and complicated installation. To ensure maximum

performance, we strongly recommend that installation be entrusted to a qualified professional.

Although these instructions explain how to install the BassLink T in a general sense, they

do not show the specific installation methods for your particular vehicle. If you feel you do

not have the necessary tools or experience, do not attempt the installation yourself; rather,

ask your authorized Infinity car audio dealer about professional installation options.

Remember to keep this manual and your sales receipt in a safe place for future reference.

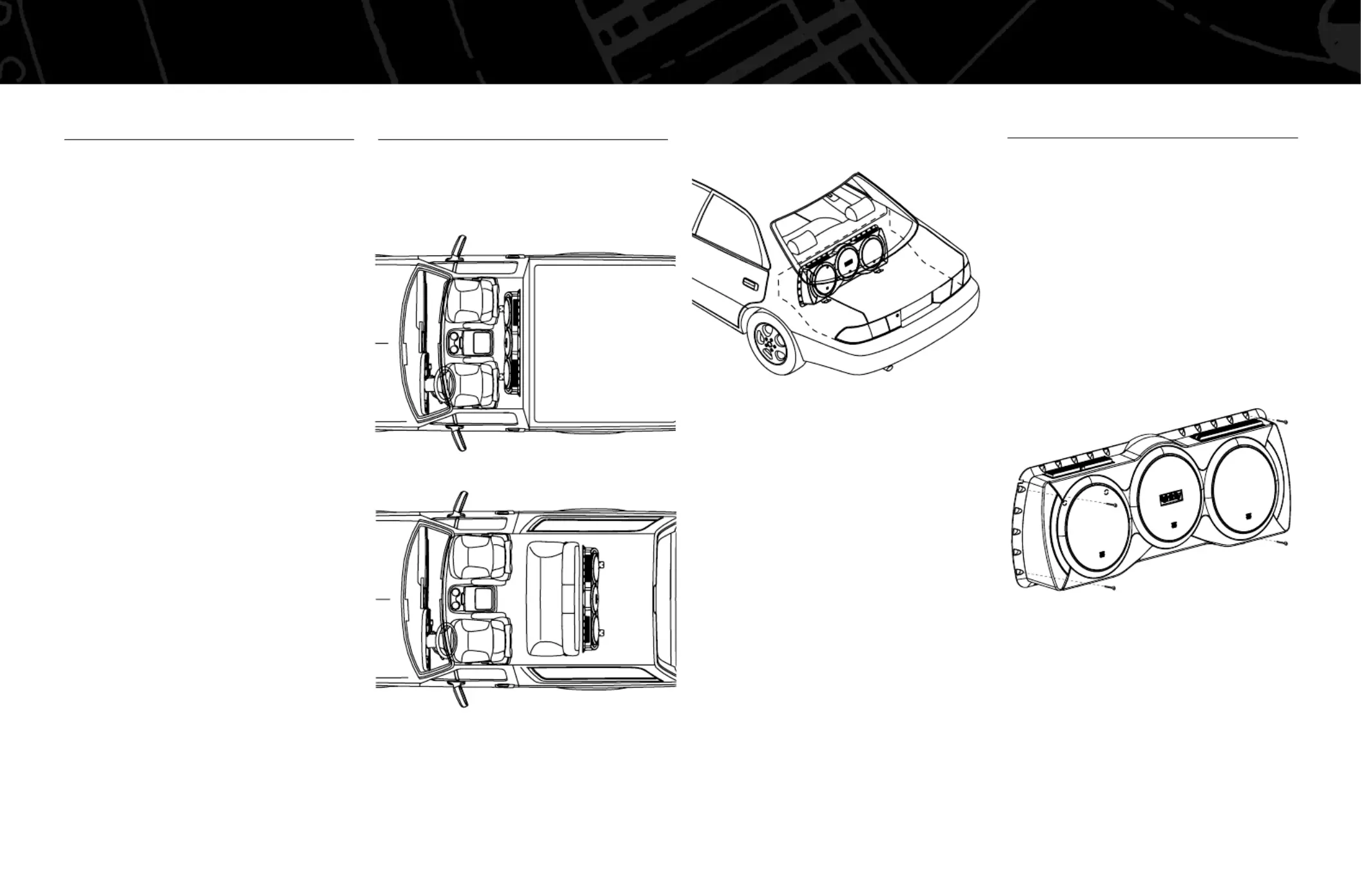

C M LHOOSING A OUNTING OCATION

Choose a mounting location that does not

interfere with the seats, seat mechanisms

or cargo.

Figure 1. BassLink T in a pickup truck.

Figure 2. BassLink T in an SUV cargo area.

INTRODUCTION

HEARING WARNING!

Playing loud music in a vehicle can permanently

damage your hearing, as well as hinder your

ability to hear traffic. We recommend using low

volume levels while driving. Infinity accepts no

liability for hearing loss, bodily injury or property

damage resulting from the use or misuse of

this product.

YOUR CAR AND BASS REPRODUCTION

Depending on the interior volume of your

vehicle and the dimensions of the passenger

compartment and cargo area, reproduced

frequencies below 80Hz may be boosted by

nearly 12dB per octave as frequency decreases.

This effect, known as the vehicle’s “transfer

function” or “cabin gain,” plays an important

part in shaping the overall in-car response of

the BassLink T.

BassLink T is designed to work with your vehicle’s

other speakers to reproduce frequencies below

100Hz. Moreover, depending on orientation and

mounting location, BassLink T may be “in phase”

or “out of phase” with those speakers. The result-

ing conditions, known as constructive and destruc-

tive interference, also play a role in shaping the

total frequency response of your system.

BassLink T includes controls to optimize both

of these conditions and their adjustment is

explained in sections “Controls & Functions”

and “Tuning Basslink T”.

Figure 3. BassLink T in a car’s trunk.

CAUTION: Make sure mounting screws will not

puncture wiring harnesses, brake or fuel lines, or

the vehicle’s fuel tank. Some or all of these may

be located behind or under the mounting surface.

BassLink T has been designed for easy installation

in many vehicle applications. BassLink T should

be secured to a solid mounting surface using the

supplied mounting hardware. There are multiple

indentations along the mounting flange. These

allow for different screw locations, depending

on your vehicle. BassLink T should be secured

using a minimum of four screws along the

different edges. Please see Figures 4 and 6.

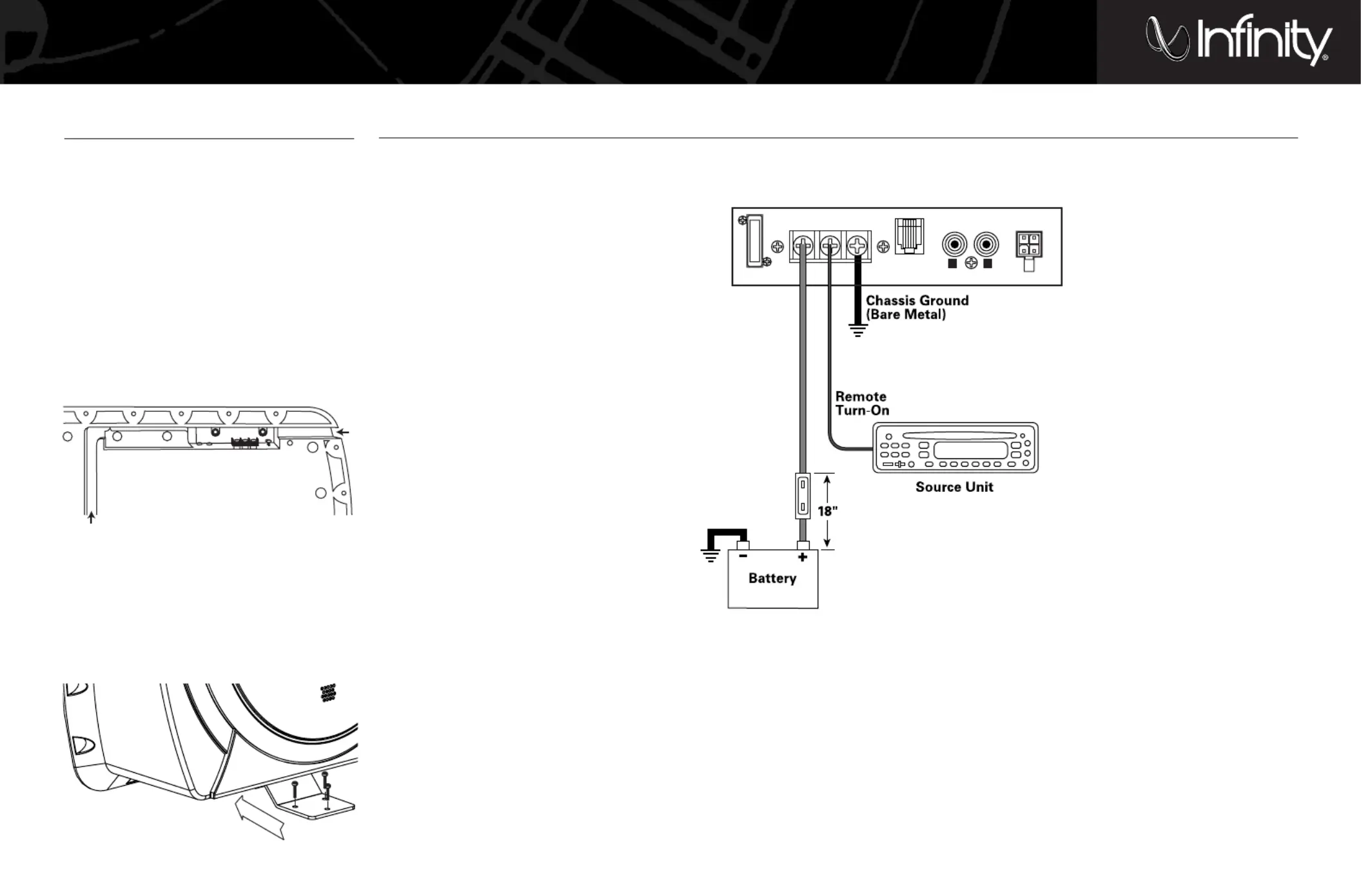

Figure 4. BassLink T screw installation.

M B L TOUNTING ASS INK

ROUTING THE WIRES

All signal and power wires should be routed

through the opening provided at the rear of the

connection panel. On the rear of Basslink T are

two channels extending from the opening — one

horizontal, and one vertical — that may be used for

routing those wires to the vehicle.

Depending on installation requirements, all, or

some, of the wires may be routed straight down

along the vertical channel to the floor and hidden

under the carpeting, and/or across the horizontal

channel toward the side and hidden behind the

vehicle’s trim panels.

Figure 5. Channels for wiring.

ADDITIONAL MOUNTING FEET

If your particular application inhibits the ability to

secure the lower portion of BassLink T, please use

the supplied mounting feet. They slide into the

channels on the bottom of the unit and snap in

place. This will give you the ability to secure

BassLink T to the floor of your vehicle.

Figure 6. BassLink T installation with optional feet.

M B L )OUNTING ASS INK T (CONTINUED

Connect power to BassLink T, as shown in

Figure 7. Also observe these installation tips:

•

Use at least #10 AWG wire for the +BATT

(+12 Vdc) and GND (ground) connections. If

needed, use at least a #20 AWG wire for the

REM (remote) connection.

•

Route all power wires through a grommet in

the vehicle’s firewall. If a factory grommet is

unavailable, install one.

•

Connect a short GND wire from BassLink T

to the nearest bare metal surface. For a

good connection, scrape away paint from

the metal surface and use a screw with a

lock (star) washer.

•

Install a fuse holder with a 25 A fuse within

18" of the battery’s positive (+) terminal (see

Figure 7).

•

The REM connection requires +5 to +12 Vdc

signal to turn on BassLink T. Most head units

with preamp outputs provide this remote

voltage signal. For speaker-level applications,

a remote connection is preferred but not

required, since BassLink T’s Auto Turn-On

feature will sense voltage on the speaker

wires to automatically turn on BassLink T.

IMPORTANT: To enable BassLink T’s Auto

Turn-On feature, set the AUTO TURN-ON

switch to the AUTO position (see Figure 13

on page 7).

Figure 7. Power connections for BassLink T.

P COWER ONNECTIONS

BassLink T

(Control Panel)

Fuse 25 A

POWER

+B TT REM GND

FUSE

25A

REMOTE

LEVEL

CONTROL

LINE LEVEL

INPUT

HIGH LEVEL

INPUT

–

L R
