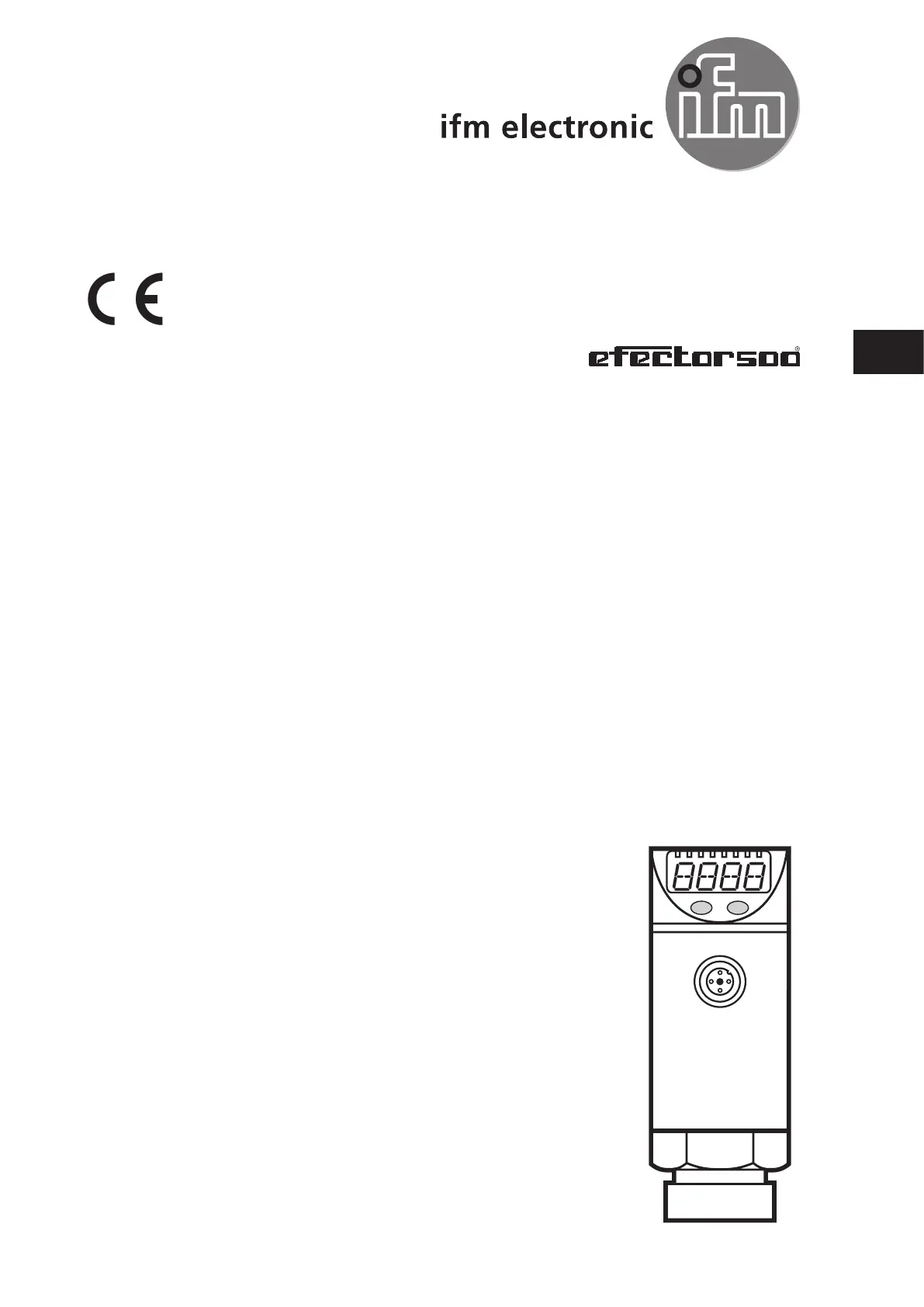

Pagina 1/19
Operating instructions
Pressure sensor
PN73xx
UK
706183 / 00 04 / 2012
2
Contents
1 Preliminary note 3 ���������������������������������������������������������������������������������������������������
1�1 Symbols used 3 ������������������������������������������������������������������������������������������������
2 Safety instructions 3 �����������������������������������������������������������������������������������������������
3 Functions and features 4 ����������������������������������������������������������������������������������������
4 Function ���������������������������������������������������������������������������������������������������������������5
4�1 Communication, parameter setting, evaluation 5 ���������������������������������������������
4�2 Switching function 5 ������������������������������������������������������������������������������������������
4�3 Diagnostic function 6 ����������������������������������������������������������������������������������������
5 Installation������������������������������������������������������������������������������������������������������������6
6 Electrical connection 7 ��������������������������������������������������������������������������������������������
7 Operating and display elements 8 �������������������������������������������������������������������������
8 Menu ��������������������������������������������������������������������������������������������������������������������9
8�1 Menu structure 9 �����������������������������������������������������������������������������������������������
8�2 Explanation of the menu 10 ������������������������������������������������������������������������������
9 Parameter setting ���������������������������������������������������������������������������������������������� 11
9�1 General parameter setting ��������������������������������������������������������������������������� 11
9�2 Configuring the display (optional) 13 ����������������������������������������������������������������
9�3 Setting the output signals 13 ����������������������������������������������������������������������������
9�3�1 Setting of the output function 13 ��������������������������������������������������������������
9�3�2 Setting of the switching limits 13 �������������������������������������������������������������
9�4 User settings (optional) 14 �������������������������������������������������������������������������������
9�4�1 Setting of a time delay for the switching signals 14 ���������������������������������
9�4�2 Setting of the output logic for the switching outputs 14 ���������������������������
9�4�3 Setting of the damping for the switching outputs 14 ��������������������������������
9�5 Service functions 14 �����������������������������������������������������������������������������������������
9�5�1 Reading the min�/max� values for the system pressure 14 ����������������������
9�5�2 Reset all parameters to factory setting 14 �����������������������������������������������
10 Operation ���������������������������������������������������������������������������������������������������������15
10�1 Reading of the set parameters 15 ������������������������������������������������������������������
10�2 Fault indication 15 ������������������������������������������������������������������������������������������
11 Scale drawing 16 ��������������������������������������������������������������������������������������������������
12 Technical data 17 ��������������������������������������������������������������������������������������������������
12�1 Setting ranges 18 �������������������������������������������������������������������������������������������
13 Factory setting 19 �������������������������������������������������������������������������������������������������
3
UK
1 Preliminary note
1.1 Symbols used
â–ºInstruction
> Reaction, result
[…] Designation of pushbuttons, buttons or indications
→Cross-reference
Important note:
Non-compliance can result in malfunctions or interference�
2 Safety instructions
• Please read this document prior to set-up of the unit� Ensure that the product is
suitable for your application without any restrictions�
• If the operating instructions or the technical data are not adhered to, personal
injury and/or damage to property can occur�
• Checkthecompatibilityoftheproductmaterials(→chapter12Technicaldata)
with the media to be measured in all applications�
• Use in gases at pressures > 363 PSI (25 bar) only after contacting the manuf-
acturer ifm�
