Pagina 1/2

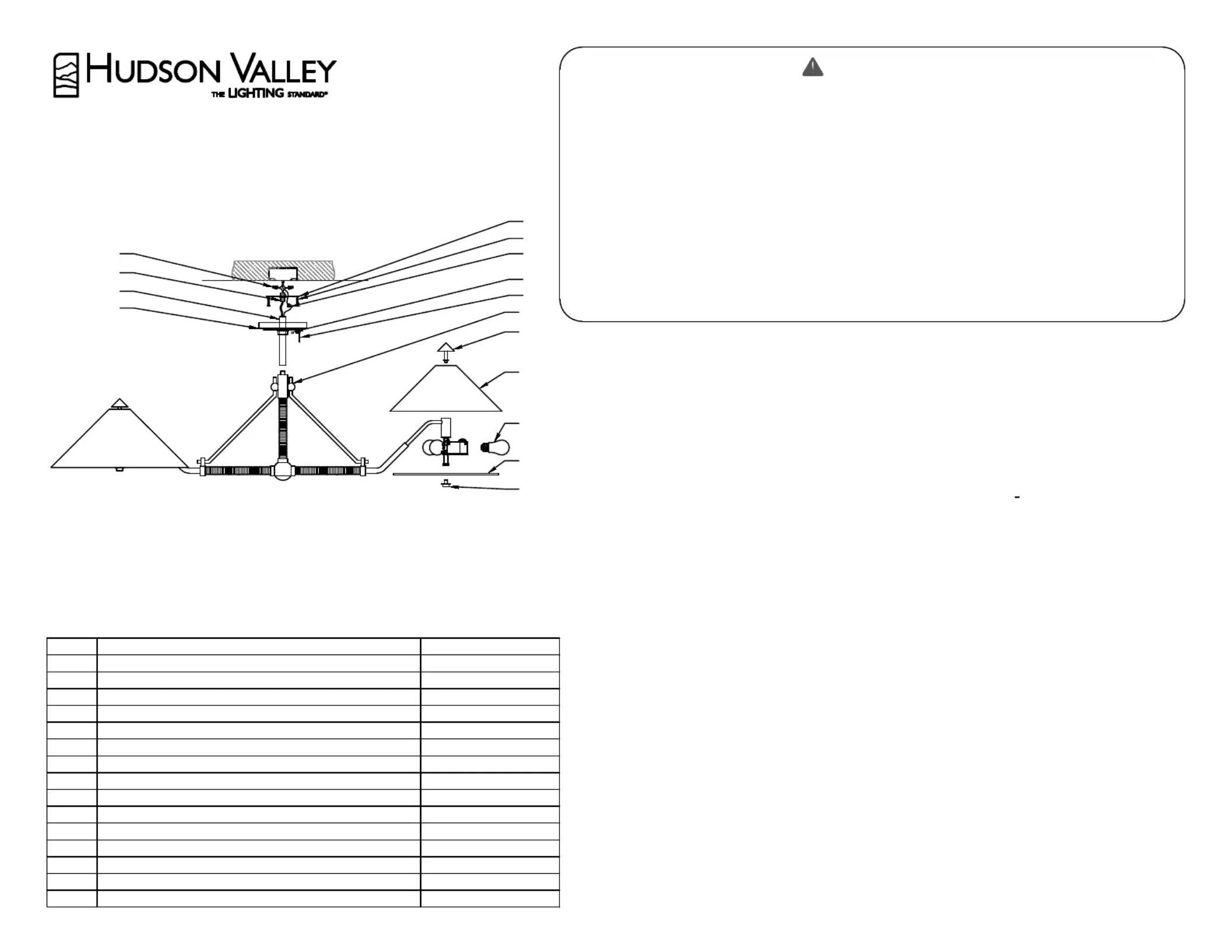

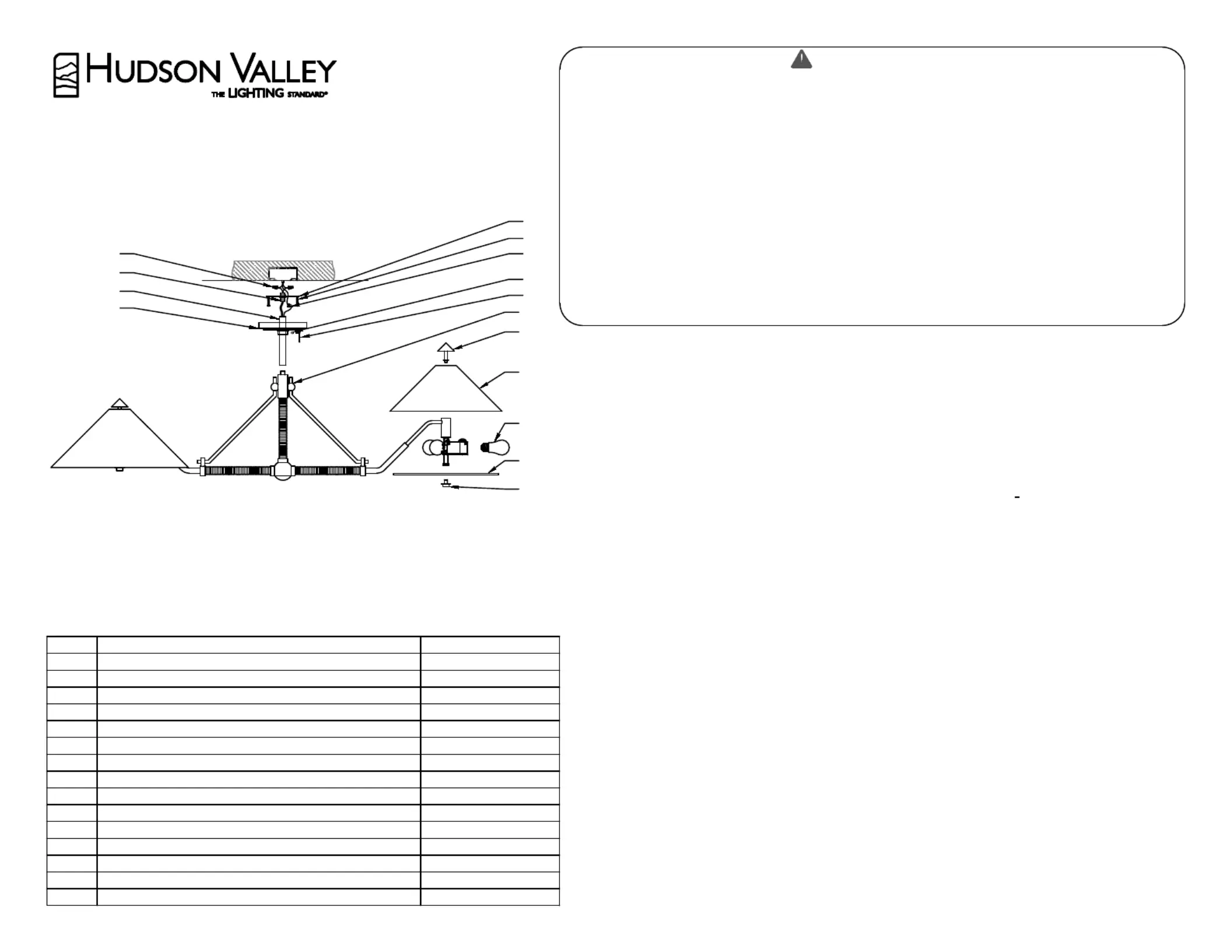

FIXTURE INSTALLATION
1. Feed the wire through the STEM (6) and twist tightly onto the FIXTURE ASSEMBLY (10). Keep adding
additional stems until you desired hanging height is met.
2. Slide in CANOPY(7) onto the STEM (6), and thread the 1/4 NIPPLE (5) onto the top end of the STEM (6)
3. Pull the wire out from the junction box, and install the MOUNTING PLATE (1) onto the junction box using the
MOUNTING SCREWS (2). This fixture is designed to be mounted on standard round or octagon junction box.
The junction box must be securely mounted to the structure of the building.
4. Trim off the excess wire to a minimum 6" beyond the STEM and strip each wire 5
8".
5. Attach the Ground wire (Green) to the ground inside the outlet box (Generally green or bar copper wire) or the
GROUND SCREW (3) on the MOUNTING PLATE (1). NEVER CONNECT GROUND WIRE TO "HOT" WIRE!
FAILURE TO FOLLOW THIS COULD RESULT IN SERIOUS INJURY OR DEATH!
6. Connect the white fixture lead to the neutral (Generally white) wire in the outlet box. Fasten the wires together
with an approved fastener (WIRE NUT) (4). Starting 1" below the fastener, tightly wrap the connection with
electrical tape so that the connections seals the end of the fastener. MAKE SURE THERE ARE NO EXPOSED
WIRE OF STRANDS THAT COULD CAUSE A DANGEROUS SHORT CIRCUIT!
7. Connect the black fixture leads to the hot (Generally black) wire in the outlet box. Fasten the joined wires same
as previous step. NEVER REVERSE HOT AND NEUTRAL WIRES. FAILURE TO FOLLOW THIS COULD
RESULT IN SERIOUS INJURY OR DEATH!
8. Push the wires back into the junction box. Lift up the CANOPY (7) up to the ceiling, and secure it with the
HEADLESS SCREW (8) by using supplied ALLEN KEY TOOLING (9) .
9. Attach the SHADE (12) to the FIXTURE ASSEMBLY (10) and secure with the TOP FINIAL (11) .
10. Screw the BULB (13) up into the SOCKET of the fixture.THIS FIXTURE IS RATED FOR 9 WATT LAMP. DO
NOT EXCEED THE RECOMMENDED WATTAGE!
11. Lift the DIFFUSER (14) up onto the fixture and secure using the BOTTOM FINIAL (15) .
12. Restore power to the outlet at the breaker or fuse box.
WILLIAMSBURG
1057
INSTALLATION INSTRUCTIONS
WARNING/CAUTION
路DISCONNECT POWER BEFORE RE-LAMPING OR WIRING THE FIXTURE. READ ALL INSTRUCTIONS
COMPLETELY BEFORE STARTING INSTALLATION.
路TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES. THE INSTALLATION AND
MAINTENANCE OF THIS UNIT SHOULD BE COMPLETED BY A LICENSED ELECTRICIAN OR CERTIFIED
FACTORY TRAINED TECHNICIAN.
路CALIFORNIA PROP 65: THIS LIGHTING FIXTURE CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER REPRODUCTIVE HARM. WASH HANDS
AFTER USE.
路REMOVE THE FIXTURE, PARTS AND PARTS BAG(S) FROM THE CARTON. BEFORE DISCARDING THE
CARTON, DOUBLE CHECK TO MAKE CERTAIN THAT ALL PARTS ARE FOUND. INSPECT THE FIXTURE PRIOR
TO INSTALLATION FOR ANY DAMAGE TO THE FIXTURE.
路DIMMING: THE FIXTURE CAN BE CONTROLLED BY A WALL DIMMING DEVICE. ONLY USE
TRIAC/ELECTRONIC DIMMER. MAKE SURE THE CARTON IS MARKED FOR USE WITH LED COMPACT
FLUORESCENT-INCANDESCENT LIGHT SOURCE ONLY. THESE CAN BE PROVIDED BY YOUR LOCAL
ELECTRICAL DISTRIBUTOR, HOME CENTER, OR HARDWARE STORE.
路PLEASE CLEAN WITH A SOFT, DRY CLOTH ONLY! DO NOT USE CLEANSERS
www.hvlgroup.com
Questions? We're here to help!
Contact us at CustomerService@hvlgroup.com
1
2
34
5
6
7
8
9
10
11
12
13
14
15
ITEM DESCRIPTION PART NUMBER
1MOUNTING PLATE HDW-001046
2MOUNTING SCREW HDW-001046
3GROUND SCREW HDW-001046
4WIRE NUT HDW-001046
51/4 NIPPLE HDW-001046
6STEM STM-104603,06,12,18
7CANOPY CAS-001046
8HEADLESS SCREW CAS-001046
9ALLEN KEY TOOLING MIS-001046
10 FIXTURE ASSEMBLY FAS-001057
11 TOP FINIAL FIN-001002-T
12 SHADE SHD-001057
13 A15 LED BULB NOT INCLUDED
14 DIFFUSER DIF-001057
15 BOTTOM FINIAL FIN-001002-B
FIXTURE INSTALLATION
1. Feed the wire through the STEM (6) and twist tightly onto the FIXTURE ASSEMBLY (10). Keep adding
additional stems until you desired hanging height is met.
2. Slide in CANOPY(7) onto the STEM (6), and thread the 1/4 NIPPLE (5) onto the top end of the STEM (6)
3. Pull the wire out from the junction box, and install the MOUNTING PLATE (1) onto the junction box using the
MOUNTING SCREWS (2). This fixture is designed to be mounted on standard round or octagon junction box.
The junction box must be securely mounted to the structure of the building.
4. Trim off the excess wire to a minimum 6" beyond the STEM and strip each wire 5
8".
5. Attach the Ground wire (Green) to the ground inside the outlet box (Generally green or bar copper wire) or the
GROUND SCREW (3) on the MOUNTING PLATE (1). NEVER CONNECT GROUND WIRE TO "HOT" WIRE!
FAILURE TO FOLLOW THIS COULD RESULT IN SERIOUS INJURY OR DEATH!
6. Connect the white fixture lead to the neutral (Generally white) wire in the outlet box. Fasten the wires together
with an approved fastener (WIRE NUT) (4). Starting 1" below the fastener, tightly wrap the connection with
electrical tape so that the connections seals the end of the fastener. MAKE SURE THERE ARE NO EXPOSED
WIRE OF STRANDS THAT COULD CAUSE A DANGEROUS SHORT CIRCUIT!
7. Connect the black fixture leads to the hot (Generally black) wire in the outlet box. Fasten the joined wires same
as previous step. NEVER REVERSE HOT AND NEUTRAL WIRES. FAILURE TO FOLLOW THIS COULD
RESULT IN SERIOUS INJURY OR DEATH!
8. Push the wires back into the junction box. Lift up the CANOPY (7) up to the ceiling, and secure it with the
HEADLESS SCREW (8) by using supplied ALLEN KEY TOOLING (9) .
9. Attach the SHADE (12) to the FIXTURE ASSEMBLY (10) and secure with the TOP FINIAL (11) .
10. Screw the BULB (13) up into the SOCKET of the fixture.THIS FIXTURE IS RATED FOR 9 WATT LAMP. DO
NOT EXCEED THE RECOMMENDED WATTAGE!
11. Lift the DIFFUSER (14) up onto the fixture and secure using the BOTTOM FINIAL (15) .
12. Restore power to the outlet at the breaker or fuse box.
WILLIAMSBURG
1057
INSTALLATION INSTRUCTIONS
www.hvlgroup.com
Questions? We're here to help!
Contact us at CustomerService@hvlgroup.com
1
2
34
5
6
7
8
9
10
11
12
13
14
15
ITEM DESCRIPTION PART NUMBER
1MOUNTING PLATE HDW-001046
2MOUNTING SCREW HDW-001046
3GROUND SCREW HDW-001046
4WIRE NUT HDW-001046
51/4 NIPPLE HDW-001046
6STEM STM-104603,06,12,18
7CANOPY CAS-001046
8HEADLESS SCREW CAS-001046
9ALLEN KEY TOOLING MIS-001046
10 FIXTURE ASSEMBLY FAS-001057
11 TOP FINIAL FIN-001002-T
12 SHADE SHD-001057
13 A15 LED BULB NOT INCLUDED
14 DIFFUSER DIF-001057
15 BOTTOM FINIAL FIN-001002-B
ATTENTION PRUDENCE
路D脡BRANCHEZ L'ALIMENTATION AVANT DE REMPLIR OU DE C脗BLER LE LUMINAIRE. LISEZ
COMPL脠TEMENT TOUTES LES INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION
路POUR 脡VITER LE RISQUE D'INCENDIE OU D'脡LECTROCUTION, LE LUMINAIRE DOIT 脢TRE INSTALL脡
CONFORM脡MENT 脌 TOUS LES CODES 脡LECTRIQUES/DE CONSTRUCTION NATIONAUX ET LOCAUX
APPLICABLES. L'INSTALLATION ET L'ENTRETIEN DE CET APPAREIL DOIVENT 脢TRE EFFECTU脡S PAR UN
脡LECTRICIEN AGR脡脡 OU UN TECHNICIEN CERTIFI脡 FORM脡 EN USINE.
路CALIFORNIE PROP 65 : CET APPAREIL D'脡CLAIRAGE CONTIENT DES PRODUITS CHIMIQUES CONNUS PAR
L'脡TAT DE CALIFORNIE POUR PROVOQUER LE CANCER, DES MALADIES CONG脡NITALES ET/OU D'AUTRES
DOMMAGES 脌 LA REPRODUCTION. LAVER LES MAINS APR脠S UTILISATION.
路RETIRER LE LUMINAIRE, LES PI脠CES ET LE(S) SAC(S) DE PI脠CES DU CARTON. AVANT DE JETER LE
CARTON, V脡RIFIEZ DOUBLE POUR VOUS ASSURER QUE TOUTES LES PI脠CES SONT TROUV脡ES.
INSPECTER LE LUMINAIRE AVANT L'INSTALLATION POUR TOUT DOMMAGE AU LUMINAIRE.
路GRADATION : LE LUMINAIRE PEUT 脢TRE CONTRL脡 PAR UN DISPOSITIF DE GRADATION MURALE. UTILISER
UNIQUEMENT UN GRADATEUR TRIAC/脡LECTRONIQUE. ASSUREZ-VOUS QUE LE CARTON EST MARQU脡
POUR UNE UTILISATION AVEC UNE SOURCE DE LUMI脠RE FLUORESCENTE 脌 INCANDESCENTE COMPACTE
UNIQUEMENT. CEUX-CI PEUVENT 脢TRE FOURNIS PAR VOTRE DISTRIBUTEUR 脡LECTRIQUE LOCAL,
CENTRE 脌 DOMICILE OU MAGASIN DE QUINCAILLERIE.
路VEUILLEZ NETTOYER UNIQUEMENT AVEC UN CHIFFON DOUX ET SEC ! N'UTILISEZ PAS DE NETTOYANTS
