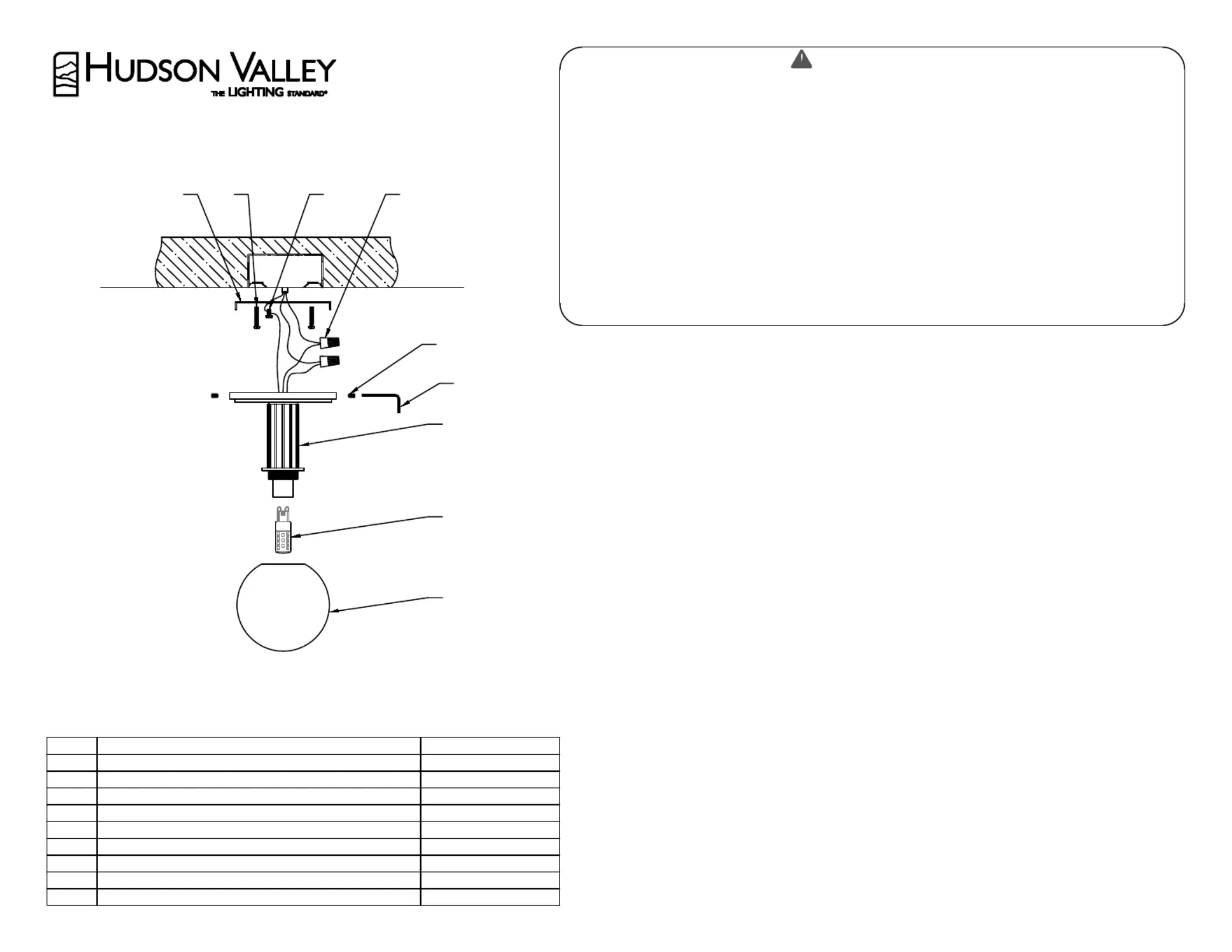

FIXTURE INSTALLATION
1. Attach the MOUNTING PLATE (1) unto the junction box using the MOUNTING SCREWS (2). This fixture is
designed to be mounted on standard round or octagon junction box. The junction box must be securely mounted
to the structure of the building.
2. Attach the Ground wire (Green) to the ground inside the outlet box (Generally green or bar copper wire) or the
GROUND SCREW (3) on the MOUNTING PLATE (1). NEVER CONNECT GROUND WIRE TO "HOT" WIRE!
FAILURE TO FOLLOW THIS COULD RESULT IN SERIOUS INJURY OR DEATH!
3. Connect the white fixture lead to the neutral (Generally white) wire in the outlet box. Fasten the wires together
with an approved fastener (WIRE NUT) (4). Starting 1" below the fastener, tightly wrap the connection with
electrical tape so that the connections seals the end of the fastener. MAKE SURE THERE ARE NO EXPOSED
WIRE OF STRANDS THAT COULD CAUSE A DANGEROUS SHORT CIRCUIT!
4. Connect the black fixture leads to the hot (Generally black) wire in the junction box. Fasten the joined wires
same as previous step. NEVER REVERSE HOT AND NEUTRAL WIRES. FAILURE TO FOLLOW THIS
COULD RESULT IN SERIOUS INJURY OR DEATH!
5. Attach the FIXTURE ASSEMBLY (6) to the MOUNTING PLATE (1) and secure with the ALLEN SCREW (6)
using the ALLEN KEY (9) .
6. Push the BULB (7) up into the SOCKET of the fixture.THIS FIXTURE IS RATED FOR 4 WATT TYPE G9 LED
LAMP. DO NOT EXCEED THE RECOMMENDED WATTAGE!
7. Screw the (8) to the FIXTURE ASSEMBLY (6).ALABASTER BALL
8. Restore power to the outlet at the breaker or fuse box.
1
MURRAY HILL
9280
INSTALLATION INSTRUCTIONS
WARNING/CAUTION
路DISCONNECT POWER BEFORE RE-LAMPING OR WIRING THE FIXTURE. READ ALL INSTRUCTIONS
COMPLETELY BEFORE STARTING INSTALLATION.
路TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES. THE INSTALLATION AND
MAINTENANCE OF THIS UNIT SHOULD BE COMPLETED BY A LICENSED ELECTRICIAN OR CERTIFIED
FACTORY TRAINED TECHNICIAN.
路CALIFORNIA PROP 65: THIS LIGHTING FIXTURE CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER REPRODUCTIVE HARM. WASH HANDS
AFTER USE.
路REMOVE THE FIXTURE, PARTS AND PARTS BAG(S) FROM THE CARTON. BEFORE DISCARDING THE
CARTON, DOUBLE CHECK TO MAKE CERTAIN THAT ALL PARTS ARE FOUND. INSPECT THE FIXTURE PRIOR
TO INSTALLATION FOR ANY DAMAGE TO THE FIXTURE.
路DIMMING: THE FIXTURE CAN BE CONTROLLED BY A WALL DIMMING DEVICE. ONLY USE
TRIAC/ELECTRONIC DIMMER. MAKE SURE THE CARTON IS MARKED FOR USE WITH LED COMPACT
FLUORESCENT-INCANDESCENT LIGHT SOURCE ONLY. THESE CAN BE PROVIDED BY YOUR LOCAL
ELECTRICAL DISTRIBUTOR, HOME CENTER, OR HARDWARE STORE.
路PLEASE CLEAN WITH A SOFT, DRY CLOTH ONLY! DO NOT USE CLEANSERS
www.hvlgroup.com
Questions? We're here to help!
Contact us at CustomerService@hvlgroup.com
2 3 4
5
6
7
8
ITEM DESCRIPTION PART NUMBER
1MOUNTING PLATE HDW-009280
2MOUNTING SCREW HDW-009280
3GROUND SCREW HDW-009280
4WIRE NUT HDW-009280
5ALLEN SCREW HDW-009280
6FIXTURE ASSEMBLY FAS-009280
7BULB BLB-4W-G9
8ALABASTER BALL ALA-009280
9ALLEN KEY MIS-009280
9
FIXTURE INSTALLATION
1. Attach the MOUNTING PLATE (1) unto the junction box using the MOUNTING SCREWS (2). This fixture is
designed to be mounted on standard round or octagon junction box. The junction box must be securely mounted
to the structure of the building.
2. Attach the Ground wire (Green) to the ground inside the outlet box (Generally green or bar copper wire) or the
GROUND SCREW (3) on the MOUNTING PLATE (1). NEVER CONNECT GROUND WIRE TO "HOT" WIRE!
FAILURE TO FOLLOW THIS COULD RESULT IN SERIOUS INJURY OR DEATH!
3. Connect the white fixture lead to the neutral (Generally white) wire in the outlet box. Fasten the wires together
with an approved fastener (WIRE NUT) (4). Starting 1" below the fastener, tightly wrap the connection with
electrical tape so that the connections seals the end of the fastener. MAKE SURE THERE ARE NO EXPOSED
WIRE OF STRANDS THAT COULD CAUSE A DANGEROUS SHORT CIRCUIT!
4. Connect the black fixture leads to the hot (Generally black) wire in the junction box. Fasten the joined wires
same as previous step. NEVER REVERSE HOT AND NEUTRAL WIRES. FAILURE TO FOLLOW THIS
COULD RESULT IN SERIOUS INJURY OR DEATH!
5. Attach the FIXTURE ASSEMBLY (6) to the MOUNTING PLATE (1) and secure with the ALLEN SCREW (6)
using the ALLEN KEY (9) .
6. Push the BULB (7) up into the SOCKET of the fixture.THIS FIXTURE IS RATED FOR 4 WATT TYPE G9 LED
LAMP. DO NOT EXCEED THE RECOMMENDED WATTAGE!
7. Screw the (8) to the FIXTURE ASSEMBLY (6).ALABASTER BALL
8. Restore power to the outlet at the breaker or fuse box.
1
MURRAY HILL
9280
INSTALLATION INSTRUCTIONS
www.hvlgroup.com
Questions? We're here to help!
Contact us at CustomerService@hvlgroup.com
2 3 4
5
6
7
8
ITEM DESCRIPTION PART NUMBER
1MOUNTING PLATE HDW-009280
2MOUNTING SCREW HDW-009280
3GROUND SCREW HDW-009280
4WIRE NUT HDW-009280
5ALLEN SCREW HDW-009280
6FIXTURE ASSEMBLY FAS-009280
7BULB BLB-4W-G9
8ALABASTER BALL ALA-009280
9ALLEN KEY MIS-009280
9
ATTENTION PRUDENCE
路D脡BRANCHEZ L'ALIMENTATION AVANT DE REMPLIR OU DE C脗BLER LE LUMINAIRE. LISEZ
COMPL脠TEMENT TOUTES LES INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION
路POUR 脡VITER LE RISQUE D'INCENDIE OU D'脡LECTROCUTION, LE LUMINAIRE DOIT 脢TRE INSTALL脡
CONFORM脡MENT 脌 TOUS LES CODES 脡LECTRIQUES/DE CONSTRUCTION NATIONAUX ET LOCAUX
APPLICABLES. L'INSTALLATION ET L'ENTRETIEN DE CET APPAREIL DOIVENT 脢TRE EFFECTU脡S PAR UN
脡LECTRICIEN AGR脡脡 OU UN TECHNICIEN CERTIFI脡 FORM脡 EN USINE.
路CALIFORNIE PROP 65 : CET APPAREIL D'脡CLAIRAGE CONTIENT DES PRODUITS CHIMIQUES CONNUS PAR
L'脡TAT DE CALIFORNIE POUR PROVOQUER LE CANCER, DES MALADIES CONG脡NITALES ET/OU D'AUTRES
DOMMAGES 脌 LA REPRODUCTION. LAVER LES MAINS APR脠S UTILISATION.
路RETIRER LE LUMINAIRE, LES PI脠CES ET LE(S) SAC(S) DE PI脠CES DU CARTON. AVANT DE JETER LE
CARTON, V脡RIFIEZ DOUBLE POUR VOUS ASSURER QUE TOUTES LES PI脠CES SONT TROUV脡ES.
INSPECTER LE LUMINAIRE AVANT L'INSTALLATION POUR TOUT DOMMAGE AU LUMINAIRE.
路GRADATION : LE LUMINAIRE PEUT 脢TRE CONTRL脡 PAR UN DISPOSITIF DE GRADATION MURALE. UTILISER
UNIQUEMENT UN GRADATEUR TRIAC/脡LECTRONIQUE. ASSUREZ-VOUS QUE LE CARTON EST MARQU脡
POUR UNE UTILISATION AVEC UNE SOURCE DE LUMI脠RE FLUORESCENTE 脌 INCANDESCENTE COMPACTE
UNIQUEMENT. CEUX-CI PEUVENT 脢TRE FOURNIS PAR VOTRE DISTRIBUTEUR 脡LECTRIQUE LOCAL,
CENTRE 脌 DOMICILE OU MAGASIN DE QUINCAILLERIE.
路VEUILLEZ NETTOYER UNIQUEMENT AVEC UN CHIFFON DOUX ET SEC ! N'UTILISEZ PAS DE NETTOYANTS
