Pagina 1/26

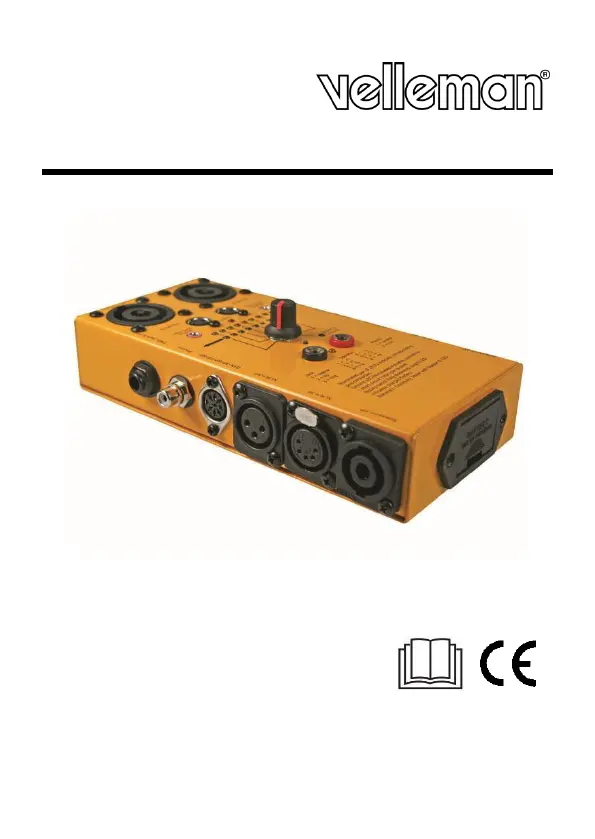

VTTEST15
USER MANUAL 2
GEBRUIKERSHANDLEIDING 5
MODE D’EMPLOI 8
MANUAL DEL USUARIO 11
BEDIENUNGSANLEITUNG 14
INSTRUKCJA OBSŁUGI 17
MANUAL DO UTILIZADOR 20
VTTEST15
V. 02 23/04/2018 2 ©Velleman nv –
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal
of the device after its lifecycle could harm the environment. Do
not dispose of the unit (or batteries) as unsorted municipal
waste; it should be taken to a specialized company for recycling.
This device should be returned to your distributor or to a local
recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman! Please read the manual thoroughly before
bringing this device into service. If the device was damaged in transit, do
not install or use it and contact your dealer.
2. Safety Instructions
Read and understand this manual and all safety signs
before using this appliance.
This device can be used by children aged from 8 years and
above, and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the device in a safe way and understand the
hazards involved. Children shall not play with the device.
Cleaning and user maintenance shall not be made by
children without supervision.
3. General Guidelines
Refer to the Velleman ® Service and Quality Warranty on the last pages of
this manual.
4. Battery
Warning: Do not puncture batteries or throw them in fire
as they may explode. Do not attempt to recharge non-
rechargeable batteries (alkaline). Dispose of batteries in
accordance with local regulations. Keep batteries away
from children.
VTTEST15
V. 02 23/04/2018 3 ©Velleman nv –
5. Operation
Turn the rotary switch fully clockwise to test the strength of a battery. The
battery LED will light bright green if the internal battery is fully charged.
Plug one end of the cable into the appropriate jack on the left side of your
VTTEST15. Plug the other end of the cable into the appropriate jack on the
right. Now, set the rotary switch to “1” to test the connection of contact “1”
on the plug inserted into the left. If there is a connection, the green LED will
light below “1” while a yellow LED will light above the contact of the plug
connected to the right. If no LED lights, there is no connection: the left
connection will either be floating or open. Set the rotary switch to “2” to test
contact “2” etc. until all contacts have been checked. If the GROUND LED
lights, there is a connection between the corresponding contacts and the
chassis.
To test a cable with banana plugs, just plug each end of the cable into the
banana jacks. The LED will light and the unit will beep if there is a
connection between the plugs. These jacks can also be used for continuity
tests using two probe leads.
Jack
Speakon®
1 = Sleeve
1 = -1
5 = -3
2 = Tip
2 = +1
6 = +3
3 = Ring
3 = -2
7 = -4
4 = +2
8 = +4
¼” TS Mono to ¼” Mono
¼” TRS to ¼” TRS
1 Sleeve
1 Sleeve, 3 Ring
1 Sleeve
1 Sleeve, 3
Ring
2 Tip
2 Tip
2 Tip
2 Tip
3 Ring
1 Sleeve, 3 Ring
(shorted with
sleeve)
3 Ring
1 Sleeve, 3
Ring
XLR Balanced to XLR Balanced
XLR Unbalanced to XLR
Unbalanced
Pin 1
Pin 1
Pin 1
Pin 1, Pin 3
Pin 2
Pin 2
Pin 2
Pin 2
Pin 3
Pin 3
Pin 3
Pin 1, Pin 3
¼” TS Mono to XLR Unbalanced
¼” TRS to XLR Balanced
1 Sleeve
Pin 1, Pin 3
1 Sleeve
Pin 1
2 Tip
Pin 2
2 Tip
Pin 2
3 Ring
Pin 1, Pin 3
(shorted with
sleeve)
3 Ring
Pin 3
