©2019 Hestan Commercial Corporation
1
EN
COLORED PANEL
REPLACEMENT
CABINETRY - AGCP SERIES
IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
THE INSTRUCTIONS HEREIN SHOULD BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN.
IF CABINET OR DRAWER IS NEAR AN APPLIANCE, IT MUST BE COMPLETELY COOL AND THE GAS
SOURCE MUST BE SHUT OFF. THE POWER MUST BE DISCONNECTED.
Some parts inside your cabinet or drawer have sharp edges. Care must be
taken when handling the various components to avoid personal injury. Wear
gloves when handling.
TOOLS REQUIRED:
Flat and Phillips screwdrivers

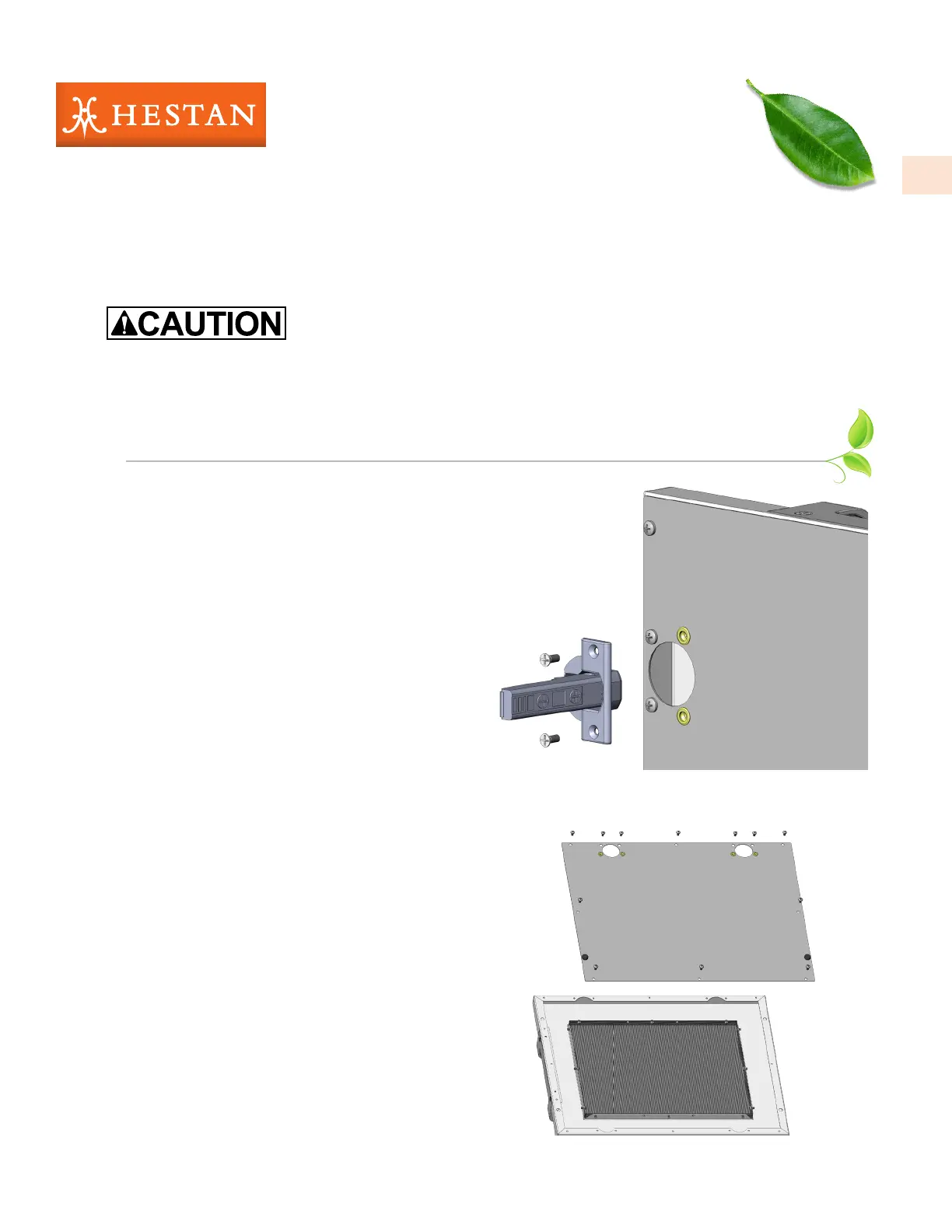

PART REPLACEMENT - TYPICAL DOOR (VARIOUS PRODUCTS)
1. Unclip door hinge from frame. Consult the
Installation Manual 009798 or 009799 which came
with your cabinet product. If door was part of a
Grill Cart, consult the manual which came with
the cart.
Remove the hinges from the back face of the door
as shown in Fig. 1.
FIG. 1
2. Lay the door on a flat surface with a blanket or
towel to protect the door finish. Remove the door
liner by removing all screws as shown in Fig. 2.
FIG. 2
©2019 Hestan Commercial Corporation
2
EN
PART REPLACEMENT - TYPICAL DOOR (CONTINUED)
PART REPLACEMENT - LIFT-OFF DOOR (AGLP)
3. Remove the textured panel insert by
removing all the internal screws as
shown in Fig. 3.
4. Re-assembly is the reverse process. It
is recommended to install all screws
by hand, and NOT use a drill-driver or
screw gun. It is very easy to strip the
threaded holes.
Re-attach and adjust doors to frame
as per Installation Manual 009798 or
009799 which came with your cabinet
product.
If the door was part of a Grill Cart,
consult the manual which came with
the cart.
FIG. 3
1. For the AGLP cabinet, remove the door by pulling straight up until the door comes off the pins
(shown here in red). Panel replacement is the same as step 2-4 in the previous section.
DOOR
PINS
©2019 Hestan Commercial Corporation
3
EN
PART REPLACEMENT - TYPICAL DRAWER
RELEASE
LEVER DRAWER
FRAME
2. Lay the drawer face-down on a flat surface with a blanket or towel to protect the finish.
Remove the drawer face from the drawer box by removing 10 screws as shown below in red.
1. To remove the drawer(s) from
the box, press the release lever
(shown here in green) on each
side of the drawer to disengage
the slide (up on the left, down
on the right), then pull the
drawer all the way out.
Cart drawers are removed in a
similar way.
